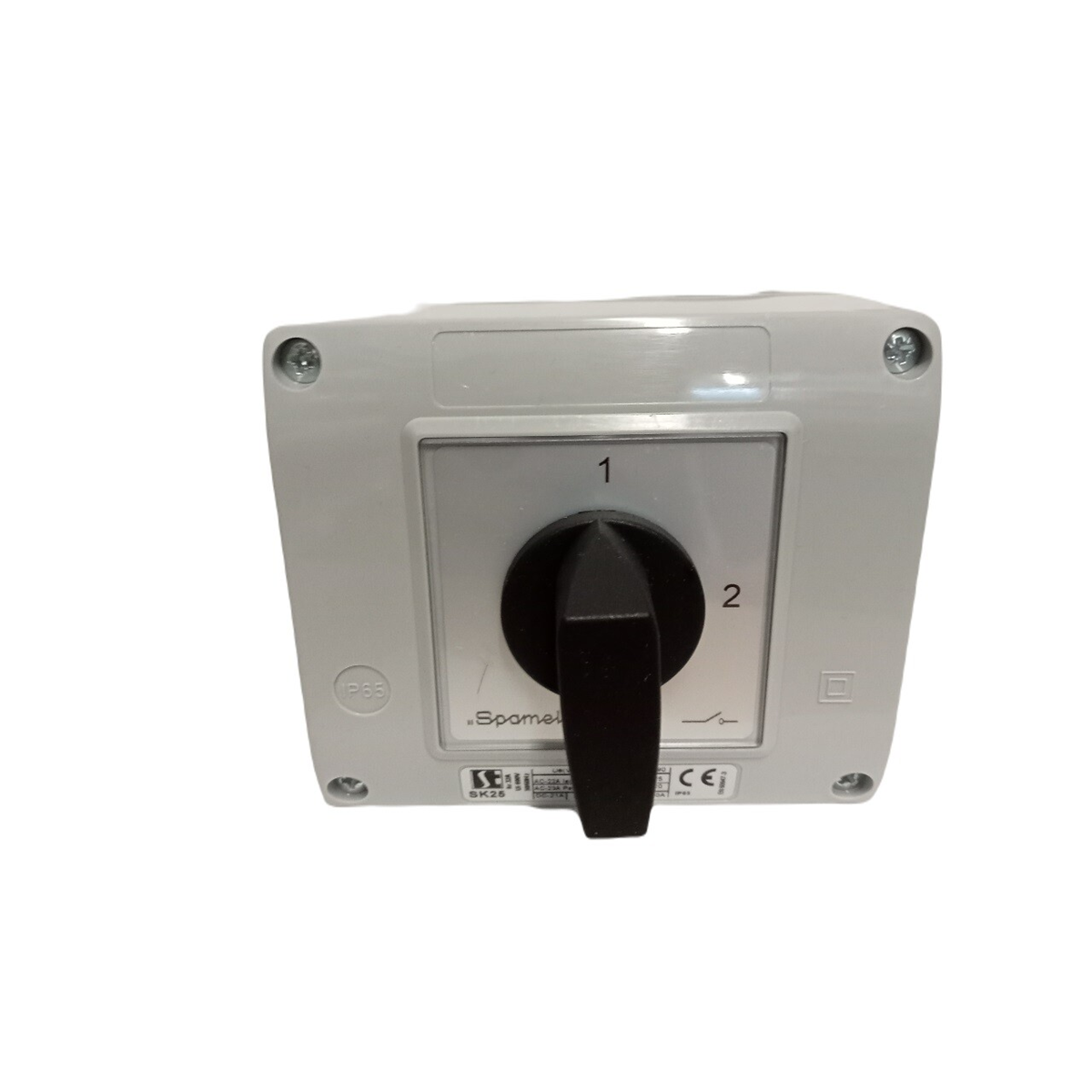

Cam switch 32A in SK25 OB13 housing SK25-2.4228\ OB13

Name: Cam switch 32A in SK25 OB13 housing
Brand: SPAMEL
SKU: ALK240SPAM
Price: 12.40 PLN
Availability: InStock

local index:

ALK240SPAM

Catalog No:

SK25-2.4228\ OB13

Click on the photo to enlarge

Manufacturer: SPAMEL

Rated voltage [V]: 690

Rated current [A]: 32

Level of security: IP65

See full description

Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Outlet

Price:

12,40 €

gross / pcs.

(including VAT 23%)

The lowest price from 30 days before the reduction: 17,01 € gross -4,61 €

Base price: 31,07 € gross

Accessible 15 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details

Product description

Rated impulse withstand voltage Uimp: 6 kV Continuous rated current Iu=Ith: 32 A Rated operational current Ie in cat. AC-21A, AC-22A: 25A (230/400/500/690V) Rated switching power Pe in AC-23A category: 6KW (230V) 11KW (400V) 14KW (500V) 20kW (690V) Rated switching power Pe in cat. AC-3: 4.5KW (230V) 8KW (400V) 10KW (500V) 14KW (690V) Rated operational current Ie in category DC-21A: 25A (24V) 13A (110V) 10A (220V) Rated short-time withstand current Icw(1s): 0.5 kA Rated short-circuit making capacity Icm: 0.7 kA Conventional short-circuit current: 10 kA Rated current gG fuse link: 25 A Cross-section of connecting wires: 4...10 mm² Terminal tightening torque: 1.2Nm Fixing the connector to the desktop: 48 Mechanical life: 3.0 million (operating cycles) Ambient temperature: -40 ... +70°C (work) -40 ... +70°C (storage)
