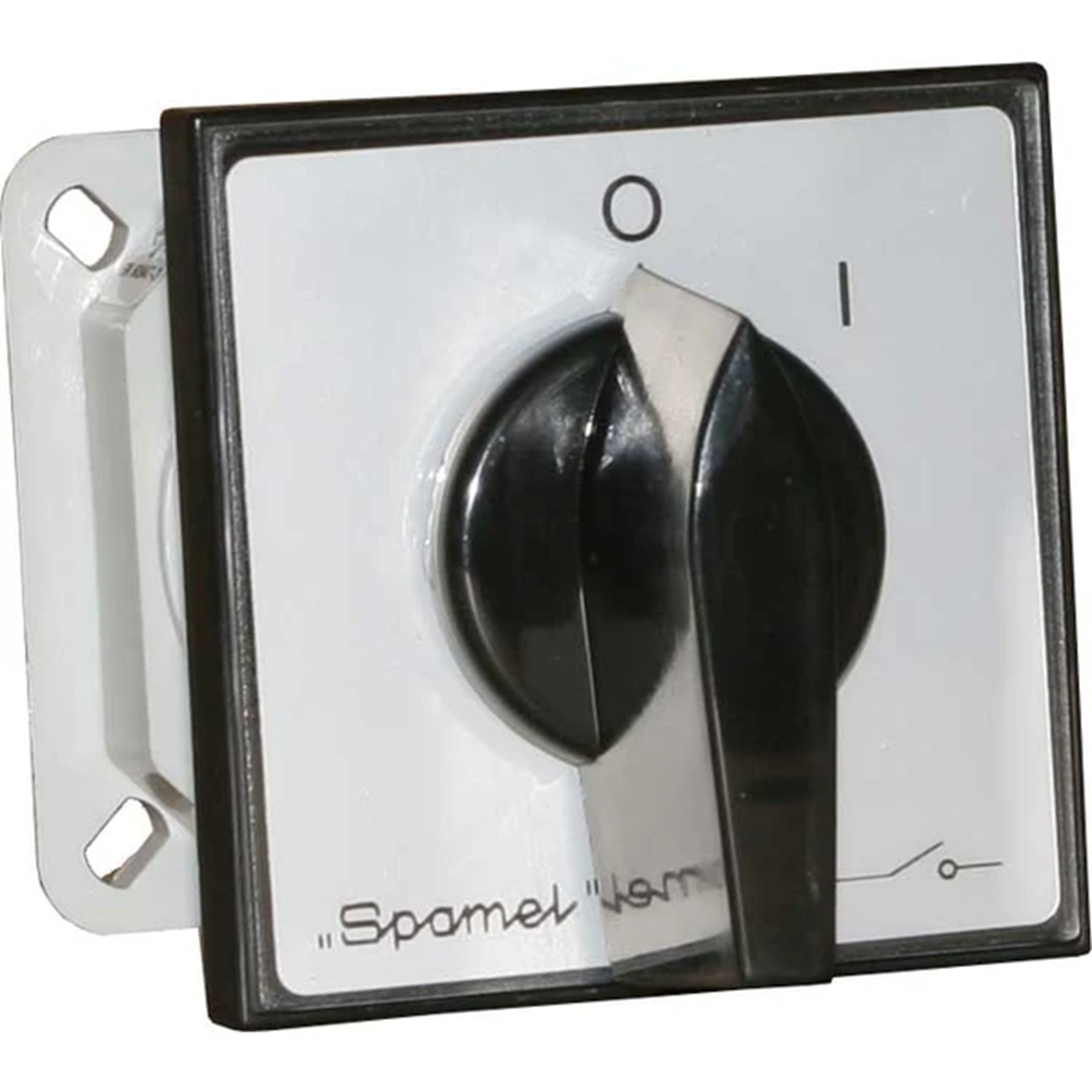

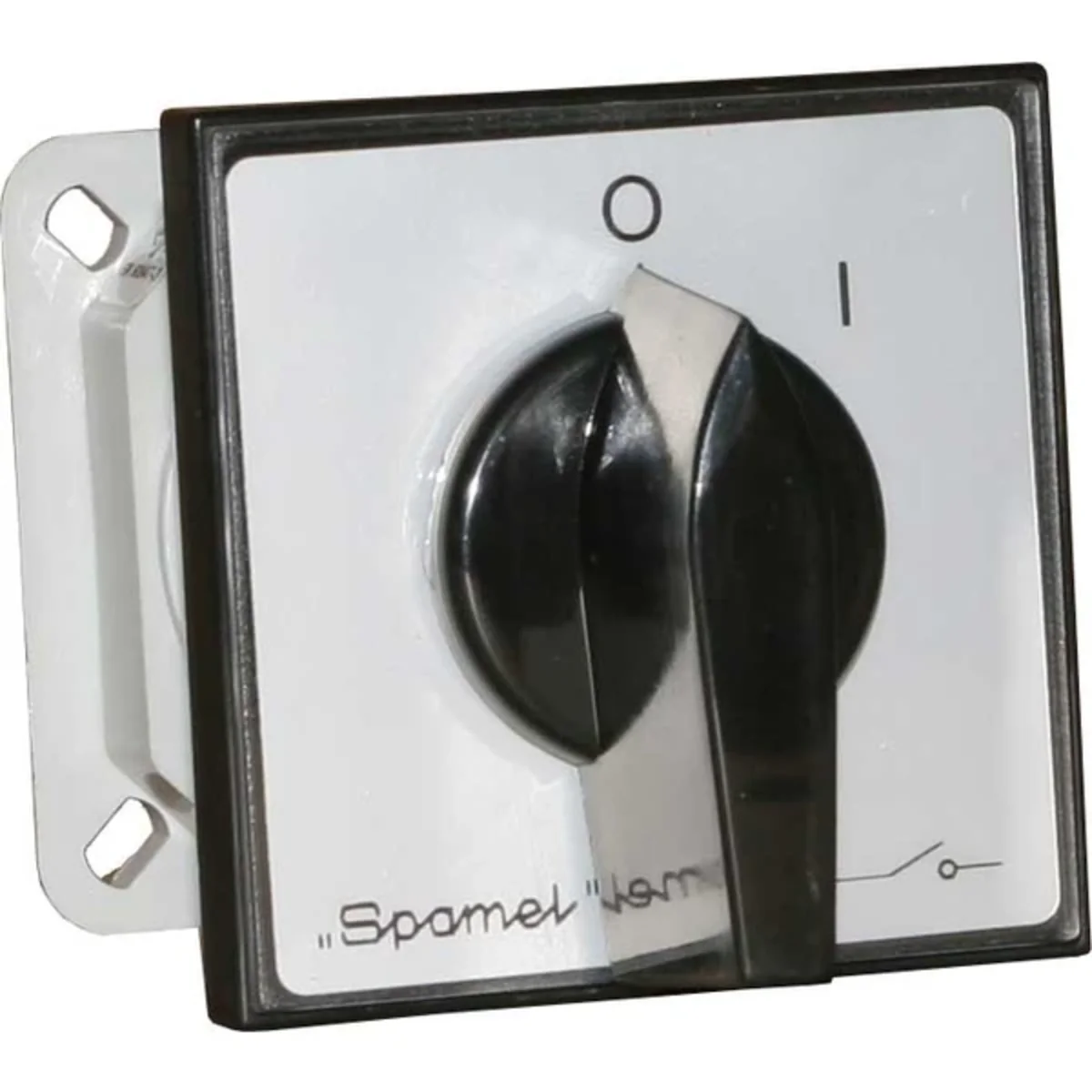

Cam switch 32A, 0-1 switch, three-pole, base-mounted ŁK32R-2.8211\B03

local index:
ALK055SPAM
Catalog No:
ŁK32R-2.8211\B03
EAN code:
5907723005815
Manufacturer: SPAMEL
Color: Gray
Rated insulation voltage [V]: 690
Continuous current [A]: 32
Price:
20,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cam switches are devices for mechanical switching on and off of currents with the possibility of implementing a specific switching program as a function of turning the knob. Cam switches are used in housings of low voltage electrical installations, especially as circuit breakers, disconnectors, switches and control switches. Cam switches can be installed indoors (pollution degree 3 - industrial use) at -40...+70°C.

Technical data

  • Color
    Gray
  • Continuous current [A]
    32
  • Accurate color
    Gray
  • Rated insulation voltage [V]
    690
  • Level of security
    IP65

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    32 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of control element
    Turn button
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    17 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    Yes
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
