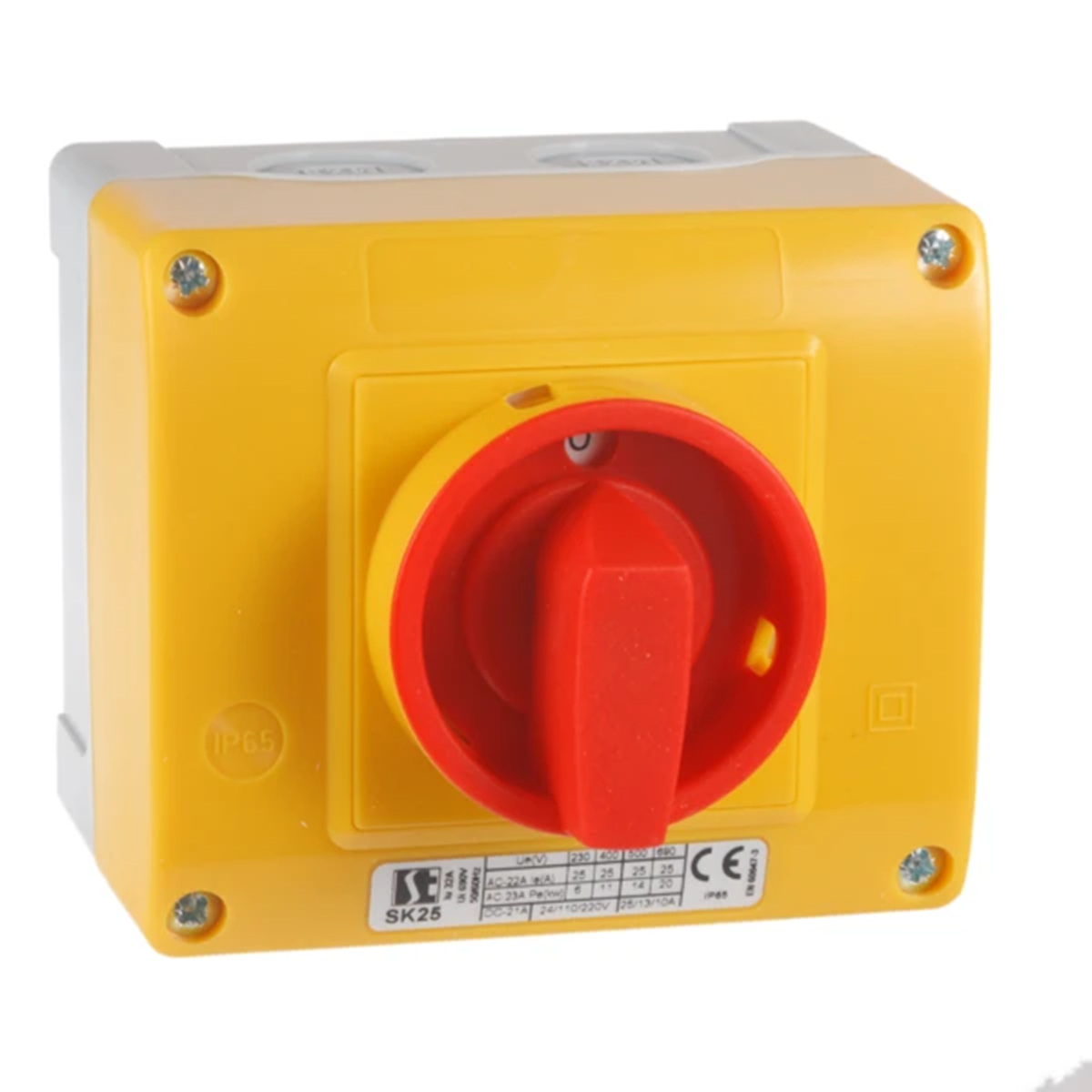

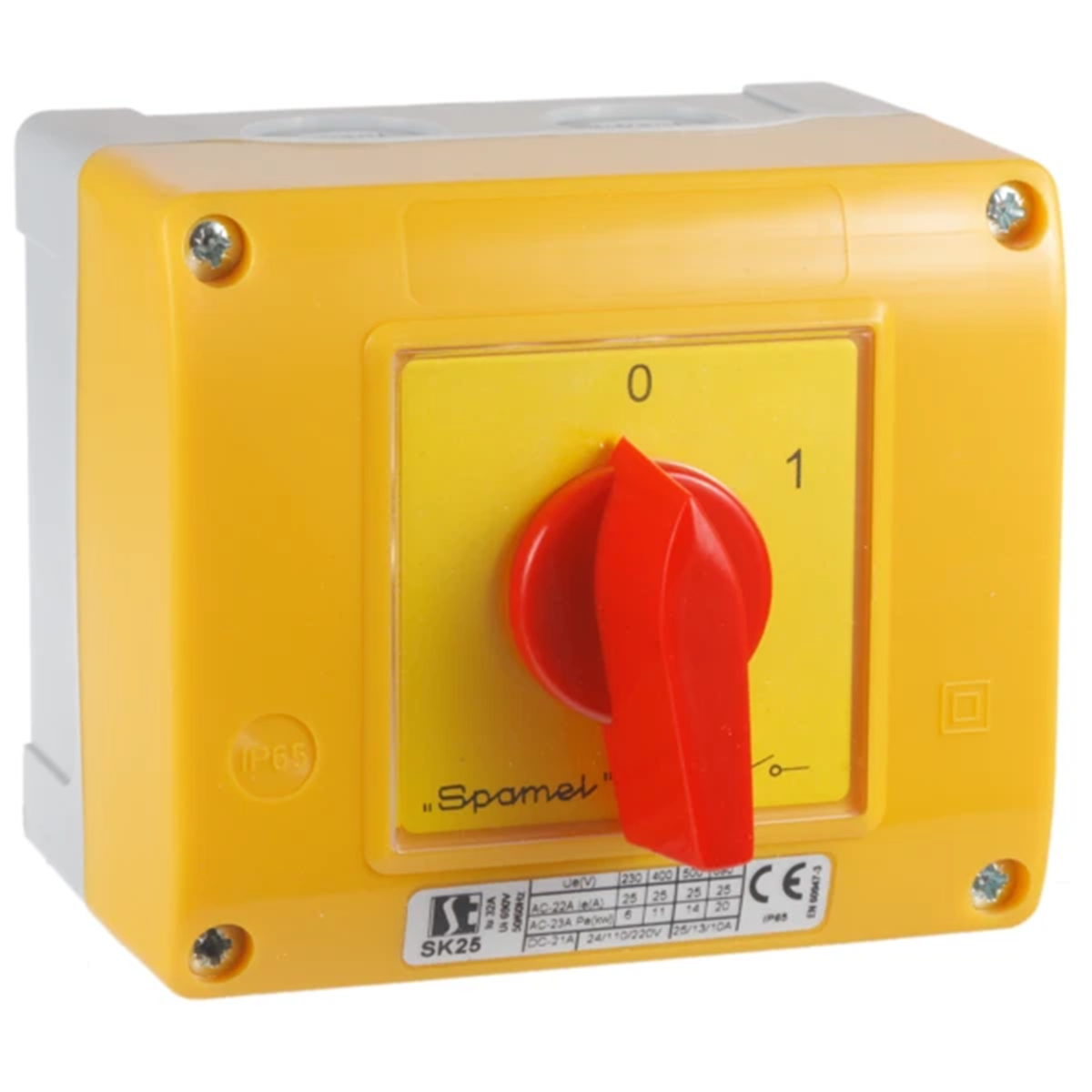

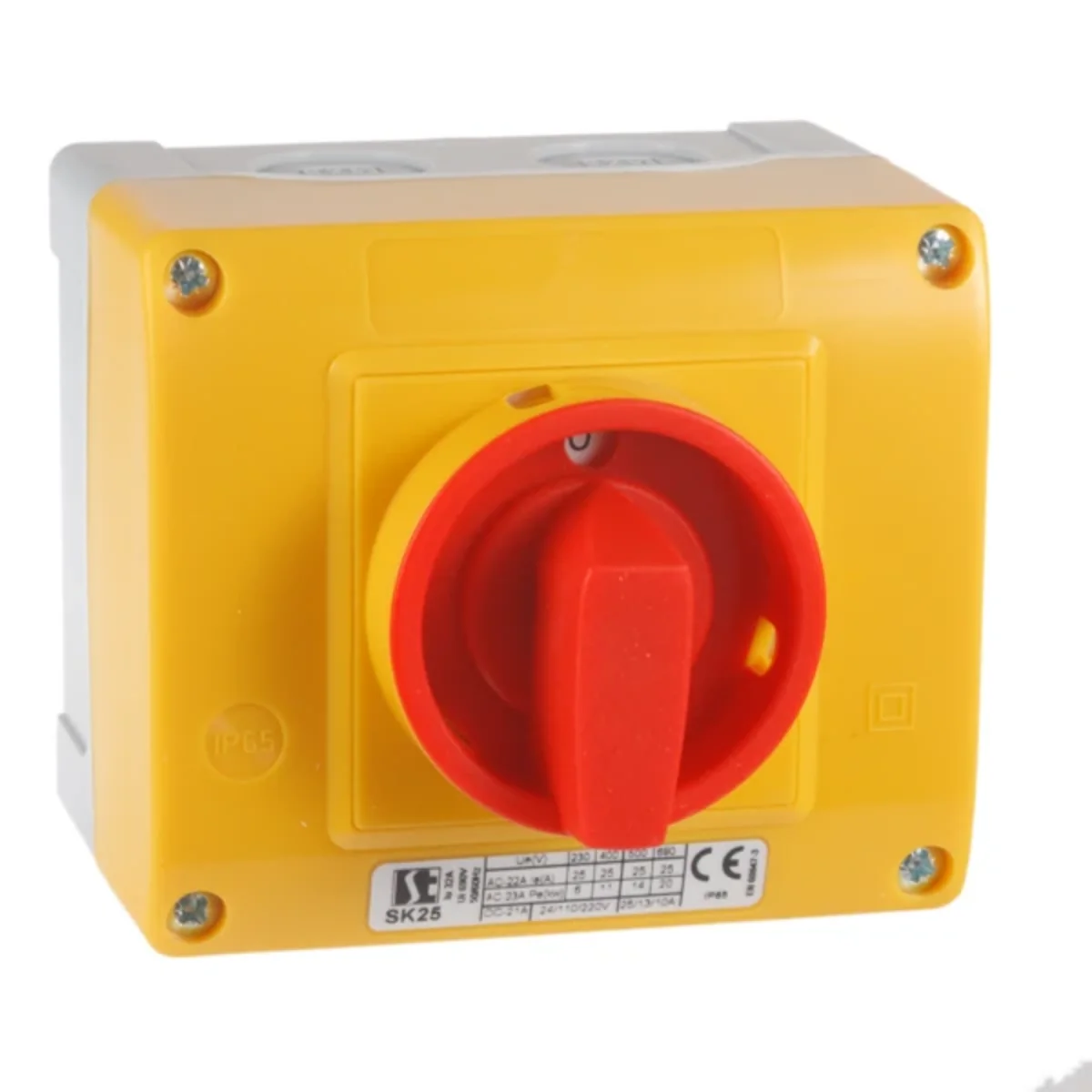

Cam switch 25A, 0-1 three-pole switch, in OB13 housing with yellow-red closing face SK25-2.8211\OB13ZC
local index:
ALO014SPAM
Catalog No:
SK25-2.8211\OB13ZC
EAN code:
5907723072244
Price:
30,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cam switches are electric rotary multi-circuit switches adapted to switch on and off currents. Cam switches are used in the circuits of low voltage electrical installations, especially as circuit breakers, disconnectors, switches and control switches. Cam switches can be installed indoors (pollution degree 3 - industrial use) at -40...+70°C.
Technical data
-
ColorRed
-
Level of securityIP65
-
Accurate colorRed
-
Continuous current [A]25
-
Rated operational power at AC-3, 400 V [kW]8
Other technical data
-
ModelReverser
-
With zero (off) positionYes
-
Rated permanent current Iu25 A
-
Degree of protection (IP), front sideIP65
-
Number of auxiliary contacts as normally open contact0
-
Suitable for floor mountingYes
-
Suitable for distribution board installationNo
-
Complete device in housingYes
-
Type of control elementTurn button
-
Number of poles3
-
With retraction in 0-positionNo
-
Rated operation power at AC-3, 400 V8 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Suitable for front mountingNo
-
Suitable for intermediate mountingNo
-
Housing materialPlastic
-
Type of electrical connection of main circuitScrew connection
