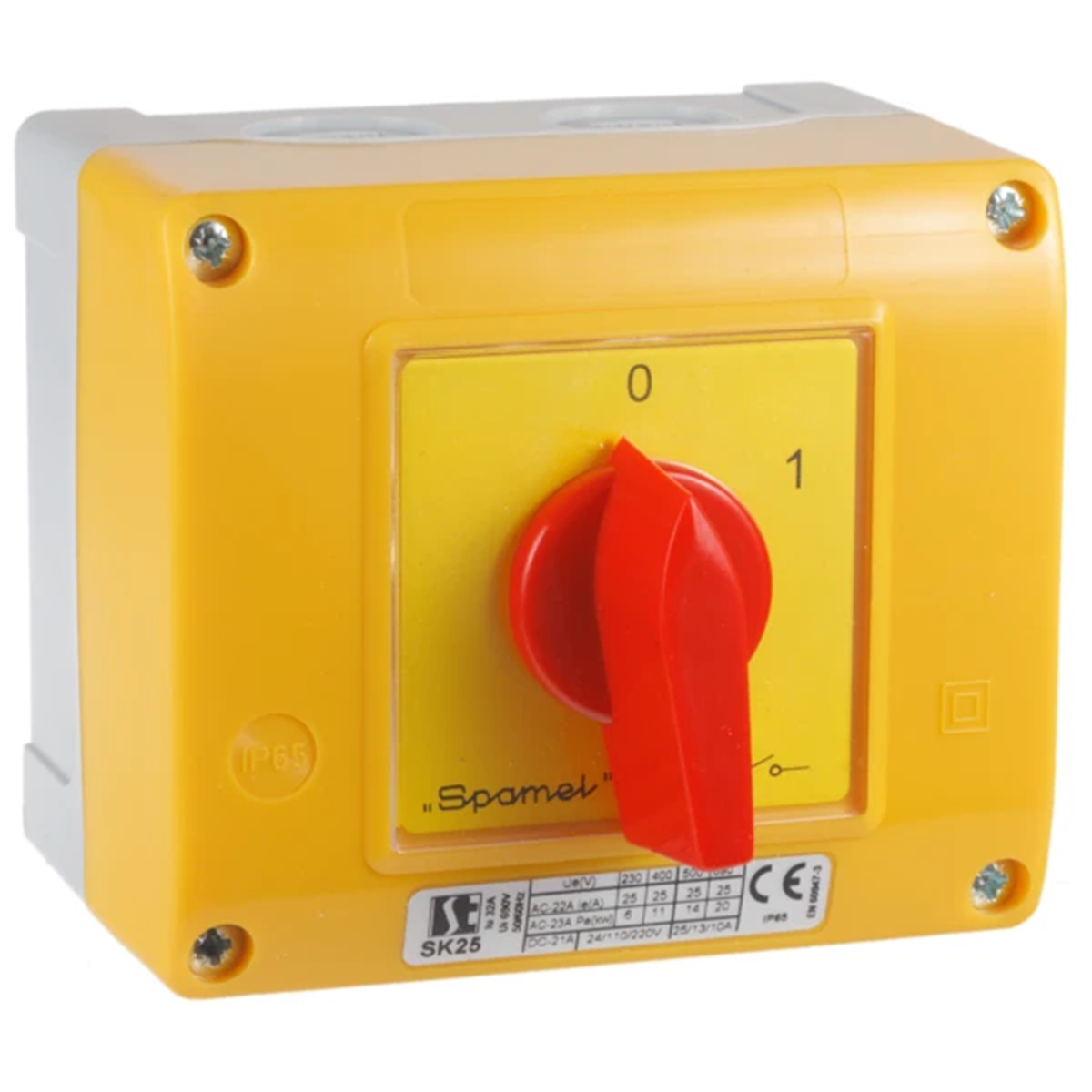

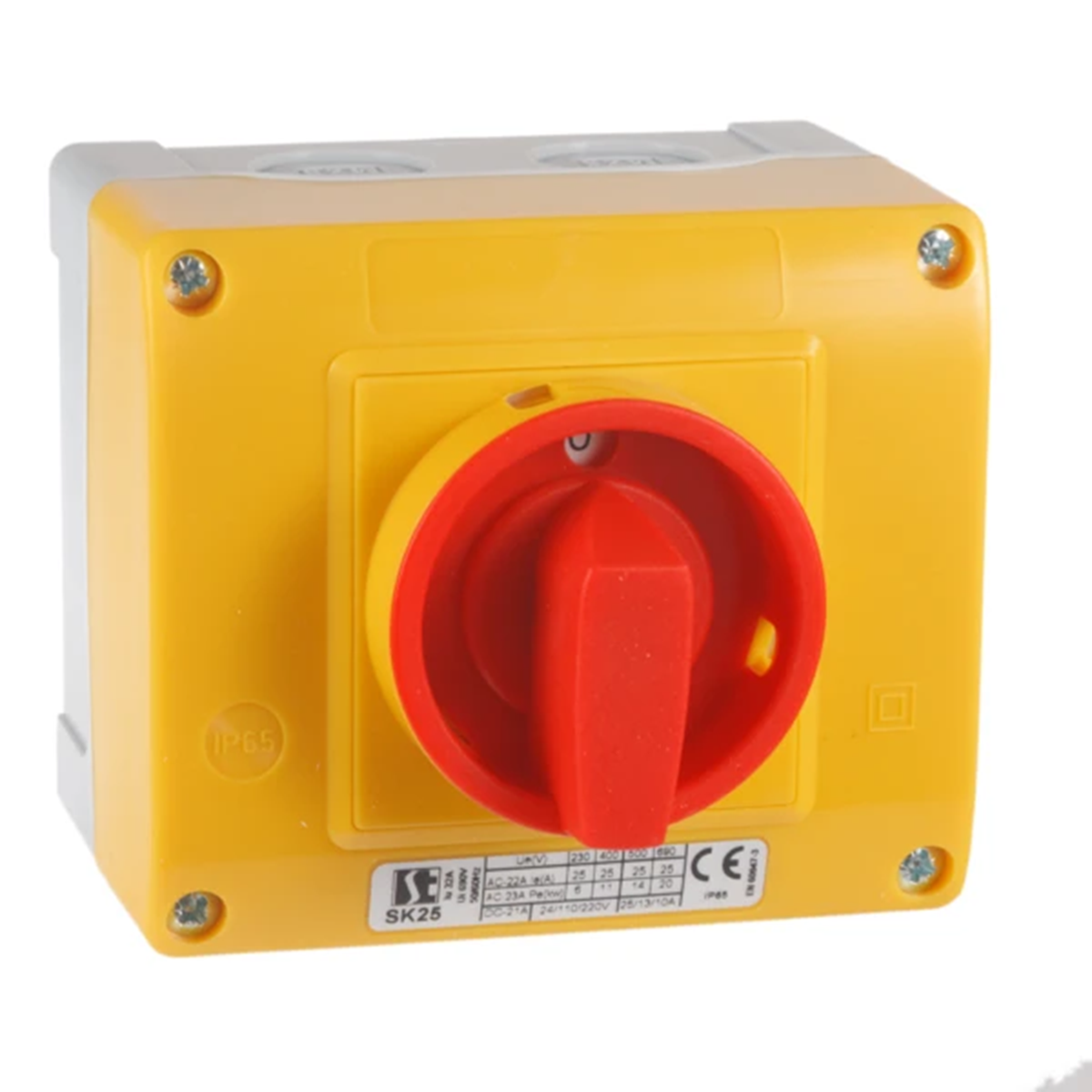

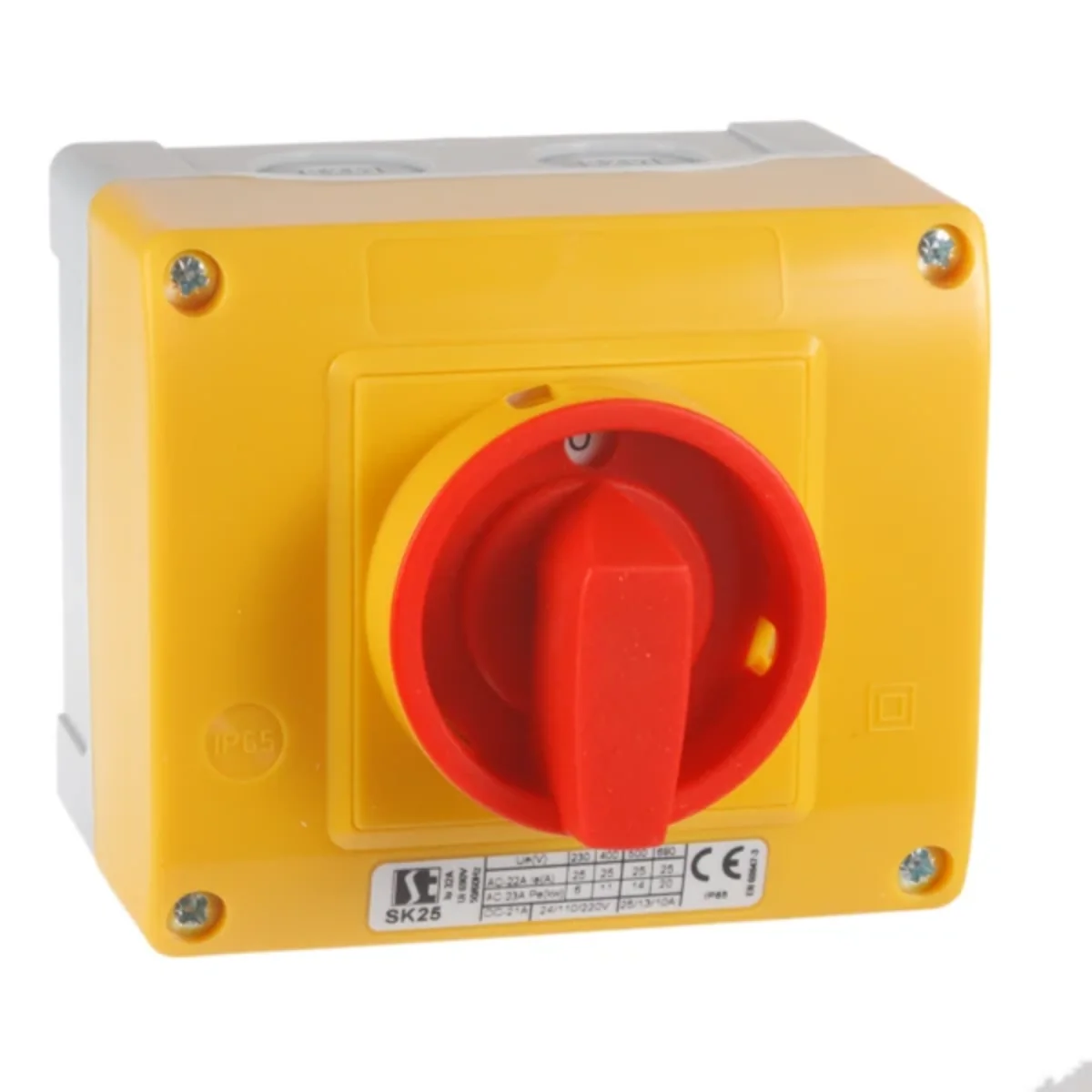

Cam switch 25A 0-1 switch (2-pole) in OB13 housing with yellow/red closing face SK25-1.828\OB13ZC
Místní index:
ALK426SPAM
Katalogové číslo.:
SK25-1.828\OB13ZC
EAN kód:
5907723113084
Výrobce:
SPAMEL
Minimum cross-section of wires [mm2]: 4
Tightening torque [Nm]: 1.2
Continuous rated current [A]: 32
Cena:
27,85 €
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Dotaz na výrobek
Popis produktu
SK type cam switch
0-1 switch (double pole) in OB13 casing with yellow-red closing front
Cam switches are electric rotating multi-circuit switches adapted to switch on and off currents. Cam switches are used in the circuits of low voltage electrical installations, especially as circuit breakers, disconnectors, switches and control switches. Cam switches can be installed indoors (pollution degree 3 - industrial use) at -40...+70°C.
| Rated insulation voltage Ue | 690 V |
| Rated switching power Pe in category AC- 23A | 6KW (230V) 11KW (400V) 14KW (500V) 20KW (690V) |
| Rated switching power Pe AC-3 | 4.5 kW (230 V) 8 kW (400 V) 10 kW (500 V) 14 kW (690 V) |
| Rated operational current Ie at DC-21A | 25 A (24V) 13A (110V) 10A (220V) |
| Rated short-time withstand current Icw(1s) | 0.5 kA |
| Rated short-circuit making capacity Icm | 0.7 kA |
| Rated short-circuit current | 10 kA |
| Mounting the switch to the panel | □48 |
| Mechanical durability | 3.0 million (operating cycles) |
| Ambient temperature | -40 . .. +70°C (operation) -40 ... +70°C (storage) |
| Vibration resistance (according to IEC 60068-2- 6) | 2...13, 2...100 Hz (frequency) ± 1 mm (displacement amplitude) ± 0.7 g (acceleration amplitude) |
| Shock resistance (according to IEC 60068-2-27) | 15 g (peak acceleration) 11 ms (pulse duration) |
| Damp heat cyclic resistance (IEC 60068-2-30) | 55°C (ambient temperature ) 95% relative humidity |
| Resistance to cyclic salt fog (according to IEC 60068-2-52) | sharpness sharpness by 1 |
Technické údaje
-
Minimum cross-section of wires [mm2]4
-
Continuous rated current [A]32
-
Level of securityIP65
-
Maximum conductor cross-section [mm²]10
-
Tightening torque [Nm]1.2
-
Rated switching current [A]25
-
Rated impulse voltage [kV]4
-
Fuse link rated current [A]25
Další technické údaje
-
ModelReverser
-
With zero (off) positionYes
-
Rated permanent current Iu25 A
-
Degree of protection (IP), front sideIP65
-
Number of auxiliary contacts as normally open contact0
-
Suitable for floor mountingYes
-
Suitable for distribution board installationNo
-
Complete device in housingYes
-
Type of control elementTurn button
-
Number of poles2
-
With retraction in 0-positionNo
-
Rated operation power at AC-3, 400 V8 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Suitable for front mountingNo
-
Suitable for intermediate mountingNo
-
Housing materialPlastic
-
Type of electrical connection of main circuitScrew connection
