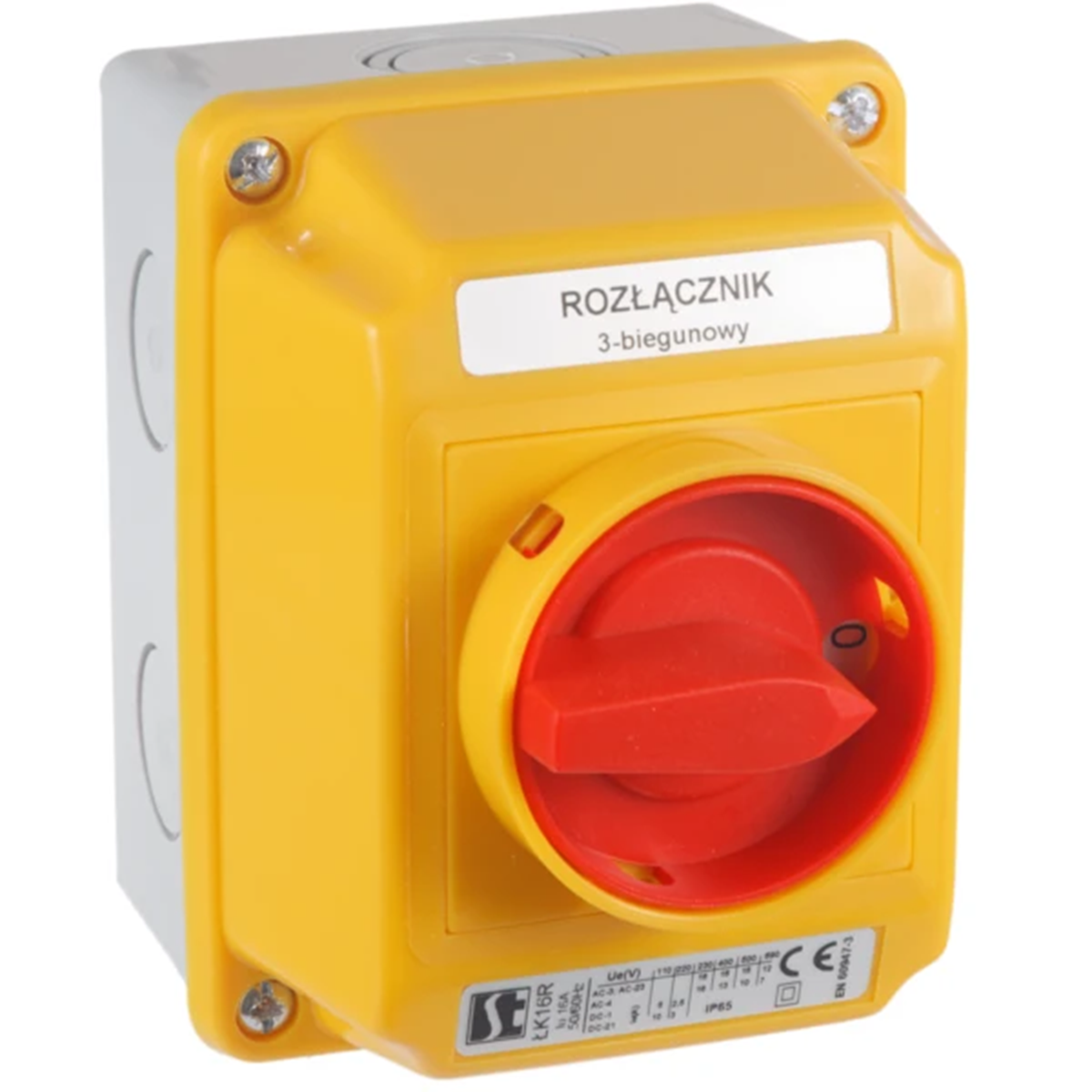

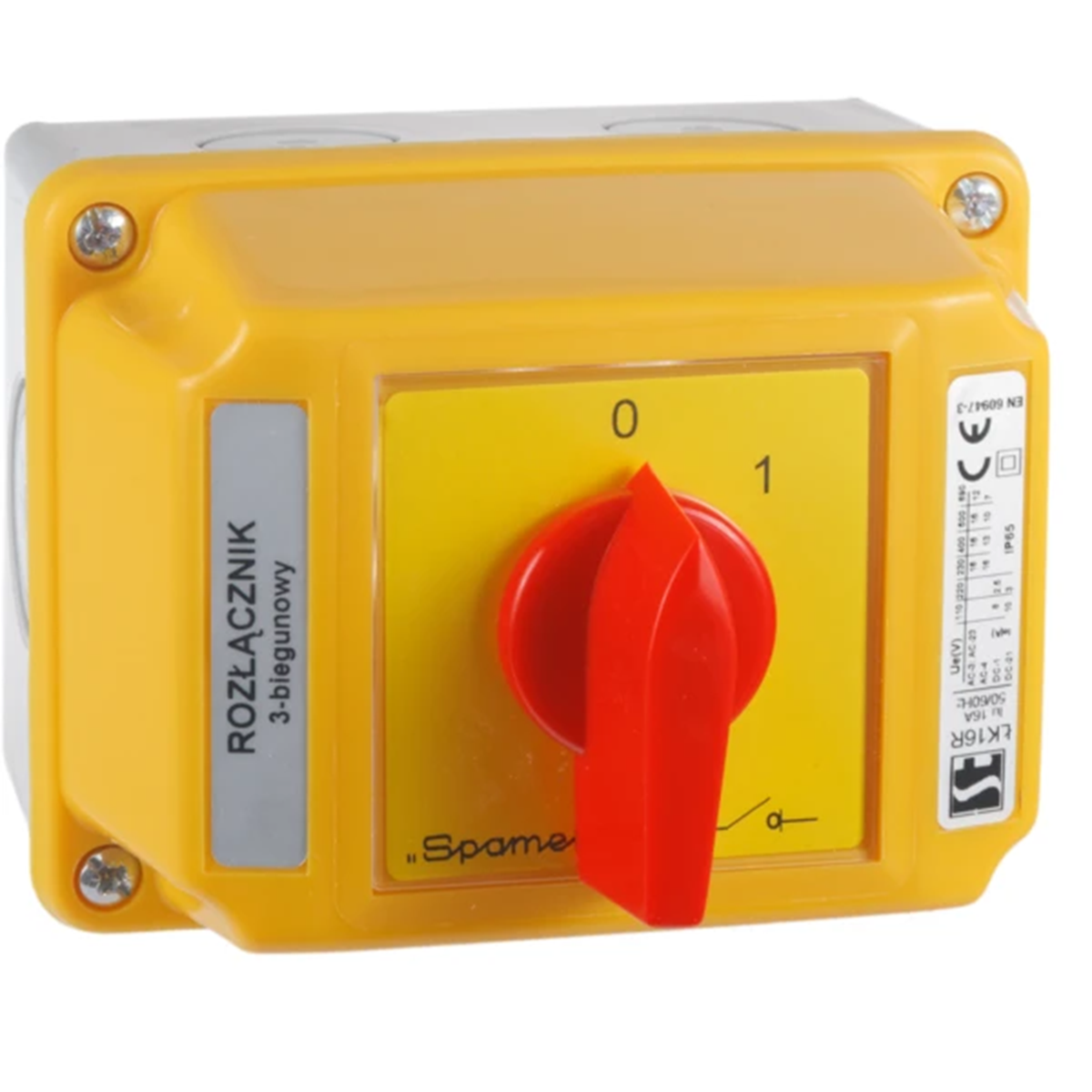

Cam switch 25A, 0-1 4-pole switch, in OB2 casing with yellow/red closing face ŁK25R-2.8210\OB2ZC
local index:
ALK137SPAM
Catalog No:
ŁK25R-2.8210\OB2ZC
EAN code:
5907723024205
Price:
31,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cam switch 25A, 0-1 4-pole switch, in OB2 casing with yellow/red lockable front
Technical data
-
ColorWhite
-
Level of securityIP65
-
Accurate colorWhite
-
Continuous current [A]25
-
Rated operational power at AC-3, 400 V [kW]13
Other technical data
-
ModelReverser
-
With zero (off) positionYes
-
Rated permanent current Iu25 A
-
Degree of protection (IP), front sideIP65
-
Number of auxiliary contacts as normally open contact0
-
Suitable for floor mountingYes
-
Suitable for distribution board installationNo
-
Complete device in housingYes
-
Type of control elementTurn button
-
Number of poles4
-
With retraction in 0-positionNo
-
Rated operation power at AC-3, 400 V13 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Suitable for front mountingNo
-
Suitable for intermediate mountingNo
-
Housing materialPlastic
-
Type of electrical connection of main circuitScrew connection
Manufacturer details
-
ManufacturerSPAMEL Spółdzielnia Inwalidów
-
Address56-416 Twardogóra Wojska Polskiego 3
-
Phone number
-
E-mail
-
Tax identification number9110007746
-
GLN5909000065000
