Cam switch 16a, single-pole 1-0-2 switch, in OB11 enclosure SK16-1.834\OB11

local index:
ALK753SPAM
Catalog No:
SK16-1.834\OB11
EAN code:
5907723069336
Manufacturer: SPAMEL
Continuous current [A]: 16
Level of security: IP65
Price:
21,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

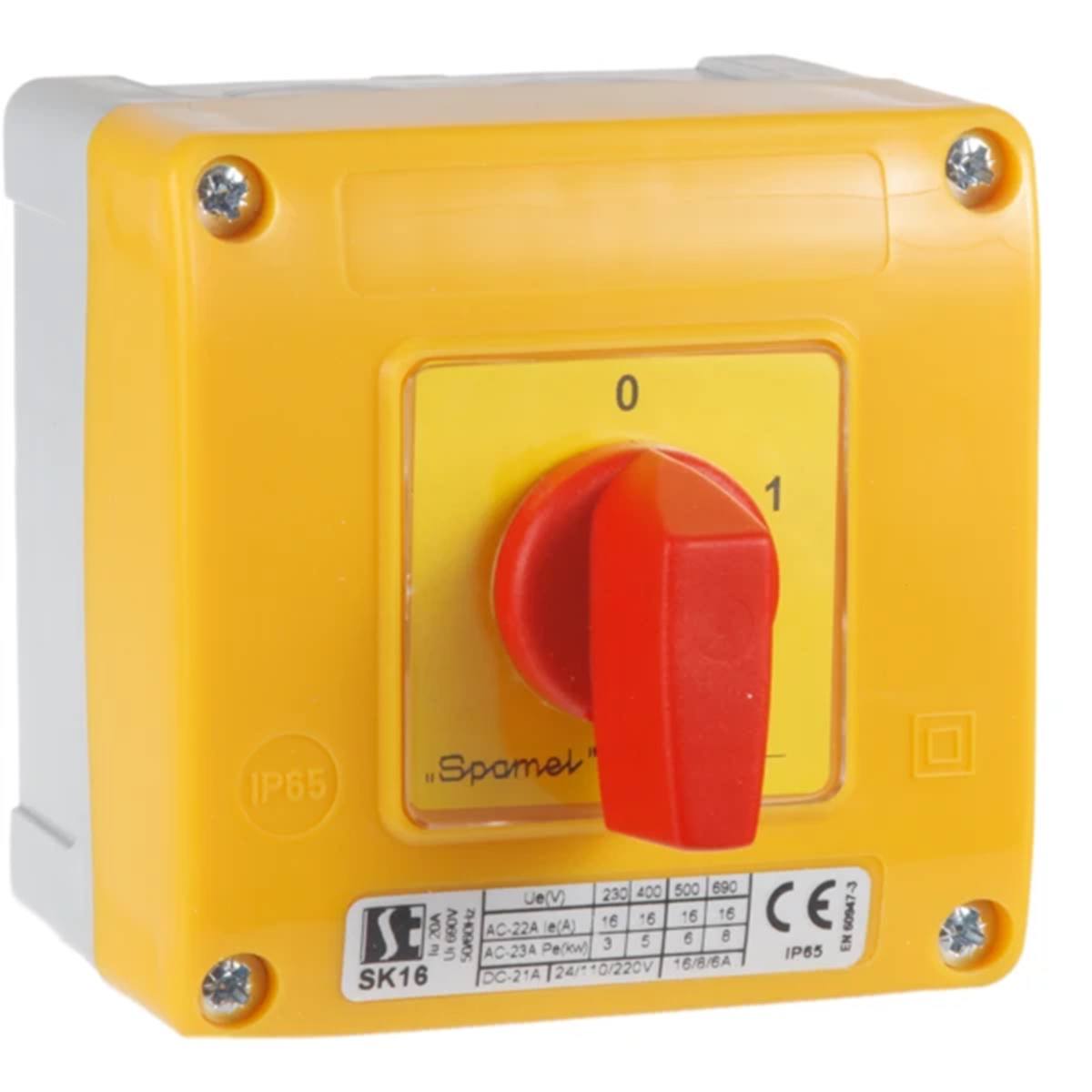

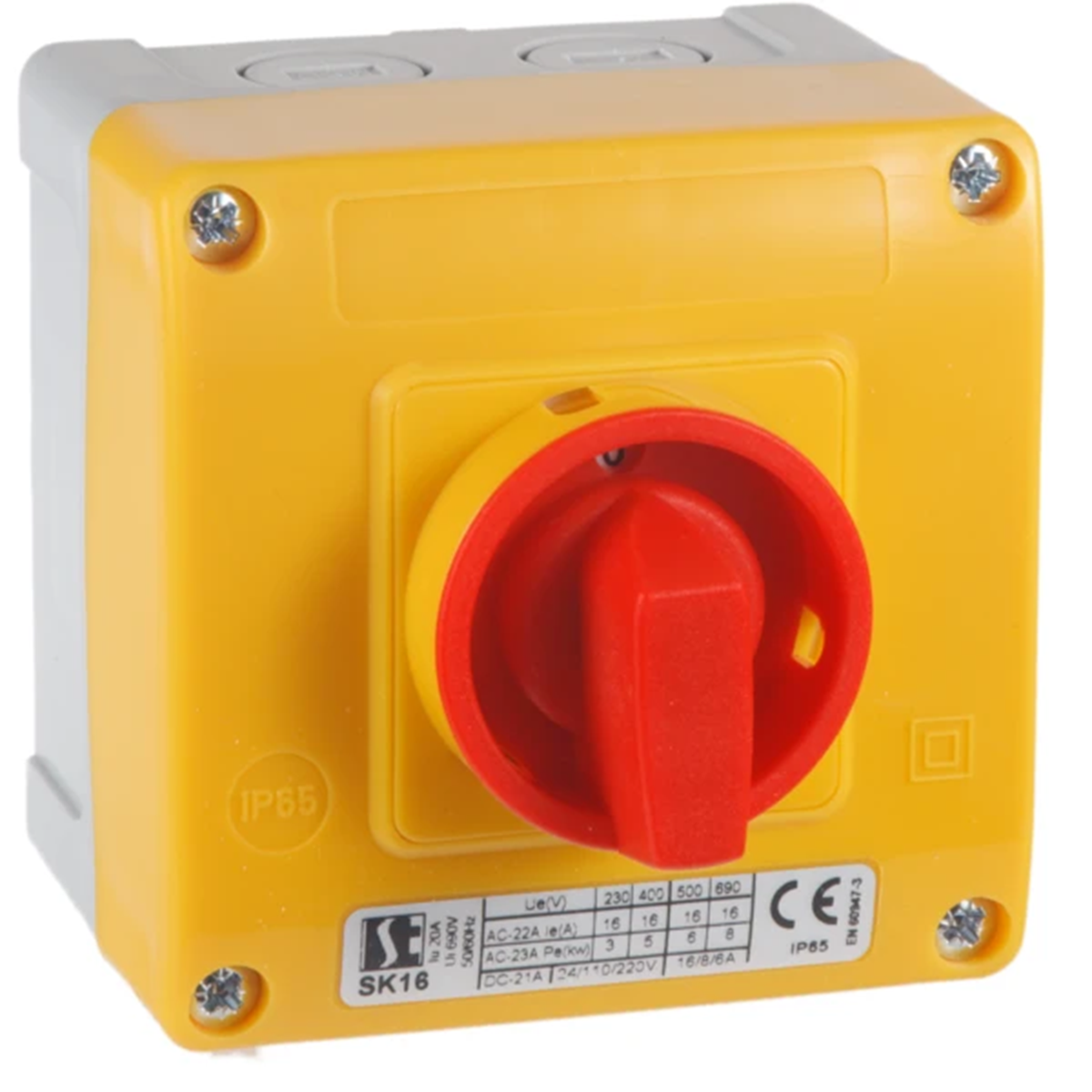

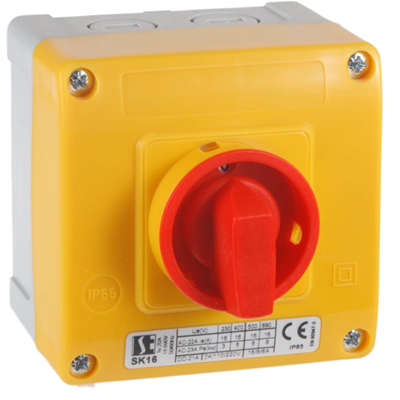

Cam switch 16a, single-pole 1-0-2 switch, in OB11 enclosure

Technical data

  • Continuous current [A]
    16
  • Level of security
    IP65

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    16 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    Yes
  • Type of control element
    Turn button
  • Number of poles
    1
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    3.5 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
