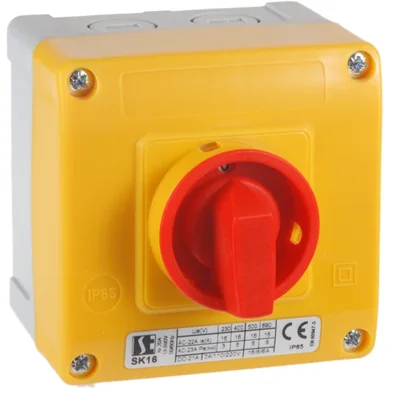

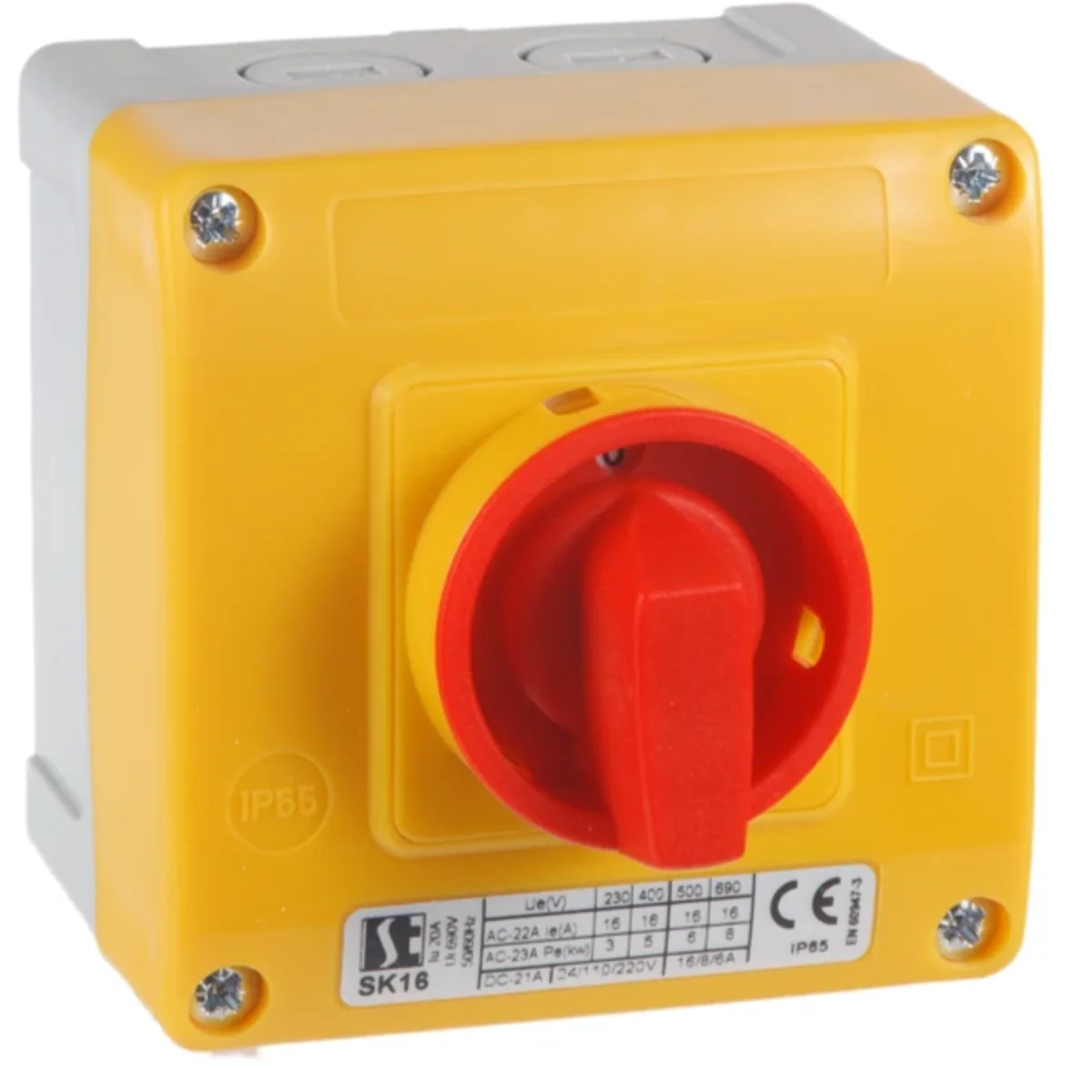

Cam switch 16A, L-O-R reversing switch, in OB11 housing with yellow-red lockable front SK16-3.8368\OB11ZC

local index:
ALK975SPAM
Catalog No:
SK16-3.8368\OB11ZC
EAN code:
5907723160569
Manufacturer: SPAMEL
Color: Red
Continuous current [A]: 16
Level of security: IP65
Price:
31,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cam switch 16A, L-O-R reversing switch, in OB11 housing with yellow-red lockable front

Technical data

  • Color
    Red
  • Level of security
    IP65
  • Accurate color
    Red
  • Continuous current [A]
    16
  • Rated operational power at AC-3, 400 V [kW]
    3.5

Other technical data

  • Model
    Reverser
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    3.5 kW
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    16 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    Yes
  • Type of control element
    Turn button
