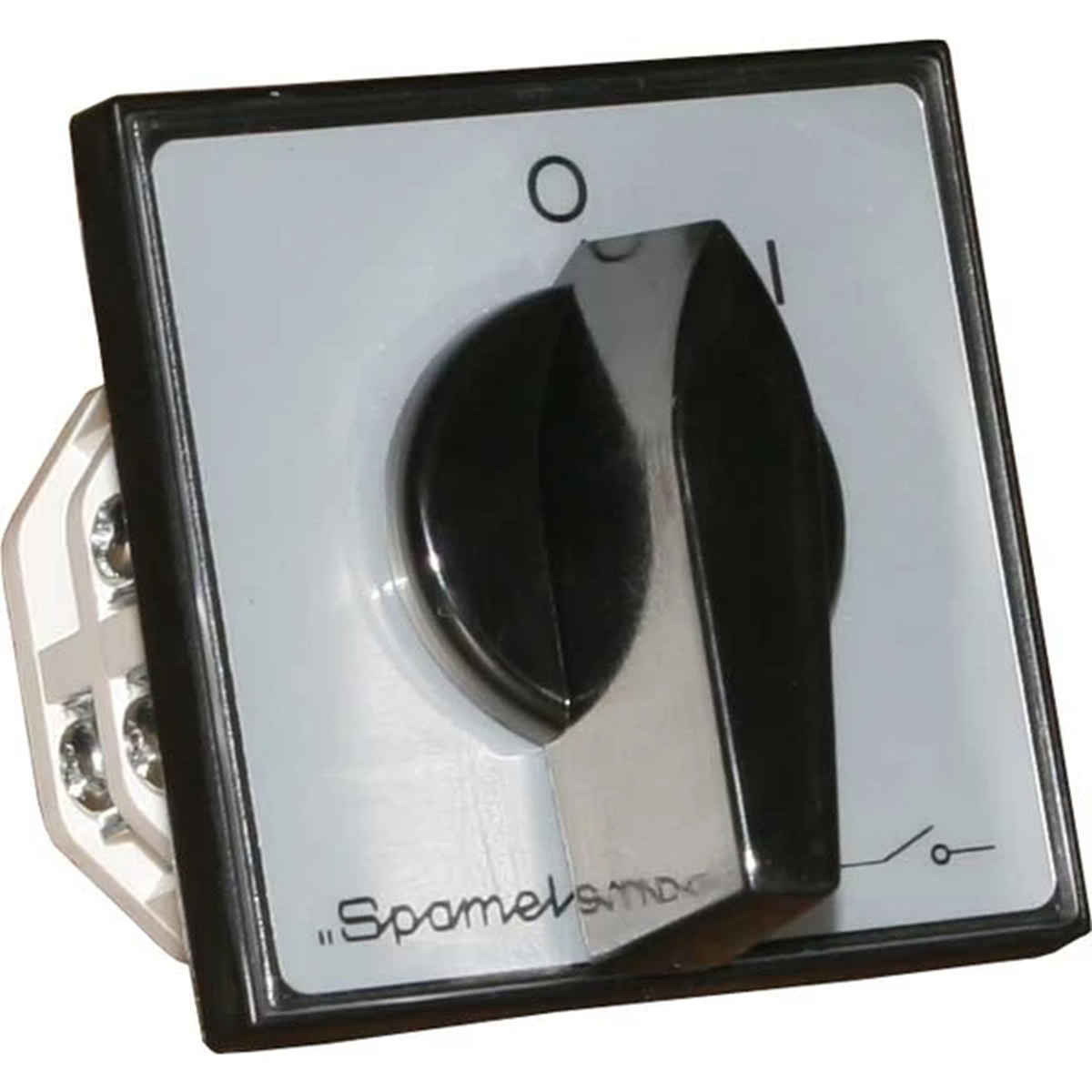

Cam switch 0-1 single-throw 16A for built-in ŁK15-1.825\P03
local index:
ALK996SPAM
Catalog No:
ŁK15-1.825\P03
EAN code:
5907723014787
Manufacturer:
SPAMEL
Continuous current [A]: 16
Level of security: IP65
Rated operational power at AC-3, 400 V [kW]: 3.5
Price:
16,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cam switch 0-1 single-throw 16A for built-in
Technical data
-
Continuous current [A]16
-
Rated operational power at AC-3, 400 V [kW]3.5
-
Level of securityIP65
Other technical data
-
ModelReverser
-
With zero (off) positionYes
-
Rated permanent current Iu15 A
-
Degree of protection (IP), front sideIP65
-
Number of auxiliary contacts as normally open contact0
-
Suitable for floor mountingYes
-
Suitable for distribution board installationNo
-
Complete device in housingNo
-
Type of control elementTurn button
-
Number of poles1
-
With retraction in 0-positionNo
-
Rated operation power at AC-3, 400 V8 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Suitable for front mountingNo
-
Suitable for intermediate mountingYes
-
Housing materialPlastic
-
Type of electrical connection of main circuitScrew connection
