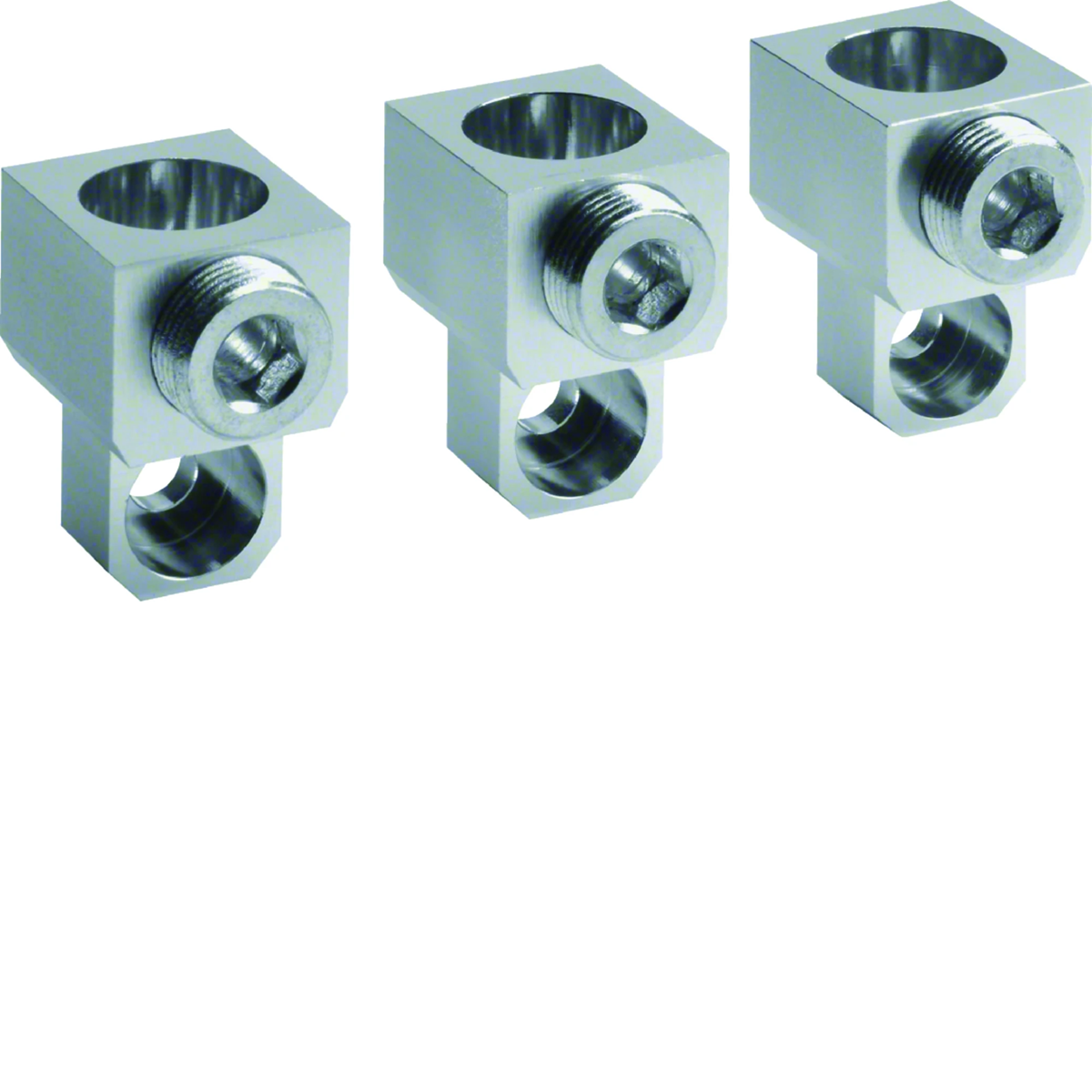

Cage terminals Al/Cu x250/h250 Al 3P 1x 95-240mm² HYB005H

local index:
ALA209HAGE
Catalog No:
HYB005H
EAN code:
3250613111748
Manufacturer: HAGER
Number of poles: 3
Tightening torque [Nm]: 25
Rated current [A]: 250
Price:
250,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cage terminals Al/Cu x250/h250 Al 3P 1x 95-240mm²

Technical data

  • Number of poles
    3
  • Rated current [A]
    250
  • power loss [W]
    9
  • Wire cross-section (cord) [mm²]
    95 - 240
  • PKWIU
    27.33.13.0
  • Tightening torque [Nm]
    25
  • Level of security
    IP4X
  • Power loss per pole [W]
    3
  • Conductor cross-section (wire) [mm²]
    95 - 240

Other technical data

  • Suitable for number of poles
    3

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 288 pcs.
Weight (kg) 0,232 0,265 3,290 101,960
Width (m) 0,082 0,100 0,310 0,800
Length (m) 0,120 0,085 0,125 1,150
Depth (m) 0,100 0,120 0,360 1,200
