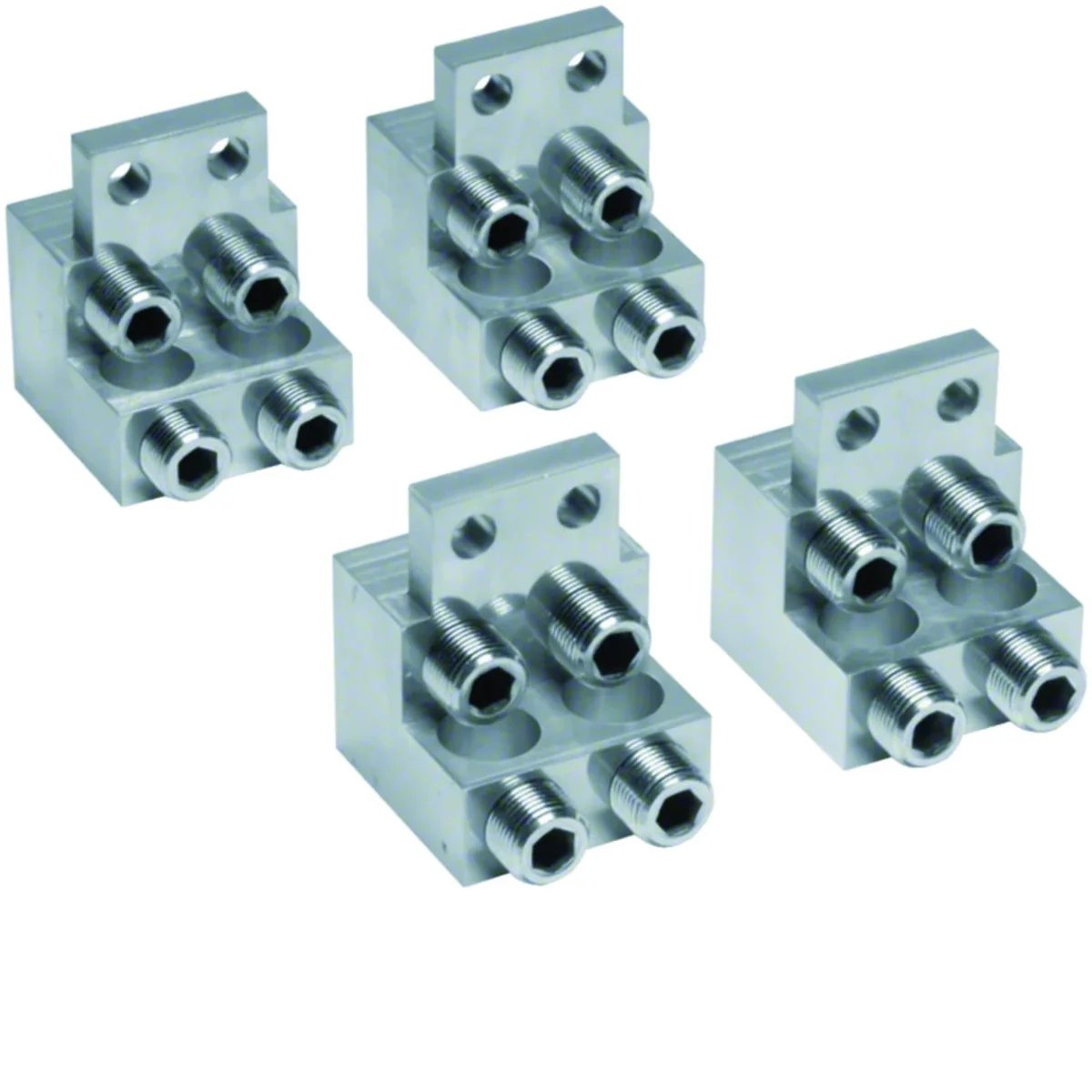

Cage terminals 630-800A Al/Cu 4P 4x240mm² HYE008H

local index:
ALA239HAGE
Catalog No:
HYE008H
EAN code:
3250613370718
Manufacturer: HAGER
Number of poles: 4
Tightening torque [Nm]: 25
Rated current [A]: 800
Price:
621,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cage terminals:

  • 630-800A
  • conductor material: Cu/Al

Technical data

  • Number of poles
    4
  • Rated current [A]
    800
  • power loss [W]
    12
  • Wire cross-section (cord) [mm²]
    35 - 240
  • PKWIU
    27.33.13.0
  • Tightening torque [Nm]
    25
  • Level of security
    IP4X
  • Power loss per pole [W]
    4
  • Conductor cross-section (wire) [mm²]
    4 x 35-240

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 6 pcs. 144 pcs.
Weight (kg) 1,451 1,570 9,725 256,400
Width (m) 0,001 0,120 0,320 0,800
Length (m) 0,001 0,115 0,195 1,010
Depth (m) 0,001 0,190 0,360 1,200
