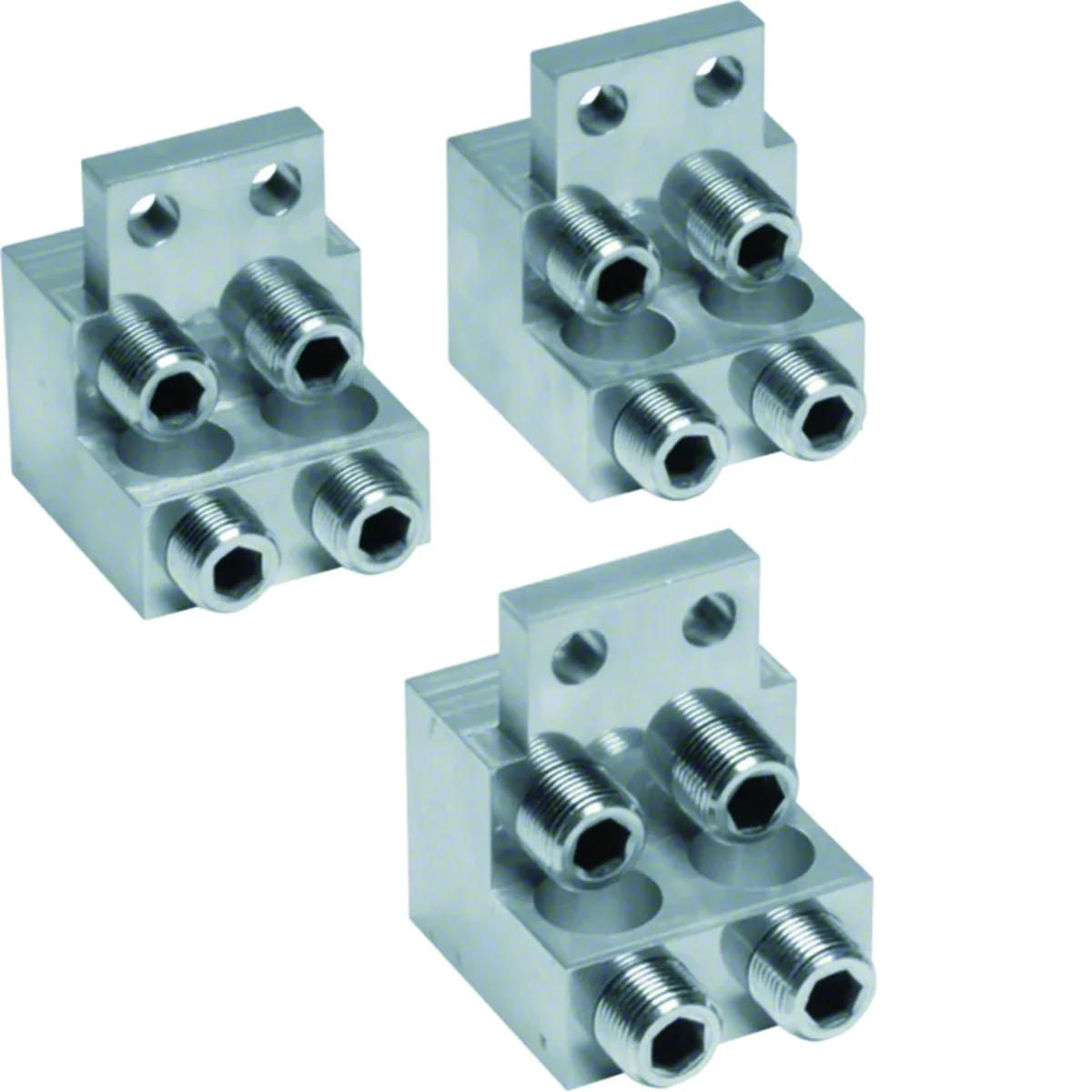

Cage terminals 630-800A Al/Cu 3P 4x240mm² HYE007H

local index:
ALA238HAGE
Catalog No:
HYE007H
EAN code:
3250613370701
Manufacturer: HAGER
Number of poles: 3
Tightening torque [Nm]: 25
Rated current [A]: 800
Price:
401,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cage terminals:

  • 630-800A
  • conductor material: Cu/Al

Technical data

  • Number of poles
    3
  • Rated current [A]
    800
  • power loss [W]
    12
  • Wire cross-section (cord) [mm²]
    35 - 240
  • PKWIU
    27.33.13.0
  • Tightening torque [Nm]
    25
  • Level of security
    IP4X
  • Power loss per pole [W]
    4
  • Conductor cross-section (wire) [mm²]
    4 x 35-240

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 9 pcs. 216 pcs.
Weight (kg) 1,088 1,185 10,980 286,520
Width (m) 0,130 0,130 0,315 0,800
Length (m) 0,087 0,085 0,215 1,050
Depth (m) 0,173 0,170 0,360 1,200
