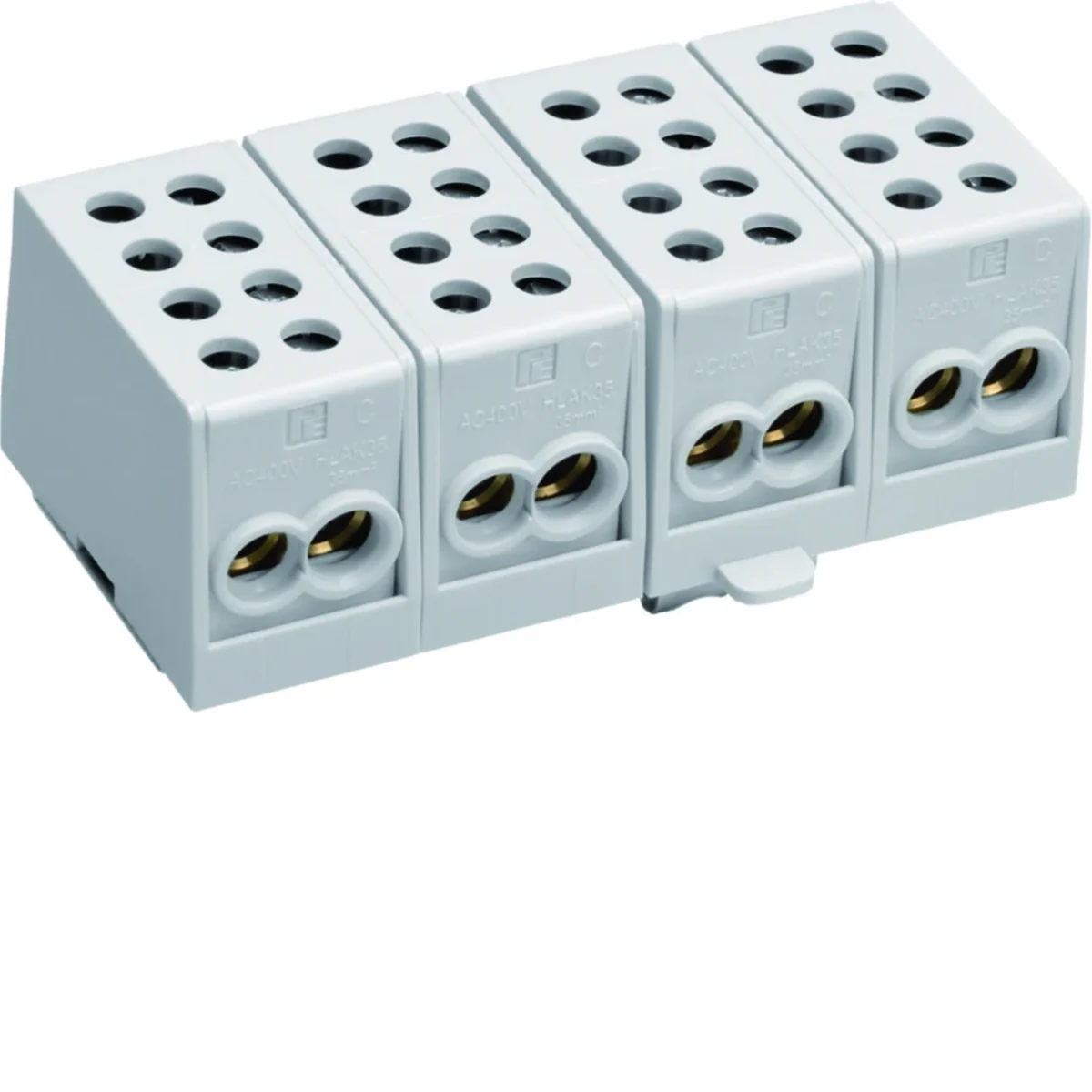

Branch terminal 4-pole 2x25/2x35mm² KH35A

local index:
ALA304HAGE
Catalog No:
KH35A
EAN code:
3250613780142
Manufacturer: HAGER
Depth [mm]: 62
Number of poles: 4
Fixing: Clamp and screw
Price:
51,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Branch terminal:

  • 4-pole
  • 2x25/2x35mm²

Technical data

  • Depth [mm]
    62
  • Fixing
    Clamp and screw
  • Rated voltage [V]
    400
  • Width [mm]
    96
  • Conductor cross-section (wire) [mm²]
    1.5 - 35
  • Number of poles
    4
  • Tightening torque [Nm]
    3.5
  • Rated current [A]
    100
  • Height [mm]
    49
  • PKWIU
    27.33.13.0

Other technical data

  • Number of poles
    4
  • Connection type
    Screwing
  • Contact safe
    Yes
  • Width
    96 mm
  • Nominal current
    100 A
  • Mounting method
    Screw
  • Height
    49 mm
  • Depth
    62 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 10 pcs. 600 pcs.
Weight (kg) 0,319 0,320 3,340 216,400
Width (m) 0,096 0,115 0,170 0,800
Length (m) 0,049 0,050 0,130 0,650
Depth (m) 0,062 0,400 0,280 1,200
