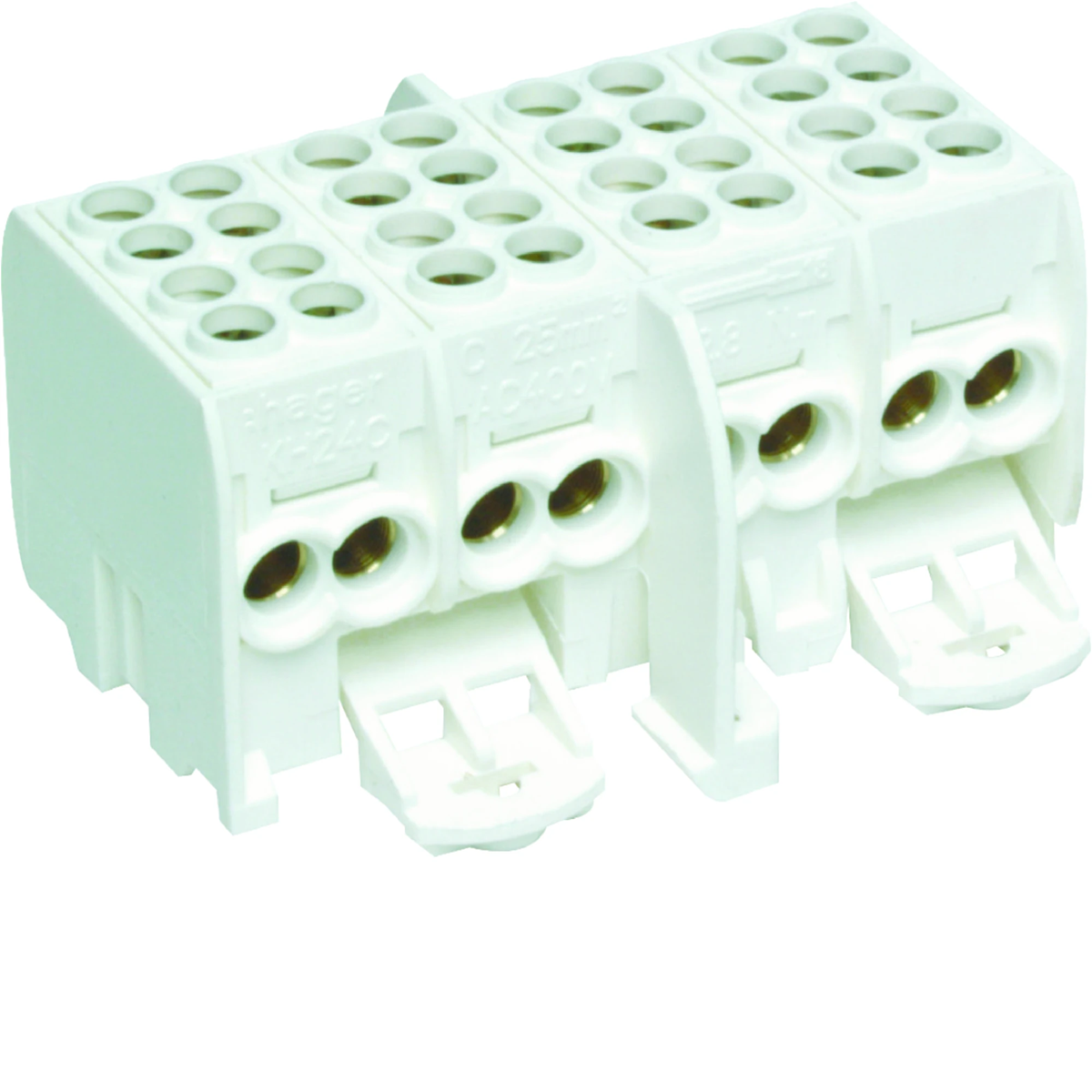

Branch terminal 4-pole 2x25/2x16mm² KH24C
local index:
ALA302HAGE
Catalog No:
KH24C
EAN code:
3250613780197
Price:
38,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Branch terminal:
- 4-pole
- 2x25/2x16mm²
Technical data
-
Depth [mm]43
-
Number of poles4
-
Tightening torque [Nm]2.8
-
Rated current [A]80
-
Width [mm]82.4
-
Conductor cross-section (wire) [mm²]1.5 - 25
-
ColorWhite
-
FixingClamp and screw
-
Rated voltage [V]400
-
power loss [W]0.63
-
Height [mm]65.9
-
PKWIU27.33.13.0
Other technical data
-
Number of poles4
-
Connection typeScrewing
-
Contact safeYes
-
Width82.4 mm
-
Nominal current80 A
-
Mounting methodScrew
-
Height65.9 mm
-
Depth43 mm
Manufacturer details
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 5 pcs. | 1200 pcs. |
| Weight (kg) | 0,277 | 1,340 | 346,600 |
| Width (m) | 0,065 | 0,115 | 0,800 |
| Length (m) | 0,045 | 0,050 | 0,750 |
| Depth (m) | 0,082 | 0,400 | 1,200 |
