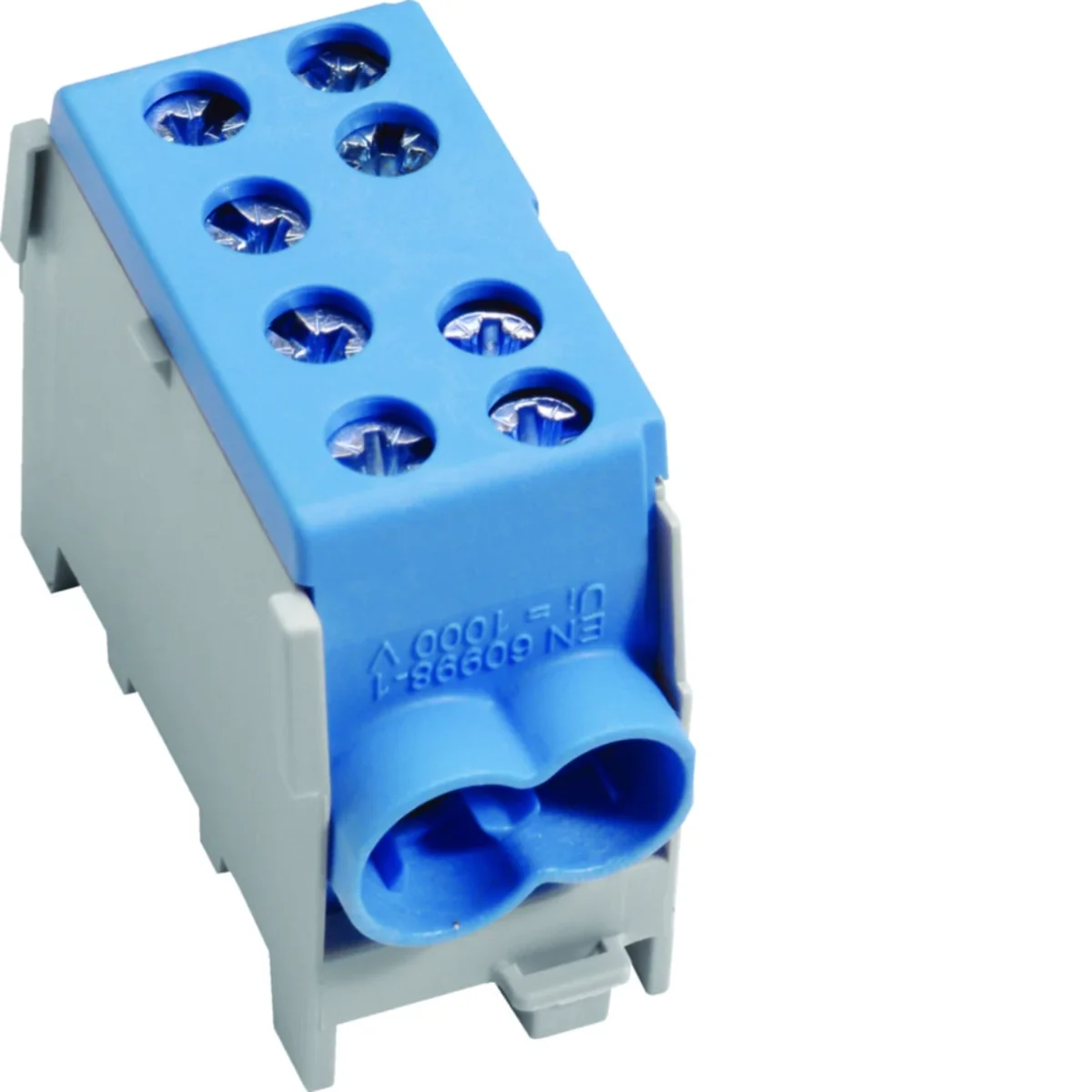

Branch terminal 1-pole 1x35mm² blue KH35N
local index:
ALA307HAGE
Catalog No:
KH35N
EAN code:
3250613780289
Price:
7,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Branch terminal:
- 1-pole
- 1x35mm²
Technical data
-
Depth [mm]37
-
Number of poles1
-
Rated voltage [V]400
-
Width [mm]27
-
Conductor cross-section (wire) [mm²]35
-
ColorBlue
-
Tightening torque [Nm]3.5
-
Rated current [A]100
-
Height [mm]55
-
PKWIU27.33.13.0
Other technical data
-
Number of poles1
-
Connection typeScrewing
-
Contact safeYes
-
Width27 mm
-
Nominal current100 A
-
Mounting methodDIN rail
-
Height55 mm
-
Depth37 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 5 pcs. | 50 pcs. | 2000 pcs. |
| Weight (kg) | 0,015 | 0,400 | 4,160 | 185,000 |
| Width (m) | 0,025 | 0,060 | 0,170 | 0,800 |
| Length (m) | 0,030 | 0,045 | 0,130 | 0,420 |
| Depth (m) | 0,060 | 0,120 | 0,280 | 1,200 |
