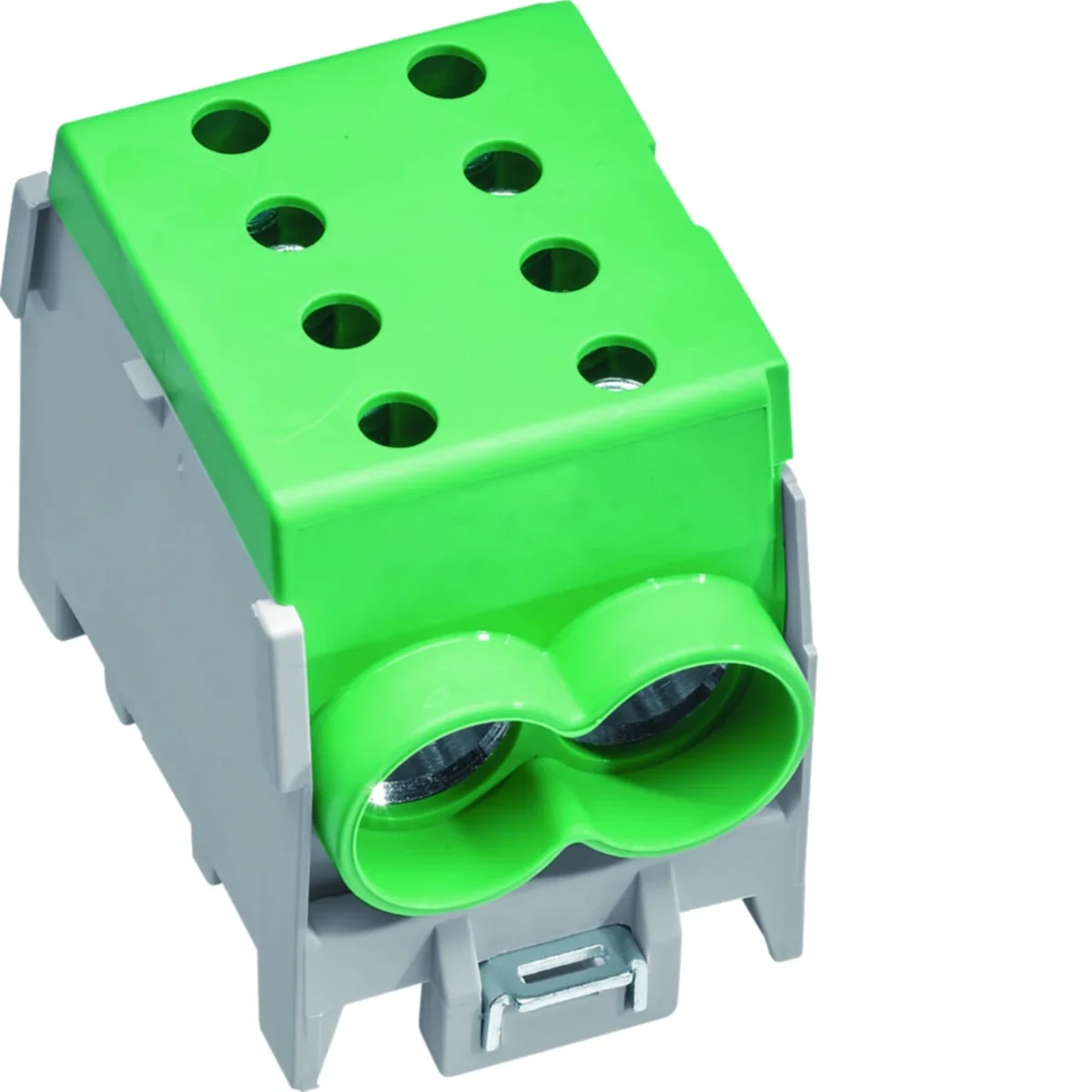

Branch terminal 1-pole 1x25/2x16mm² green KH70GN

local index:
ALA310HAGE
Catalog No:
KH70GN
EAN code:
3250613780258
Manufacturer: HAGER
Depth [mm]: 48.7
Color: Green
Number of poles: 1
Price:
21,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Branch terminal:

  • 1-pole
  • 1x25/2x16mm²

Technical data

  • Depth [mm]
    48.7
  • Number of poles
    1
  • Rated voltage [V]
    690
  • Width [mm]
    32.8
  • Conductor cross-section (wire) [mm²]
    70
  • Color
    Green
  • Tightening torque [Nm]
    10
  • Rated current [A]
    160
  • Height [mm]
    60
  • PKWIU
    27.33.13.0

Other technical data

  • Number of poles
    1
  • Connection type
    Screwing
  • Contact safe
    Yes
  • Width
    32.8 mm
  • Nominal current
    160 A
  • Mounting method
    DIN rail
  • Height
    60 mm
  • Depth
    48.7 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 30 pcs. 3840 pcs.
Weight (kg) 0,117 0,360 3,700 496,600
Width (m) 0,050 0,060 0,165 0,800
Length (m) 0,035 0,050 0,135 1,190
Depth (m) 0,050 0,115 0,275 1,200
