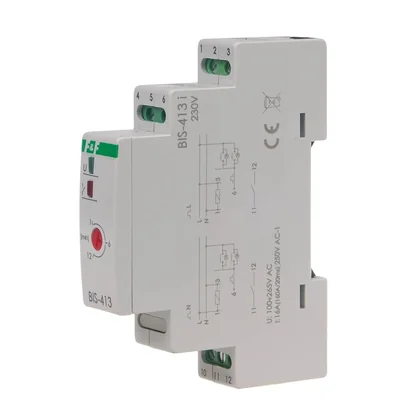

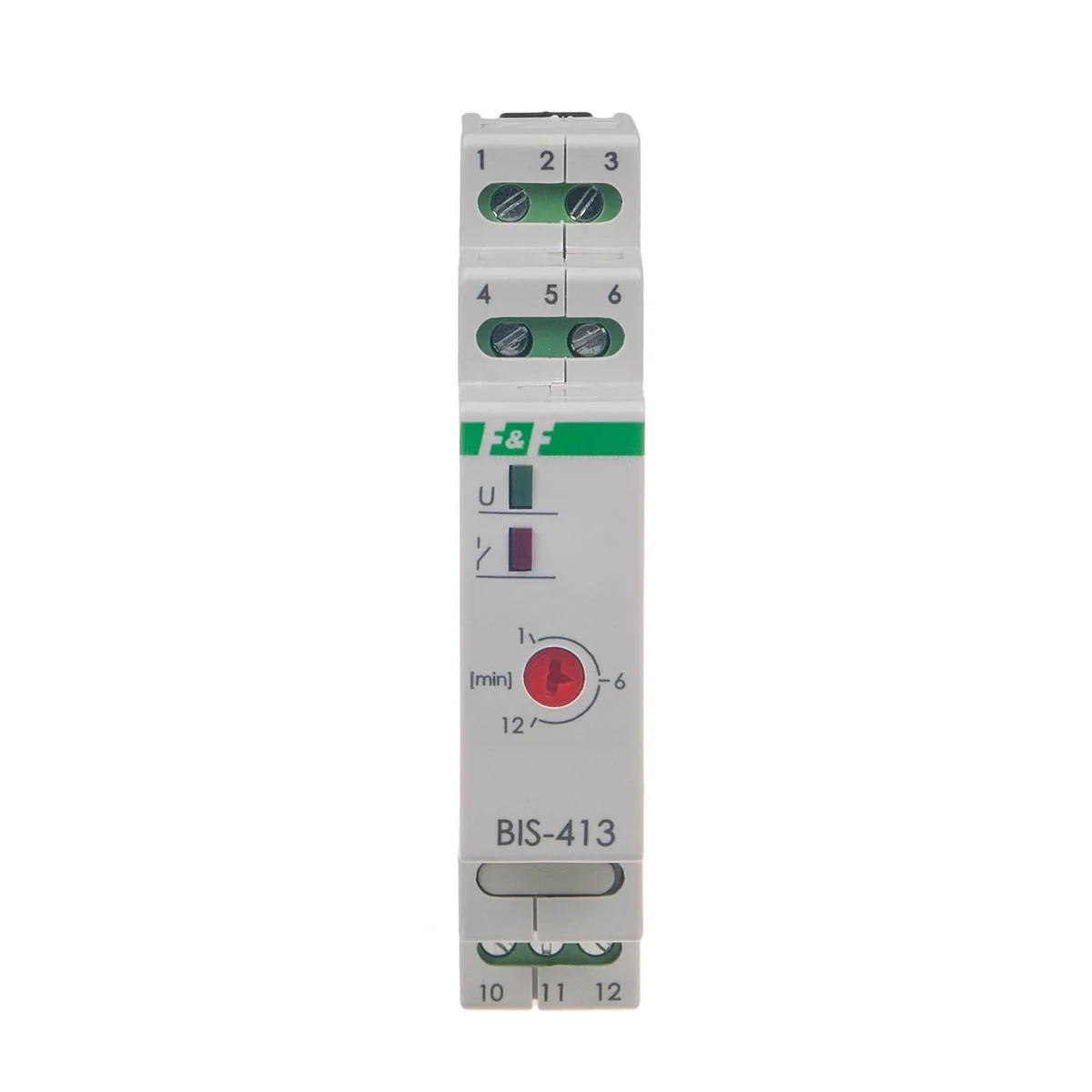

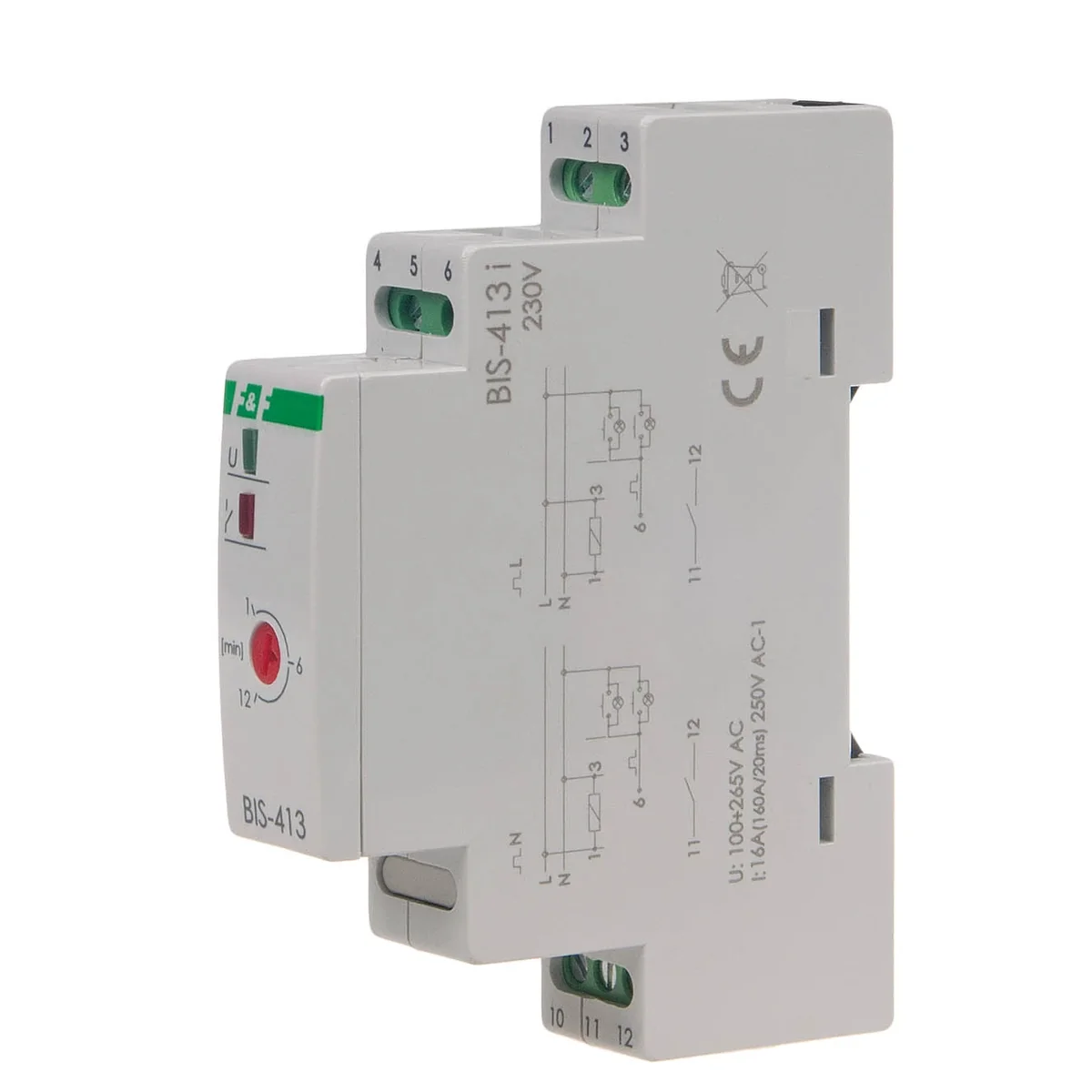

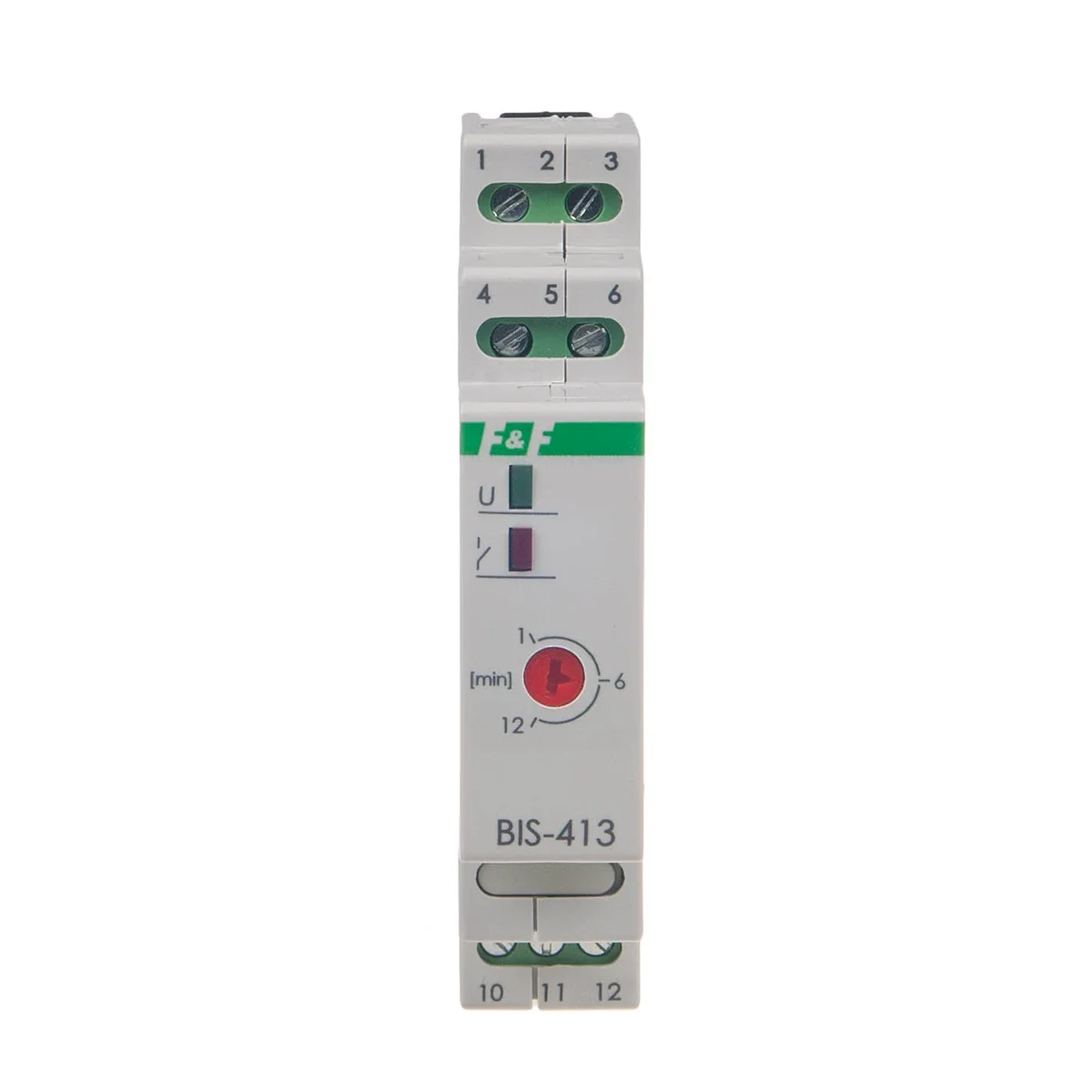

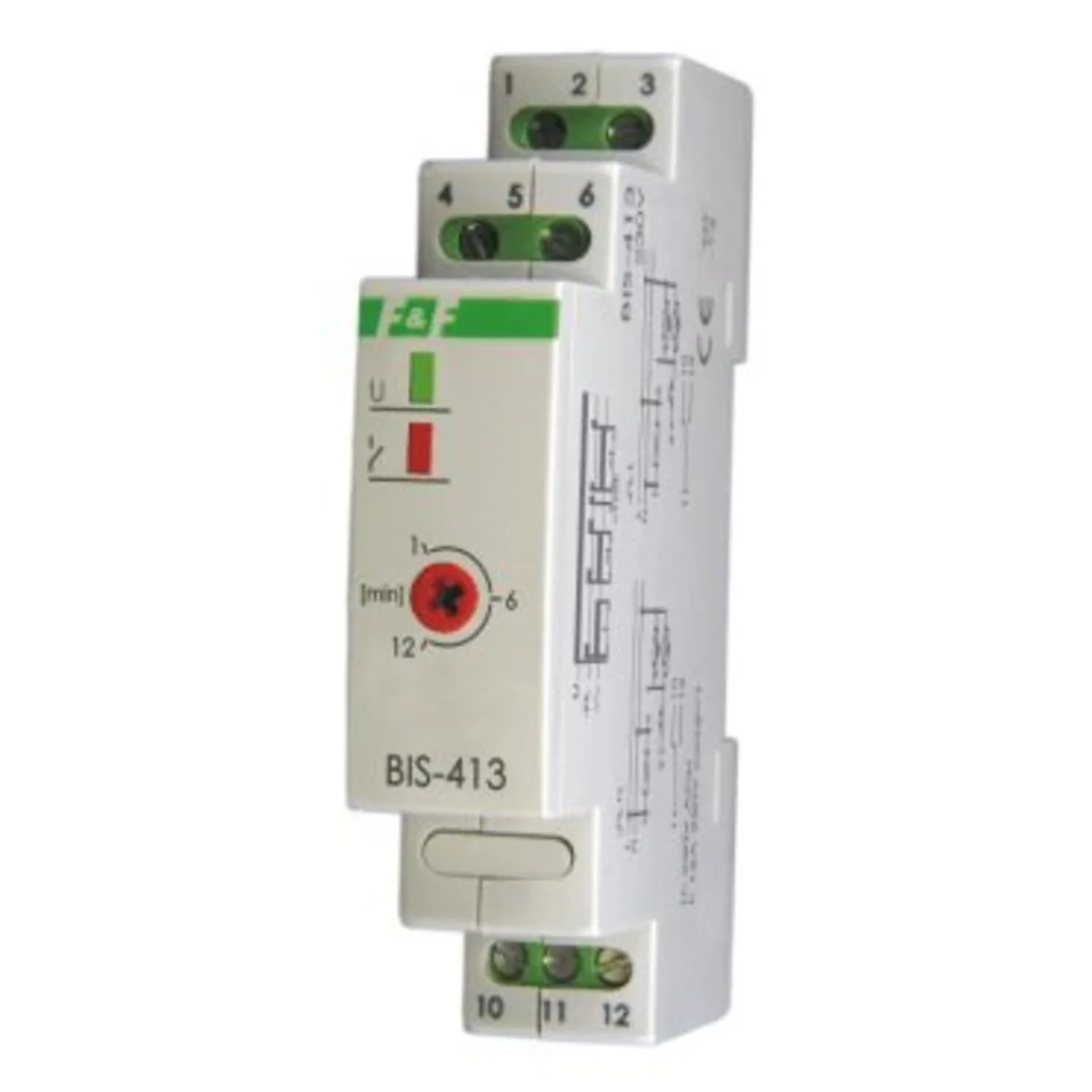

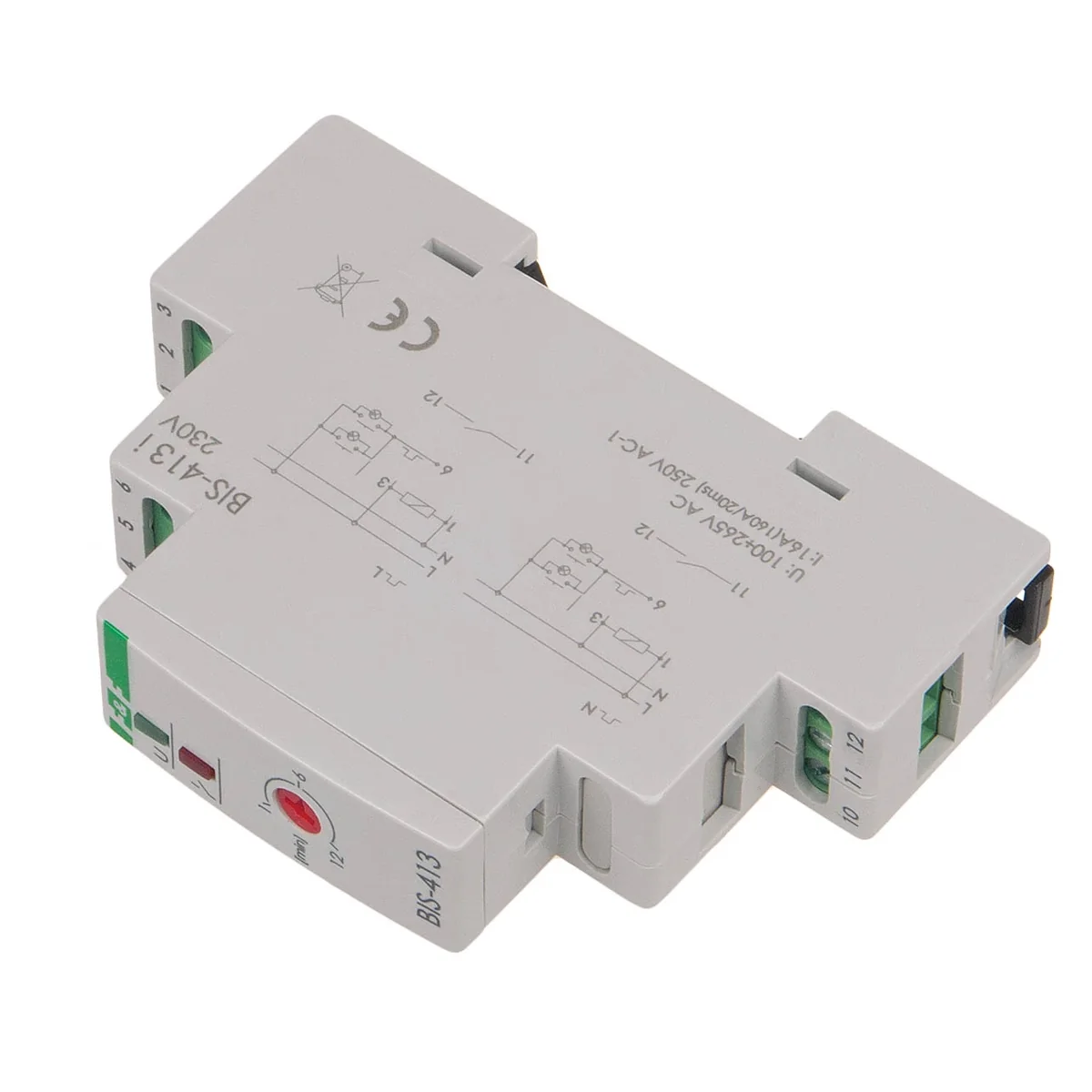

Bistable relay with time switch BIS-413-LED
local index:
APC014FIFQ
Catalog No:
BIS-413-LED
EAN code:
5908312598459
Manufacturer:
F&F
Maximum switching capacity for bulbs [W]: 3000
Control voltage [V]: 100/230
Rated current [A]: 8
Price:
28,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electronic bistable impulse relays enable switching on or off lighting or other device from several different points by means of parallel connected, momentary (bell) control switches. The receiver is switched on after a current pulse caused by pressing any momentary (bell) button connected to the relay. After the next pulse, the receiver will turn off. The relay does not have a "memory" of the contact position, i.e. in the event of a power failure and its return, the relay contact will be switched off. This makes it impossible to automatically turn on the controlled receivers without supervision after a long-term power failure.
Technical data
-
Maximum switching capacity for bulbs [W]3000
-
Rated current [A]8
-
Supply voltage range [V]100/230
-
Package height [mm]150
-
Package weight [kg]0.2
-
Maximum switching capacity for fluorescent lamps [VA]1500
-
Number of NO contacts1
-
Control voltage [V]100/230
-
Dimensions1 module (18mm)
-
Power [V]100/230
-
Package width [mm]20
-
Maximum switching capacity for fluorescent lamps (DUO compensation) [VA]1500
-
Rated inrush current [A]8
-
PKWIU27.12.23.0
Other technical data
-
FunctionElectronic switch
-
Width in number of modular spacings1
-
Control voltage 1100 ... 265 V
-
Frequency control voltage 150 ... 50 Hz
-
Supply voltage100 ... 265 V
-
Max. incandescent lamp load3000 W
-
Max. load fluorescent lamp (Duo circuit)1500 VA
-
Max. switching current (cos phi = 0.6)8 A
-
Mounting methodDIN rail
-
Built-in depth0 mm
-
Type of control voltage 1AC
-
Rated switch current8 A
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp1500 VA
-
Max. load fluorescent lamp (parallel compensated)1500 VA
-
Suitable for manual operationNo
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,075 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
