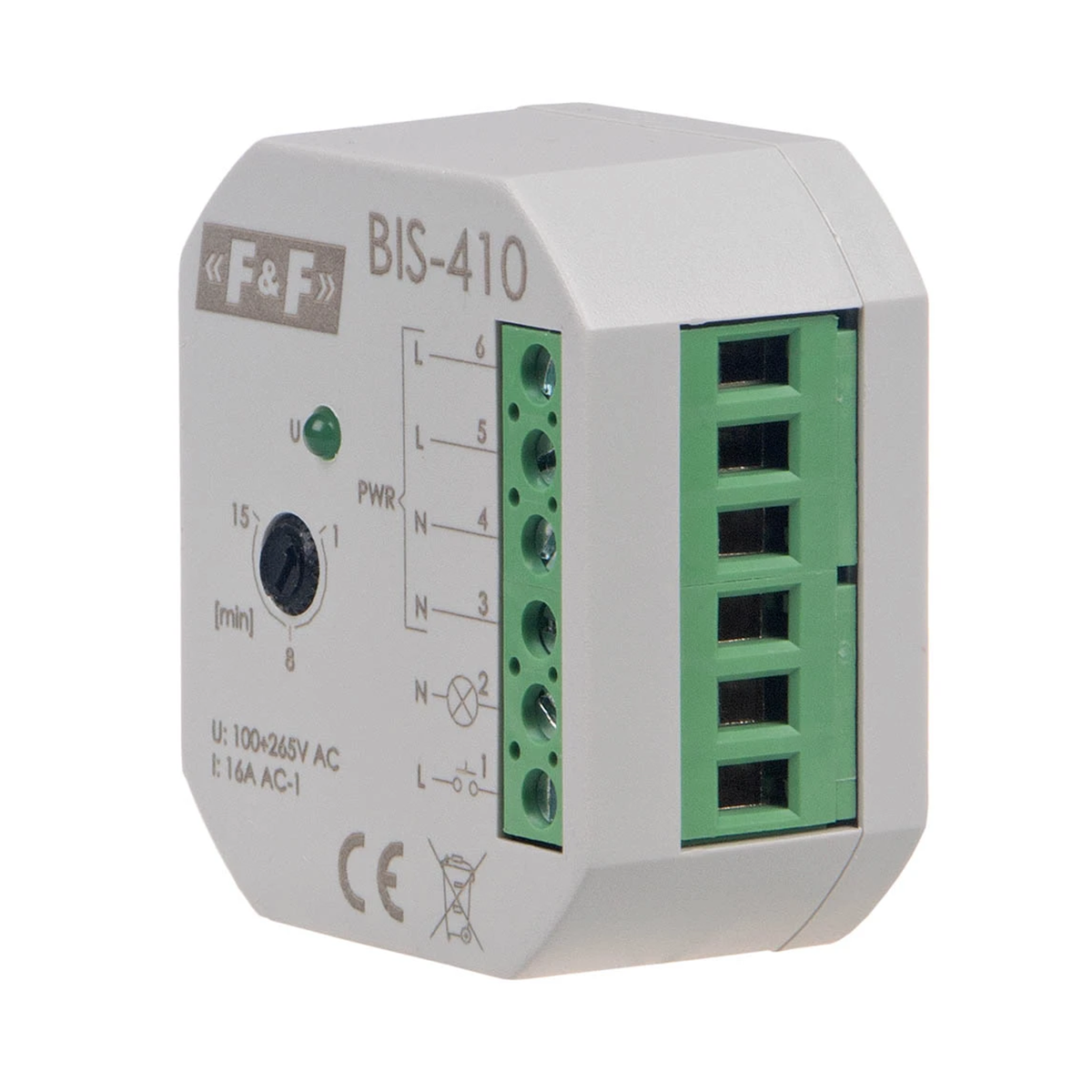

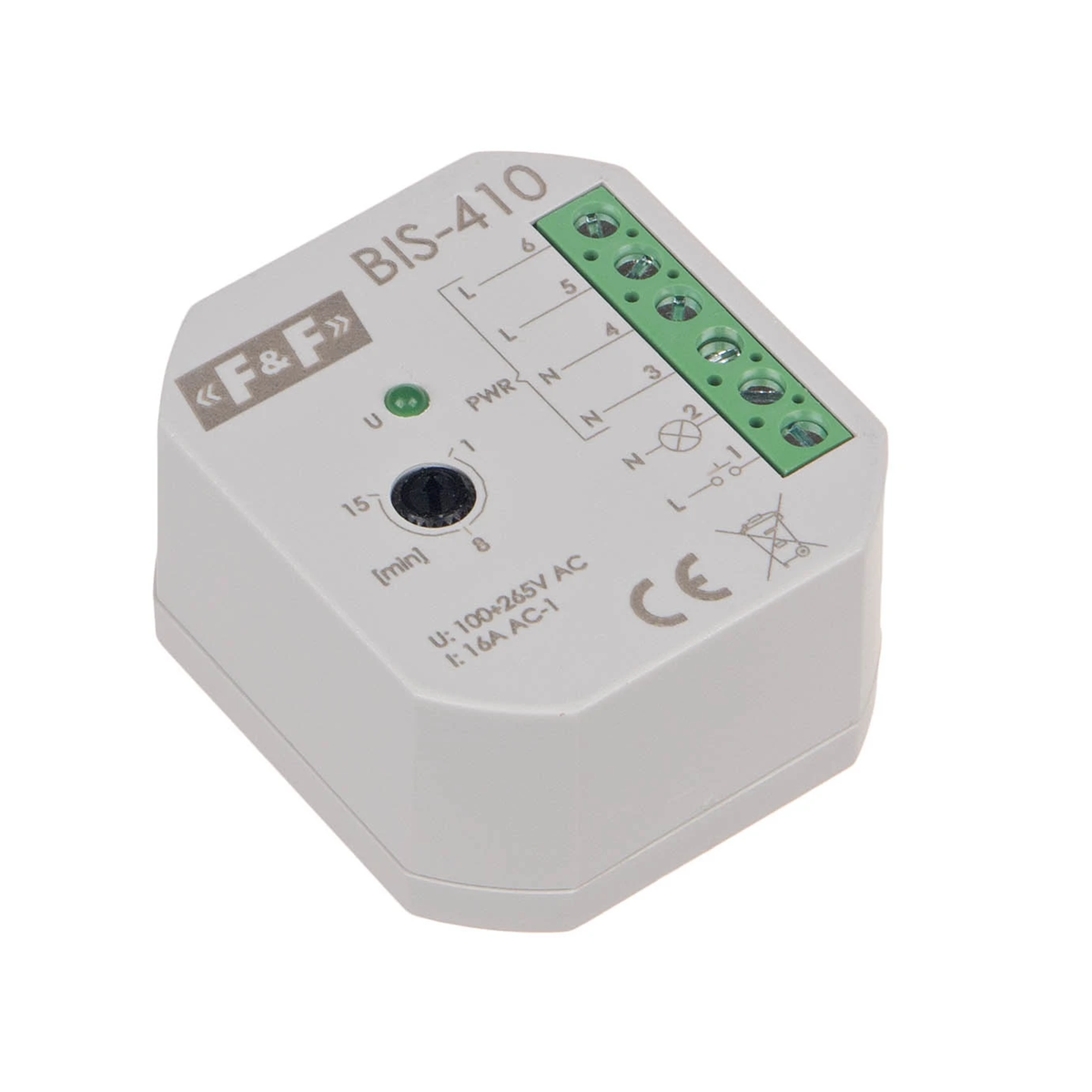

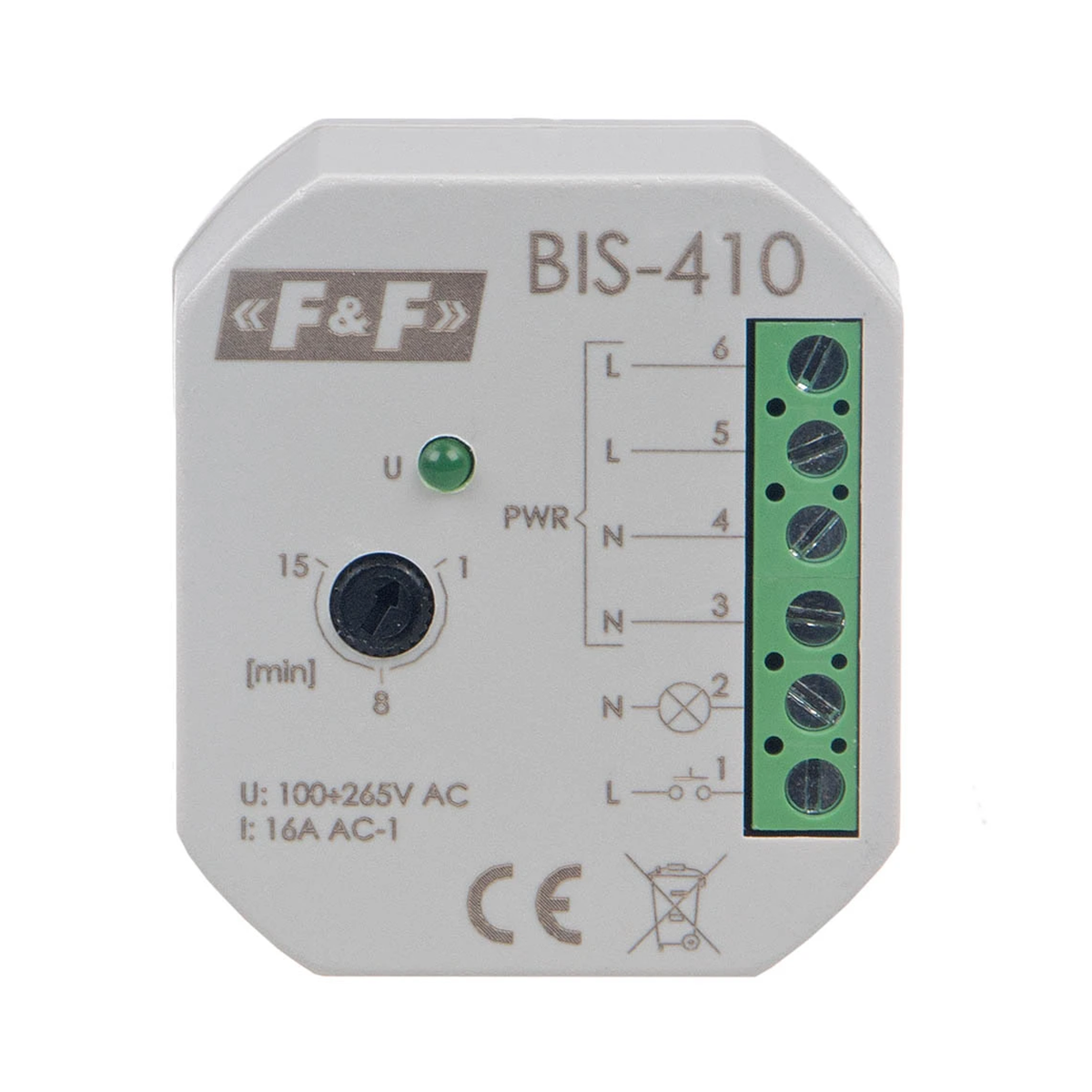

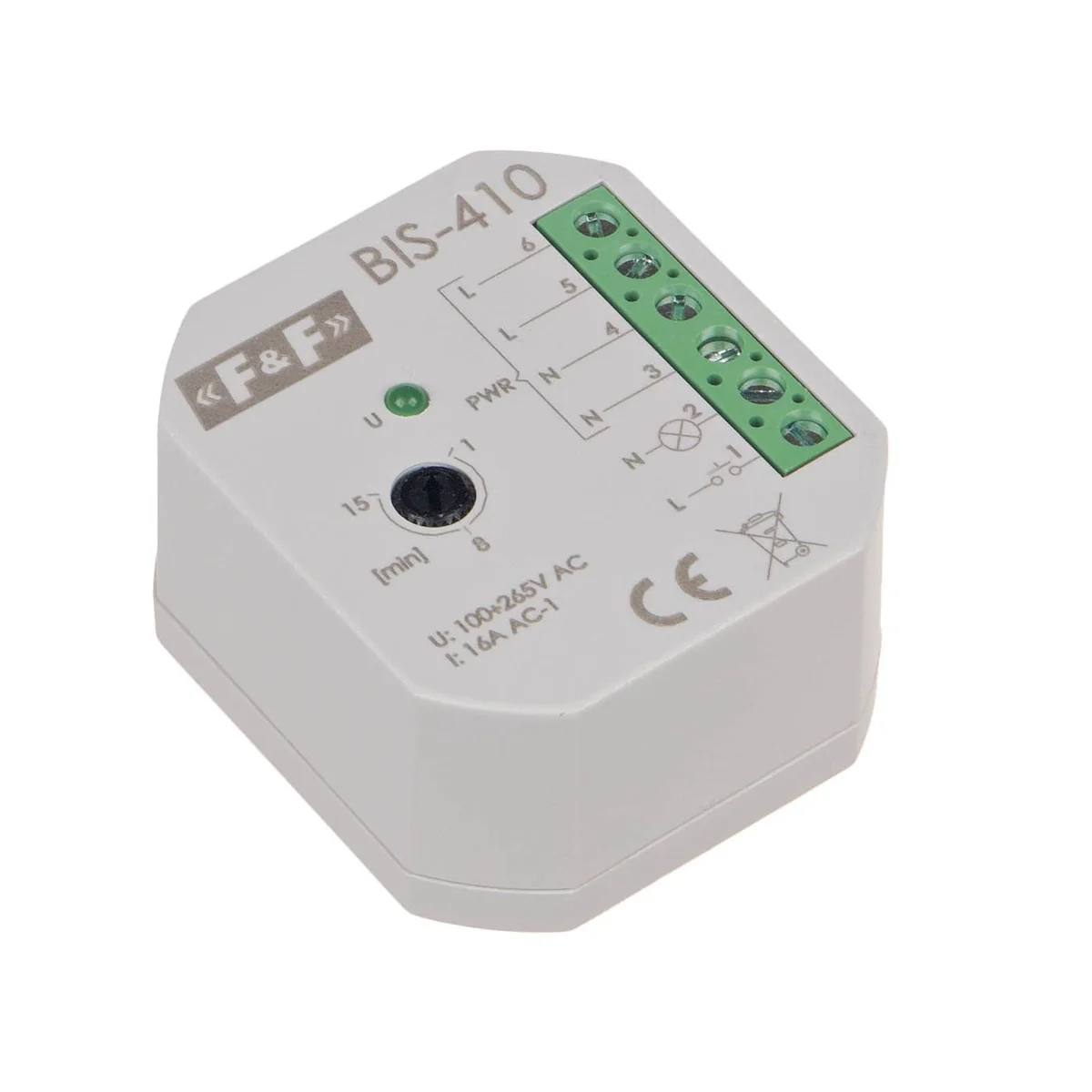

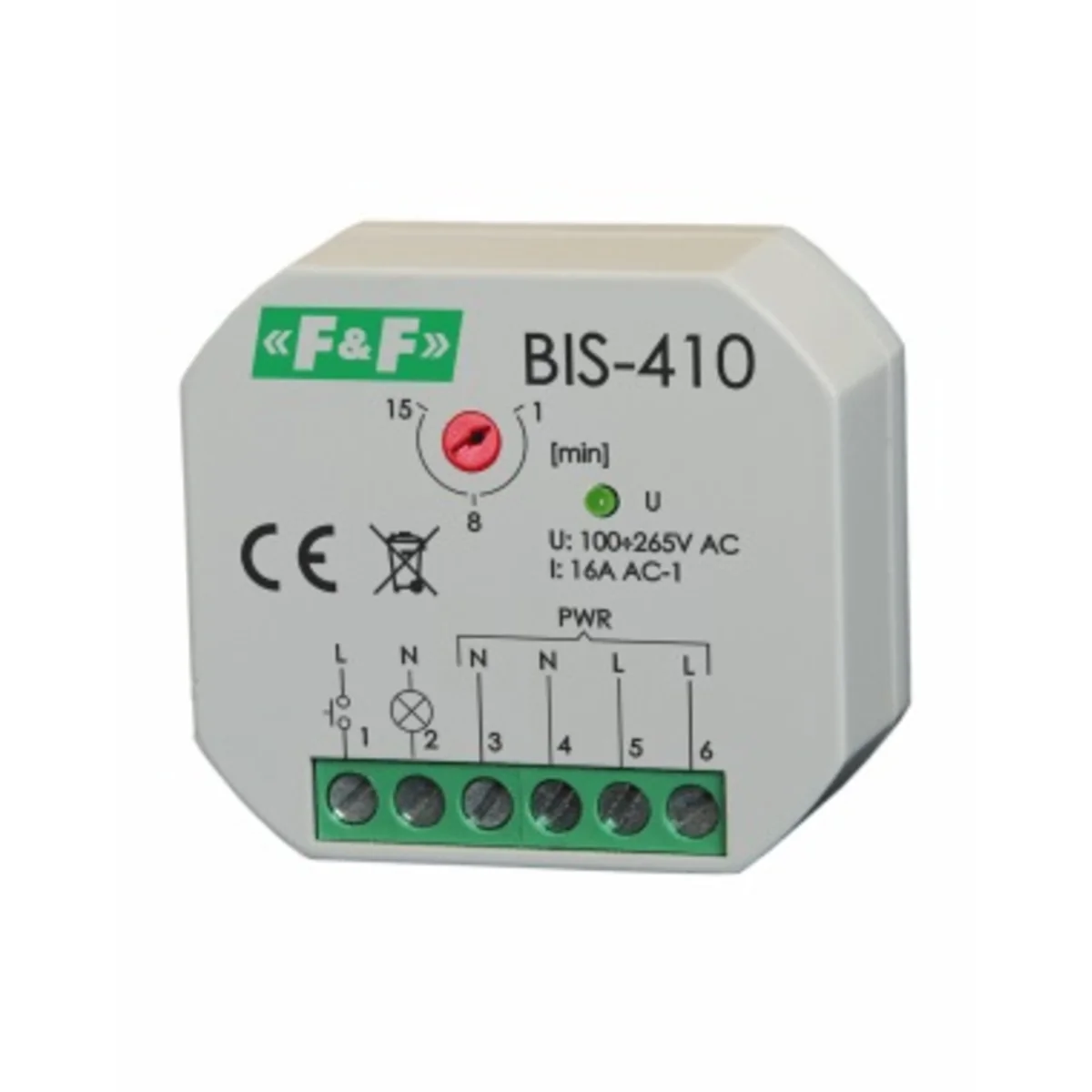

Bistable relay with time switch BIS-410
local index:
APC015FIFQ
Catalog No:
BIS-410
EAN code:
5908312598305
Price:
25,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electronic bistable impulse relay, allows you to switch on lighting or other device from several different points by means of control buttons connected in parallel.
Technical data
-
Number of contacts1NO 0NC
-
Level of securityIP20
-
Power [V]100/265
-
Package width [mm]54
-
Control pulse current [A]<5
-
Standby power consumption [W]0.15
-
PKWIU27.12.23.0
-
Tripping delay [s]0.1/0.2
-
Working temperature [°C]-25-50
-
Package height [mm]20
-
Package weight [kg]0.2
-
Power consumption in the on state [W]0.6
-
Off time adjustable [min]1/15
Other technical data
-
FunctionElectronic switch
-
Built-in depth20 mm
-
Type of control voltage 1AC
-
Rated switch current8 A
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp750 VA
-
Max. load fluorescent lamp (parallel compensated)750 VA
-
Suitable for manual operationNo
-
Mounting methodFlush-mounted
-
Control voltage 1100 ... 230 V
-
Frequency control voltage 150 ... 50 Hz
-
Supply voltage100 ... 230 V
-
Max. incandescent lamp load3000 W
-
Max. load fluorescent lamp (Duo circuit)750 VA
-
Max. switching current (cos phi = 0.6)8 A
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,056 |
| Width (m) | 0,031 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
