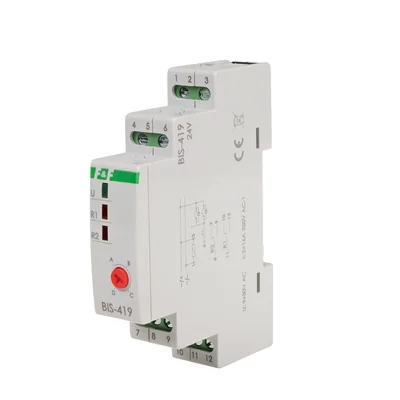

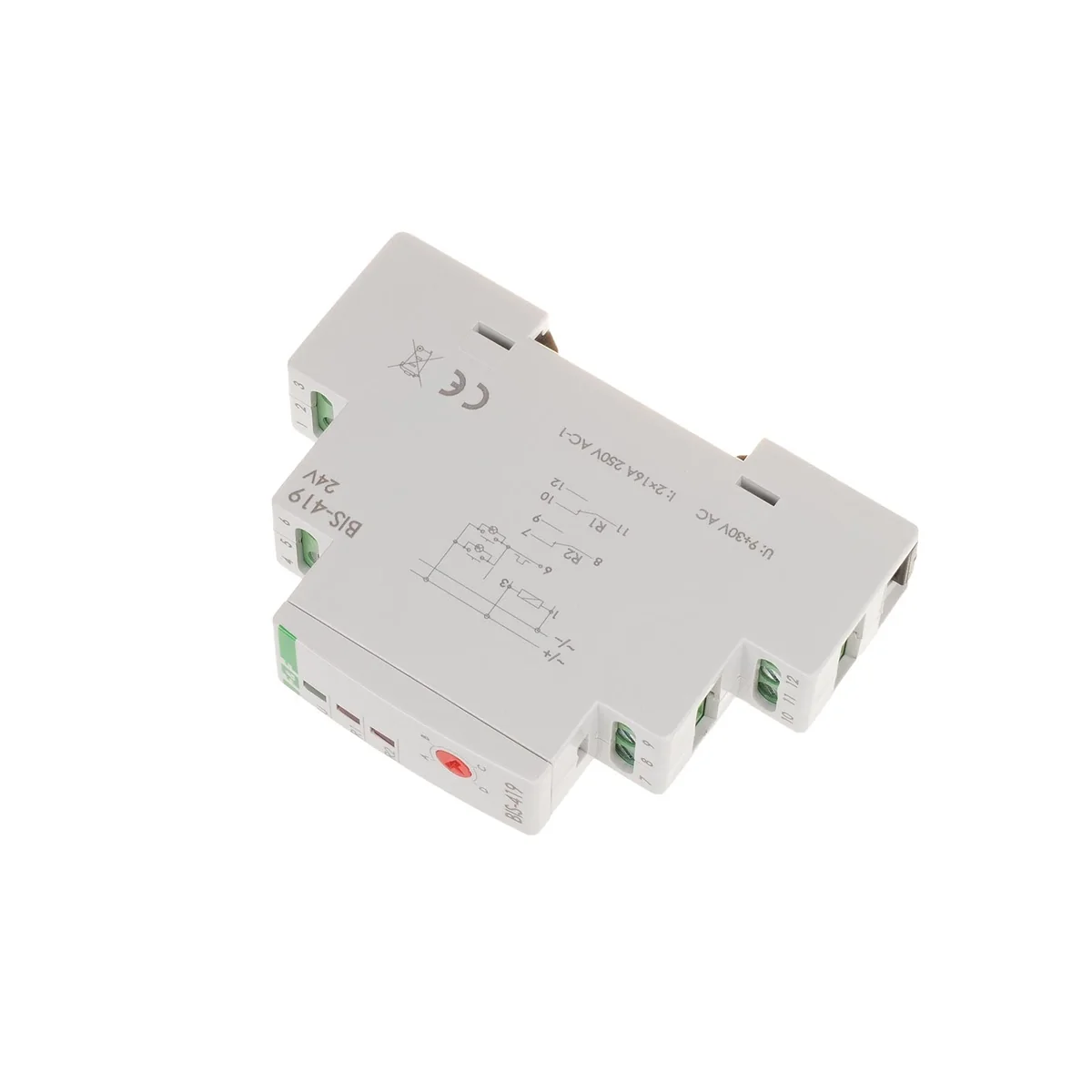

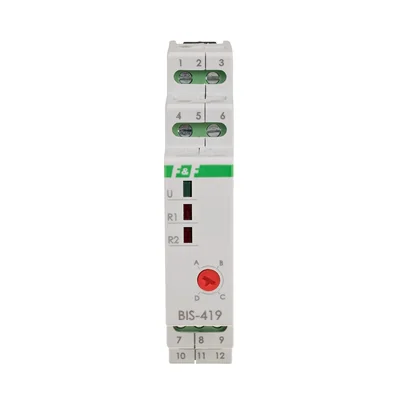

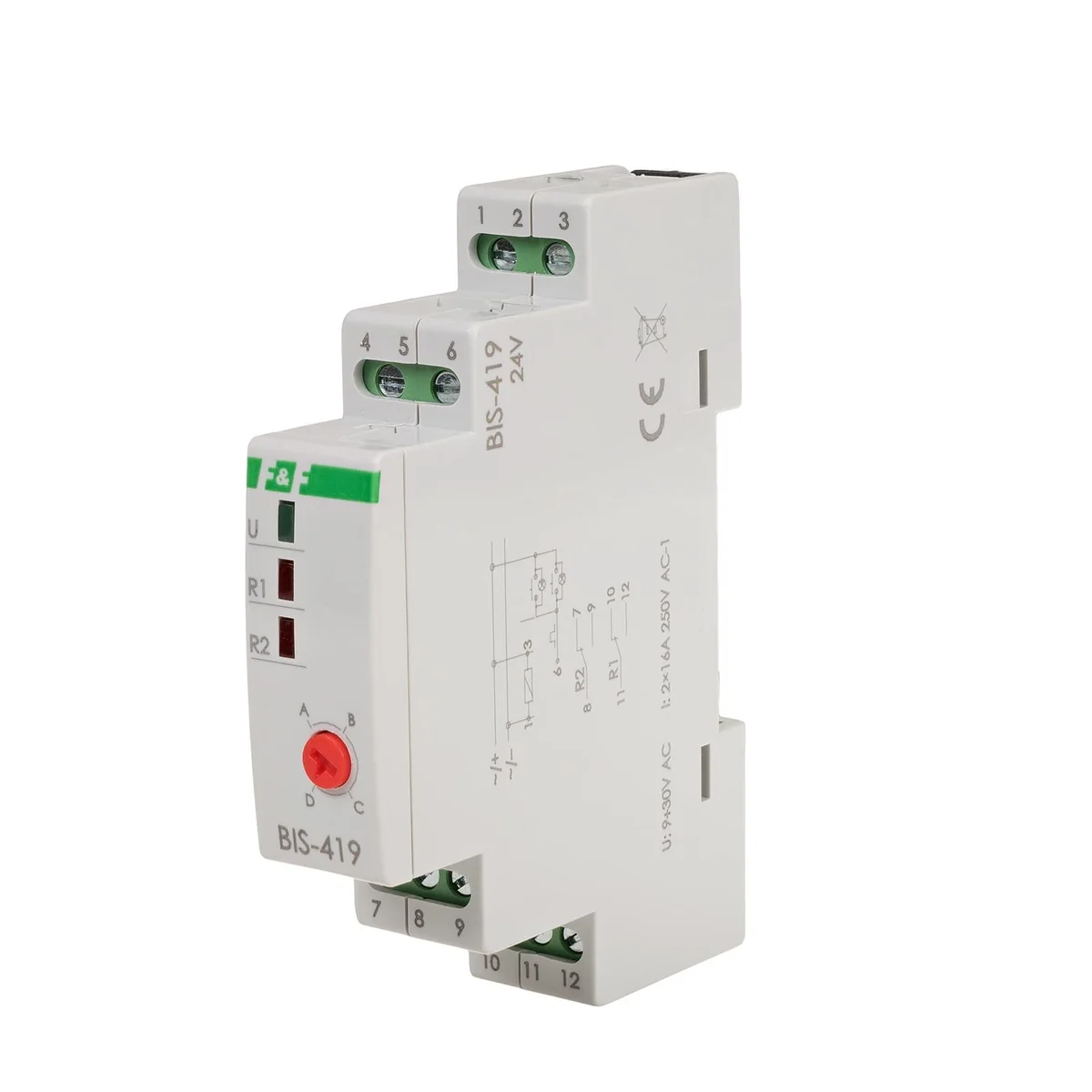

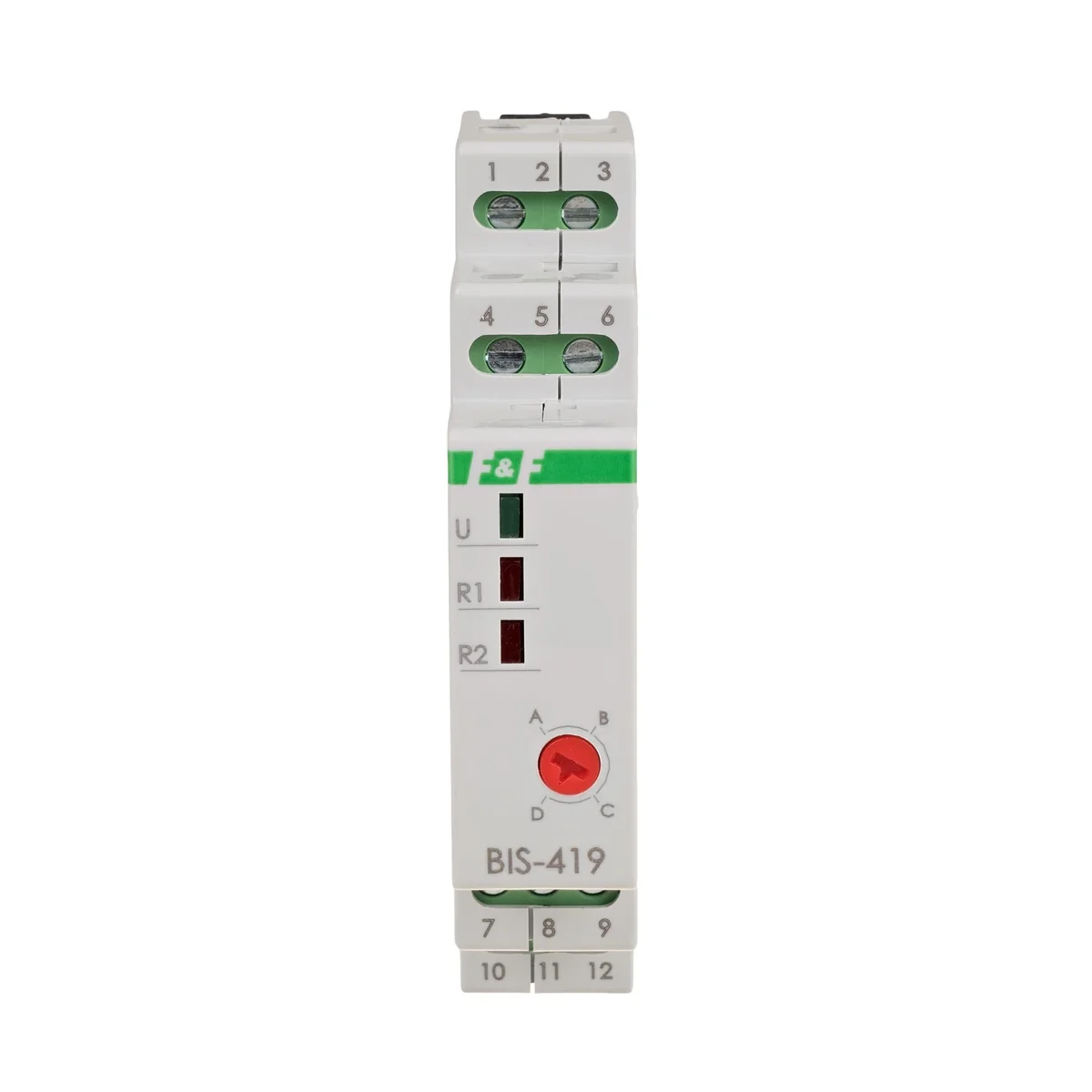

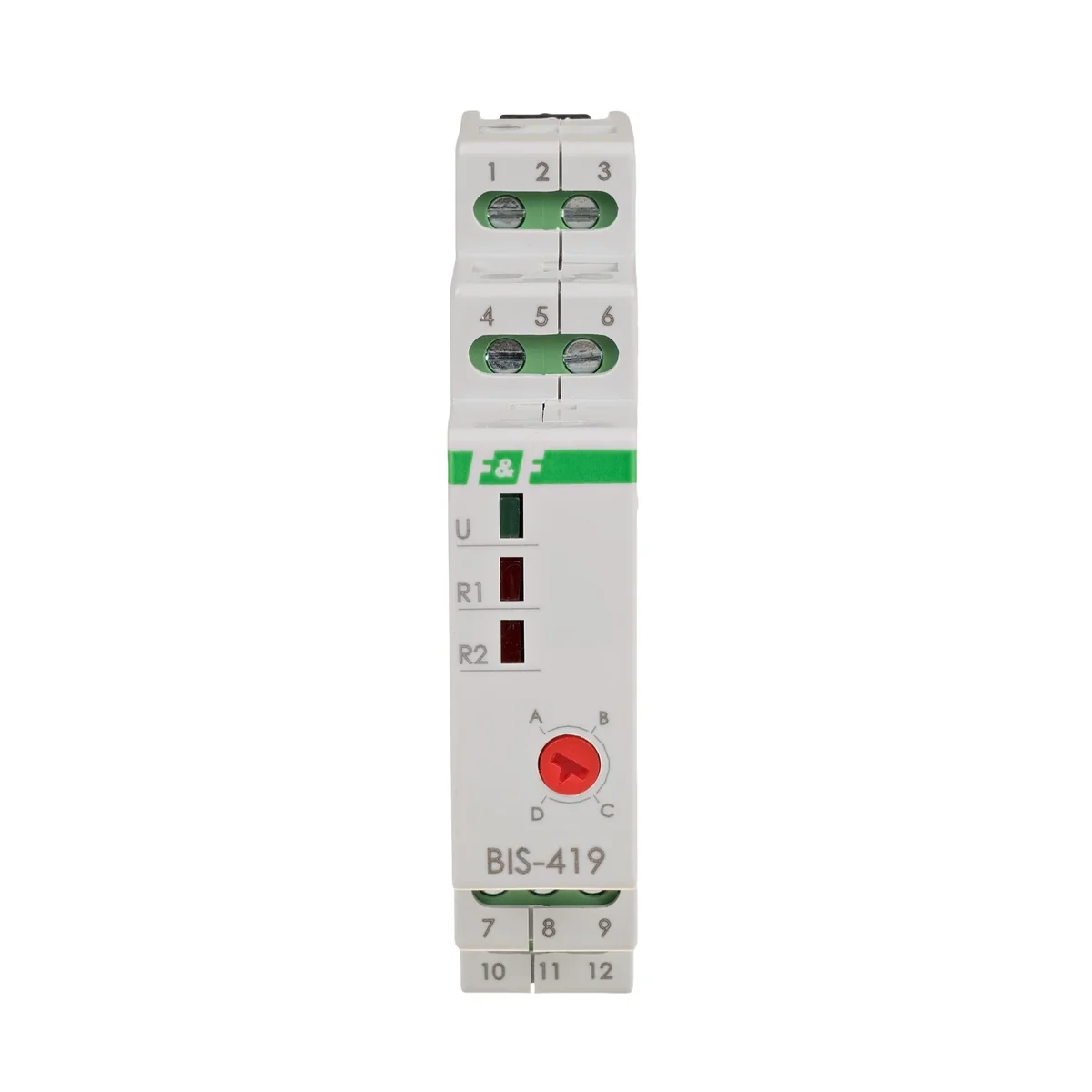

Bistable 4-function DIN relay with two 24V control circuits BIS-419-24V
local index:
APC025FIFQ
Catalog No:
BIS-419-24V
EAN code:
5908312599111
Price:
30,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The electronic bistable impulse relay enables switching on or off the lighting or other device from several different points by means of parallel connected
Technical data
-
Level of securityIP20
-
PKWIU27.12.23.0
-
Working temperature [°C]-25÷50
Other technical data
-
FunctionElectronic switch
-
Width in number of modular spacings1
-
Control voltage 19 ... 30 V
-
Frequency control voltage 150 ... 50 Hz
-
Supply voltage9 ... 30 V
-
Max. incandescent lamp load2000 W
-
Max. load fluorescent lamp (Duo circuit)1000 VA
-
Max. switching current (cos phi = 0.6)16 A
-
Mounting methodDIN rail
-
Built-in depth0 mm
-
Type of control voltage 1AC/DC
-
Rated switch current16 A
-
Voltage type (supply voltage)AC/DC
-
Max. load fluorescent lamp1000 VA
-
Max. load fluorescent lamp (parallel compensated)800 VA
-
Suitable for manual operationNo
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,090 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
