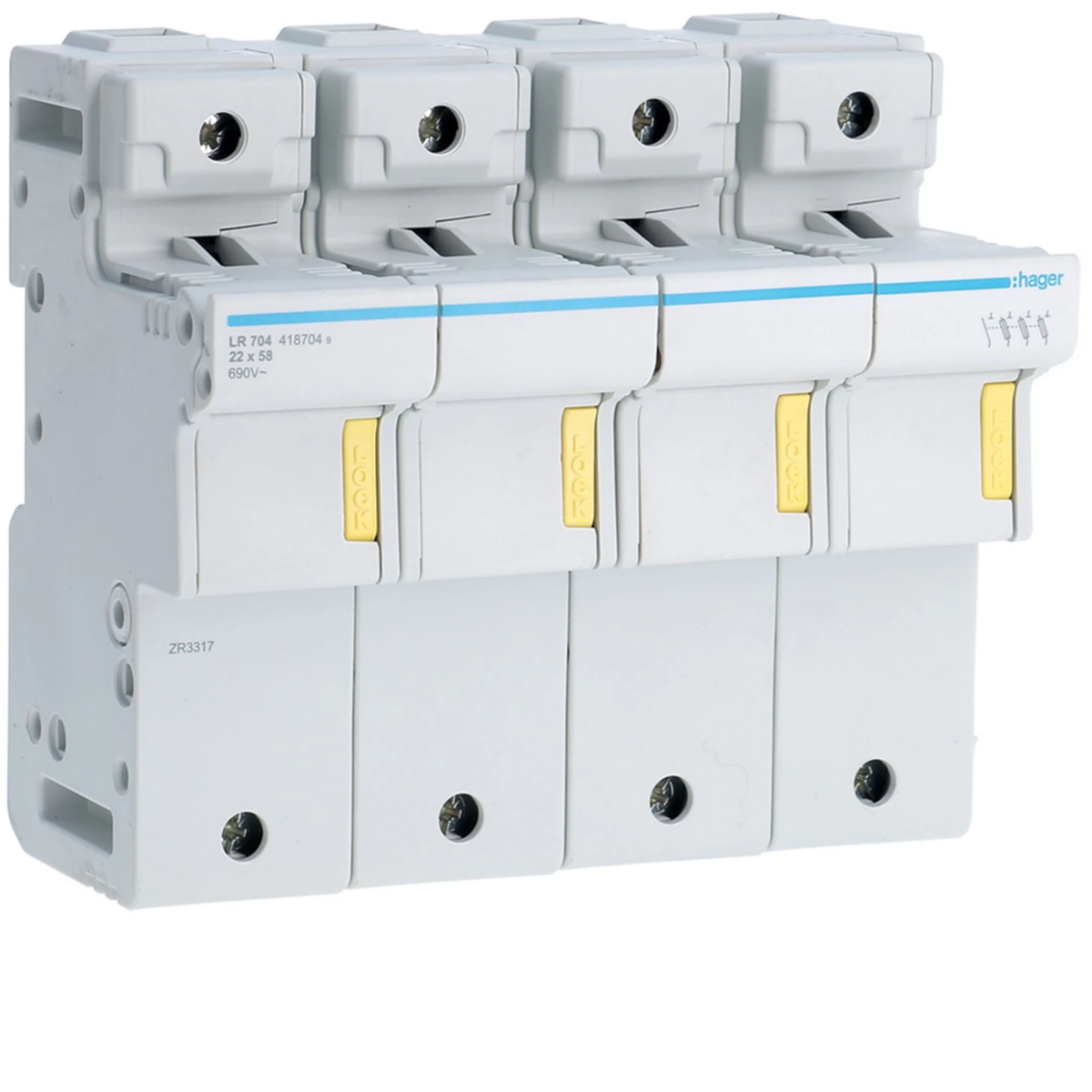

Base Modular fuse 4pole. 3+N up to 125A LR704

local index:
ALI040HAGE
Catalog No:
LR704
EAN code:
3250614187049
Manufacturer: HAGER
Depth [mm]: 96
Number of poles: 4
Rated voltage [V]: 690
Price:
106,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular fuse bases Series L38
• for cylindrical fuses with dimensions: 10 x 38 mm, type gG and aM
• max. I know the current. 32A, 690VAC
• design allows replacement of a blown fuse, providing protection against contact
• the LS 531 base is equipped with a 230 V AC indicator light that indicates a blown fuse
• the bases are supplied without fusesów
• the possibility of sealing both in the closed and open position
• mounting on TS35 rail
• cage clamps:
- solid wire up to 25 mm2
- stranded wire up to 16 mm2
• standards:
EN/IEC 60269-2
EN/IEC 60269-2-1
EN/IEC 60947-3

Technical data

  • Depth [mm]
    96
  • Rated voltage [V]
    690
  • Width [mm]
    140
  • PKWIU
    27.12.21.0
  • Number of poles
    4
  • Rated current [A]
    125
  • Height [mm]
    125

Other technical data

  • Number of poles
    4
  • Built-in depth
    125 mm
  • Width in number of modular spacings
    8

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 288 pcs.
Weight (kg) 0,796 0,797 9,857 259,568
Width (m) 0,140 0,133 0,323 0,800
Length (m) 0,125 0,084 0,221 1,034
Depth (m) 0,076 0,151 0,367 1,200
