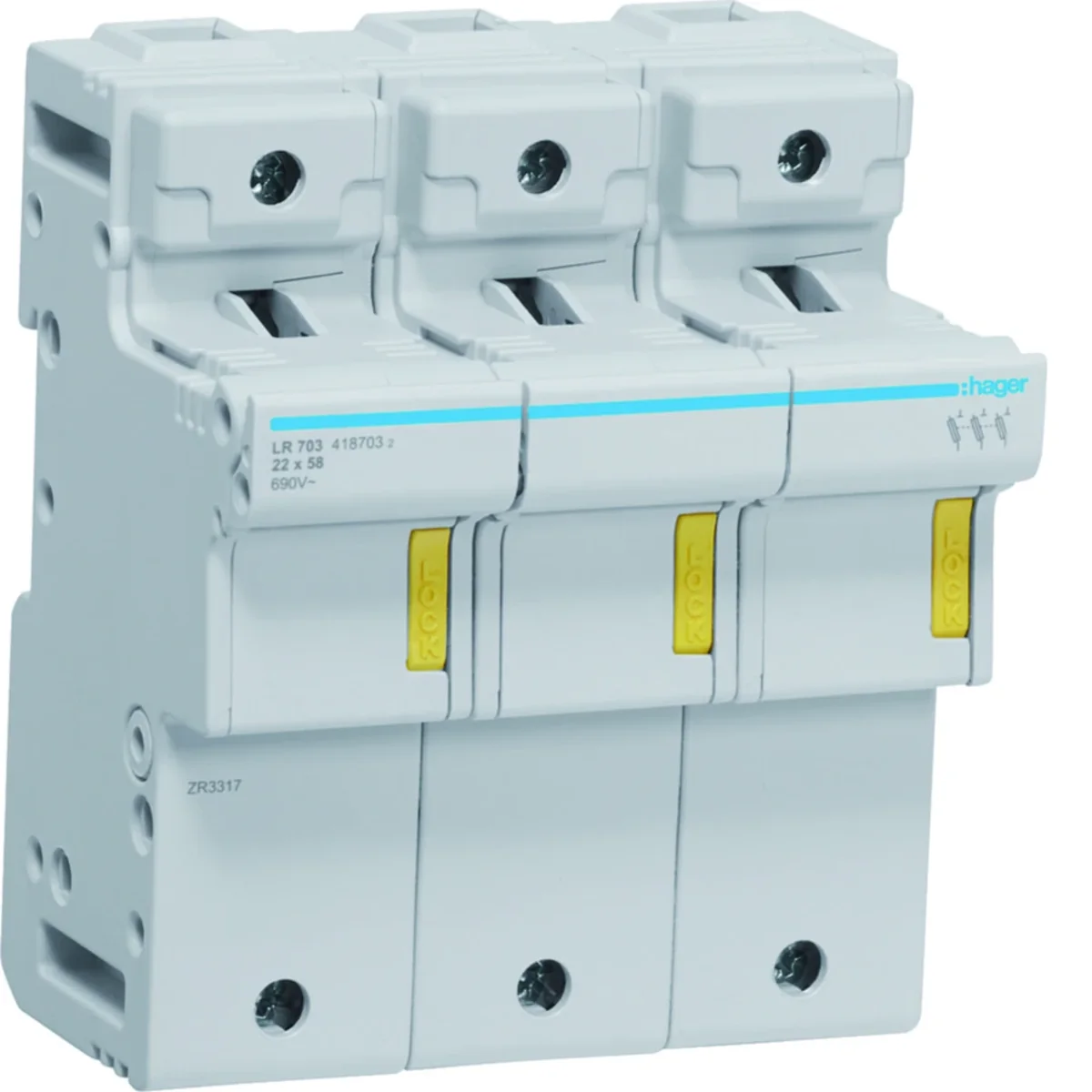

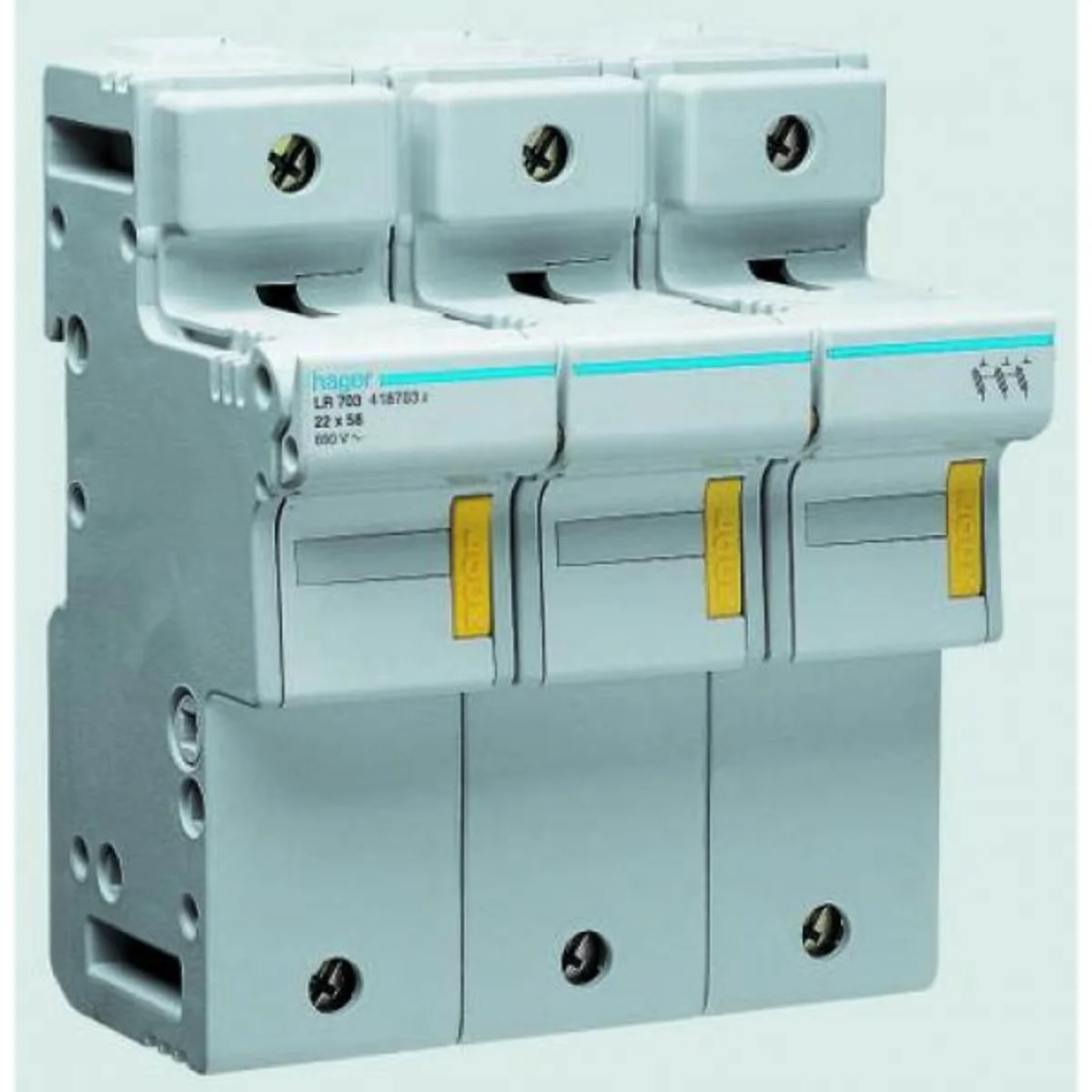

Base Modular fuse 3pole. up to 125A LR703

local index:
ALI038HAGE
Catalog No:
LR703
EAN code:
3250614187032
Manufacturer: HAGER
Number of poles: 3
Width [mm]: 22
Height [mm]: 58
Price:
75,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Base Modular fuse 3pole. up to 125A. Modular fuse bases Series L38
• for cylindrical fuses with dimensions: 10 x 38 mm, type gG and aM
• max. I know the current. 32A, 690VAC
• design allows replacement of a blown fuse, providing protection against contact
• the LS 531 base is equipped with a 230 V AC indicator light that indicates a blown fuse
• the bases are supplied without fusesów
• the possibility of sealing both in the closed and open position
• mounting on TS35 rail
• cage clamps:
- solid wire up to 25 mm2
- stranded wire up to 16 mm2
• standards:
EN/IEC 60269-2
EN/IEC 60269-2-1
EN/IEC 60947-3

Technical data

  • Number of poles
    3
  • Height [mm]
    58
  • Width [mm]
    22
  • PKWIU
    27.12.21.0

Other technical data

  • Number of poles
    3
  • Built-in depth
    125 mm
  • Width in number of modular spacings
    6

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 2 pcs. 14 pcs. 336 pcs.
Weight (kg) 0,594 1,190 8,740 232,760
Width (m) 0,105 0,140 0,315 0,800
Length (m) 0,125 0,090 0,235 1,090
Depth (m) 0,076 0,235 0,360 1,200
