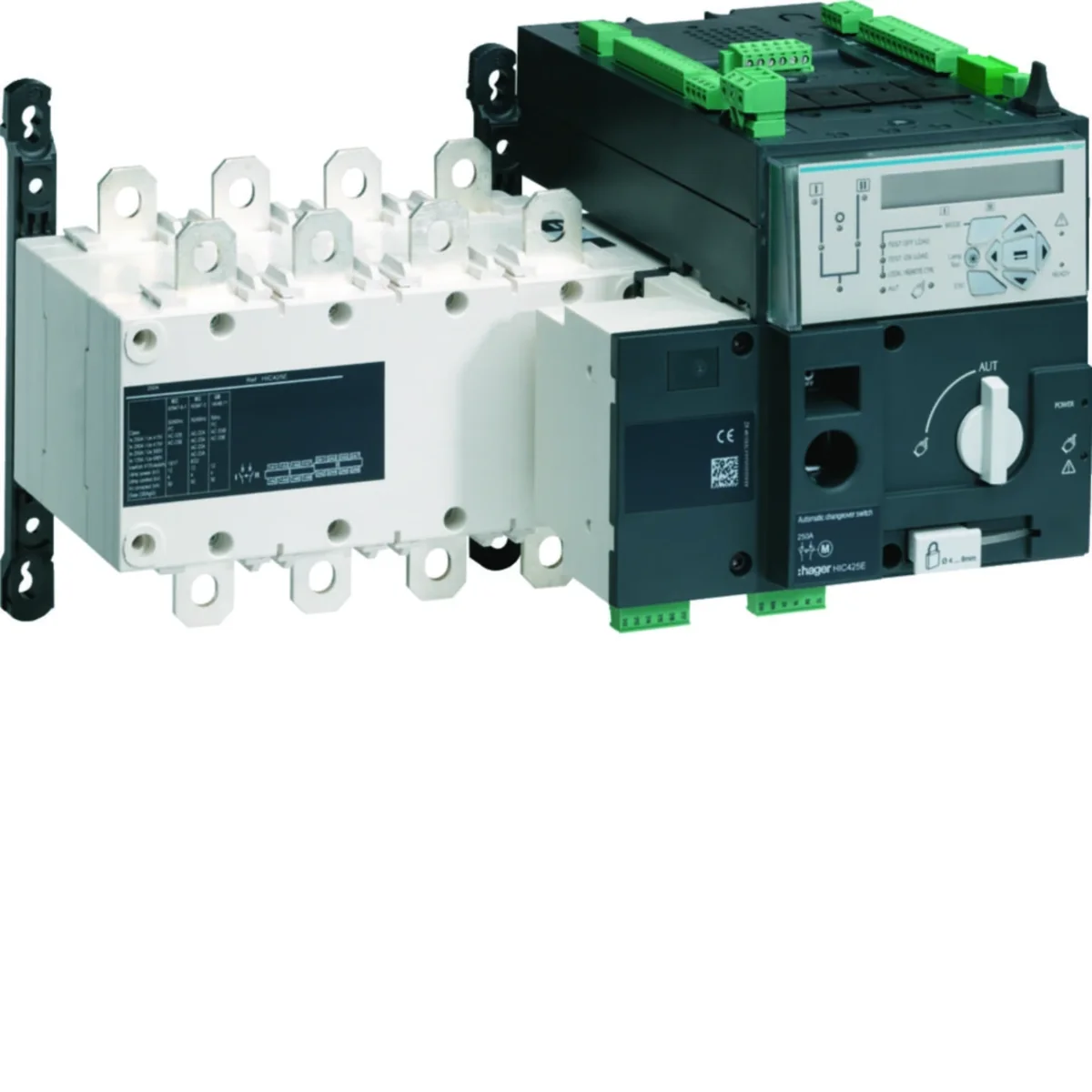

Automatic transfer switch with measurement and communication 4P 160A HIC416E

The 160A electromagnetic motorized automatic power switch, with measurement and communication, is perfectly adapted to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort of unusual solutions on the implemented facilities.

Function:

• Remote switching of circuit power supply under load while maintaining separation of supply lines.

Product features:

• The use of remote switching of two interlocked switch disconnectors offers a number of possibilities:
  • 3 stable working positions switched under load (cat. AC 22 and AC 23),
  • safe separation of power supply networks with indication of the working position,
  • possibility of locking in position 0,
  • compact design,
  • design and spacing of poles allows the use of coupling bridges,
  • cooperation with universal HZI811 controller.
