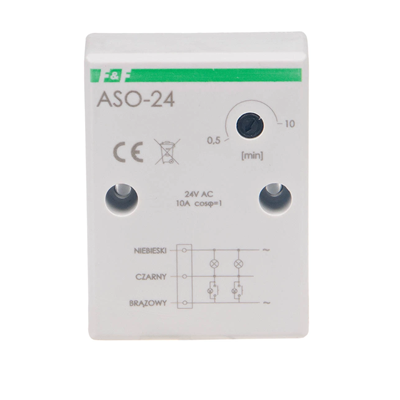

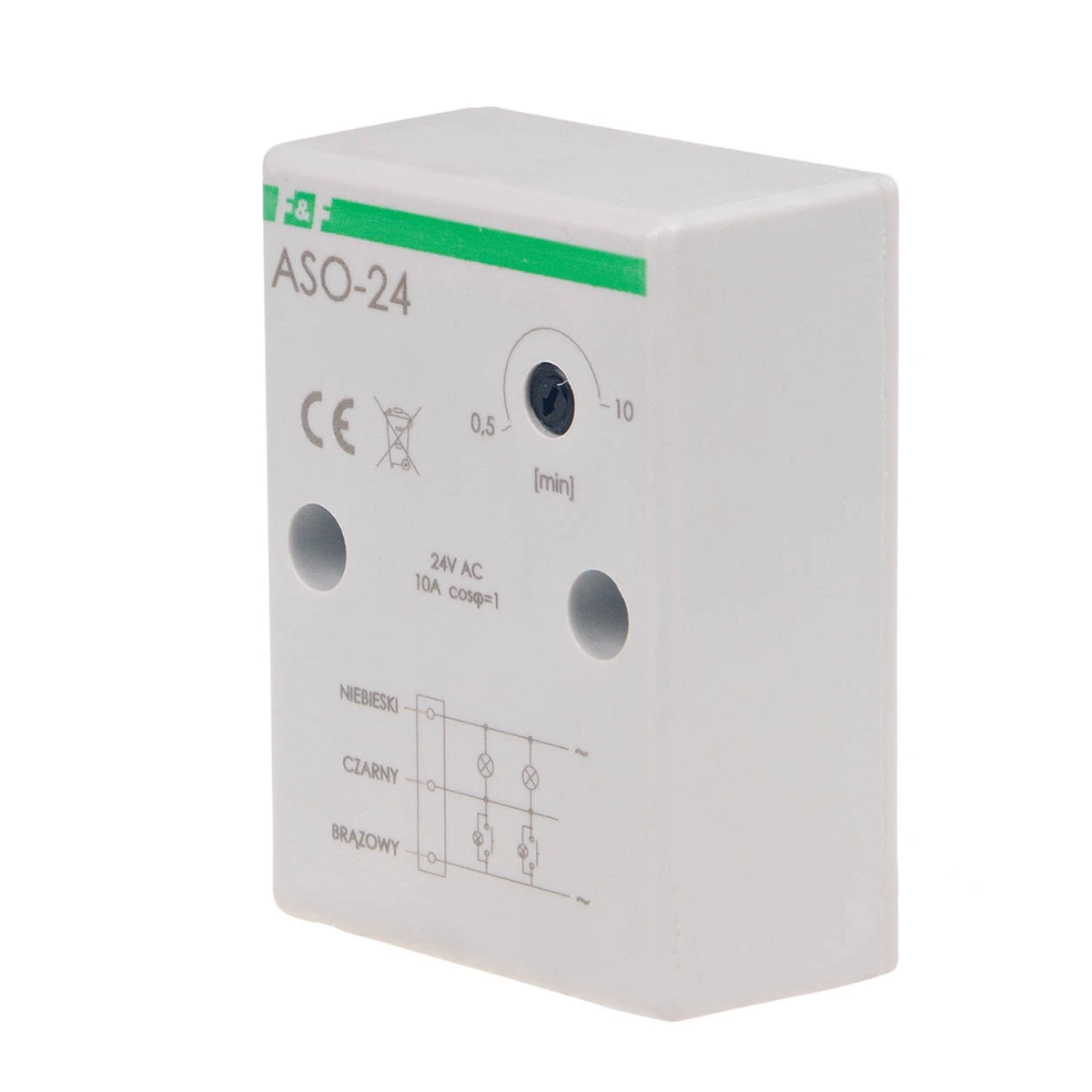

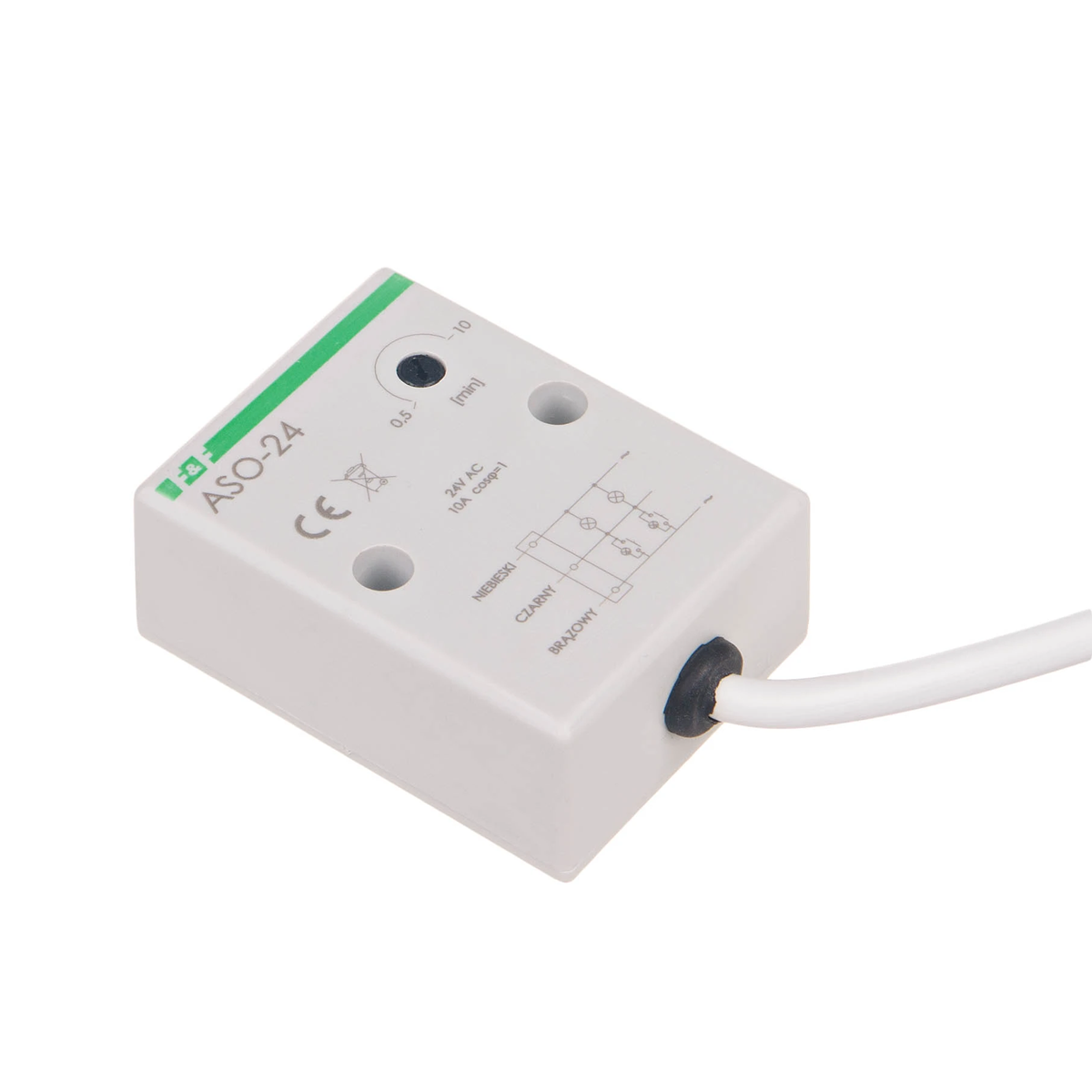

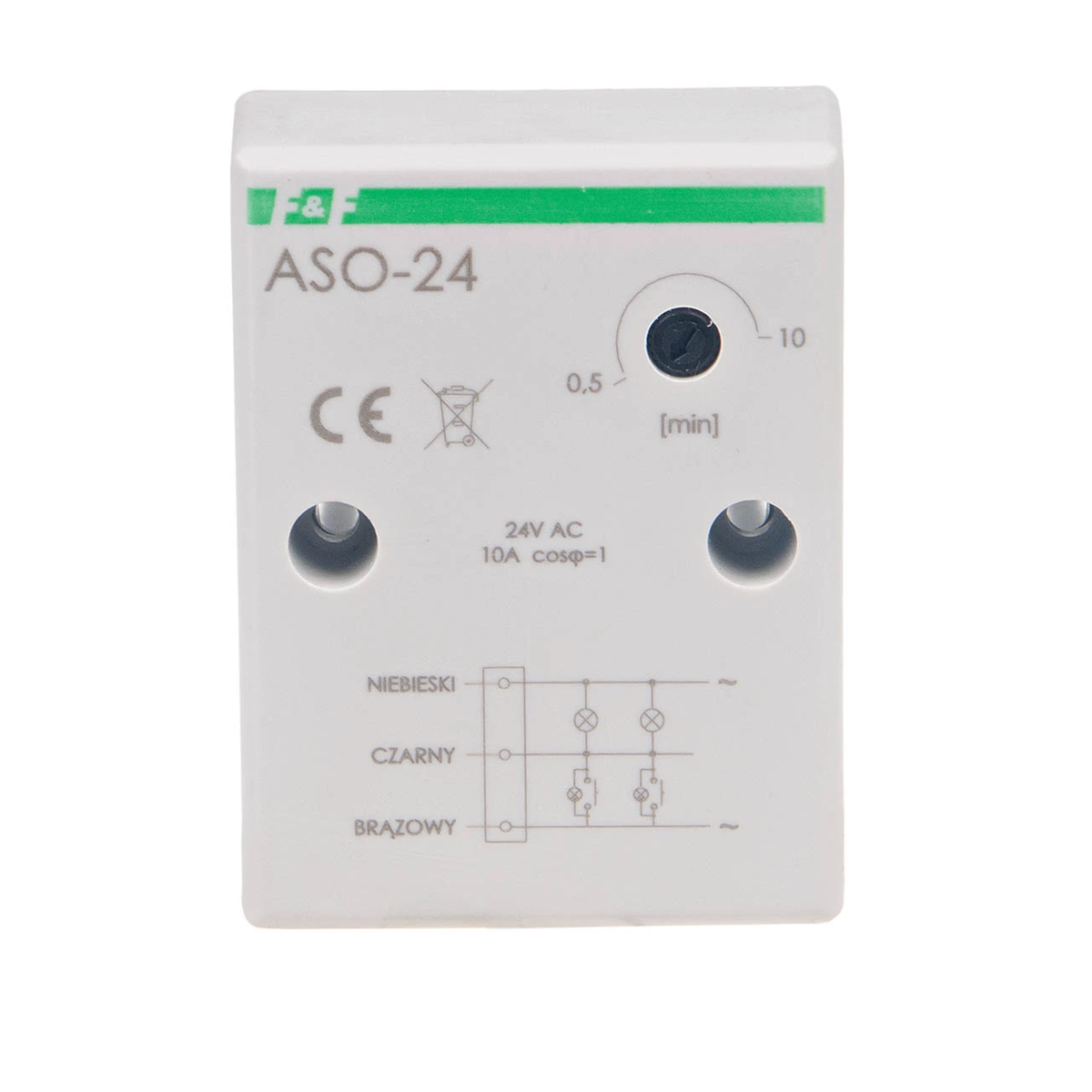

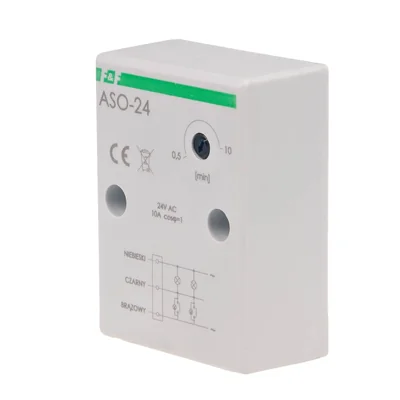

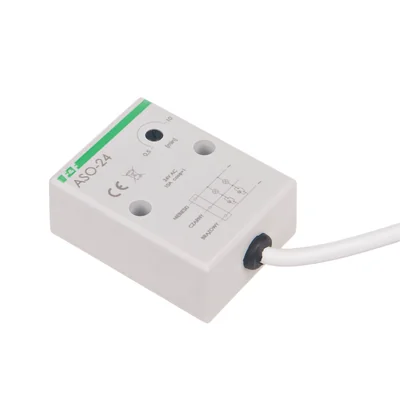

Automatic staircase ASO-24

Automatic staircase ASO-24

Automatic staircase ASO-24

Automatic staircase ASO-24

Automatic staircase ASO-24

Click on the photo to enlarge

Automatic staircase ASO-24

Automatic staircase ASO-24

Automatic staircase ASO-24

Automatic staircase ASO-24

Automatic staircase ASO-24

Automatic staircase ASO-24 ASO-24

local index:

APC104FIFQ

Catalog No:

ASO-24

EAN code:

5908312592020

Price:

17,70 €

gross / pcs.

including VAT 23%

Availability:

up to 2 weeks (business days)

Delivery:

From 3,69 € (prepaid courier) Details

Quantity:

Goods at a promotional price can only be purchased in the quantity available in stock

pcs.

Delivery methods:

Metody dostawy

details

Payment methods:

Metody płatności

details

Go to section:

Product description Technical data

Product description

Purpose:
Staircase automatics are used to keep the lighting of corridors, staircases or other objects on for a specified period of time, after which the lighting will be switched off automatically.

Operation
Automators cannot work directly with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.

Report an error

Technical data

Depth [mm]

26
Shutdown delay - adjustable

0.5-10
load current [A]

<10
Mounting method

For screws
Working temperature [°C]

-25-50
Power [V]

24
Package width [mm]

67

Power [W]

0.56
Tripping delay [s]

<1
connection

OMY 3×0.75mm ; l=0.45m
Width [mm]

67
Height [mm]

50
Package height [mm]

50
Package weight [kg]

0, 1

Other technical data

Function

Electronic
Control voltage 1

24 ... 24 V
Frequency control voltage 1

50 ... 50 Hz
Release-delay

0.5 ... 10 min
Pre-warning of switching-off

Dimming up to 0 %
Max. load fluorescent lamp

350 VA
Max. load fluorescent lamp (parallel compensated)

500 VA

Mounting method

Surface mounted
Type of control voltage 1

AC
Rated switch current

10 A
Wiring system

3 and 4 wire configuration
Max. incandescent lamp load

1500 W
Max. load fluorescent lamp (Duo circuit)

650 VA

Catalog cards, diagrams, certificates

FF_RoHS_2022.pdf

UE_FF002_18_AS_ASO_dek_zgod_CE.pdf
