F&F

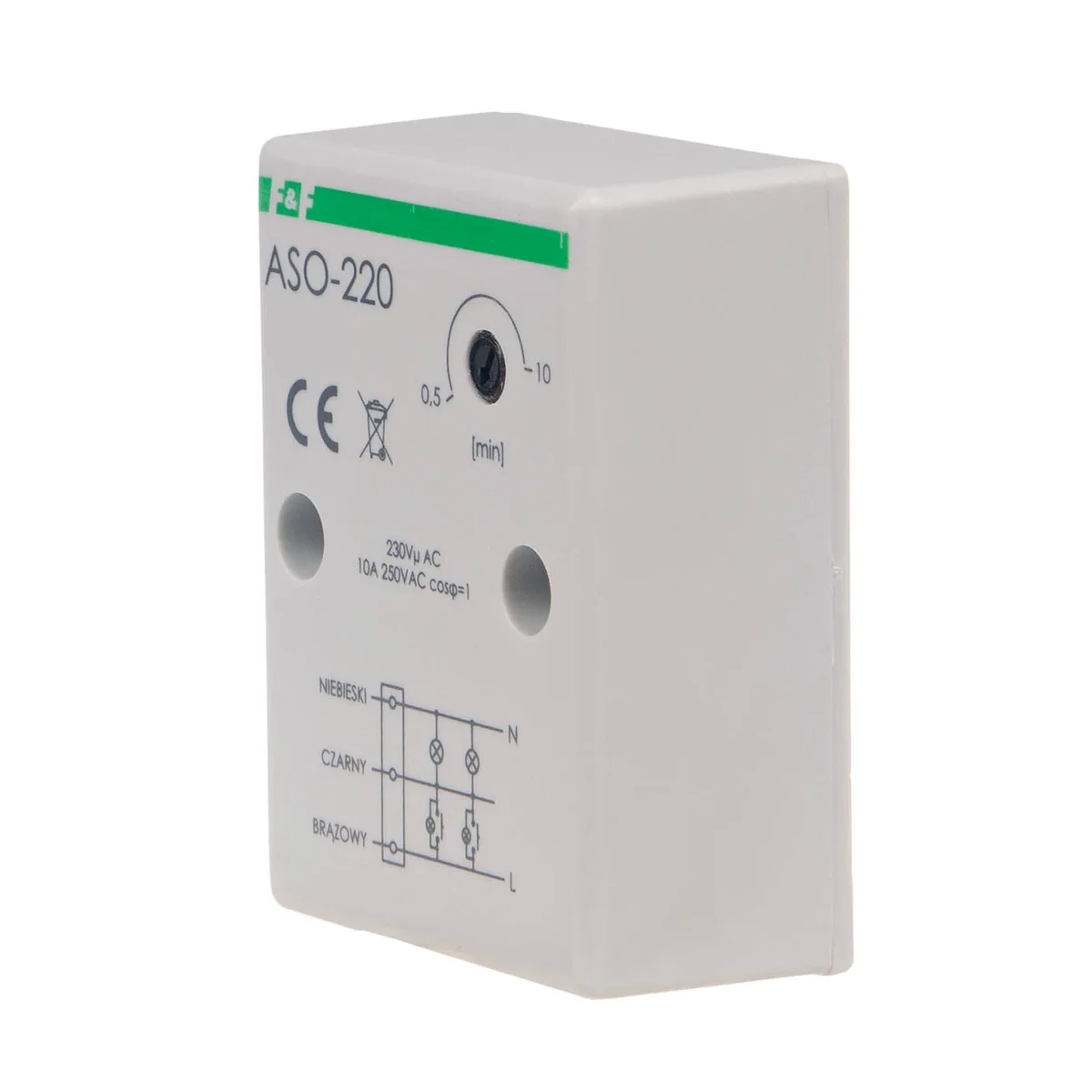

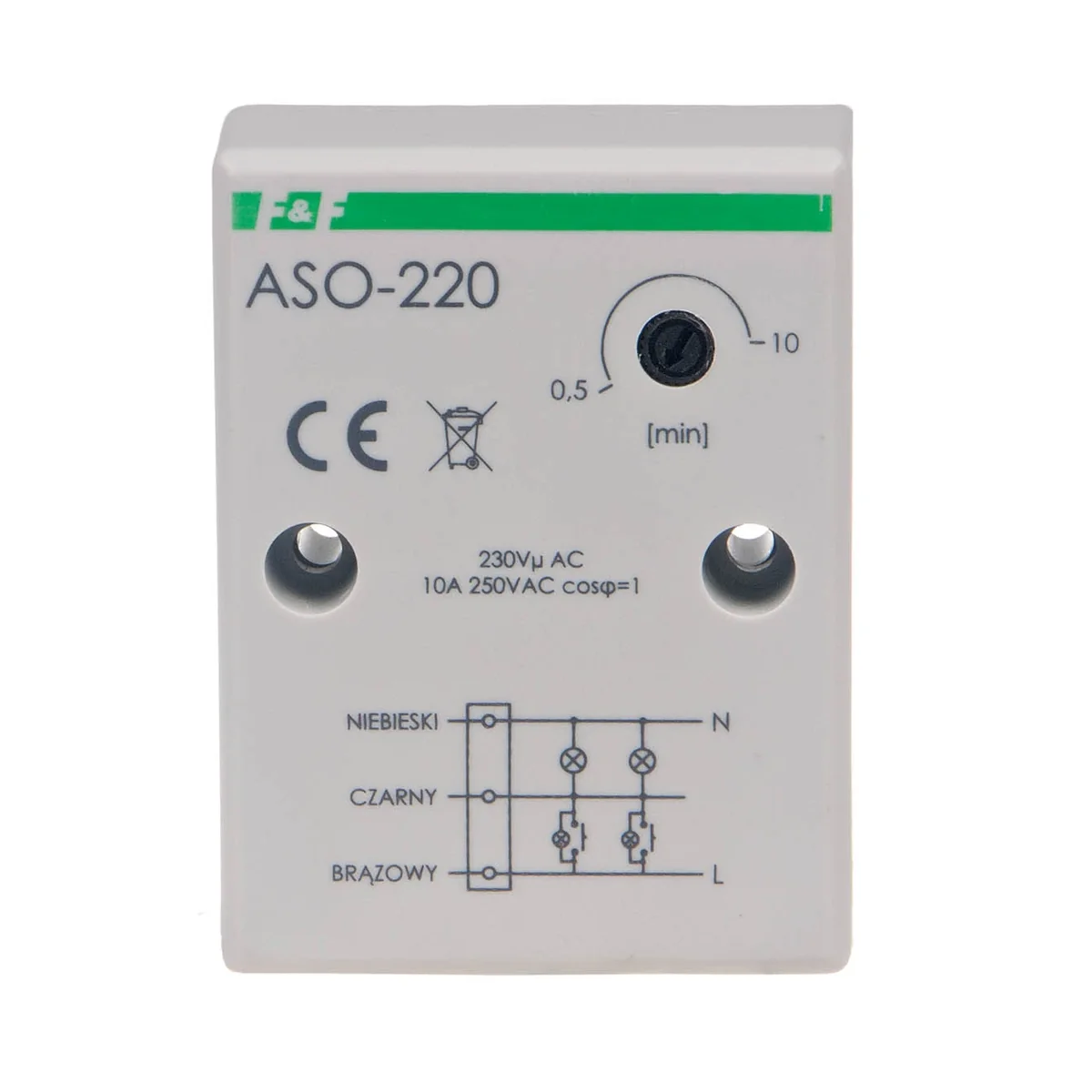

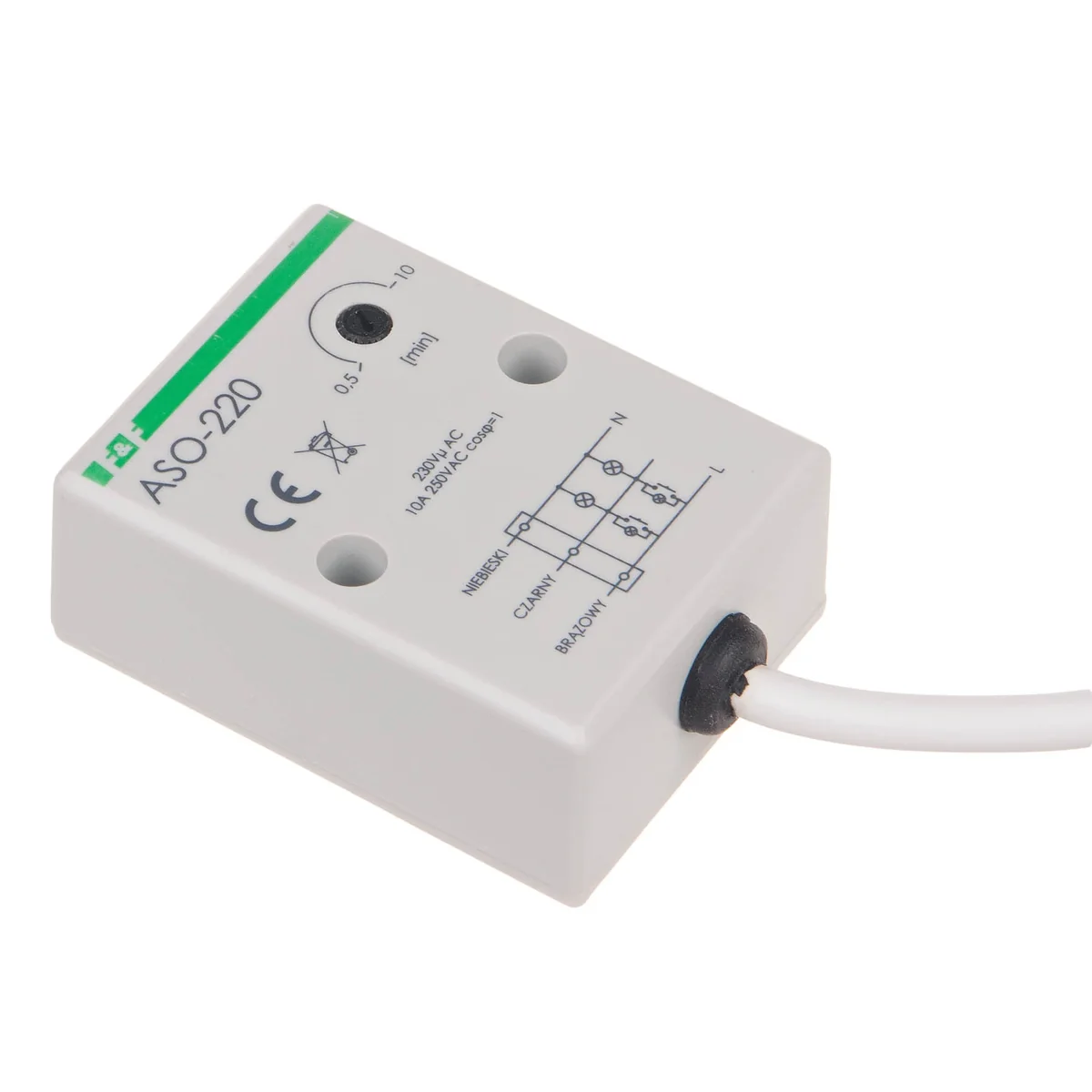

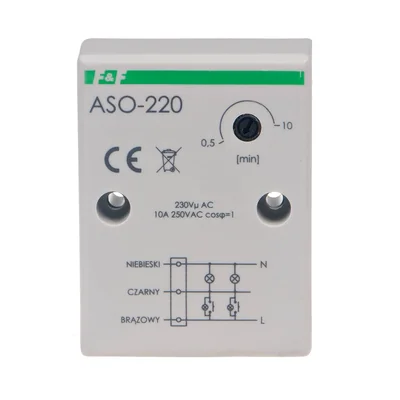

Automatic staircase ASO-220 ASO-220

local index:
APC102FIFQ
Catalog No:
ASO-220
EAN code:
5908312592013
Price:
16,76 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 24 pcs.
Delivery:
From 3,45 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Purpose:
Staircase automatics are used to keep the lighting of corridors, staircases or other objects on for a specified period of time, after which the lighting will be switched off automatically.

Operation
The staircase timer activated with a momentary (bell) switch maintains the lighting for the set time  (from 0.5 minutes to 10 minutes). After the set time has elapsed, the automatic device will turn off the lighting automatically. After turning off the lighting, we can turn it on again.
Automators cannot directly cooperate with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.

Technical data

  • Depth [mm]
    26
  • Rated voltage [V]
    230
  • Tripping delay [s]
    <1
  • connection
    OMY 3×0.75mm ; l=0.45m
  • Width [mm]
    67
  • Height [mm]
    50
  • Package width [mm]
    67
  • Power [W]
    0.56
  • Shutdown delay - adjustable
    0.5-10
  • load current [A]
    <10
  • Mounting method
    For screws
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    50
  • Package weight [kg]
    0, 1

Other technical data

  • Function
    Electronic
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Rated switch current
    10 A
  • Wiring system
    3 and 4 wire configuration
  • Repetitive
    Repetitive + continuous light
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    350 VA
  • Max. load fluorescent lamp (parallel compensated)
    500 VA
  • Mounting method
    Surface mounted
  • Type of control voltage 1
    AC
  • Type of control voltage 2
    AC/DC
  • Release-delay
    0.5 ... 10 min
  • Pre-warning of switching-off
    Dimming up to 0 %
  • Supply voltage
    230 ... 230 V
  • Max. incandescent lamp load
    1500 W
  • Max. load fluorescent lamp (Duo circuit)
    650 VA
