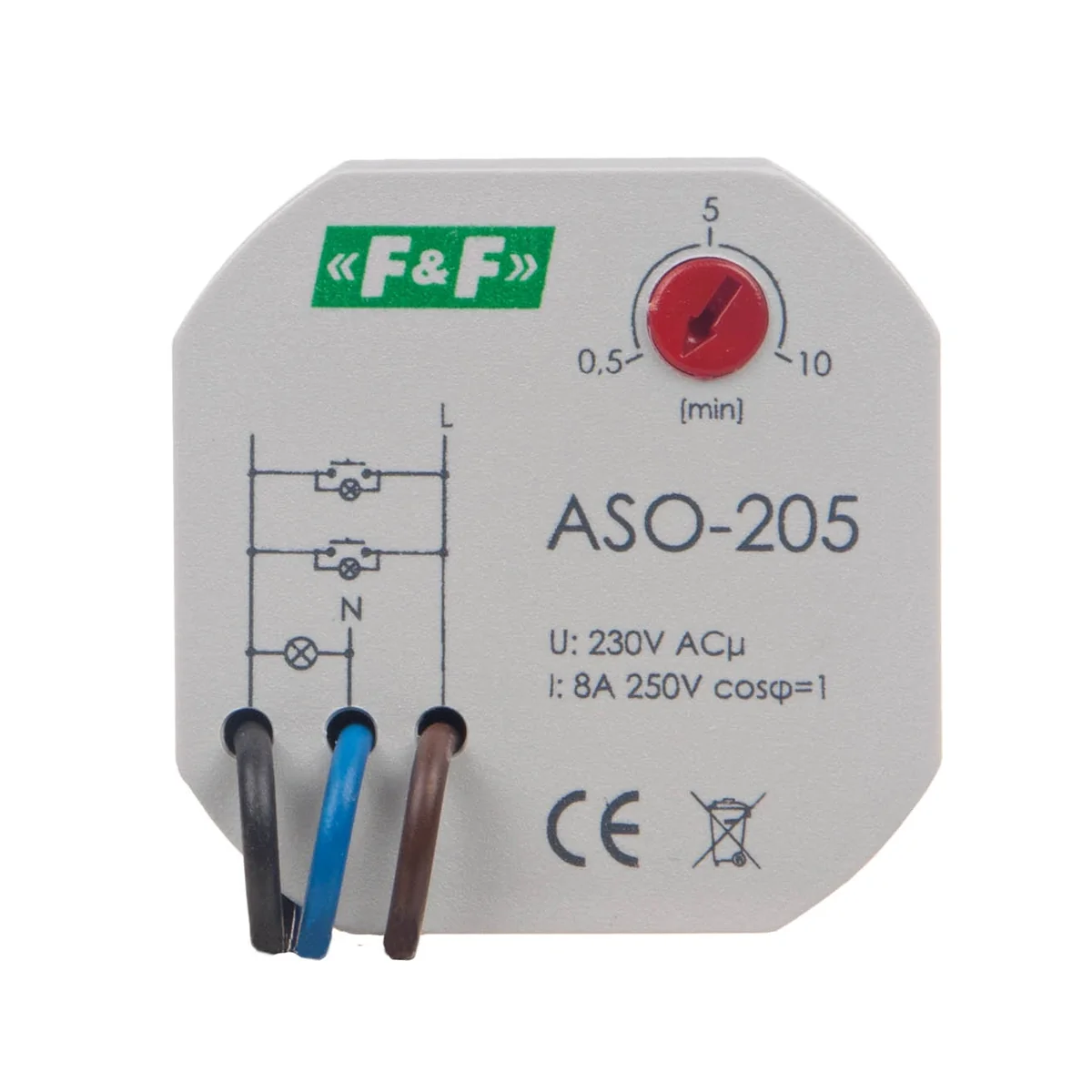

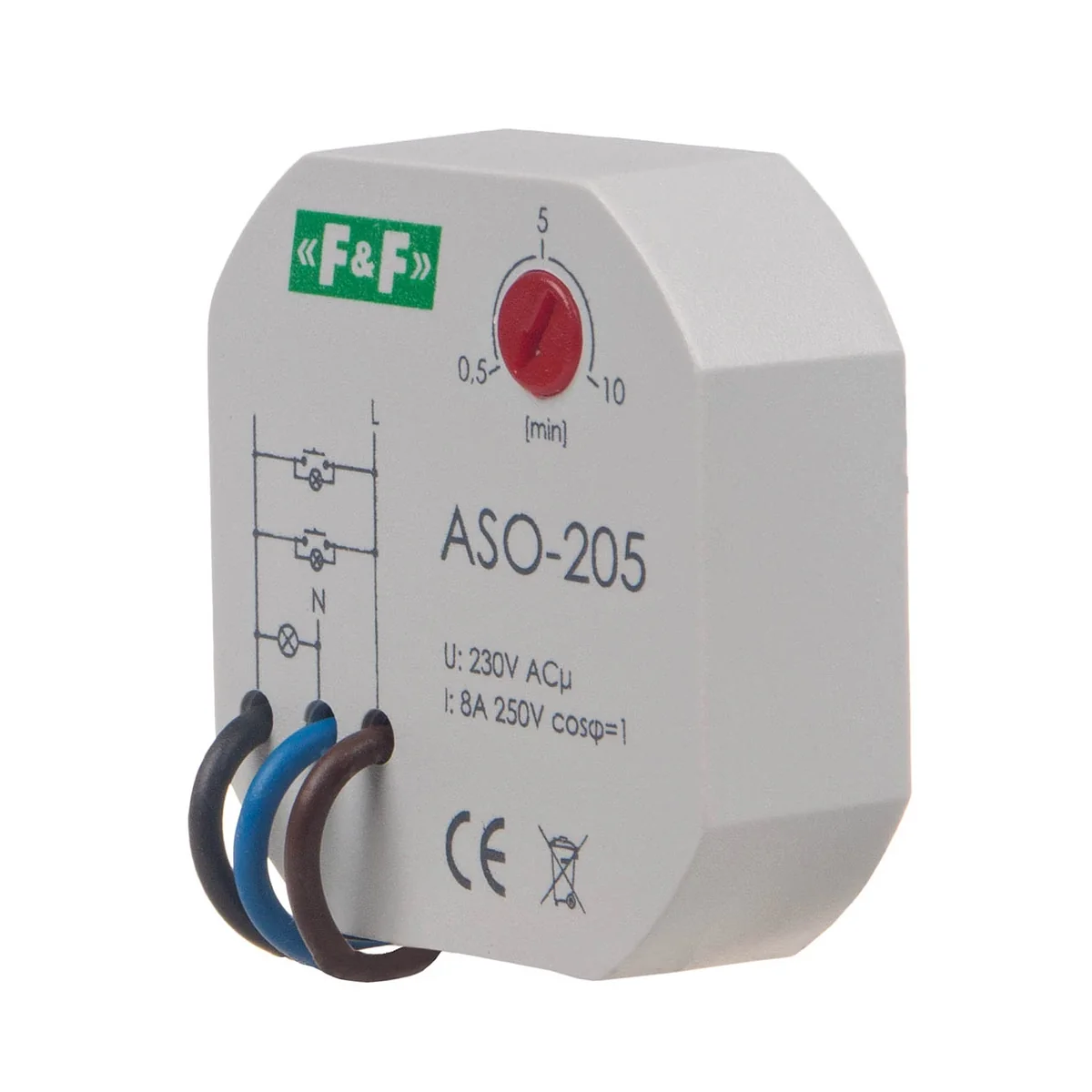

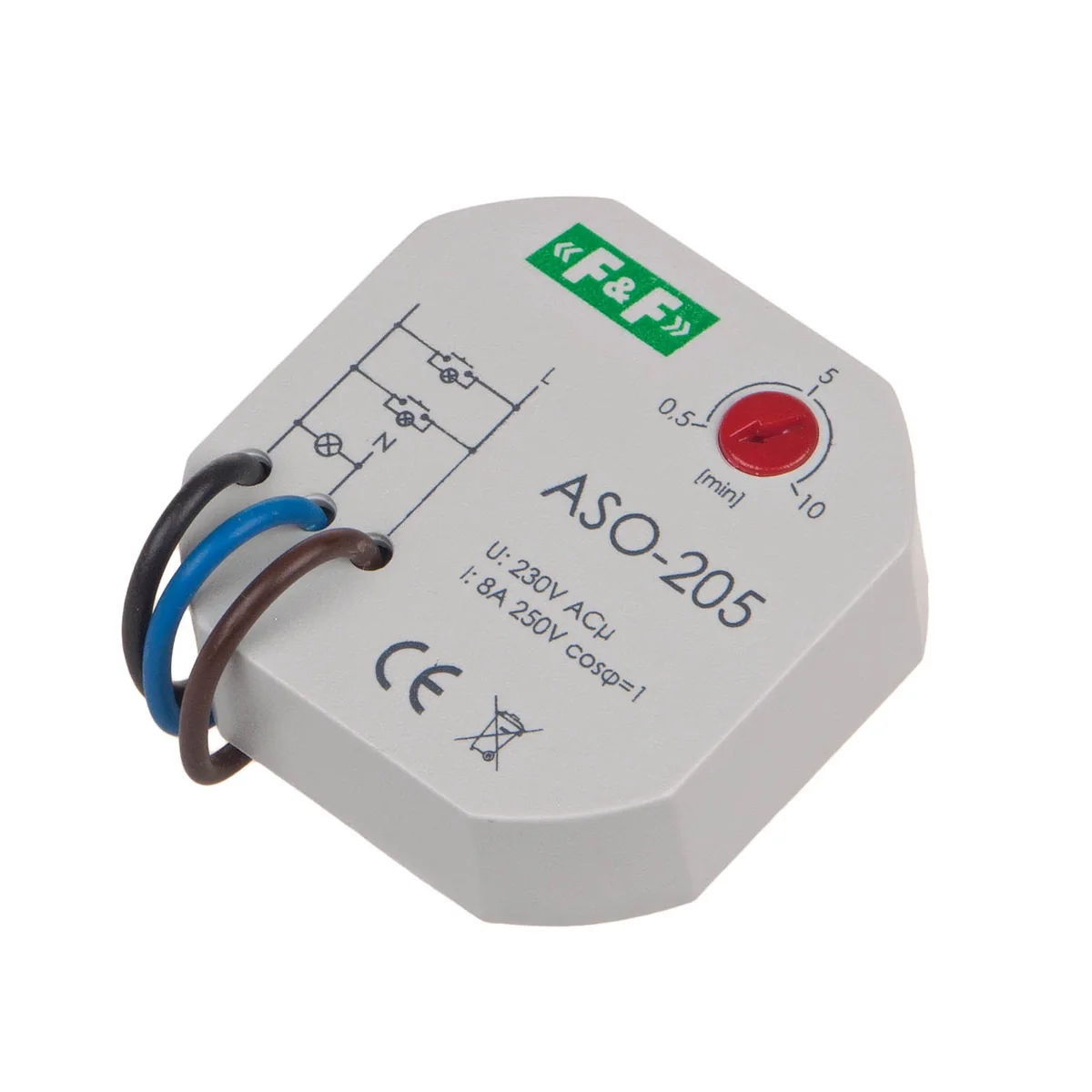

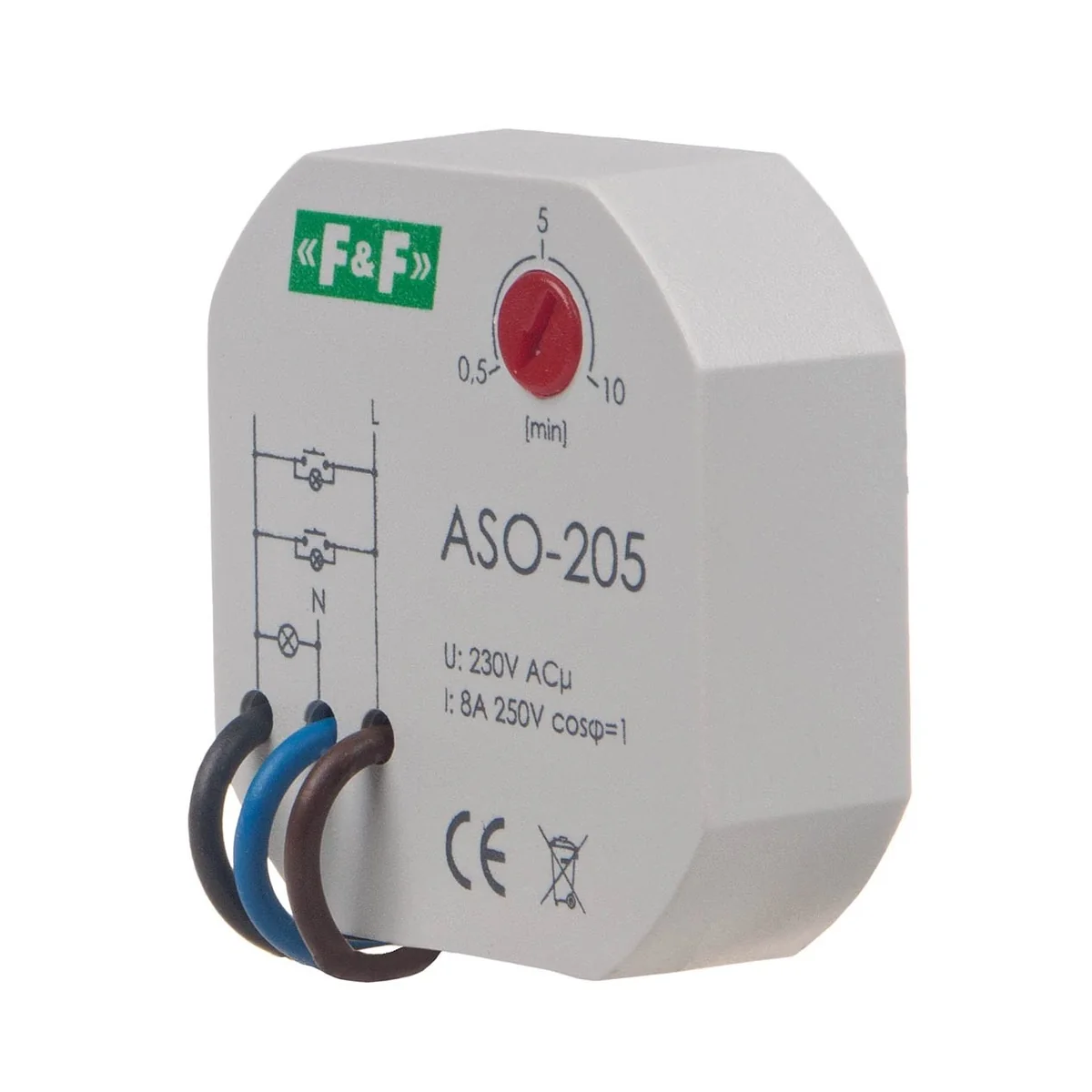

Automatic staircase ASO-205 ASO-205

Místní index:
APC114FIFQ
Katalogové číslo.:
ASO-205
EAN kód:
5908312596233
Výrobce: F&F
Power [W]: 0.4
Installation: Flush-mounted
Rated voltage [V]: 230
Cena:
76,75 zł
gross / kusů.
(včetně DPH 23%)
k dispozici 18 kusů.
Vyzvednutí za 1h
Dodání do 3 hodin
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Purpose:
Staircase automatics are used to keep the lighting of corridors, staircases or other objects on for a specified period of time, after which the lighting will be switched off automatically.

Operation
The staircase timer activated with a momentary (bell) switch maintains the lighting for the set time  (from 0.5 minutes to 10 minutes). After the set time has elapsed, the automatic device will turn off the lighting automatically. After turning off the lighting, we can turn it on again.
Automators cannot directly cooperate with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.

Technické údaje

  • Power [W]
    0.4
  • Rated voltage [V]
    230
  • Tripping delay [s]
    <1
  • connection
    3×DY 1.0mm ; l=10cm
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    13
  • Packaging diameter [mm]
    55
  • Installation
    Flush-mounted
  • Shutdown delay - adjustable
    0.5-10min
  • load current [A]
    <10
  • Diameter [mm]
    55
  • Height [mm]
    13
  • Package weight [kg]
    0.5
  • PKWIU
    27.12.23.0

Další technické údaje

  • Function
    Electronic
  • Width in number of modular spacings
    0
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Type of control voltage 1
    AC
  • Rated switch current
    8 A
  • Release-delay
    0.5 ... 10 min
  • Wiring system
    3 wire configuration
  • Repetitive
    Repetitive + continuous light
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    350 VA
  • Max. load fluorescent lamp (parallel compensated)
    350 VA
  • Power consumption
    0.56 W
  • Mounting method
    Flush-mounted
  • Built-in depth
    0 mm
  • Number of contacts as normally closed contact
    0
  • Control voltage 1
    195 ... 253 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Max. switching current (cos phi = 0.6)
    5 A
  • Push button glow-lamp current
    3 mA
  • Pre-warning of switching-off
    None
  • Supply voltage
    195 ... 253 V
  • Max. incandescent lamp load
    900 W
  • Max. load fluorescent lamp (Duo circuit)
    650 VA
  • Max. switching power LED
    125 W

Podrobnosti o výrobci
