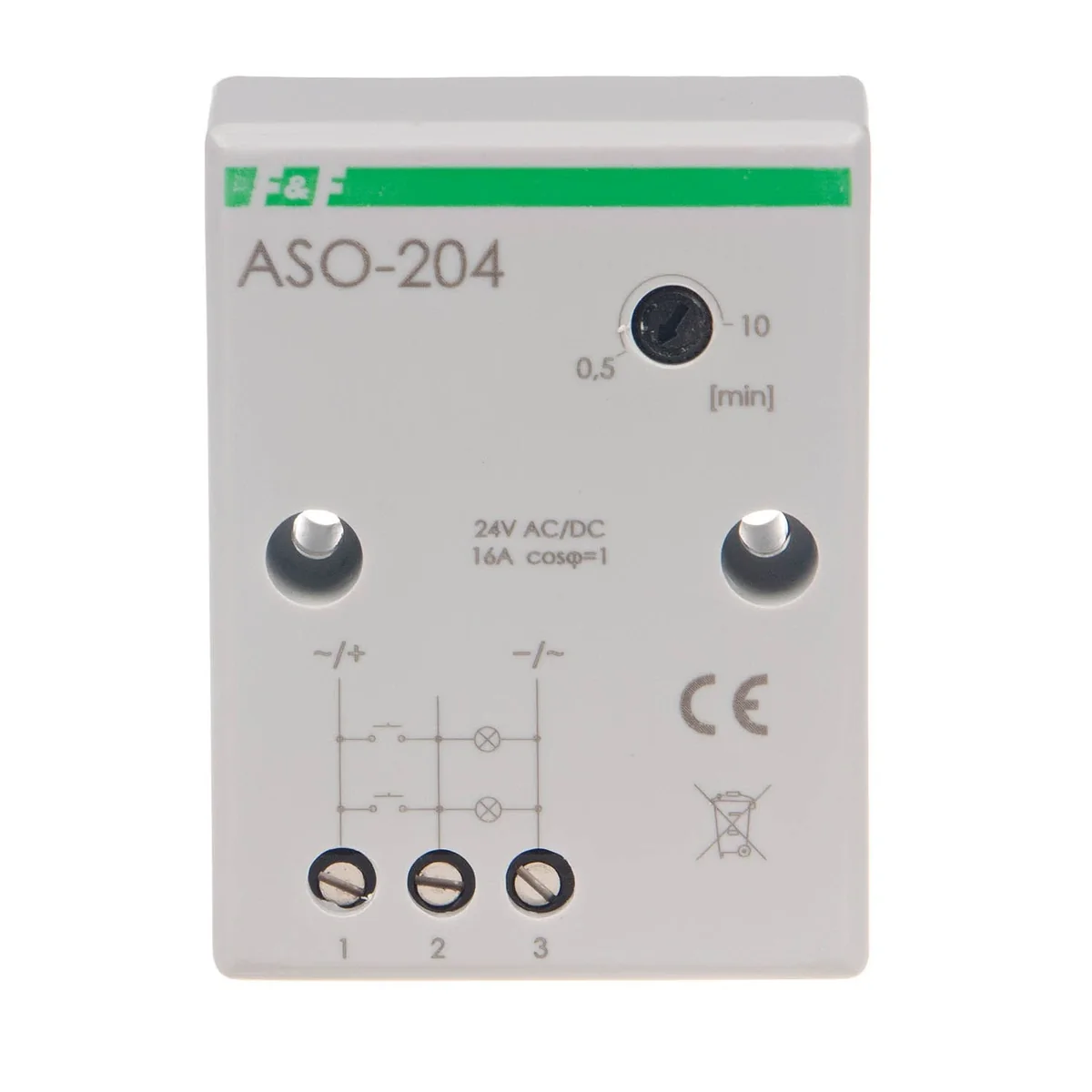

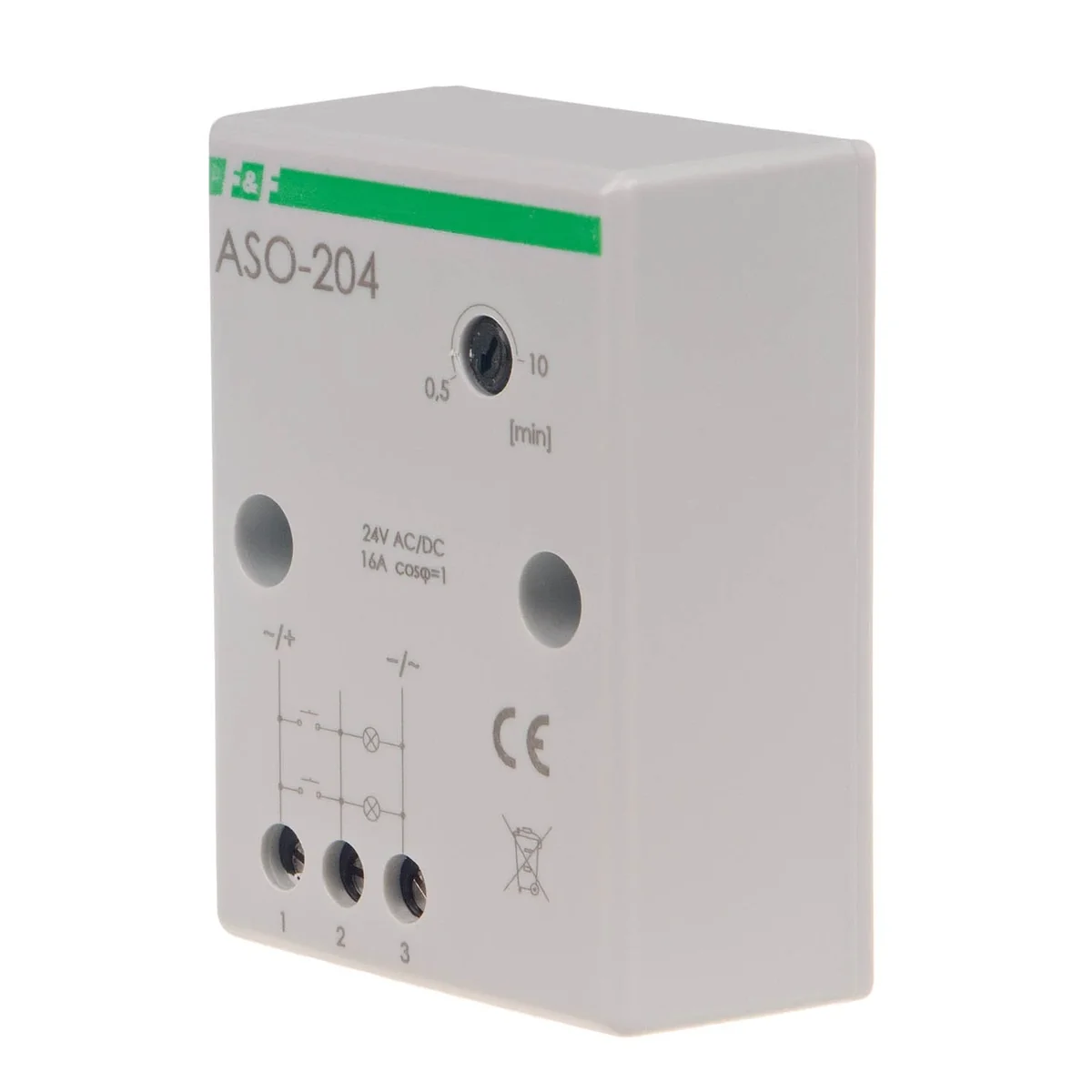

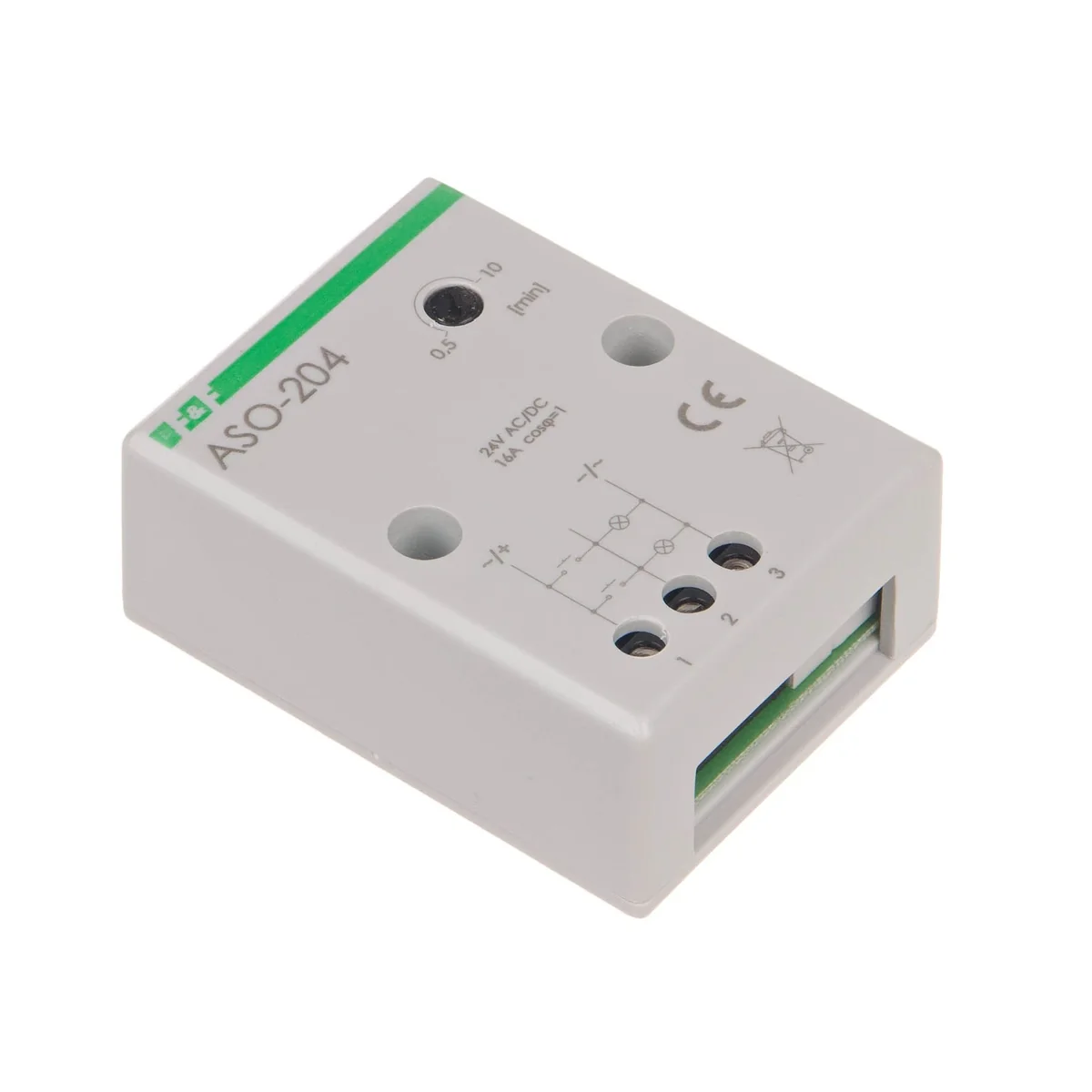

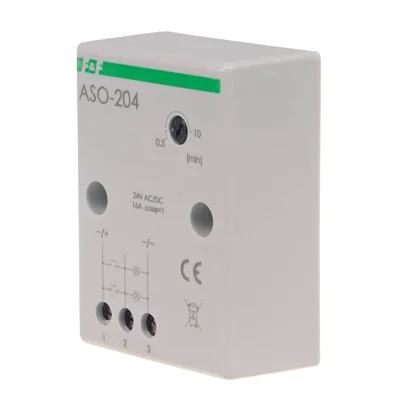

Automatic staircase ASO-204 ASO-204
local index:
APC105FIFQ
Catalog No:
ASO-204
EAN code:
5908312592044
Price:
15,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Purpose:
Staircase automatics are used to keep the lighting of corridors, staircases or other objects on for a specified period of time, after which the lighting will be switched off automatically.
Operation
Automators cannot work directly with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.
Technical data
-
Depth [mm]26
-
Surface mounting [A]16
-
Shutdown delay - adjustable0.5-10min
-
load current [A]<10
-
Mounting methodFor screws
-
Working temperature [°C]-25-50
-
Power [V]24
-
Package width [mm]67
-
PKWIU27.12.23.0
-
Power [W]0.56
-
Rated voltage [V]230
-
Tripping delay [s]<1
-
connection2.5mm screw terminals
-
Width [mm]67
-
Height [mm]50
-
Package height [mm]50
-
Package weight [kg]0.4
Other technical data
-
FunctionElectronic
-
Control voltage 124 ... 24 V
-
Frequency control voltage 150 ... 50 Hz
-
Rated switch current16 A
-
Wiring system3 and 4 wire configuration
-
RepetitiveRepetitive + continuous light
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp550 VA
-
Max. load fluorescent lamp (parallel compensated)800 VA
-
Mounting methodSurface mounted
-
Type of control voltage 1AC
-
Type of control voltage 2AC/DC
-
Release-delay0.5 ... 10 min
-
Pre-warning of switching-offDimming up to 0 %
-
Supply voltage230 ... 230 V
-
Max. incandescent lamp load2300 W
-
Max. load fluorescent lamp (Duo circuit)1000 VA
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,064 |
| Width (m) | 0,030 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
