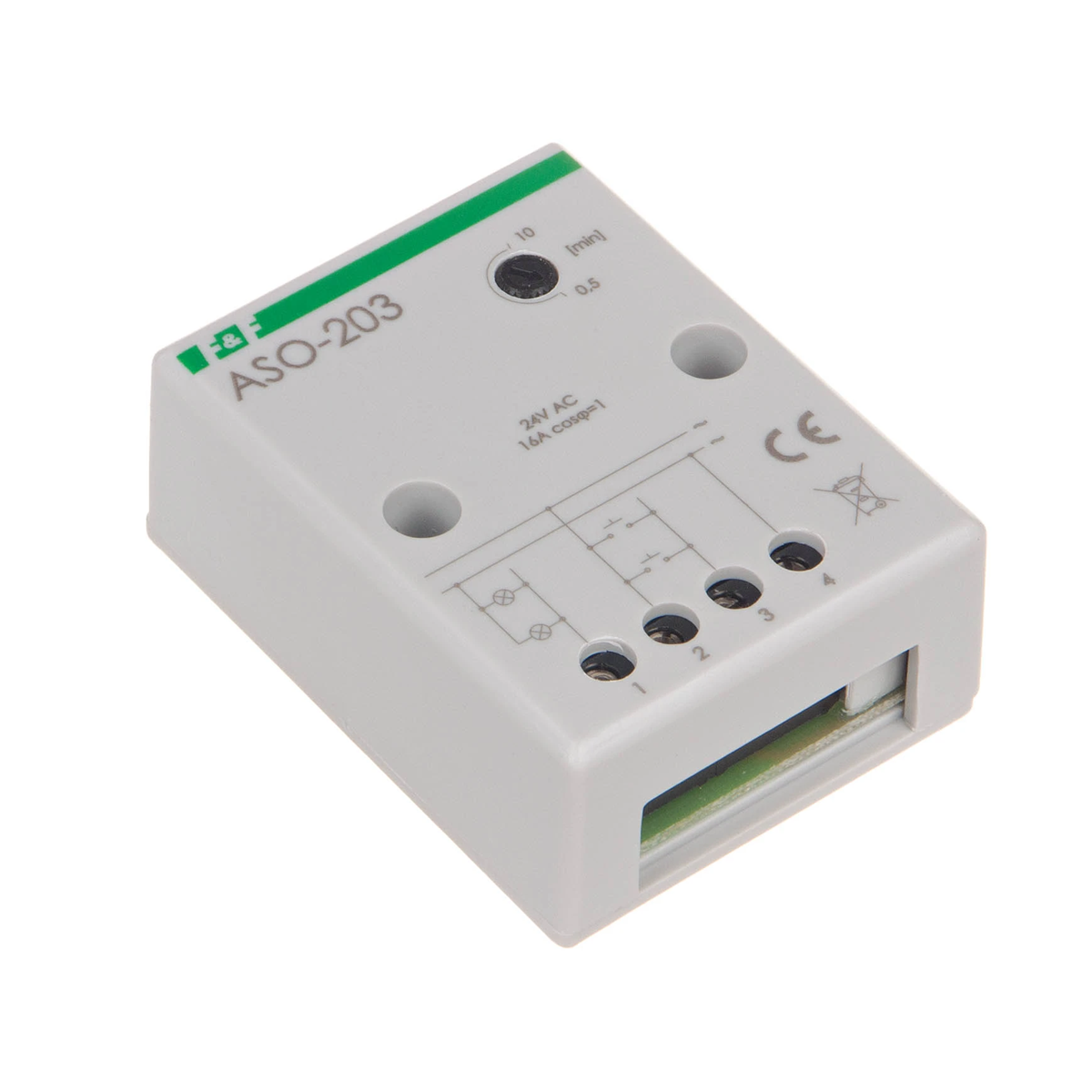

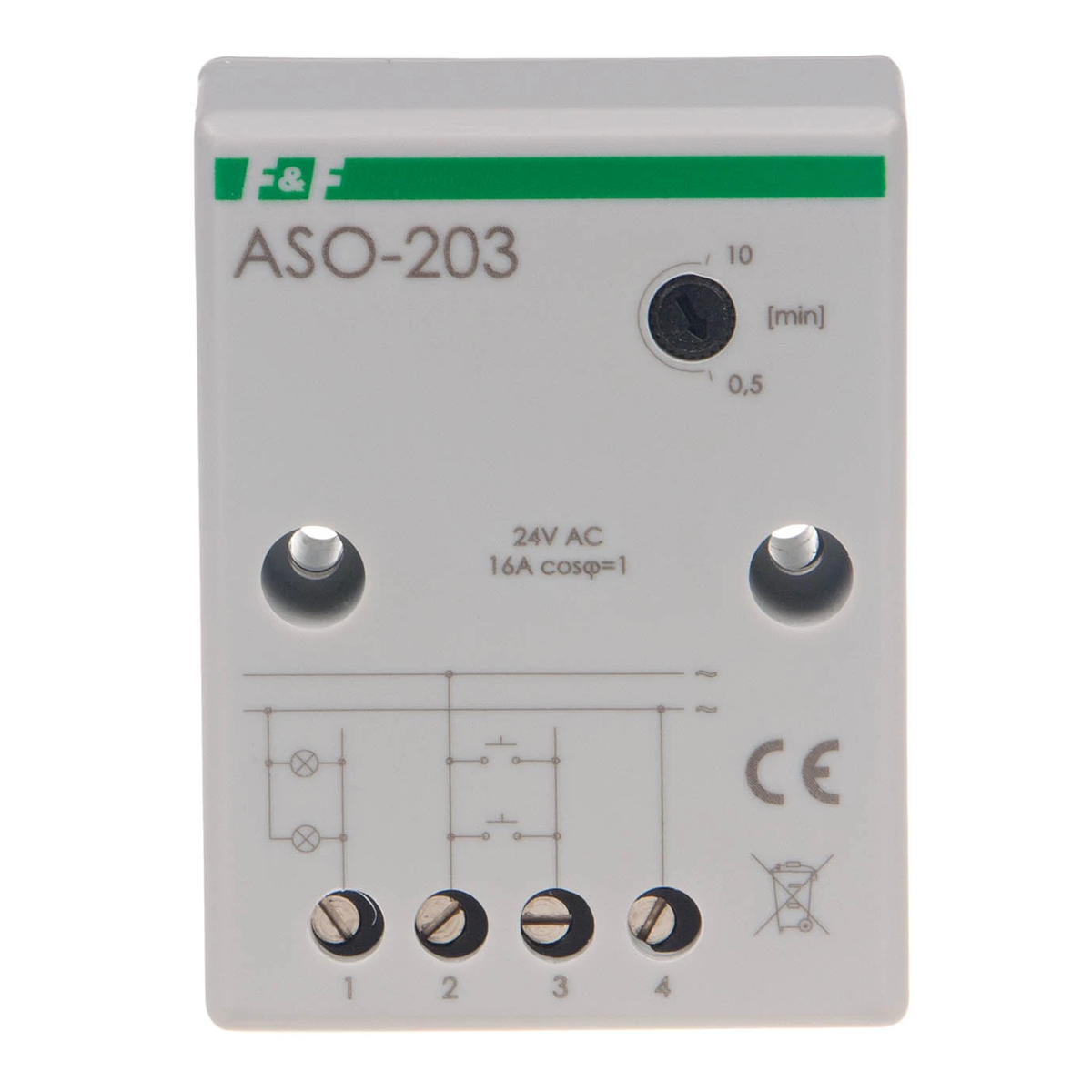

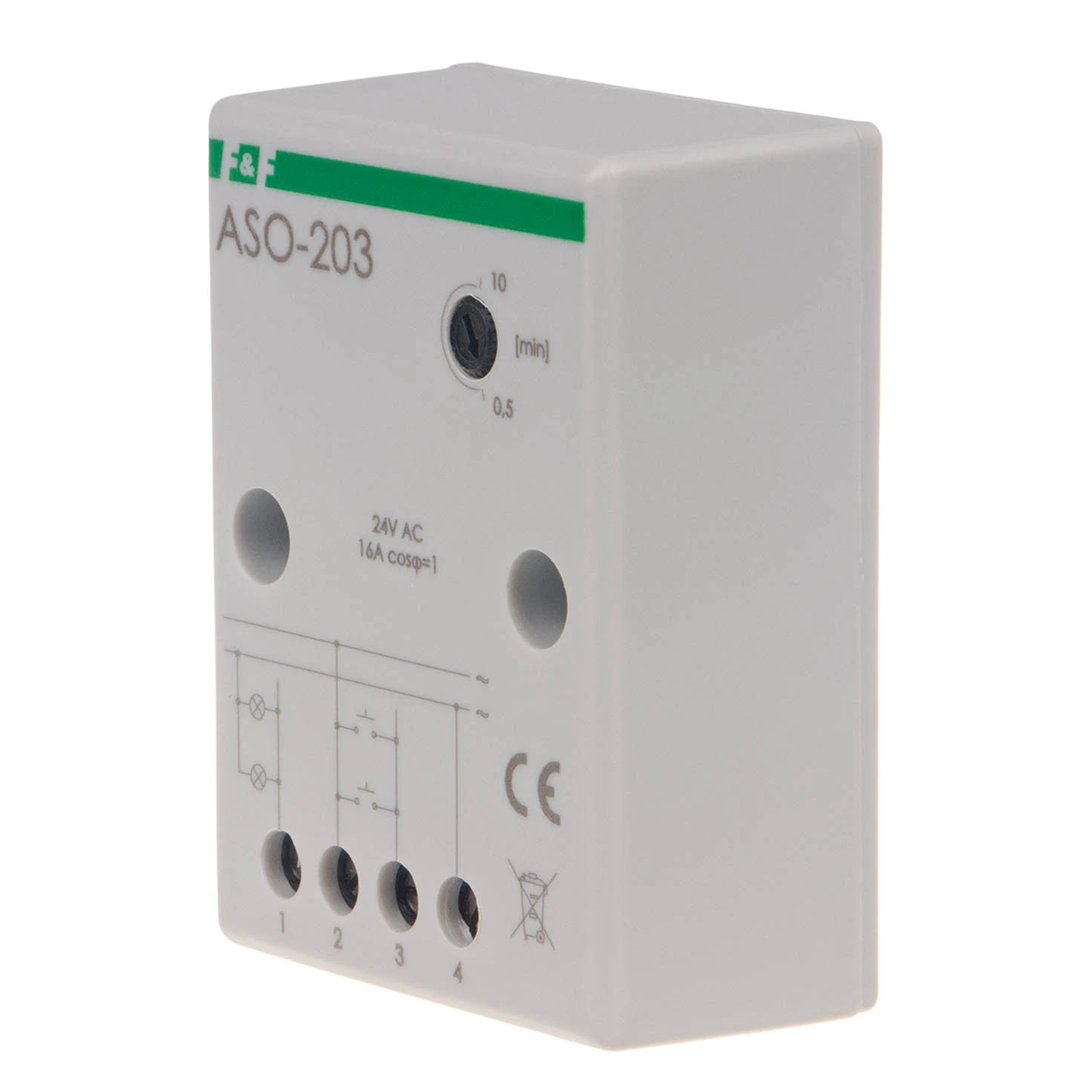

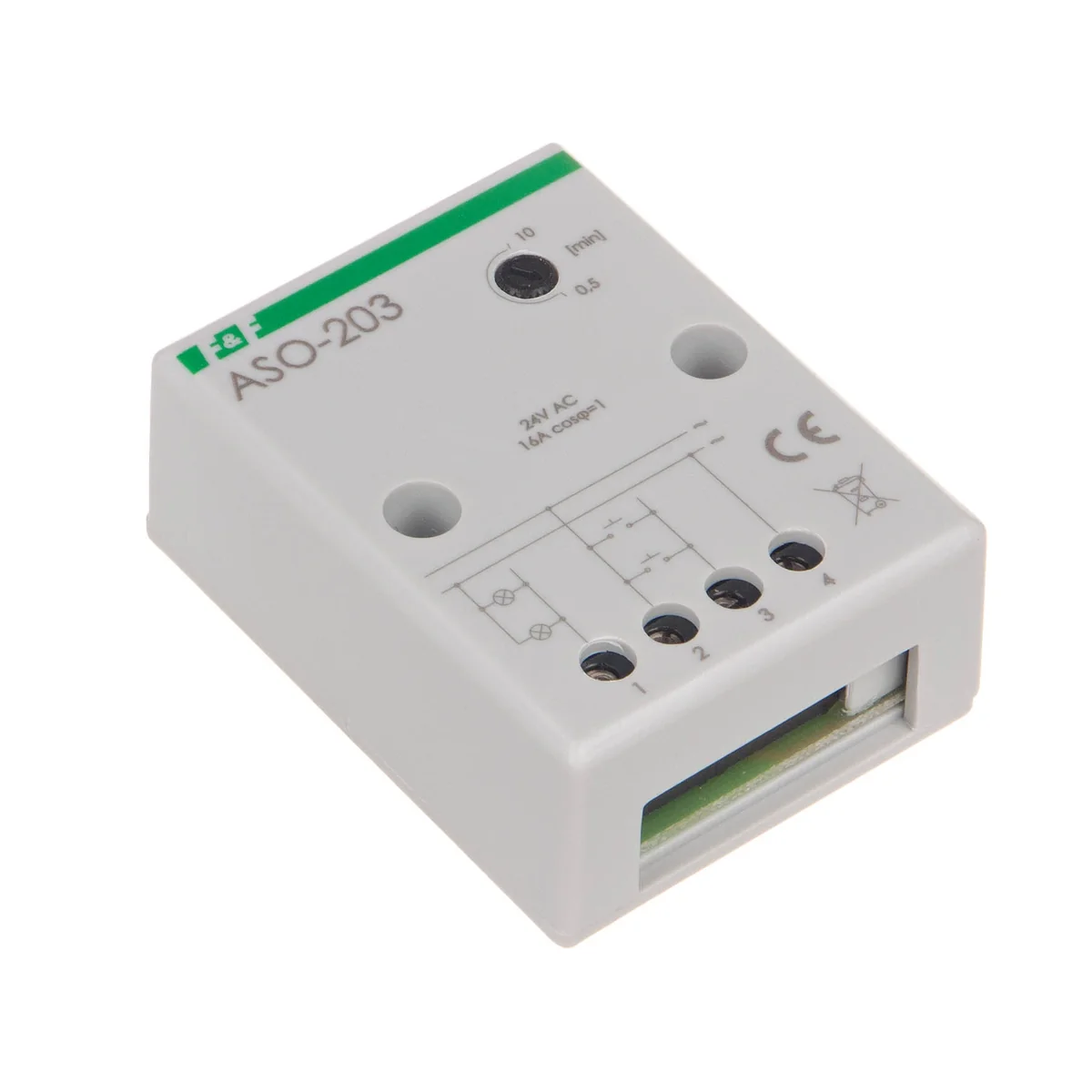

Automatic staircase ASO-203 ASO-203

Indice locale:
APC221FIFQ
Numero di catalogo:
ASO-203
Codice EAN:
5908312592174
Produttore: F&F
Depth [mm]: 26
Power [W]: 0.56
Surface mounting [A]: 16
Prezzo:
77,71 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Purpose:
Staircase automatics are used to keep the lighting of corridors, staircases or other objects on for a specified period of time, after which the lighting will be switched off automatically.

Operating
Automators cannot work directly with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.

The anti-blocking function does not allow continuous lighting lighting after blocking the staircase switch, i.e. after blocking the switch (e.g. with a match), the automatic device will measure the set time and turn off the lighting. The lighting can be switched on again after the blockade has been removed.

Dati tecnici

  • Depth [mm]
    26
  • Surface mounting [A]
    16
  • Shutdown delay - adjustable
    0.5-10min
  • load current [A]
    <10
  • Mounting method
    For screws
  • Working temperature [°C]
    -25-50
  • Power [V]
    24
  • Package width [mm]
    67
  • PKWIU
    27.12.10.0
  • Power [W]
    0.56
  • Rated voltage [V]
    230
  • Tripping delay [s]
    <1
  • connection
    2.5mm screw terminals
  • Width [mm]
    67
  • Height [mm]
    50
  • Package height [mm]
    50
  • Package weight [kg]
    0.1

Altri dati tecnici

  • Function
    Electronic
  • Width in number of modular spacings
    0
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Type of control voltage 1
    AC/DC
  • Rated switch current
    16 A
  • Release-delay
    0.5 ... 10 min
  • Wiring system
    4 wire configuration
  • Repetitive
    Repetitive
  • Voltage type (supply voltage)
    AC/DC
  • Max. load fluorescent lamp
    0 VA
  • Max. load fluorescent lamp (parallel compensated)
    0 VA
  • Power consumption
    0.56 W
  • Mounting method
    Surface mounted
  • Built-in depth
    0 mm
  • Number of contacts as normally closed contact
    0
  • Control voltage 1
    21 ... 27 V
  • Frequency control voltage 1
    0 ... 50 Hz
  • Max. switching current (cos phi = 0.6)
    12 A
  • Push button glow-lamp current
    0 mA
  • Pre-warning of switching-off
    None
  • Supply voltage
    21 ... 27 V
  • Max. incandescent lamp load
    300 W
  • Max. load fluorescent lamp (Duo circuit)
    0 VA
  • Max. switching power LED
    100 W
