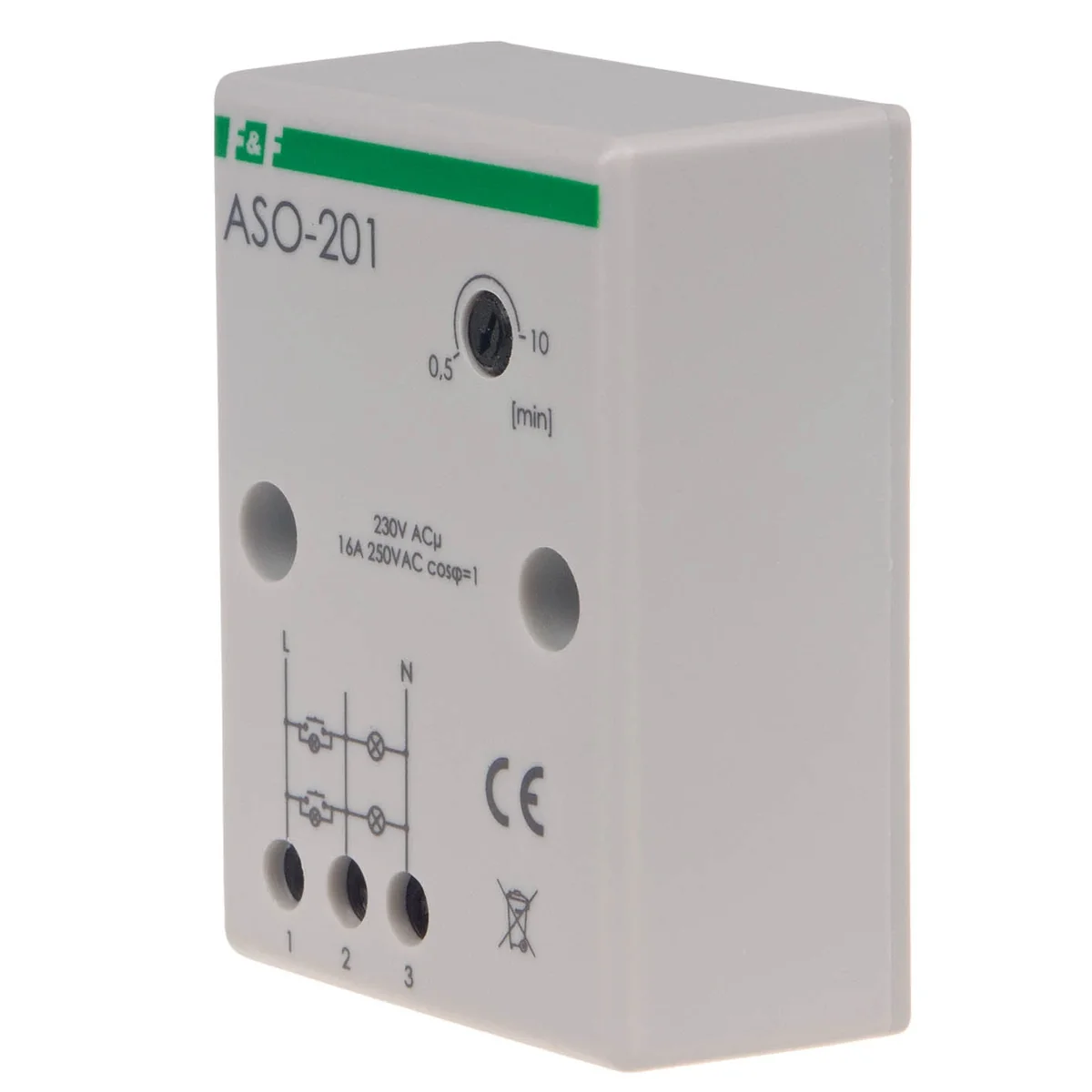

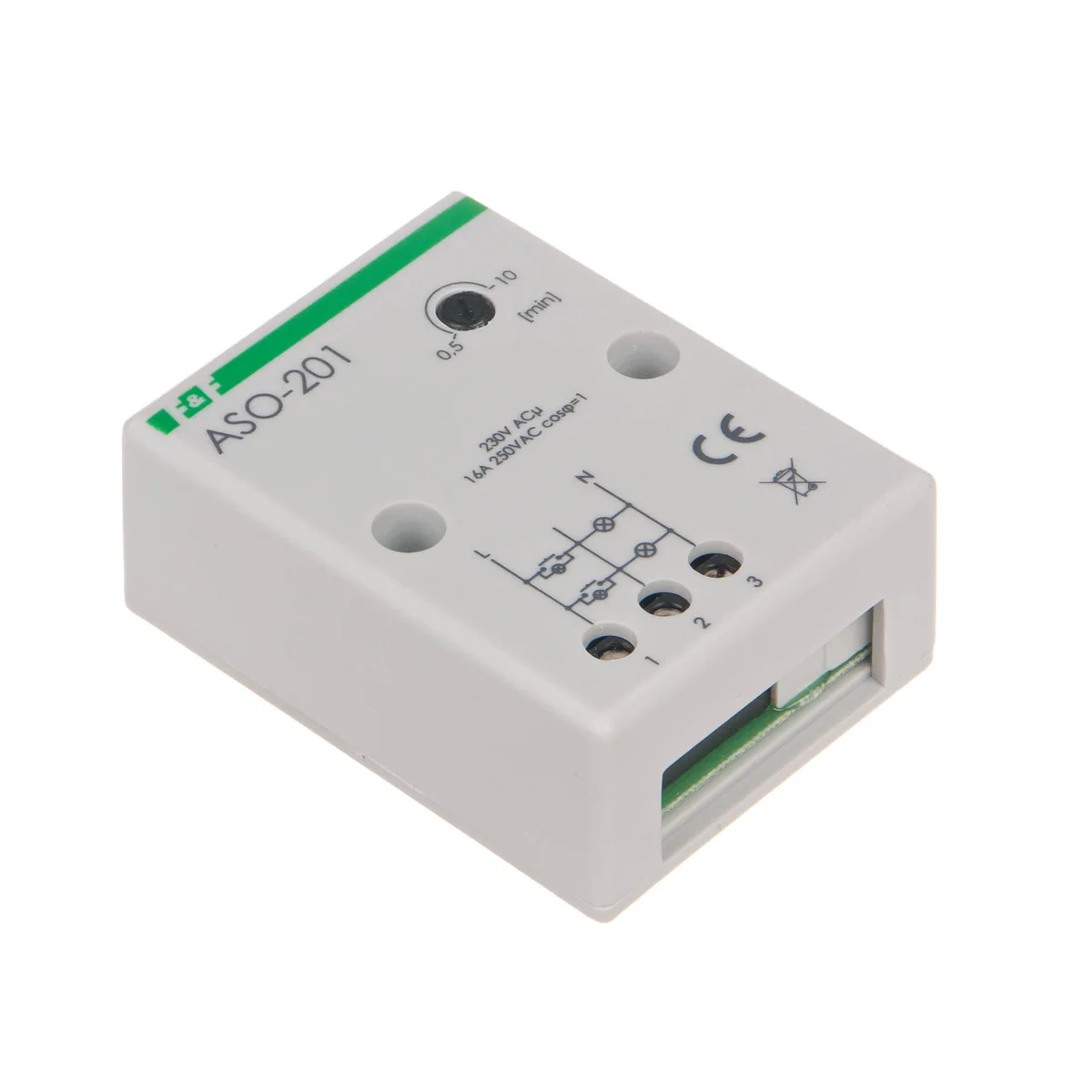

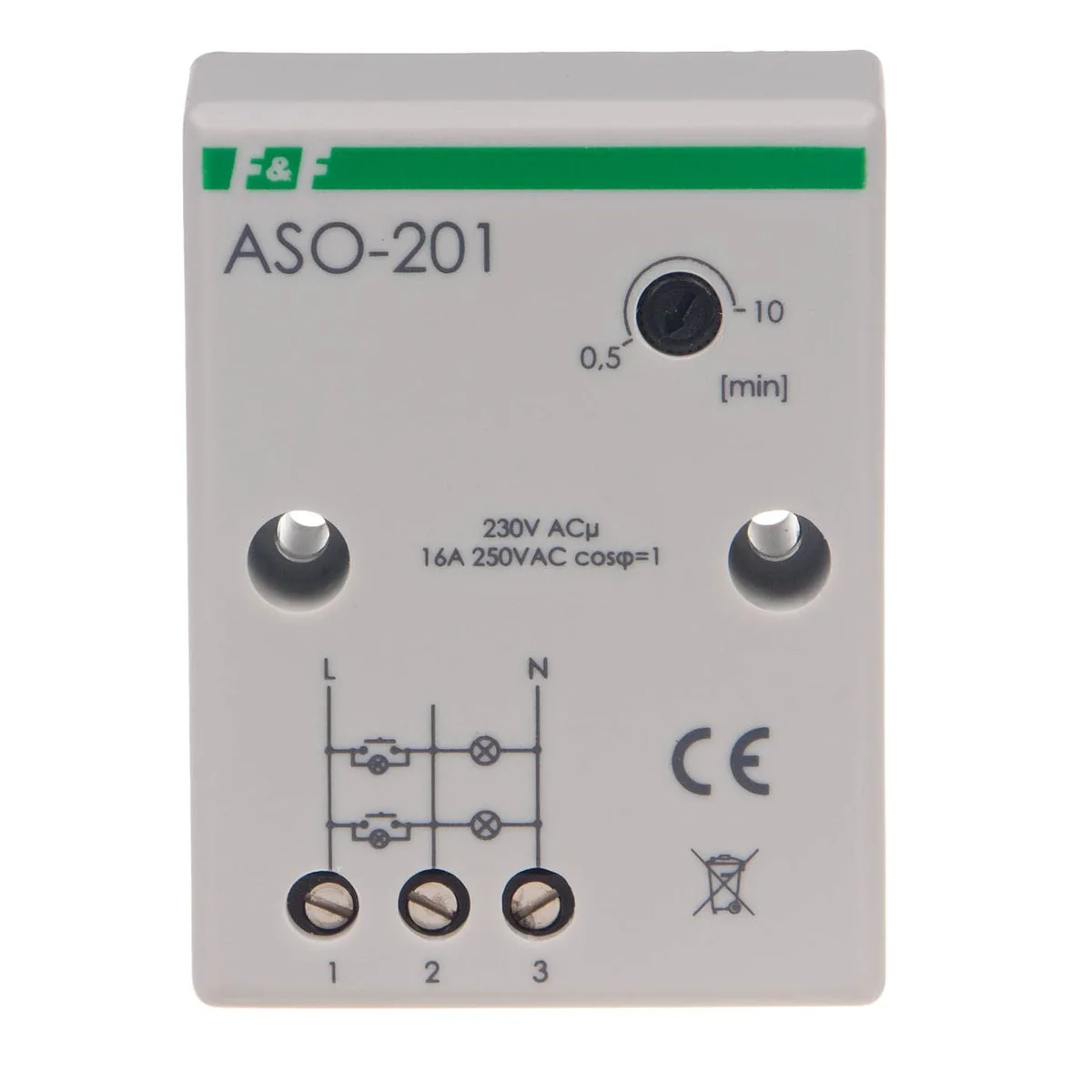

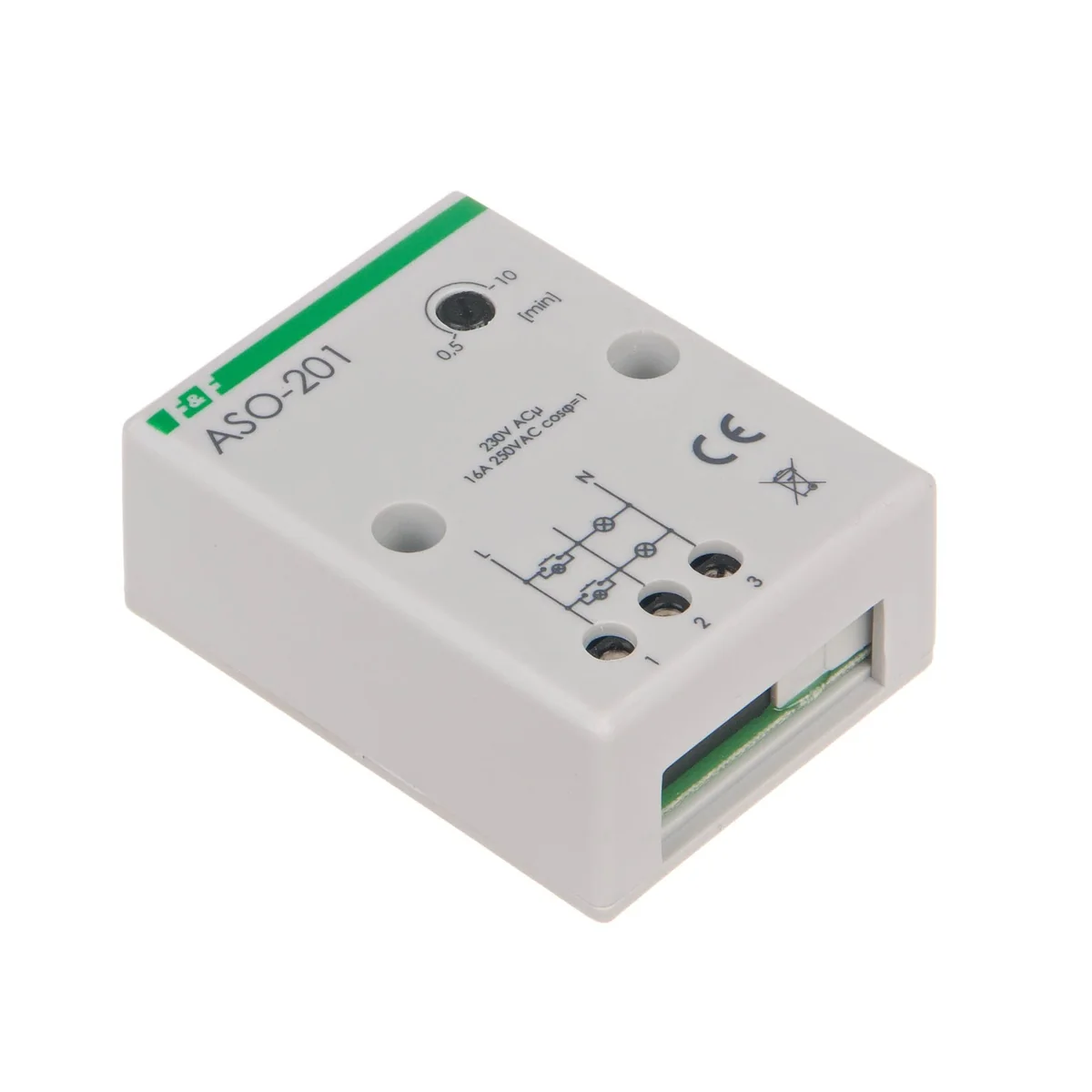

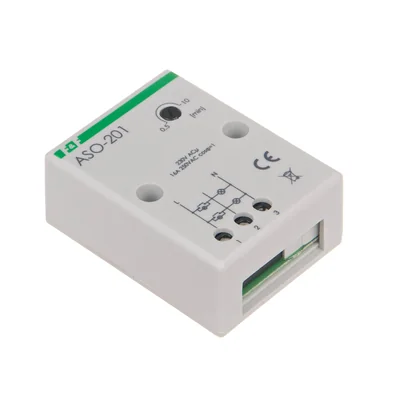

Automatic staircase ASO-201 ASO-201

Lokaler Index:
APC101FIFQ
Katalognummer:
ASO-201
EAN-Code:
5908312592051
Hersteller: F&F
Power [W]: 0.56
Surface mounting [A]: 16
Rated voltage [V]: 230
Preis:
71,00 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Zugänglich 25 stk.
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Purpose:
Staircase automatics are used to keep the lighting of corridors, staircases or other objects on for a specified period of time, after which the lighting will be switched off automatically.

Operation
Staircase timer activated with a momentary (bell) switch maintains lighting for the set time  (from 0.5 minutes to 10 minutes). After the set time has elapsed, the automatic device will turn off the lighting automatically. After turning off the lighting, we can turn it on again.
Automators cannot directly cooperate with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.

Technische Daten

  • Power [W]
    0.56
  • Rated voltage [V]
    230
  • Tripping delay [s]
    <1
  • connection
    2.5mm screw terminals
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    76
  • Package weight [kg]
    0.1
  • Surface mounting [A]
    16
  • Shutdown delay - adjustable
    0.5s-10mins
  • load current [A]
    <10
  • Mounting method
    For screws
  • Power [V]
    230
  • Package width [mm]
    50
  • PKWIU
    27.12.23.0

Weitere technische Daten

  • Function
    Electronic
  • Width in number of modular spacings
    0
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Type of control voltage 1
    AC
  • Rated switch current
    16 A
  • Release-delay
    0.5 ... 10 min
  • Wiring system
    3 wire configuration
  • Repetitive
    Repetitive + continuous light
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    750 VA
  • Max. load fluorescent lamp (parallel compensated)
    750 VA
  • Power consumption
    0.56 W
  • Mounting method
    Surface mounted
  • Built-in depth
    0 mm
  • Number of contacts as normally closed contact
    0
  • Control voltage 1
    195 ... 253 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Max. switching current (cos phi = 0.6)
    12 A
  • Push button glow-lamp current
    3 mA
  • Pre-warning of switching-off
    None
  • Supply voltage
    195 ... 253 V
  • Max. incandescent lamp load
    2000 W
  • Max. load fluorescent lamp (Duo circuit)
    750 VA
  • Max. switching power LED
    250 W

Hersteller-Details

  • Hersteller
    F&F Filipowski S.K.
  • Adresse
    95-200 Pabianice Konstantynowska 79/81 Polska

Großpackungen

Eine Art Paket Sztuka
Menge 1 stk.
Gewicht (kg) 0,070
Breite (m) 0,030
Länge (m) 0,095
Tiefe (m) 0,070
