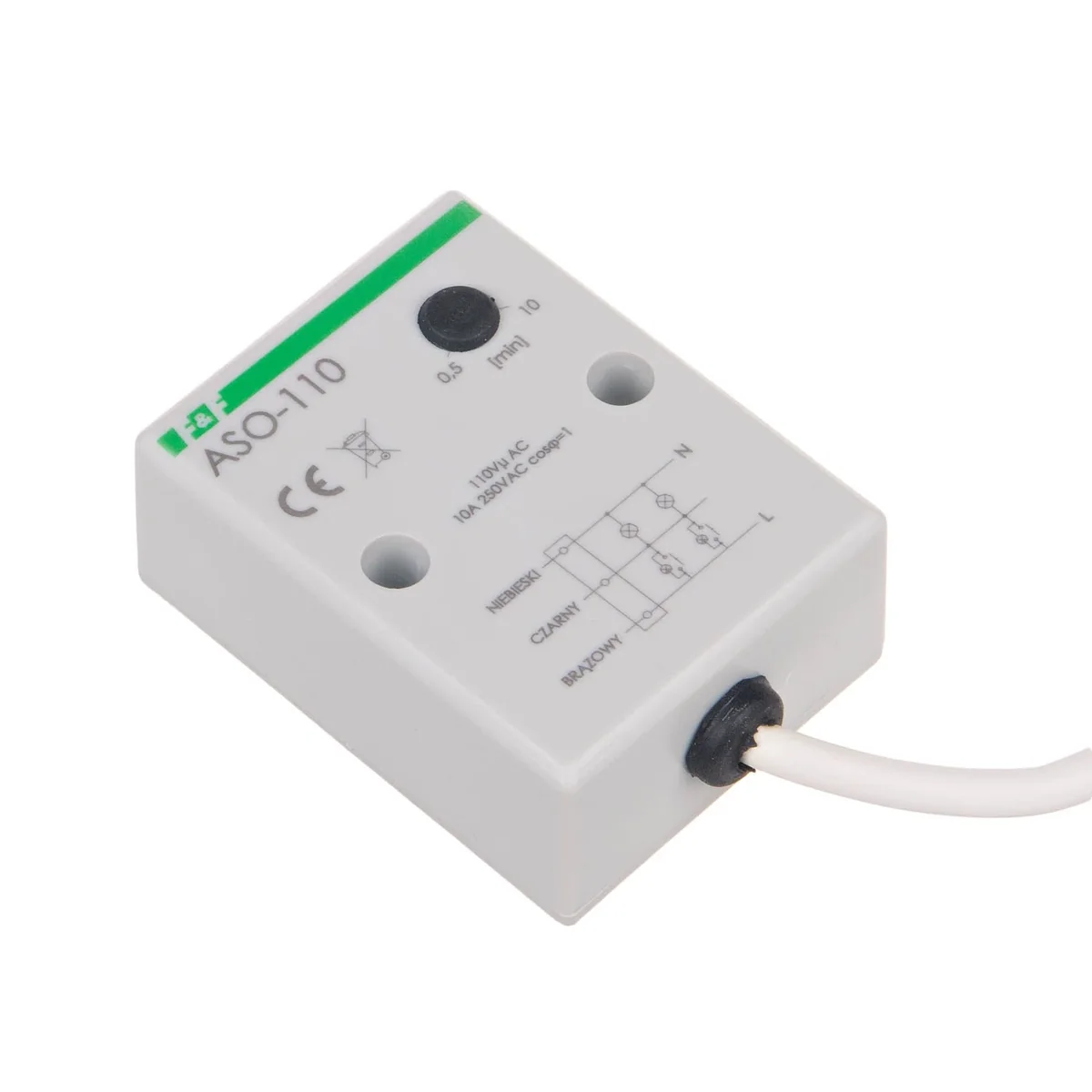

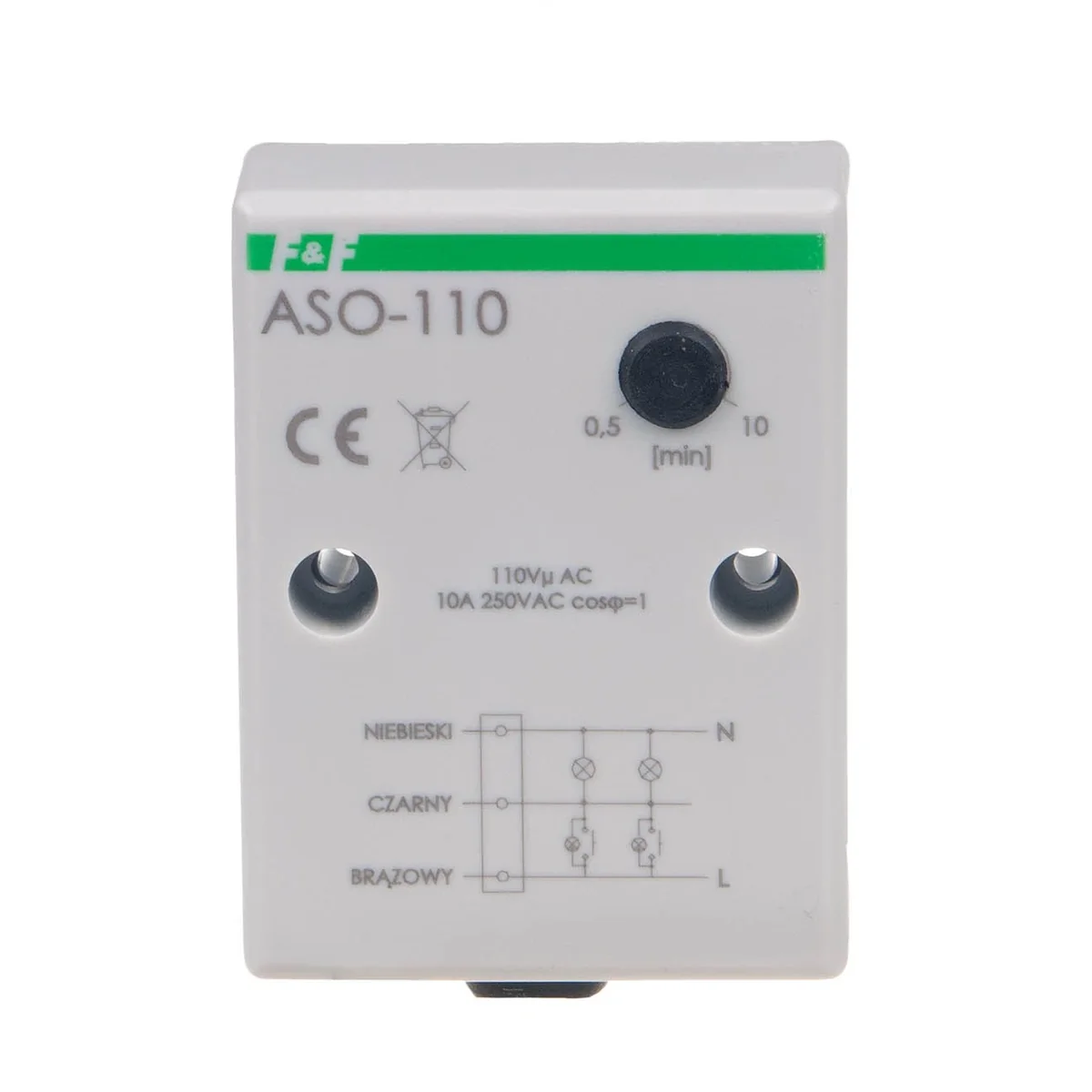

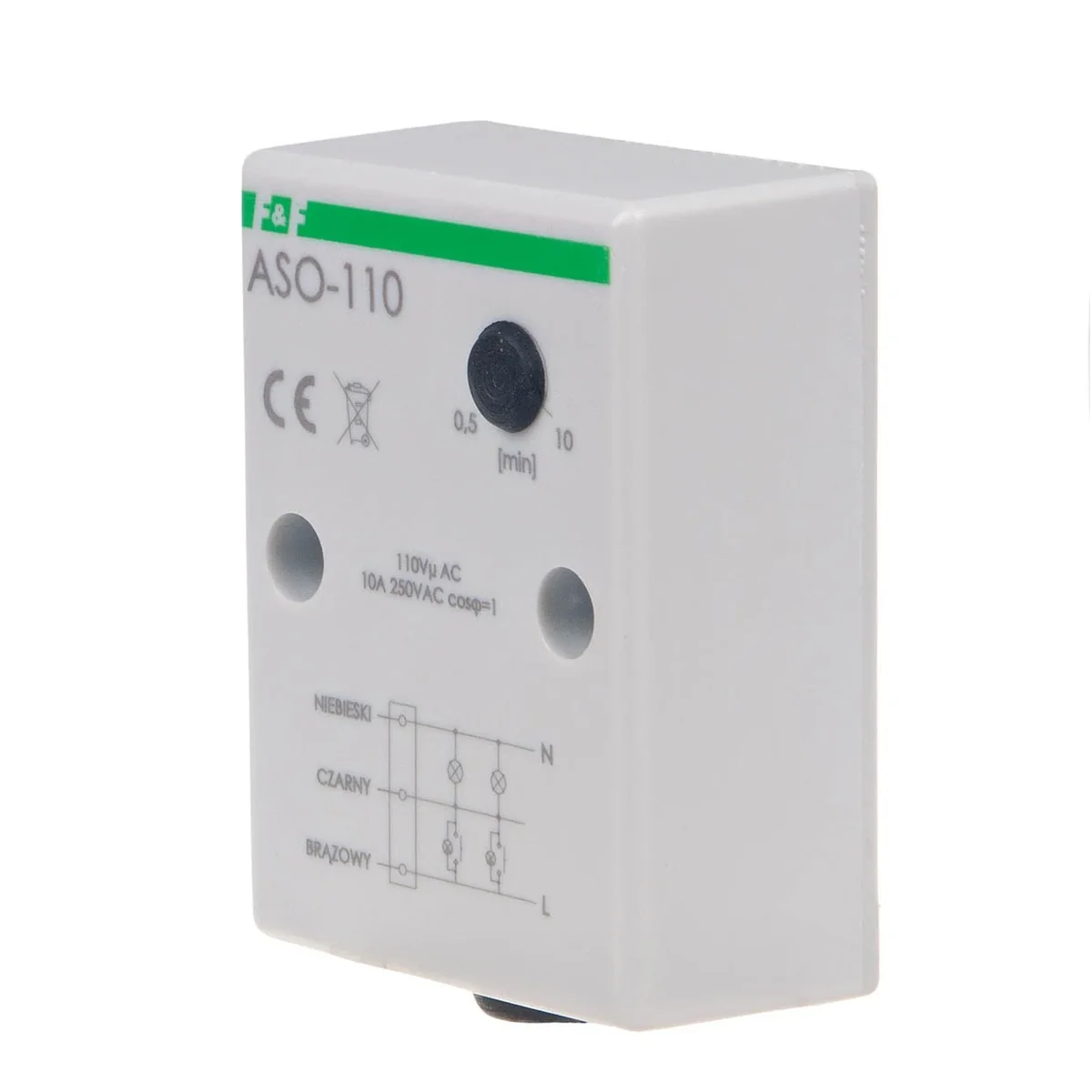

Automatic staircase ASO-110 ASO-110

local index:
APC100FIFQ
Catalog No:
ASO-110
EAN code:
5908312592198
Manufacturer: F&F
Depth [mm]: 26
Power [W]: 0.56
Rated voltage [V]: 120
Price:
21,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Purpose:
Staircase automations are used to keep the lighting of corridors, staircases or other objects on for a specified period of time, after which the lighting will be switched off automatically.

Operating
Automators cannot work directly with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.

Technical data

  • Depth [mm]
    26
  • Rated voltage [V]
    120
  • connection
    OMY 3×0.75mm, l=0.45m
  • Width [mm]
    67
  • Height [mm]
    50
  • Package width [mm]
    67
  • PKWIU
    27.12.23.0
  • Power [W]
    0.56
  • Rated current [A]
    10
  • Mounting method
    For screws
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    50
  • Package weight [kg]
    0.1

Other technical data

  • Function
    Electronic
  • Control voltage 1
    110 ... 110 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Release-delay
    0.5 ... 10 min
  • Pre-warning of switching-off
    Dimming up to 0 %
  • Max. load fluorescent lamp
    350 VA
  • Max. load fluorescent lamp (parallel compensated)
    500 VA
  • Mounting method
    Surface mounted
  • Type of control voltage 1
    AC
  • Rated switch current
    10 A
  • Wiring system
    3 and 4 wire configuration
  • Max. incandescent lamp load
    1500 W
  • Max. load fluorescent lamp (Duo circuit)
    650 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,087
Width (m) 0,030
Length (m) 0,095
Depth (m) 0,070
