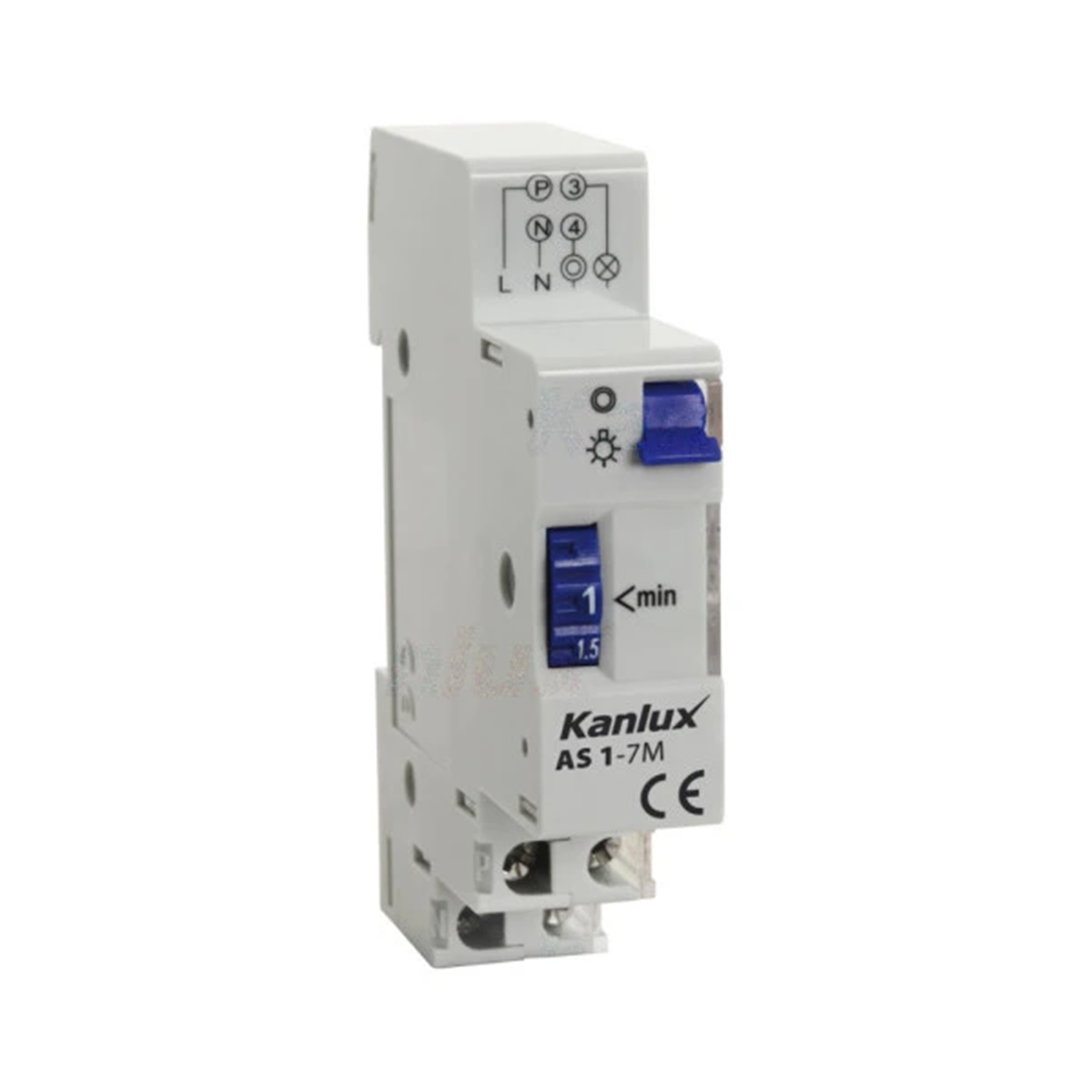

Automatic staircase AS 1-7M 18730

local index:
APC002KANL
Catalog No:
18730
EAN code:
5905339187307
Manufacturer: KANLUX
Rated voltage [V]: 230
Level of security: IP20
Package width [mm]: 68
Price:
20,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Automatic staircase AS 1-7M

Technical data

  • Rated voltage [V]
    230
  • Package width [mm]
    68
  • Package length [mm]
    82
  • Level of security
    IP20
  • Package weight [kg]
    0.074
  • PKWIU
    27.12.31.0

Other technical data

  • Release characteristic
    C
  • Number of protected poles
    3
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    8 kV
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    36 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    4
  • Additional equipment possible
    yes
  • Built-in depth
    47 mm
  • Ambient temperature during operating
    -30 ... 70 °C
  • Connectable conductor cross section solid-core
    1.5 ... 50 mm²
  • Number of poles (total)
    3
  • Rated current
    63 A
  • Rated insulation voltage Ui
    690 V
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    70 kA
  • Voltage type
    AC/DC
  • Concurrently switching neutral conductor
    no
  • Pollution degree
    3
  • Width in number of modular spacings
    4.5
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 35 mm²
