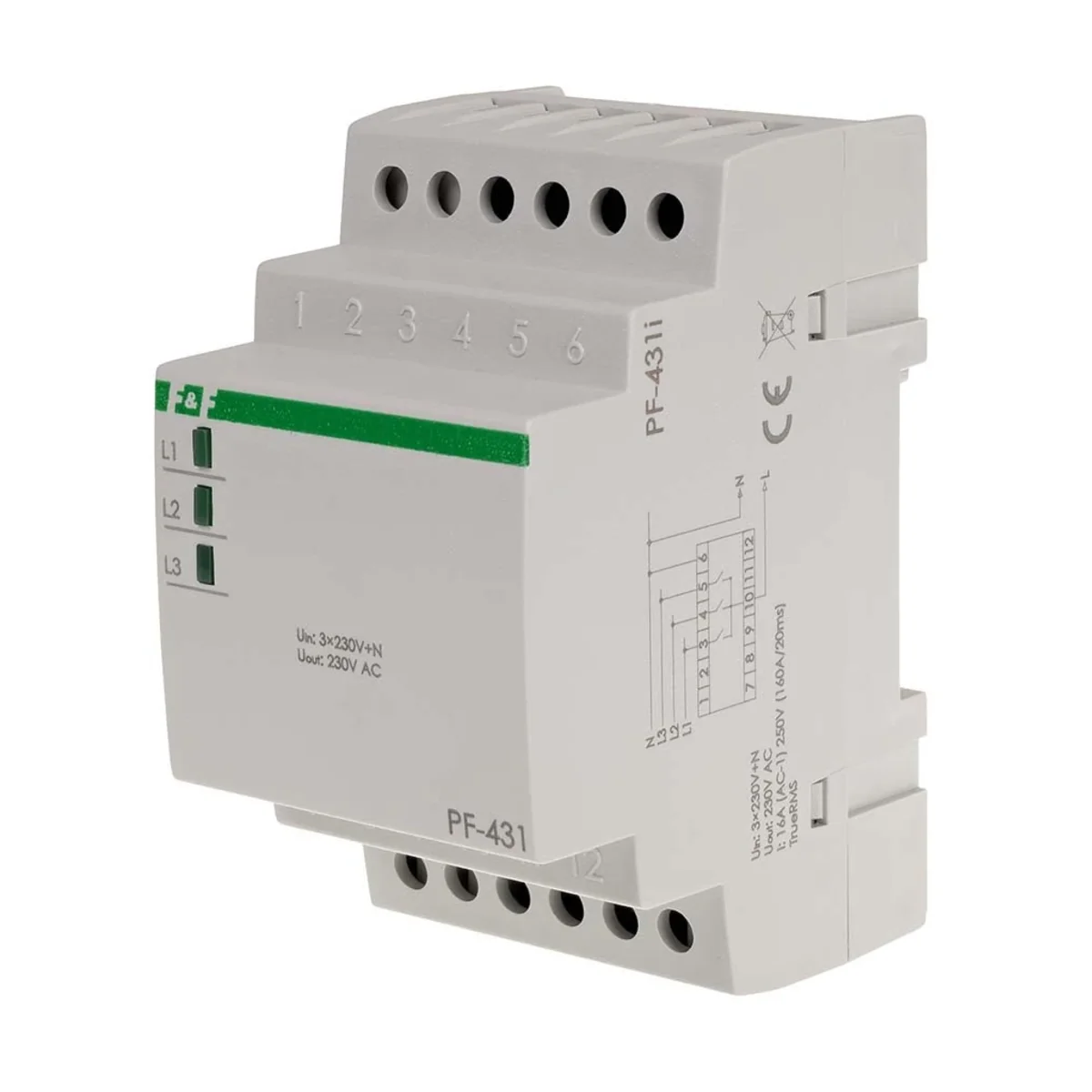

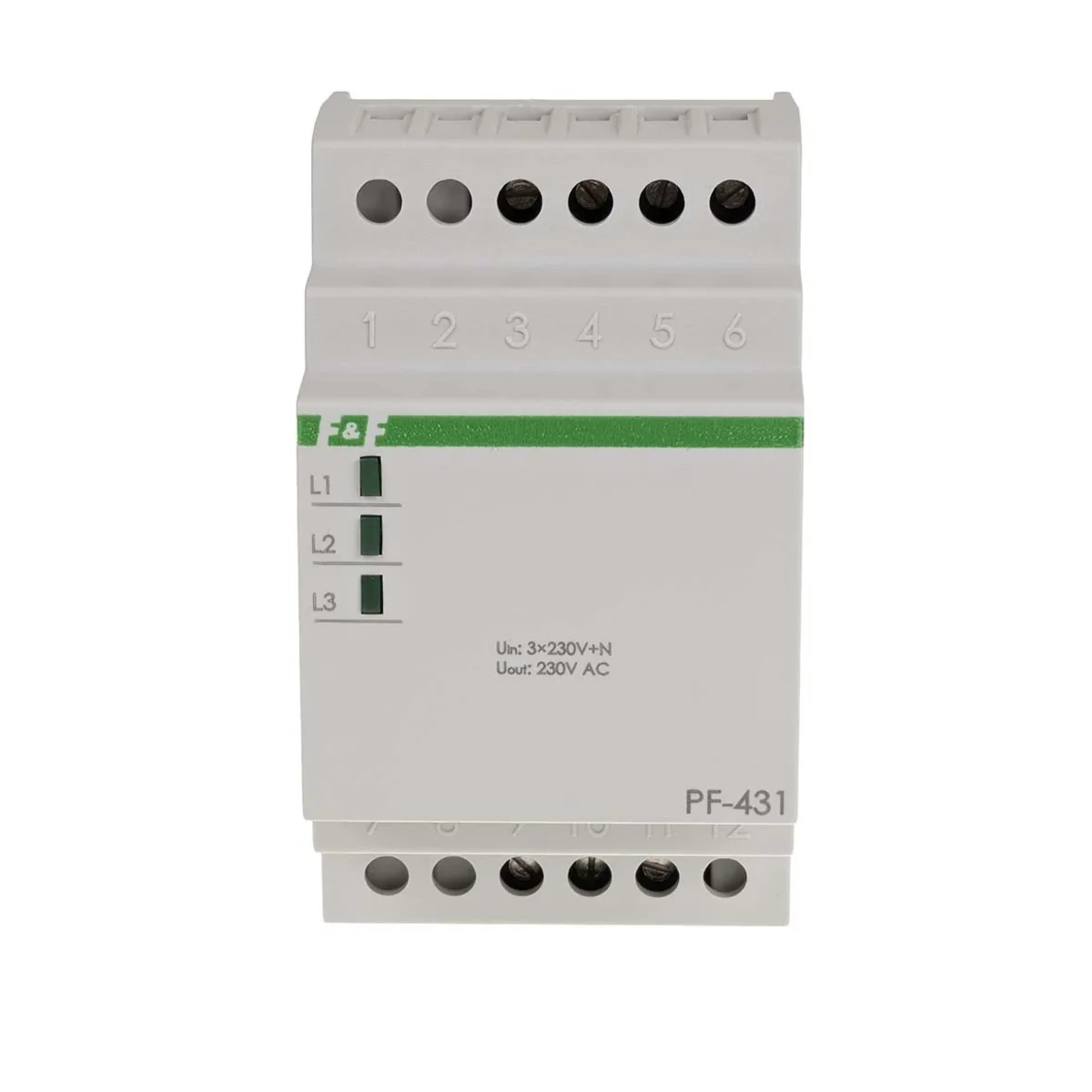

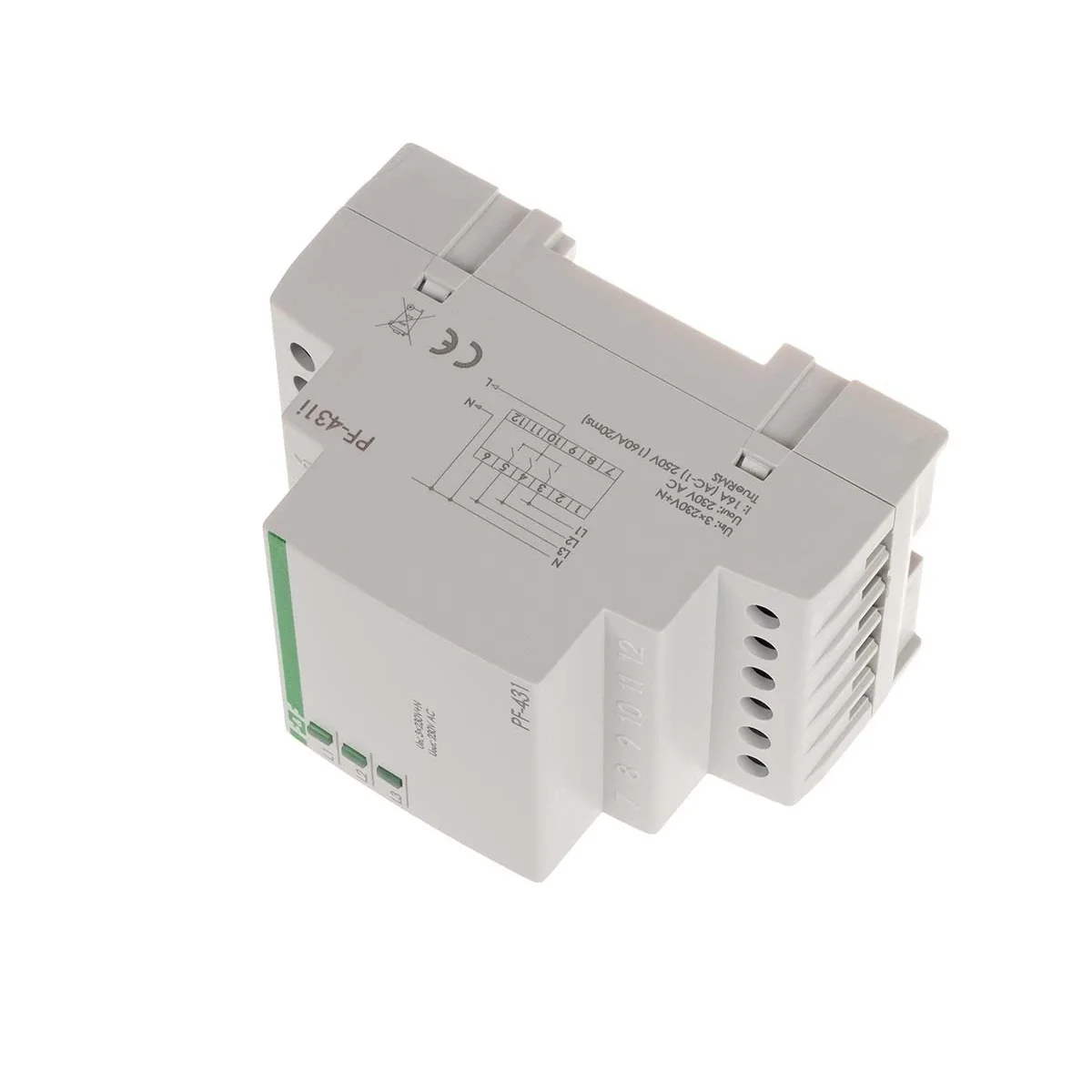

Automatic phase switch with phase priority, inrush relay (160A/20ms) PF-431I
local index:
APC037FIFQ
Catalog number:
PF-431I
EAN code:
5902431672502
Manufacturer:
F&F
Price:
310,85 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
-
PKWIU27.12.24.0
Other technical data
-
Type of electric connectionScrew connection
-
External power supply requiredYes
-
Supply voltage AC 50 Hz165 ... 280 V
-
Phase failure detectionYes
-
Function over voltage detectionYes
-
Min. adjustable delay-on energization time1 s
-
Min. adjustable off-delay time1 s
-
Number of contacts as normally closed contact3
-
Number of contacts as change-over contact0
-
Operating voltage AC 50 Hz165 ... 280 V
-
Width0 mm
-
Depth0 mm
-
With detachable clampsNo
-
Voltage type (supply voltage)AC
-
Phase sequence monitoringNo
-
Function under voltage detectionYes
-
Phase imbalance monitoringNo
-
Max. permitted delay-on energization time1.5 s
-
Max. permitted off-delay time1.5 s
-
Number of contacts as normally open contact0
-
Voltage type (operating voltage)AC
-
Rated switch current16 A
-
Height0 mm
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,151 |
| Width (m) | 0,056 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
