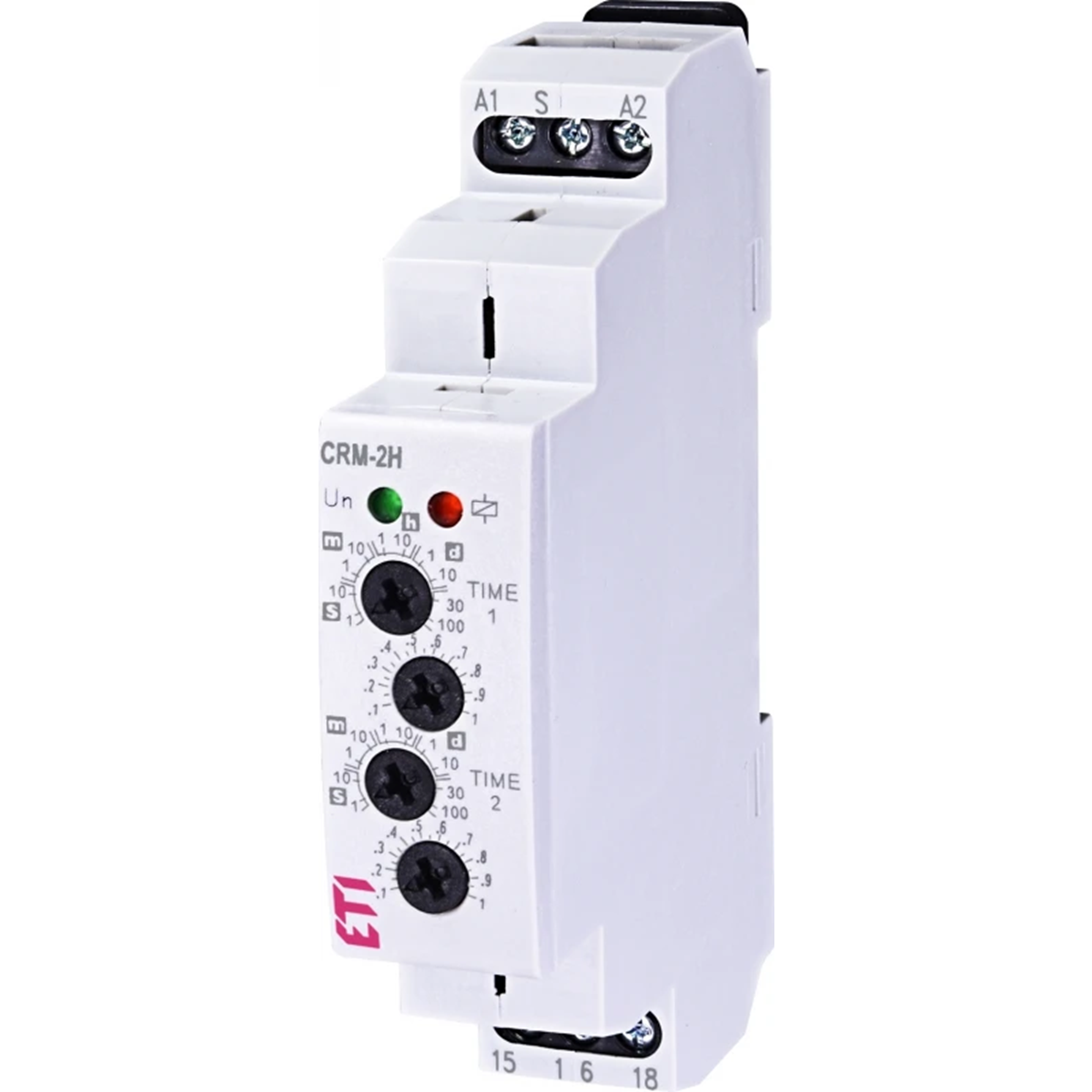

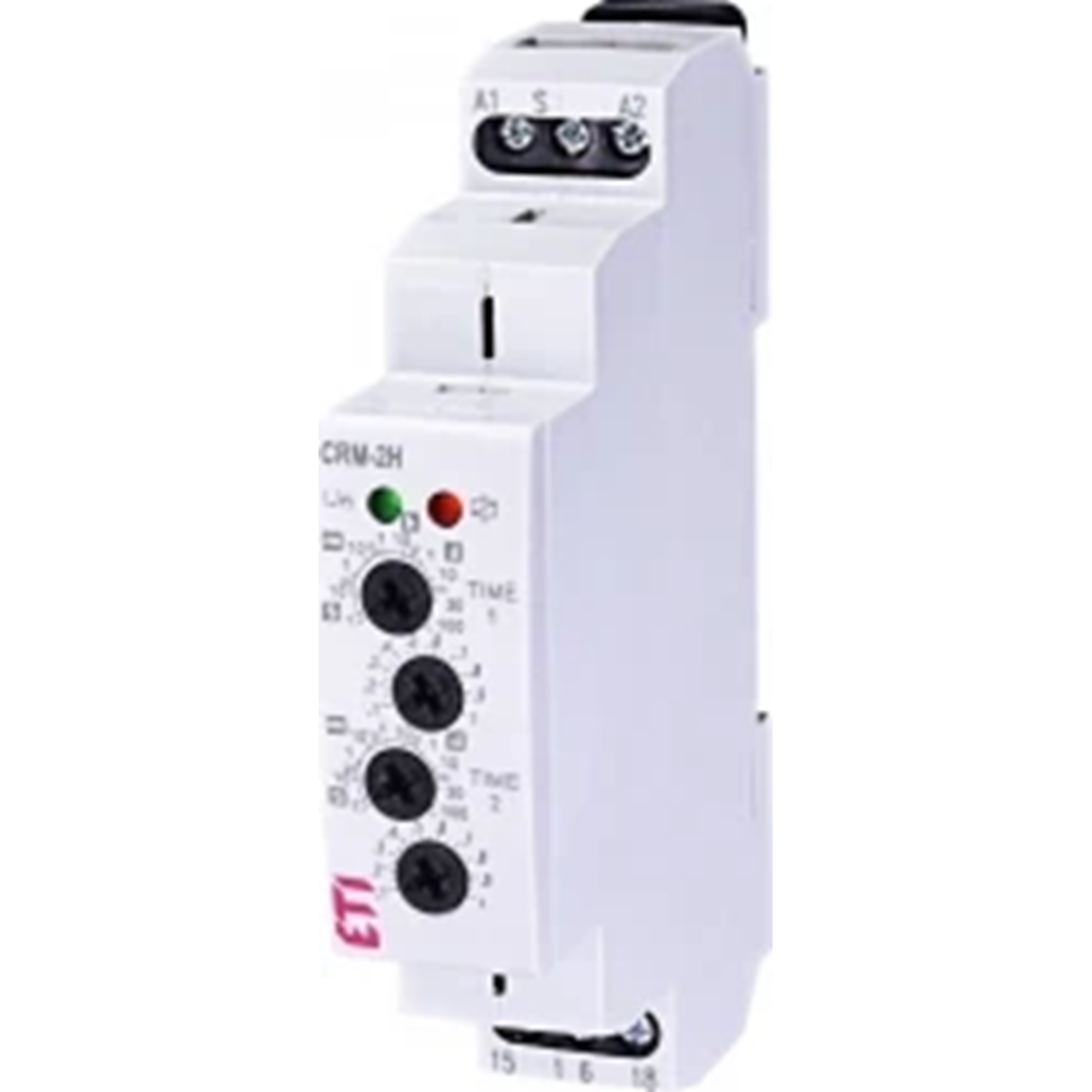

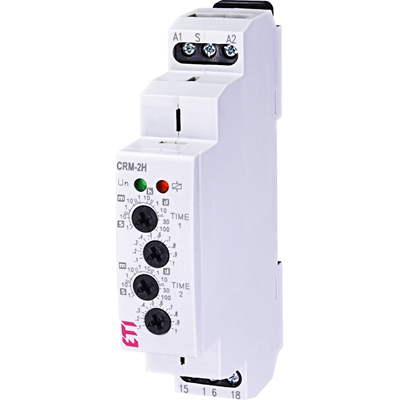

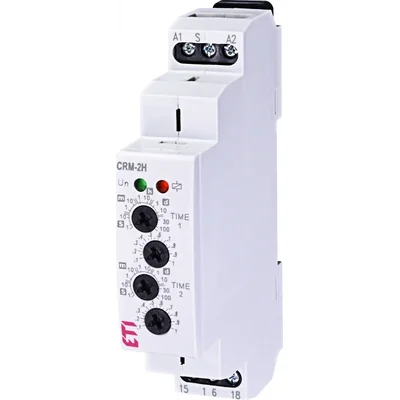

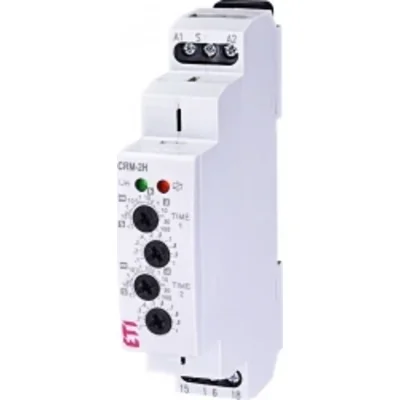

Asymmetric cyclic relay UNI CRM-2H 002470003
local index:
APC161ETIP
Catalog No:
002470003
EAN code:
8594030338322
Price:
66,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Application - Cyclic (asymmetric) time relay with one pair of changeover contacts - enabling independent setting of times: operation and pause.
Technical data
-
Number of functions2
-
Clamps2.5mm2
-
PowerTerminals A1 - A2
-
PKWIU27.12.24.0
-
Rated voltage [V]230
-
Time ranges0.1s - 100 days
-
Compliance with standardsEN 61812-1, EN 5008, EN 61000
Other technical data
-
Type of excitationDigital with single function
-
1st interval unitMinutes/hours
-
2nd interval unitMinutes/hours
-
Mounting methodDIN rail
-
Built-in height65 mm
-
Control voltage 112 ... 12 V
-
Frequency control voltage 150 ... 50 Hz
-
Type of control voltage 2AC
-
Nominal switching current at 250 V AC16 A
-
FunctionOn/off-switch wiping relay
-
1st interval0.02 ... 2400
-
2nd interval0.02 ... 2400
-
Width in number of modular spacings1
-
Number of changeover switches1
-
Type of control voltage 1AC/DC
-
Control voltage 2240 ... 240 V
-
Frequency control voltage 250 ... 60 Hz
