OSPEL

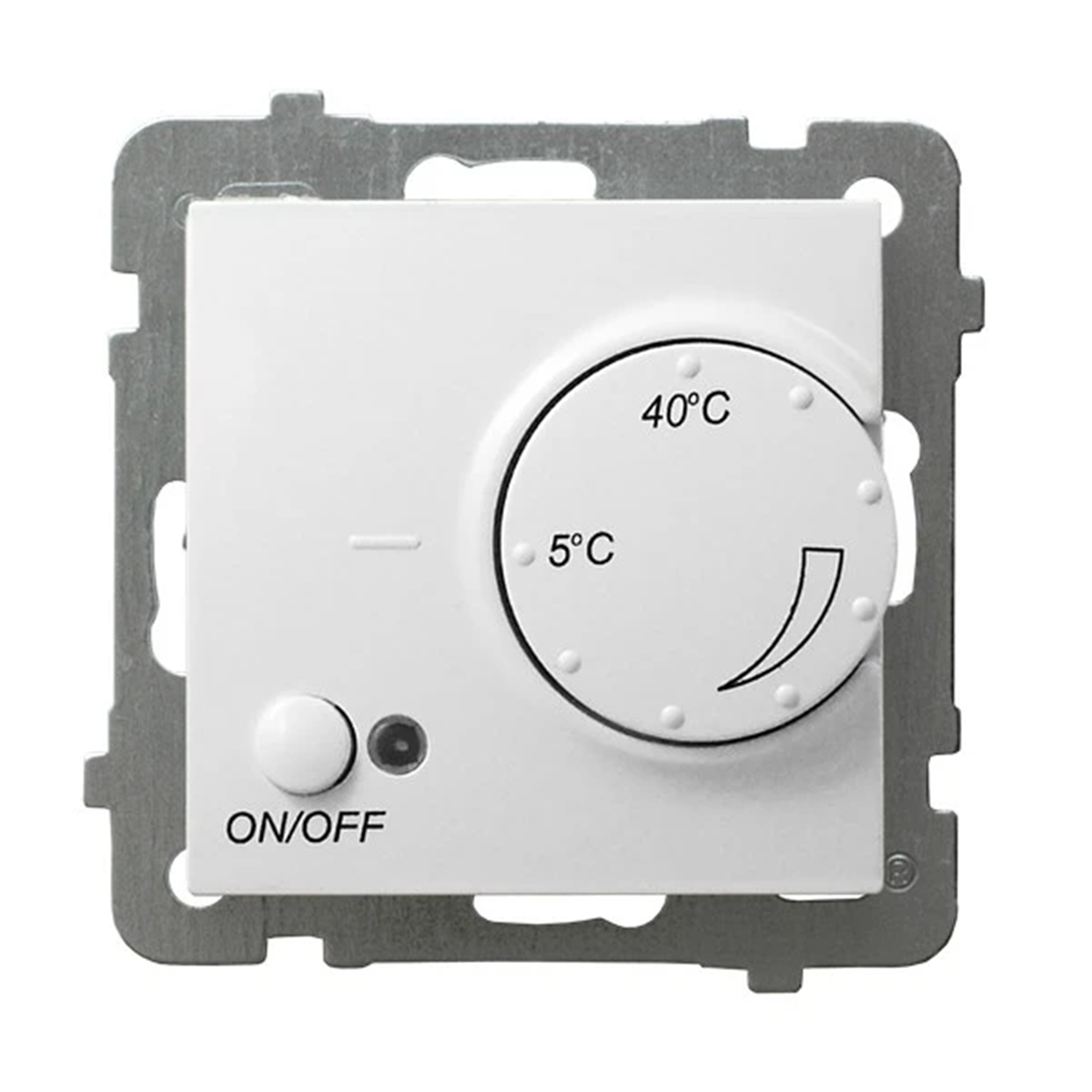

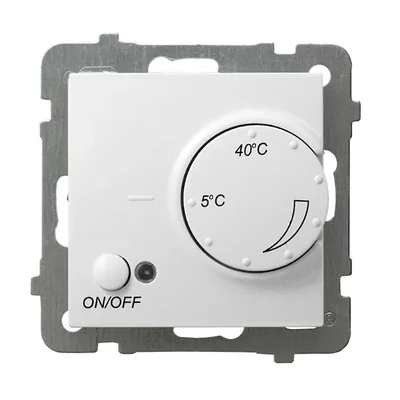

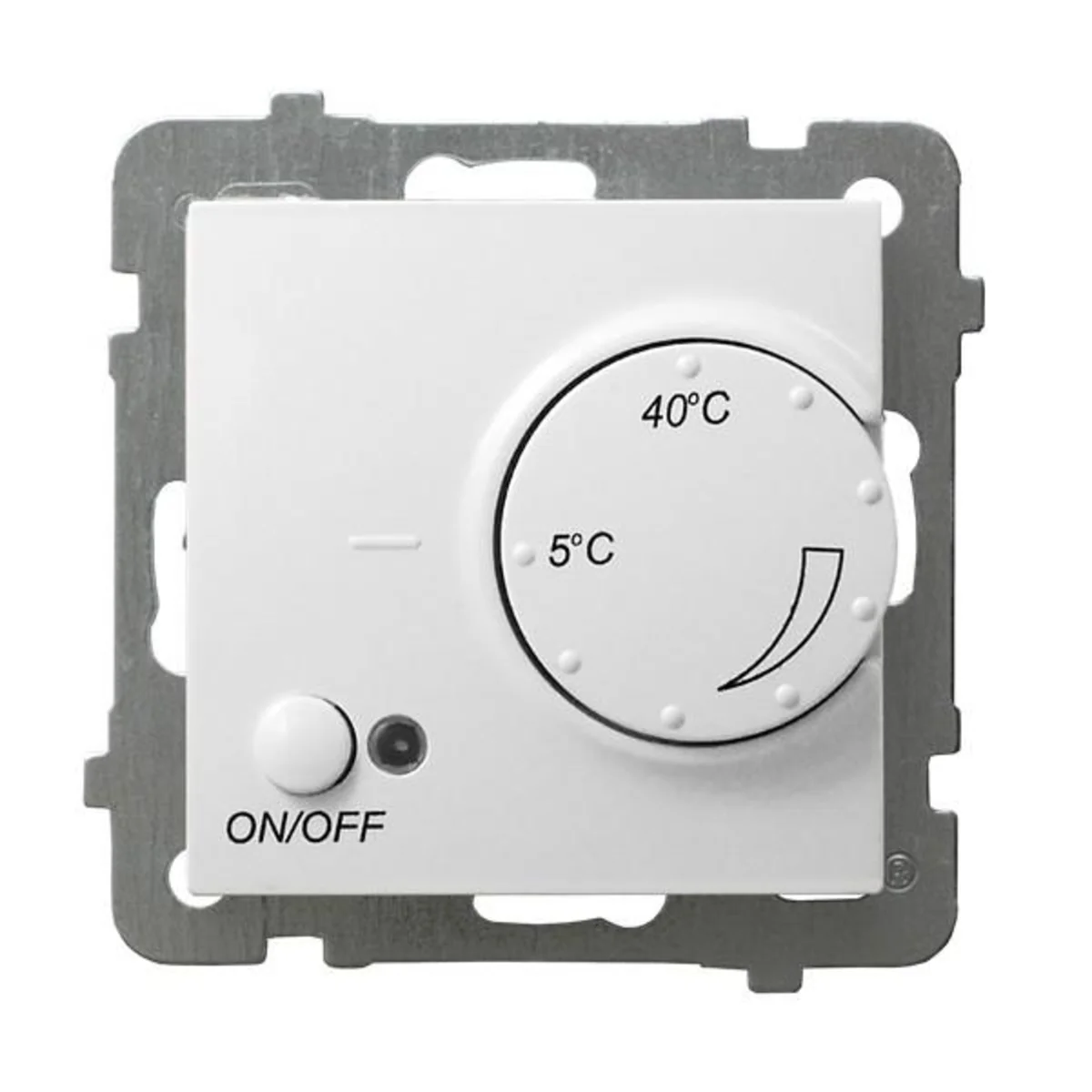

AS Temperature regulator white, without frame RTP-1G/M/00

local index:
APT006OSPE
Catalog No:
RTP-1G/M/00
EAN code:
5907577451844
Price:
79,96 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The temperature controller with an underfloor sensor is designed to regulate the temperature in a room with electric or water underfloor heating. As standard, the regulator is equipped with an underfloor temperature sensor.

Incandescent load: 3200W, inductive load: 750W.



Technical data

  • Color
    White
  • Installation
    Flush-mounted
  • Family
    AS
  • Level of security
    IP20
  • Dimension [mm]
    84 x 84
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Mounting method
    Thread clamps
  • Type
    Temperature regulators
  • Accurate color
    White

Other technical data

  • Model
    Other
  • With receiver
    no
  • Thermal feedback
    Series
  • Suitable for heating
    yes
  • Number of cooler outputs
    0
  • Adjustable differential
    no
  • With sound indicator
    no
  • Mounting method
    Flush-mounted
  • With display
    no
  • With tap water circuit
    no
  • Max. contact load
    10 A
  • Degree of protection (NEMA)
    Other
  • RAL-number
    9003
  • Width
    75 mm
  • Class of the temperature control
    V
  • Type of power supply
    230 V AC
  • External sensor
    yes
  • Control characteristic
    Other
  • Number of heater outputs
    1
  • Differential value
    0 ... 0.5 K
  • Temperature readable
    no
  • Sensor/feeler type
    Resistance sensor
  • Number of modules (module system)
    1
  • Operation
    Button
  • Max. contact voltage
    230 V
  • Degree of protection (IP)
    IP20
  • Explosion-proof
    no
  • Height
    75 mm
  • Depth
    54 mm
  • Standby power consumption (solstandby)
    0.5 W

Catalog cards, diagrams, certificates
