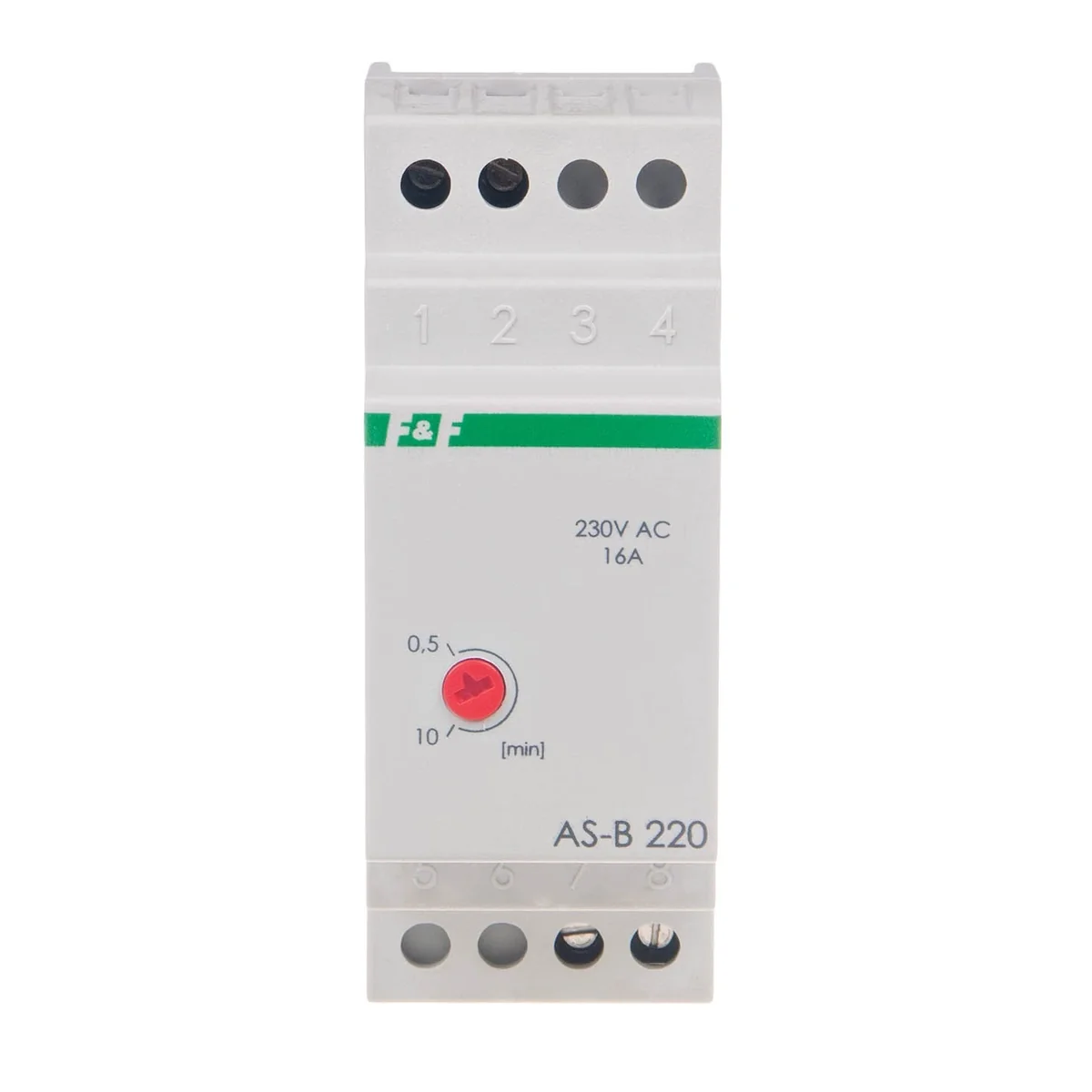

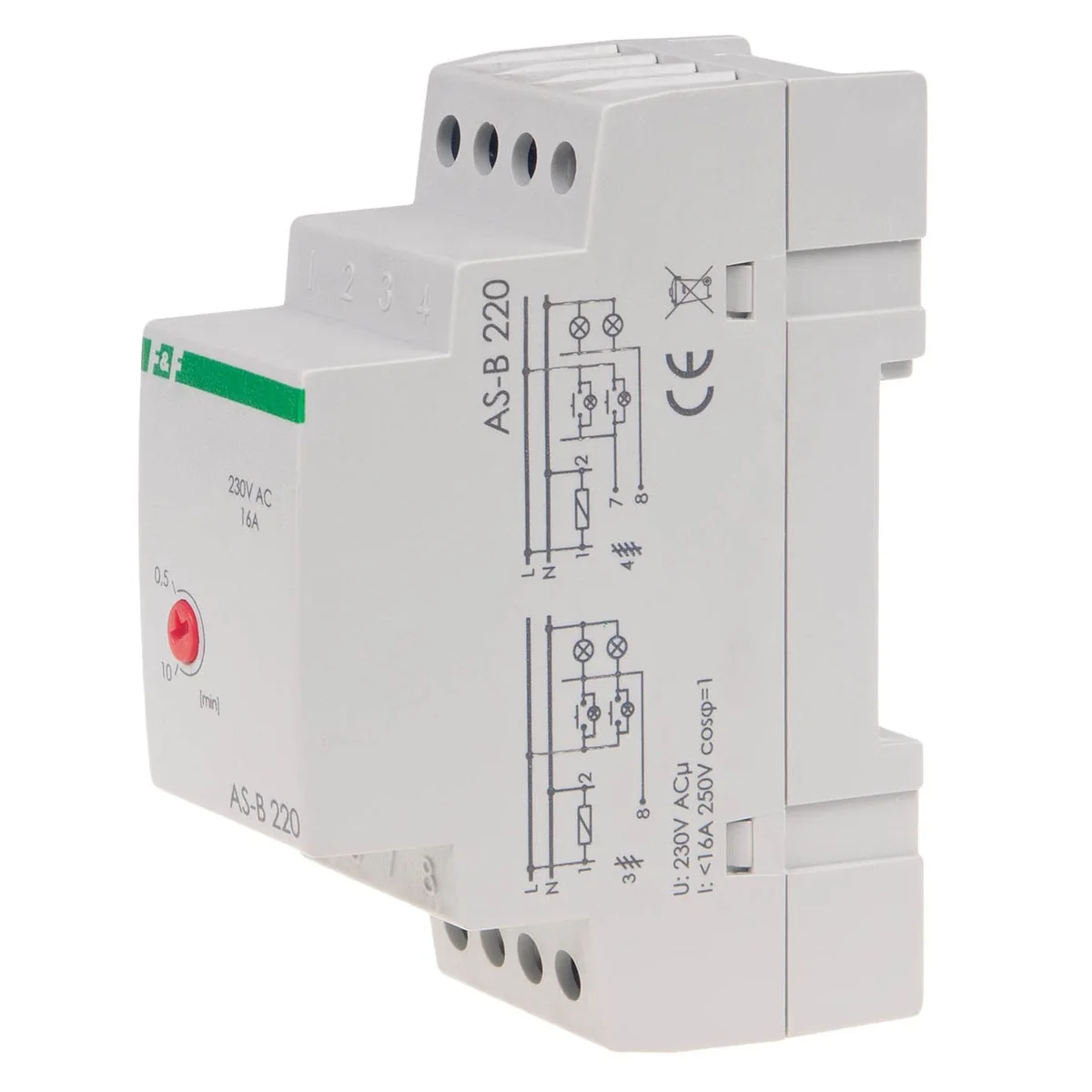

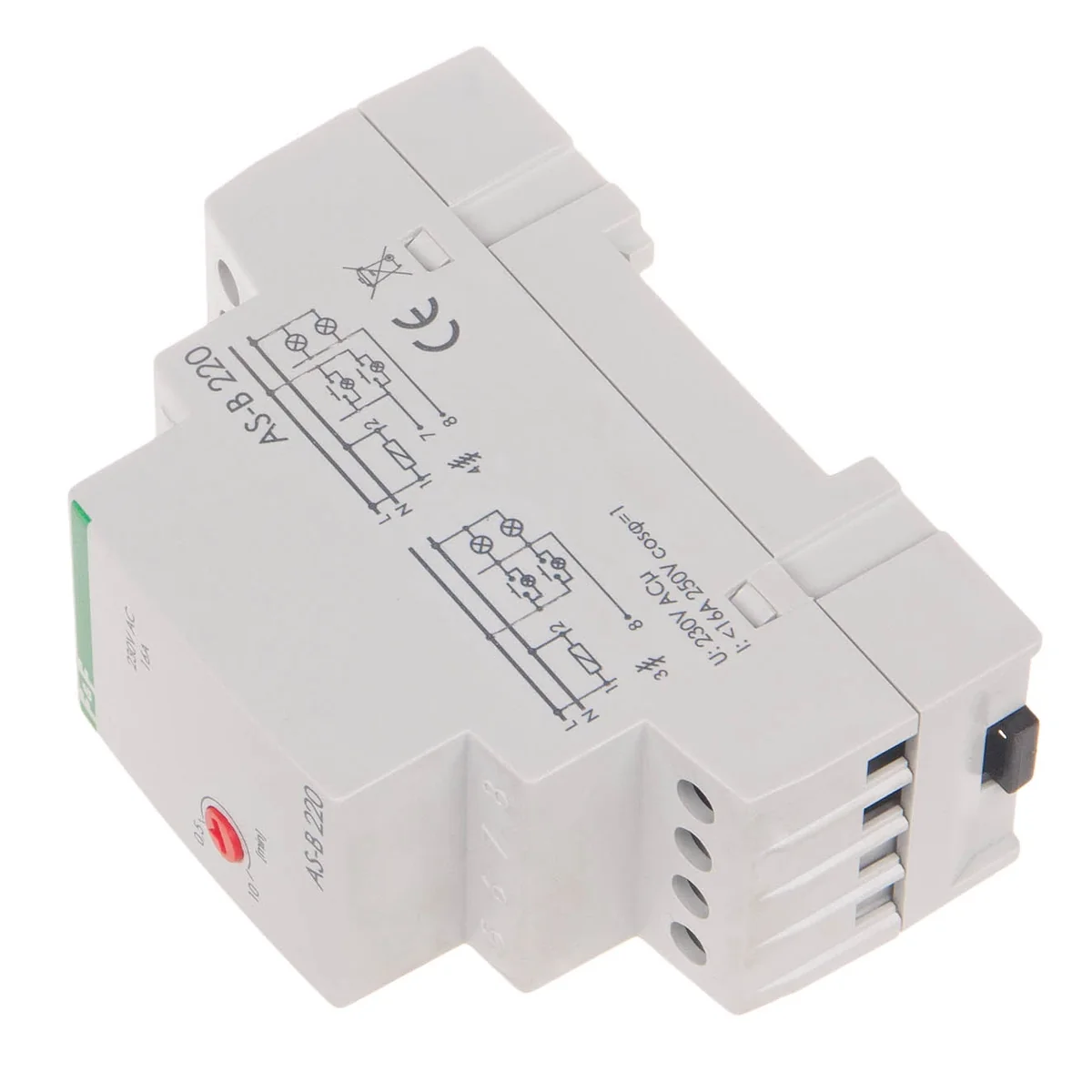

AS-B220 staircase automatic switch AS-B220

local index:
APC110FIFQ
Catalog No:
AS-B220
EAN code:
5908312592037
Manufacturer: F&F
Power [W]: 1.2
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
16,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 25 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Purpose:
Staircase automatics are used to keep the lighting of corridors, staircases or other objects on for a specified period of time, after which the lighting will be switched off automatically.

Operation
The staircase timer activated with a momentary (bell) switch maintains the lighting for the set time  (from 0.5 minutes to 10 minutes). After the set time has elapsed, the automatic device will turn off the lighting automatically. After turning off the lighting, we can turn it on again.
Automators cannot directly cooperate with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.

Technical data

  • Power [W]
    1.2
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Level of security
    IP20
  • Dimensions
    2 modules (35mm)
  • Package width [mm]
    40
  • PKWIU
    27.12.23.0
  • Installation
    On the TH-35 rail
  • Delay [min]lens shape
    0.5-10
  • connection
    2.5mm screw terminals
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Function
    Electronic
  • Width in number of modular spacings
    2
  • Type of control voltage 1
    AC
  • Rated switch current
    16 A
  • Pre-warning of switching-off
    Dimming up to 0 %
  • Supply voltage
    230 ... 230 V
  • Max. incandescent lamp load
    2300 W
  • Max. load fluorescent lamp (Duo circuit)
    1000 VA
  • Mounting method
    DIN rail
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Wiring system
    3 and 4 wire configuration
  • Repetitive
    Repetitive + continuous light
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    550 VA
  • Max. load fluorescent lamp (parallel compensated)
    800 VA

Bulk packaging

A kind of package Sztuka Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,088 -
Width (m) 0,041 -
Length (m) 0,095 -
Depth (m) 0,070 -
