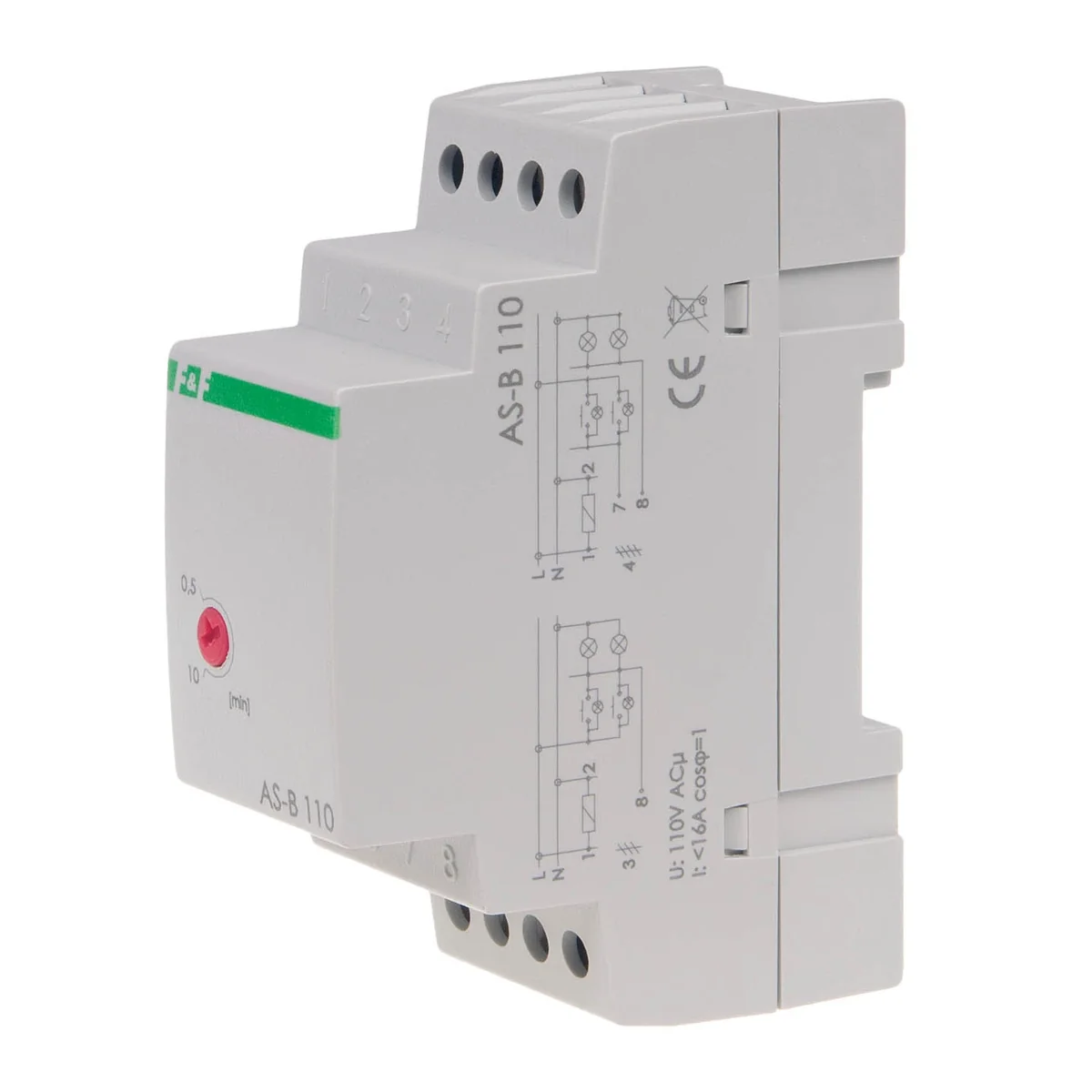

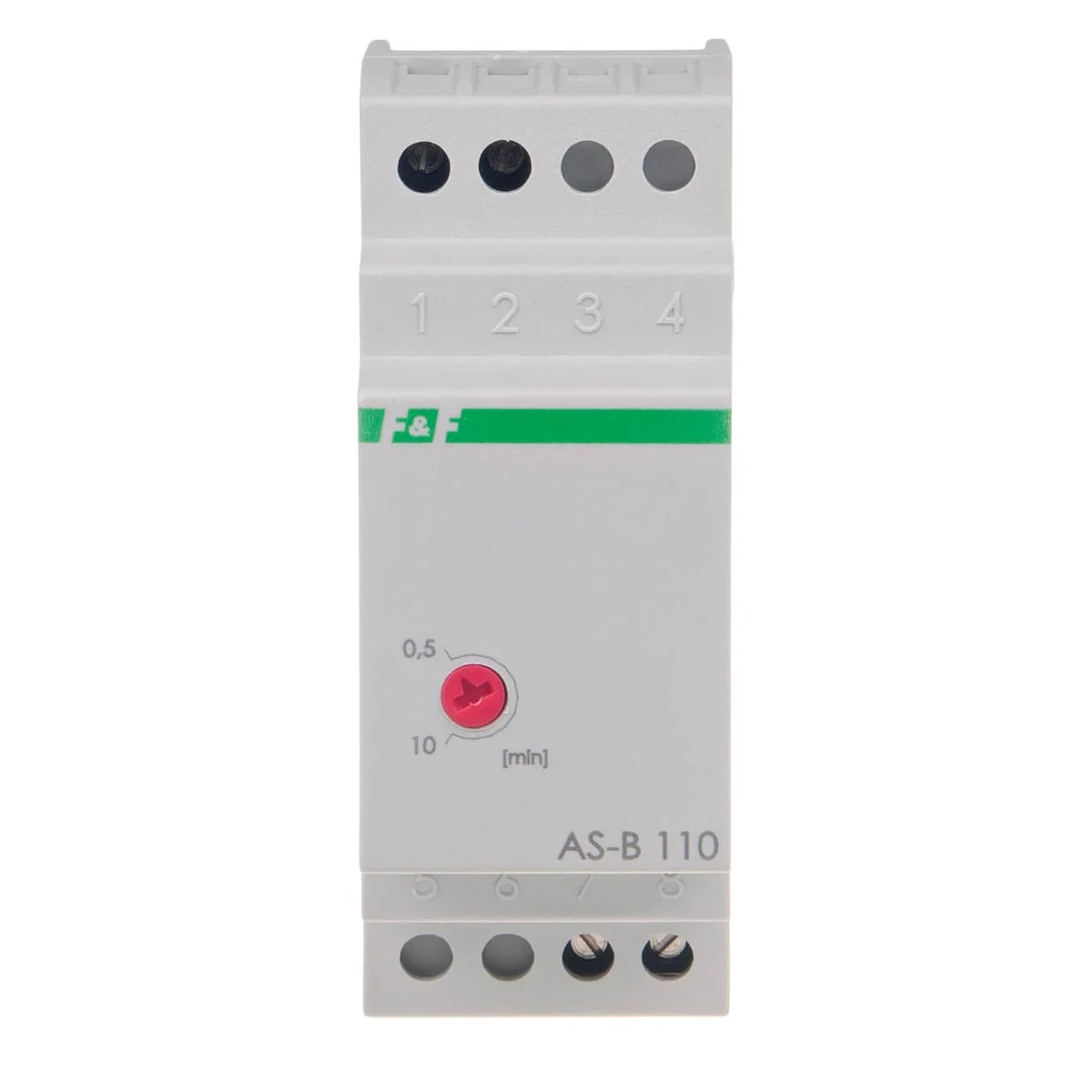

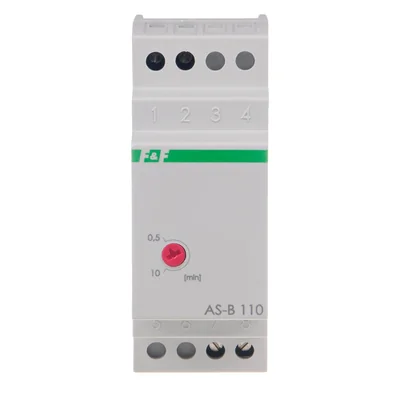

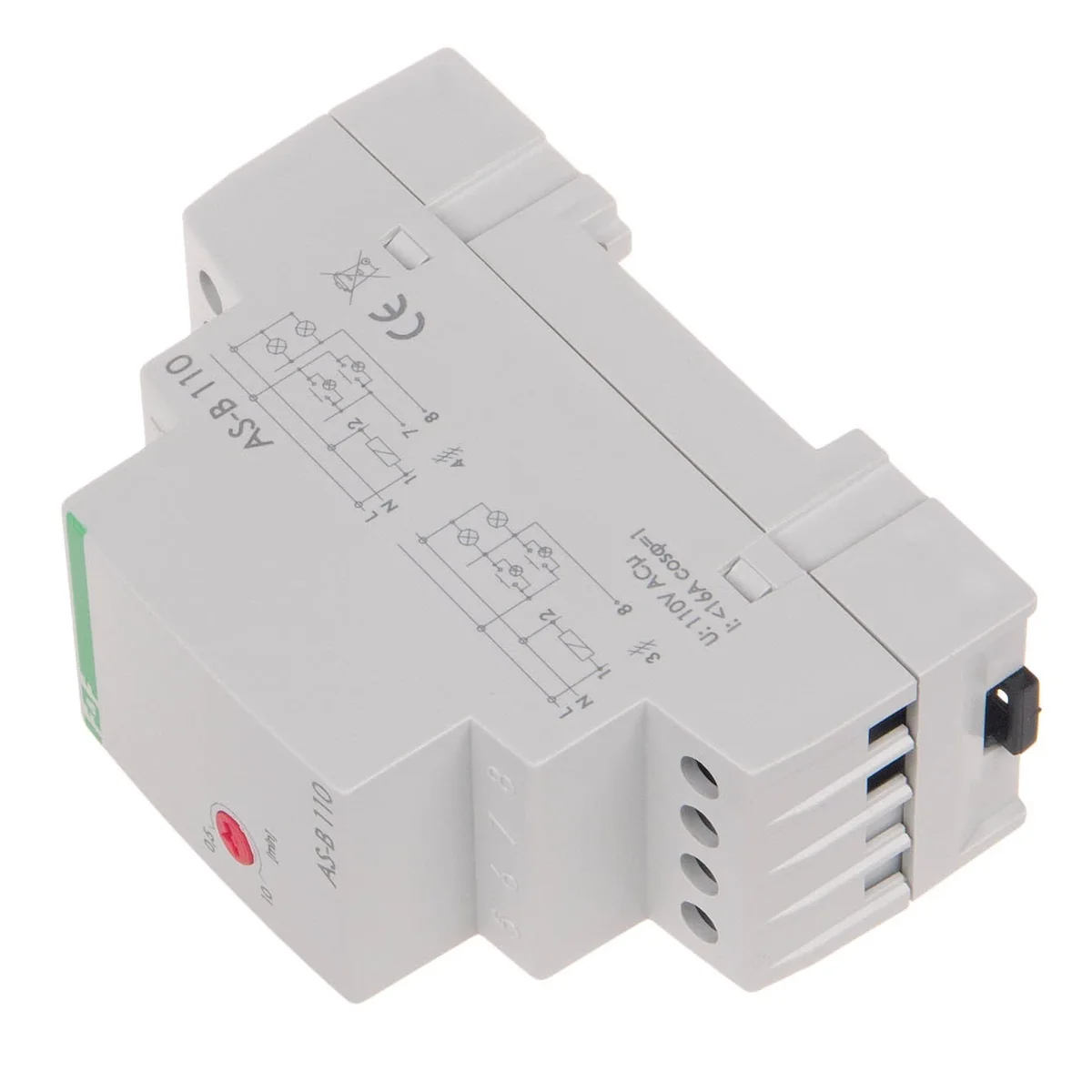

AS-B 110 staircase automatic switch AS-B110
local index:
APC117FIFQ
Catalog No:
AS-B110
EAN code:
5908312592204
Price:
97,86 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Purpose:
Staircase automatics are used to keep the lighting of corridors, staircases or other objects on for a specified period of time, after which the lighting will be switched off automatically.
Operation
Automators cannot work directly with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.
Technical data
-
Power [W]1.2
-
Rated voltage [V]120
-
Tripping delay [s]<1
-
connection2.5mm screw terminals
-
Dimensions2 modules (35mm)
-
Package width [mm]40
-
PKWIU27.12.23.0
-
InstallationOn the TH-35 rail
-
Delay [min]lens shape0.5-10
-
Rated current [A]16
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.1
Other technical data
-
FunctionElectronic
-
Width in number of modular spacings2
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Rated switch current16 A
-
Release-delay0.5 ... 10 min
-
Wiring system3 and 4 wire configuration
-
RepetitiveRepetitive + continuous light
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp350 VA
-
Max. load fluorescent lamp (parallel compensated)350 VA
-
Power consumption1.2 W
-
Mounting methodDIN rail
-
Built-in depth60 mm
-
Number of contacts as normally closed contact0
-
Control voltage 1100 ... 120 V
-
Frequency control voltage 150 ... 50 Hz
-
Max. switching current (cos phi = 0.6)12 A
-
Push button glow-lamp current2 mA
-
Pre-warning of switching-offNone
-
Supply voltage100 ... 120 V
-
Max. incandescent lamp load1200 W
-
Max. load fluorescent lamp (Duo circuit)750 VA
-
Max. switching power LED150 W
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,093 |
| Width (m) | 0,041 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
