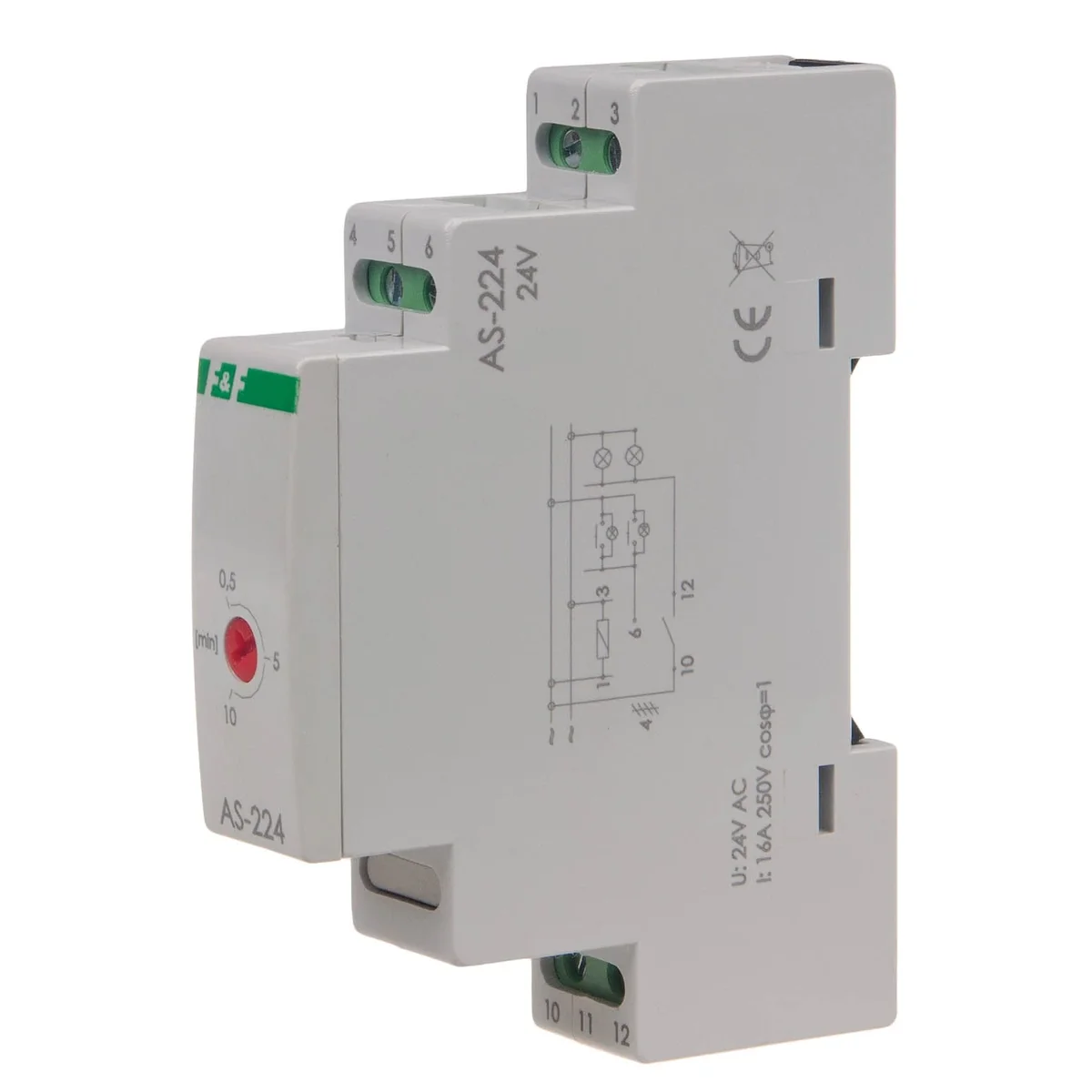

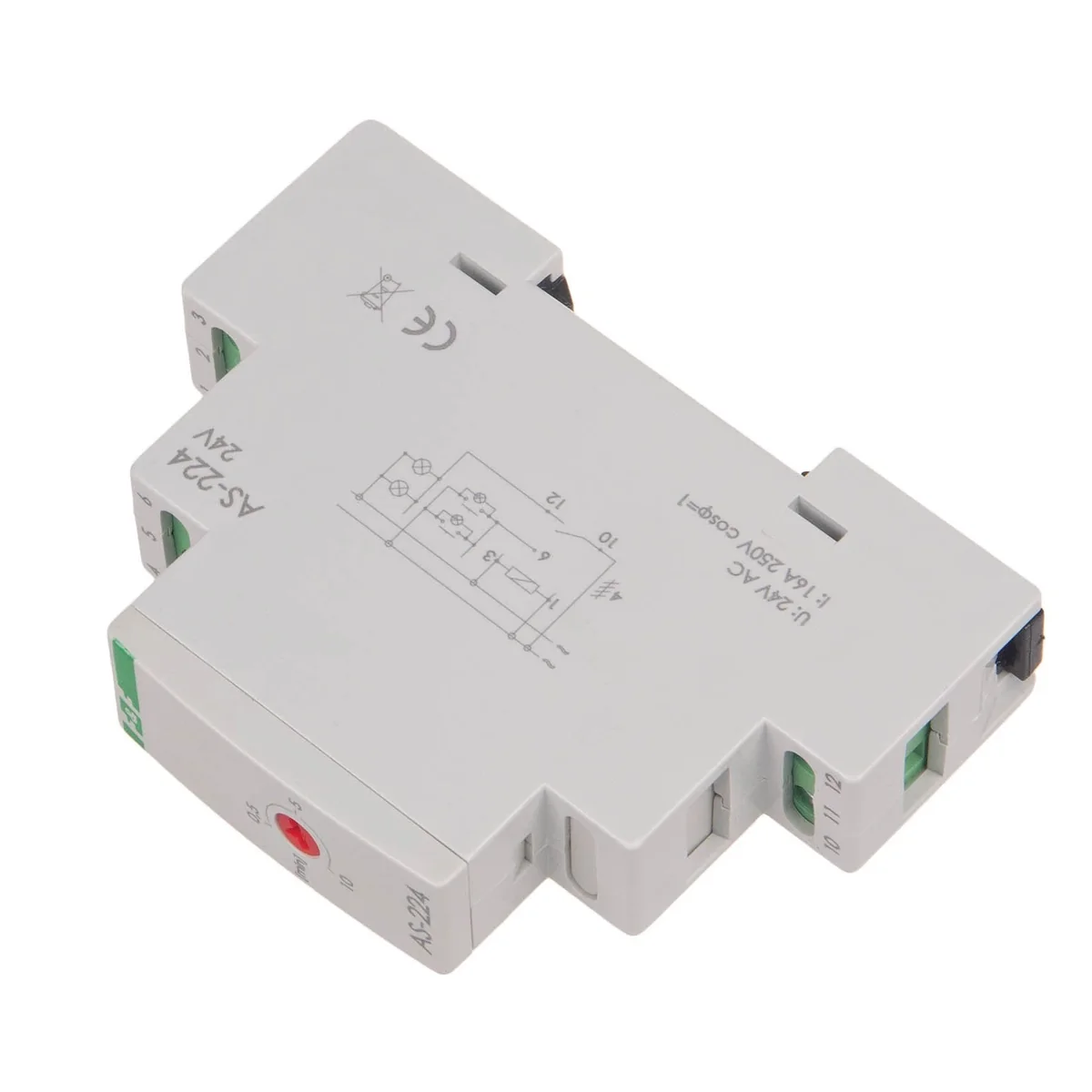

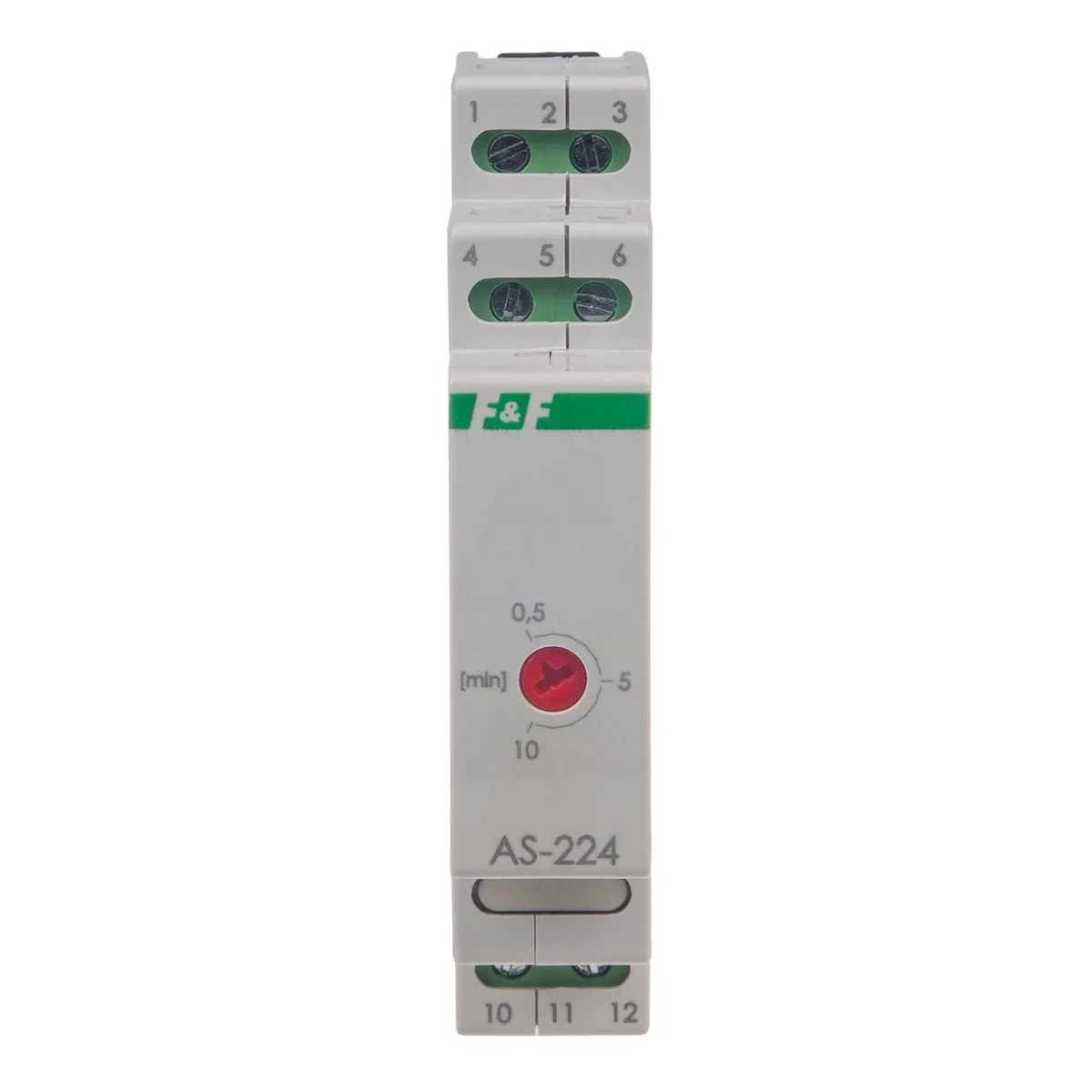

AS-224 staircase automatic switch AS-224

local index:
APC115FIFQ
Catalog No:
AS-224
EAN code:
5908312592150
Manufacturer: F&F
Installation: On the TH-35 rail
Shutdown delay - adjustable: 0.5-10
Tripping delay [s]: <1
Price:
17,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Staircase timer is used to keep the lighting of corridors, staircases, or other objects on for a specified time, after which the lighting will be turned off automatically. Operation
On by momentary (bell) switch  the staircase timer maintains the lighting for the time set with the knob. After the set time has elapsed, the automatic device will turn off the lighting automatically. After turning off the lighting, we can turn it on again.
Anti-blocking function  does not allow for continuous lighting of the lighting after the staircase switch is blocked, i.e. after blocking the switch (e.g. with a match), the automatic device will measure the set time and turn off the lighting. The lighting can be switched on again after the blockade has been removed. AS-223 can work with illuminated switches.

Technical data

  • Installation
    On the TH-35 rail
  • Tripping delay [s]
    <1
  • Connection [W]
    1.2
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0
  • Shutdown delay - adjustable
    0.5-10
  • load current [A]
    <10
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.12

Other technical data

  • Function
    Electronic with multi function
  • Width in number of modular spacings
    2
  • Type of control voltage 1
    AC
  • Type of control voltage 2
    AC/DC
  • Release-delay
    0.5 ... 10 min
  • Pre-warning of switching-off
    Dimming up to 50 %
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    550 VA
  • Max. load fluorescent lamp (parallel compensated)
    800 VA
  • Mounting method
    DIN rail
  • Control voltage 1
    24 ... 24 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Rated switch current
    16 A
  • Wiring system
    4 wire configuration
  • Repetitive
    Repetitive + continuous light
  • Max. incandescent lamp load
    2300 W
  • Max. load fluorescent lamp (Duo circuit)
    1000 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,065
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
