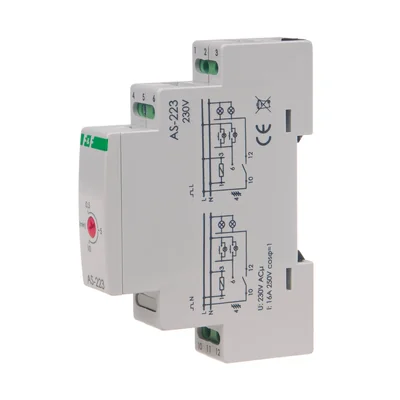

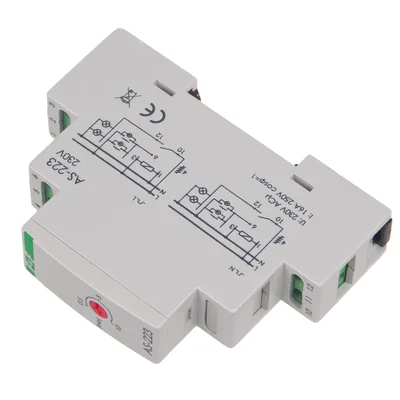

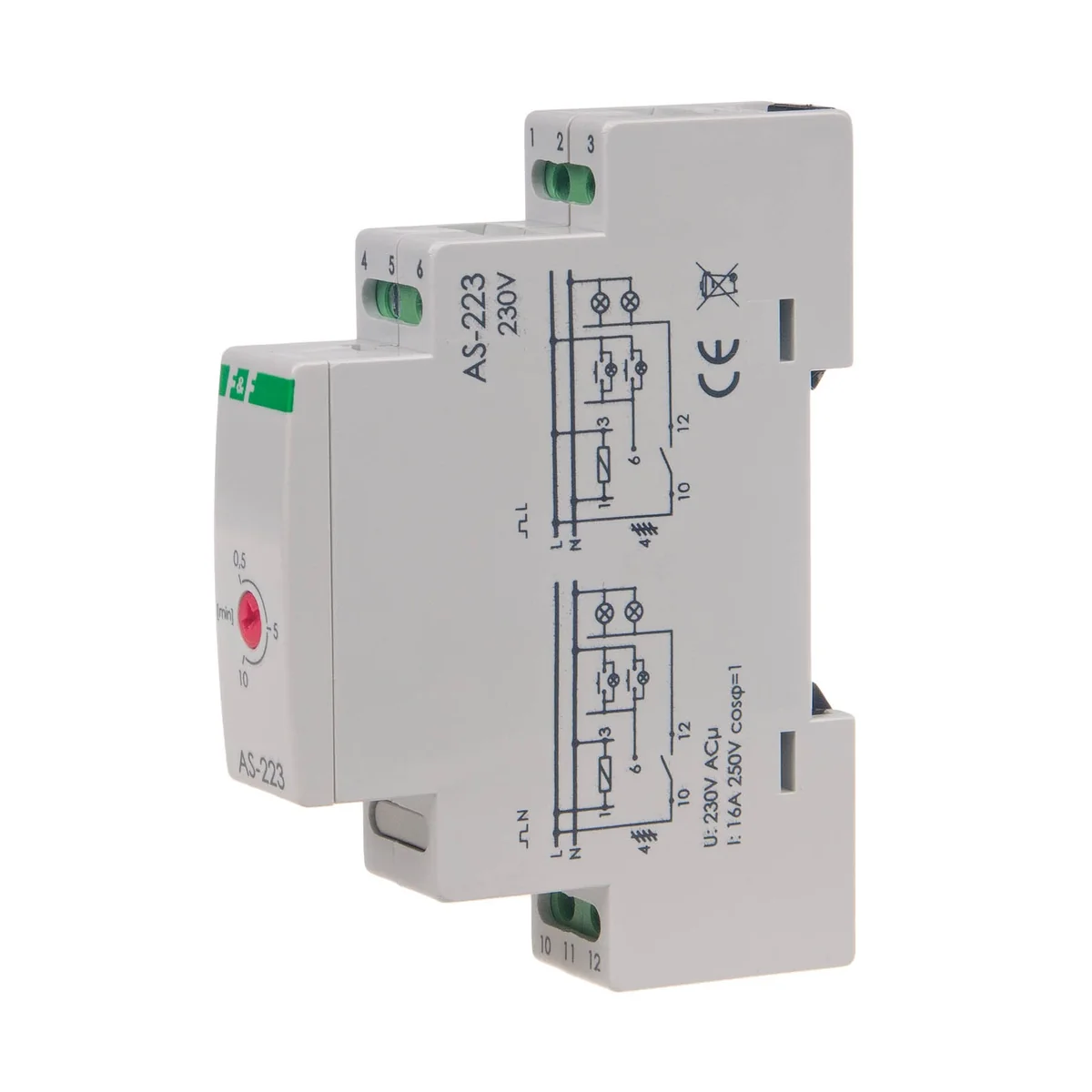

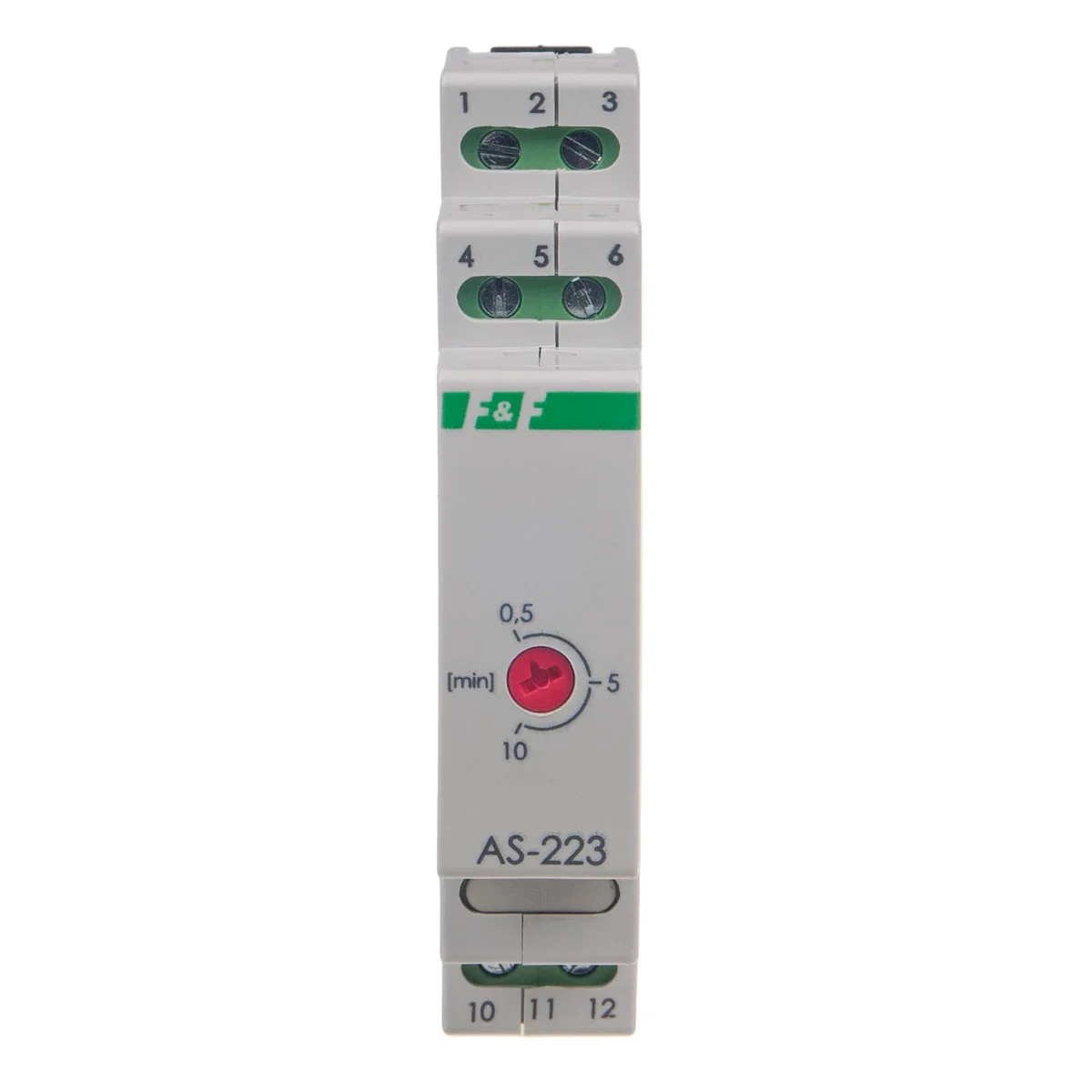

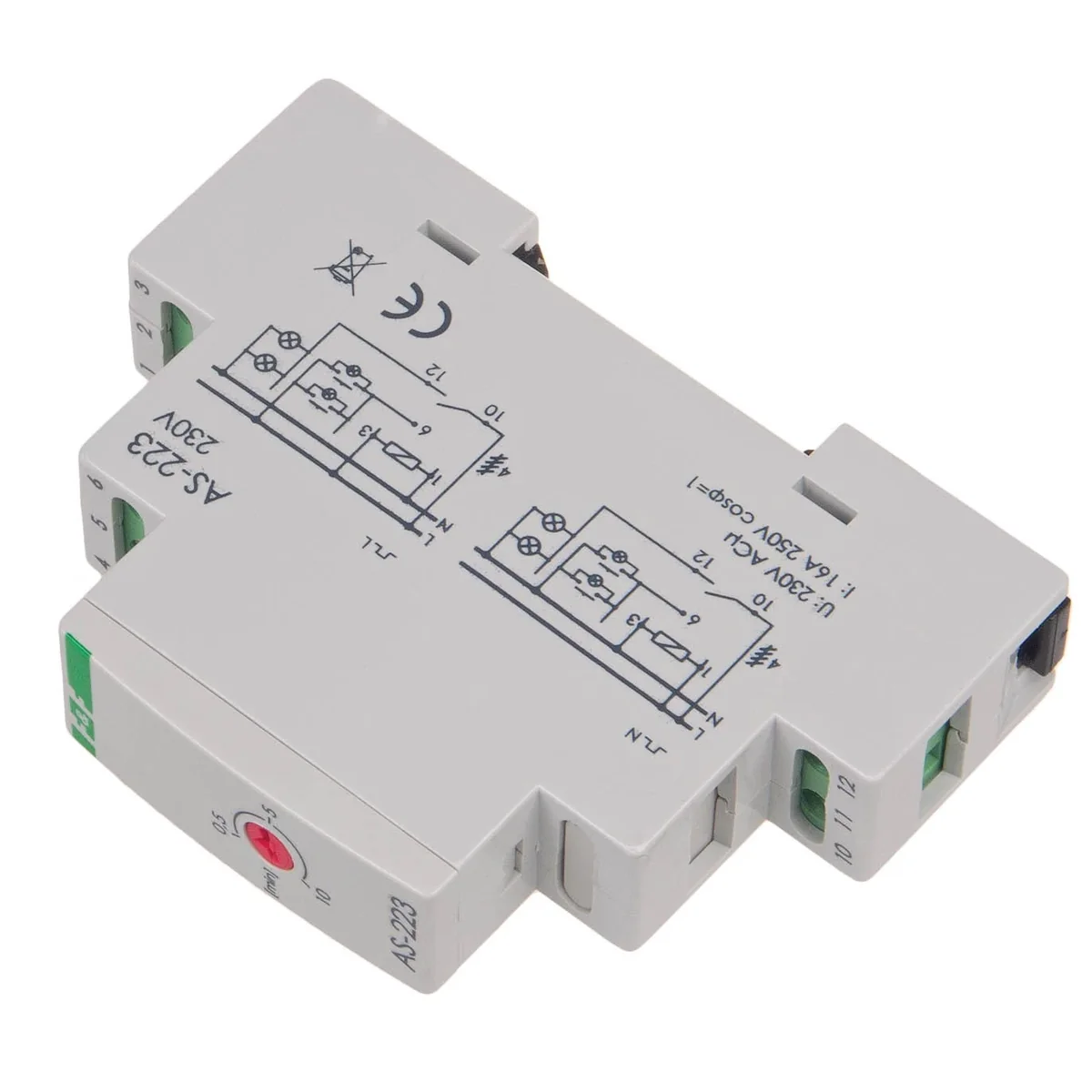

AS-223 staircase automatic switch AS-223

local index:
APC113FIFQ
Catalog No:
AS-223
EAN code:
5908312592105
Manufacturer: F&F
Installation: On the TH-35 rail
Rated voltage [V]: 230
Shutdown delay - adjustable: 0.5-10
Price:
17,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 23 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Staircase timer is used to keep the lighting of corridors, staircases, or other objects on for a specified time, after which the lighting will be turned off automatically. Operation:
On by momentary (bell) switch  the staircase timer maintains the lighting for the time set with the knob. After the set time has elapsed, the automatic device will turn off the lighting automatically. After turning off the lighting, we can turn it on again.
Anti-blocking function  does not allow for continuous lighting of the lighting after the staircase switch is blocked, i.e. after blocking the switch (e.g. with a match), the automatic device will measure the set time and turn off the lighting. The lighting can be switched on again after the blockade has been removed. AS-223 can work with illuminated switches.

Technical data

  • Installation
    On the TH-35 rail
  • Shutdown delay - adjustable
    0.5-10
  • load current [A]
    <10
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0, 1
  • Rated voltage [V]
    230
  • Tripping delay [s]
    <1
  • Connection [W]
    1, 2
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0

Other technical data

  • Function
    Electronic with multi function
  • Width in number of modular spacings
    1
  • Type of control voltage 1
    AC
  • Rated switch current
    16 A
  • Wiring system
    4 wire configuration
  • Repetitive
    Repetitive + continuous light
  • Max. incandescent lamp load
    2300 W
  • Max. load fluorescent lamp (Duo circuit)
    1000 VA
  • Mounting method
    DIN rail
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Release-delay
    0.5 ... 10 min
  • Pre-warning of switching-off
    Dimming up to 50 %
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    550 VA
  • Max. load fluorescent lamp (parallel compensated)
    800 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,070
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
