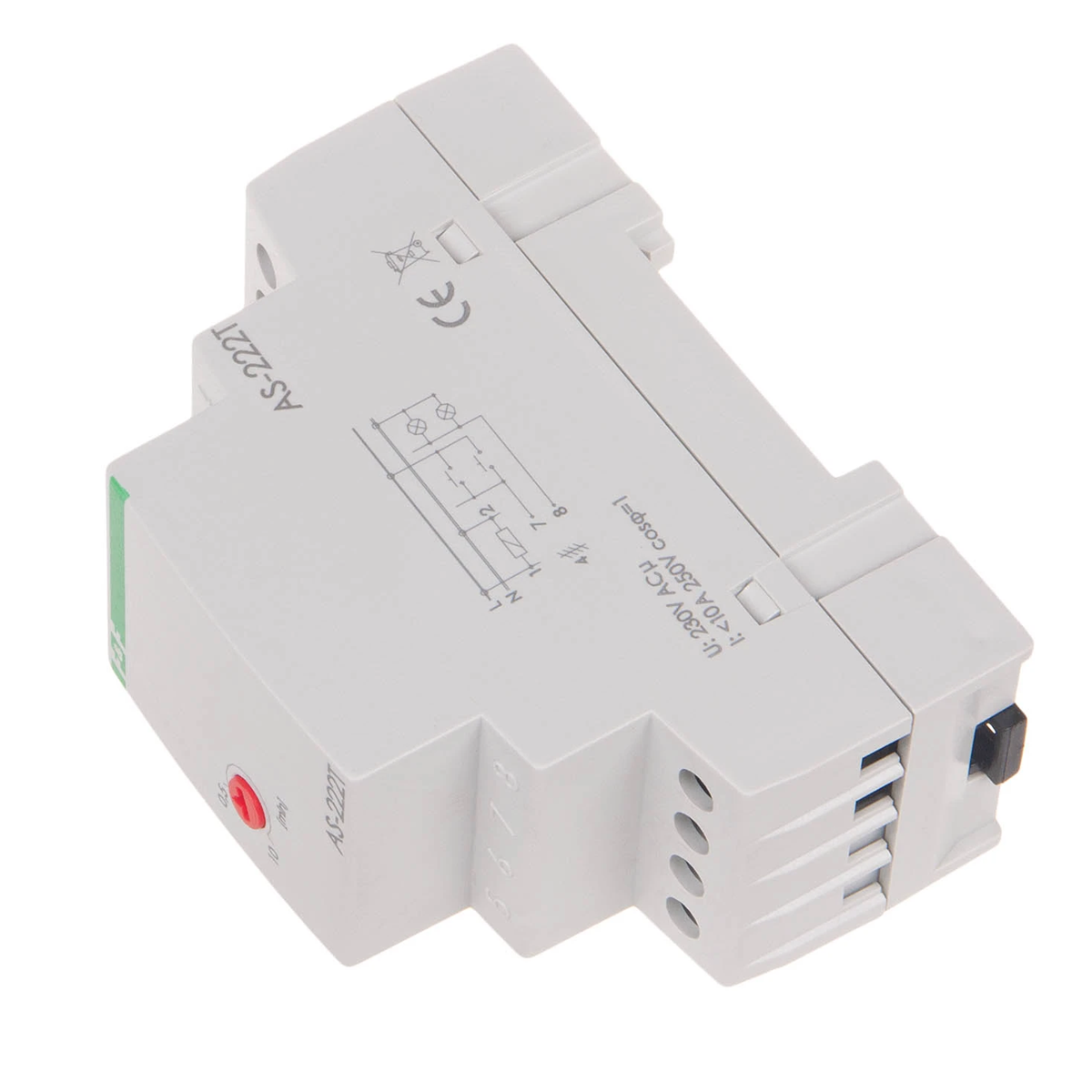

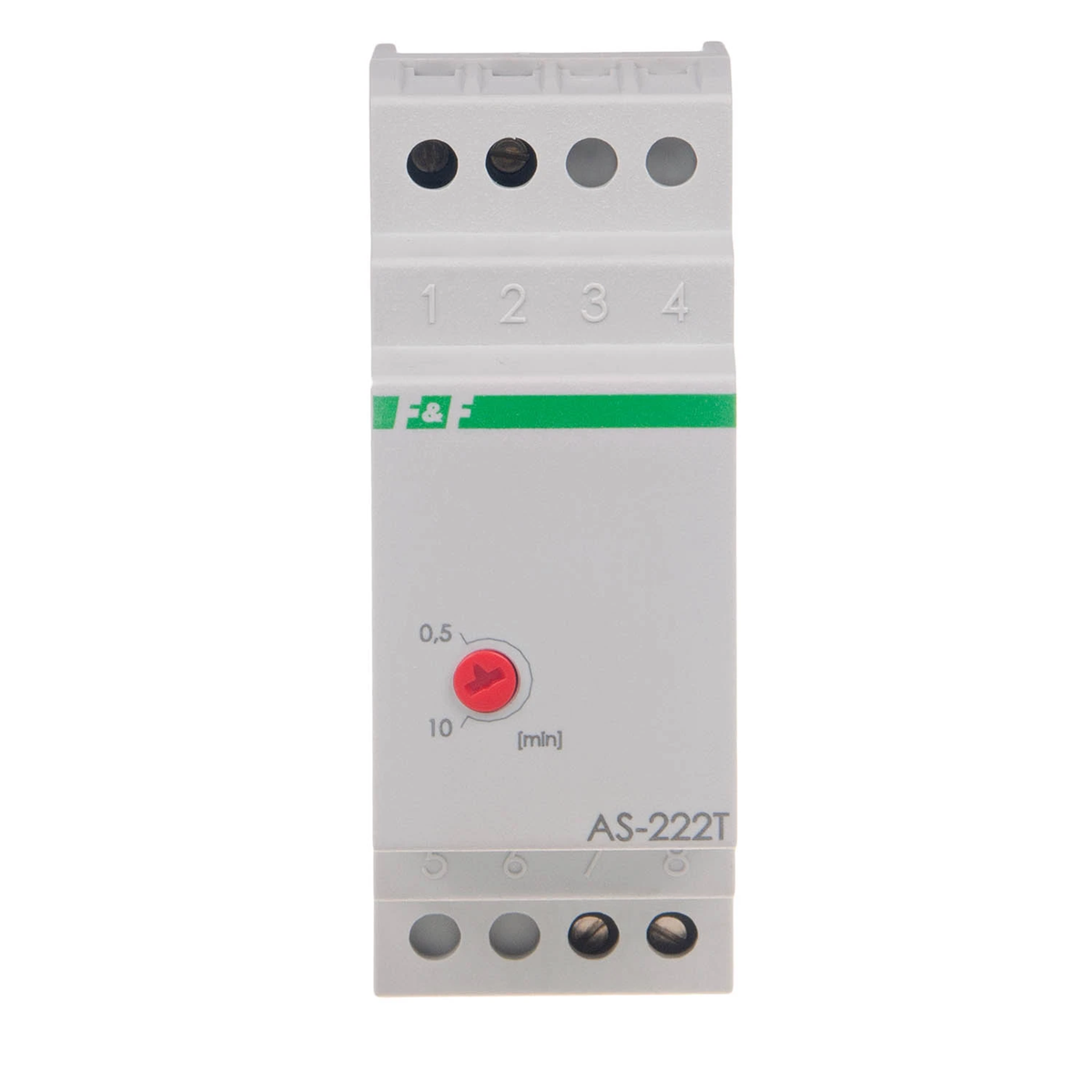

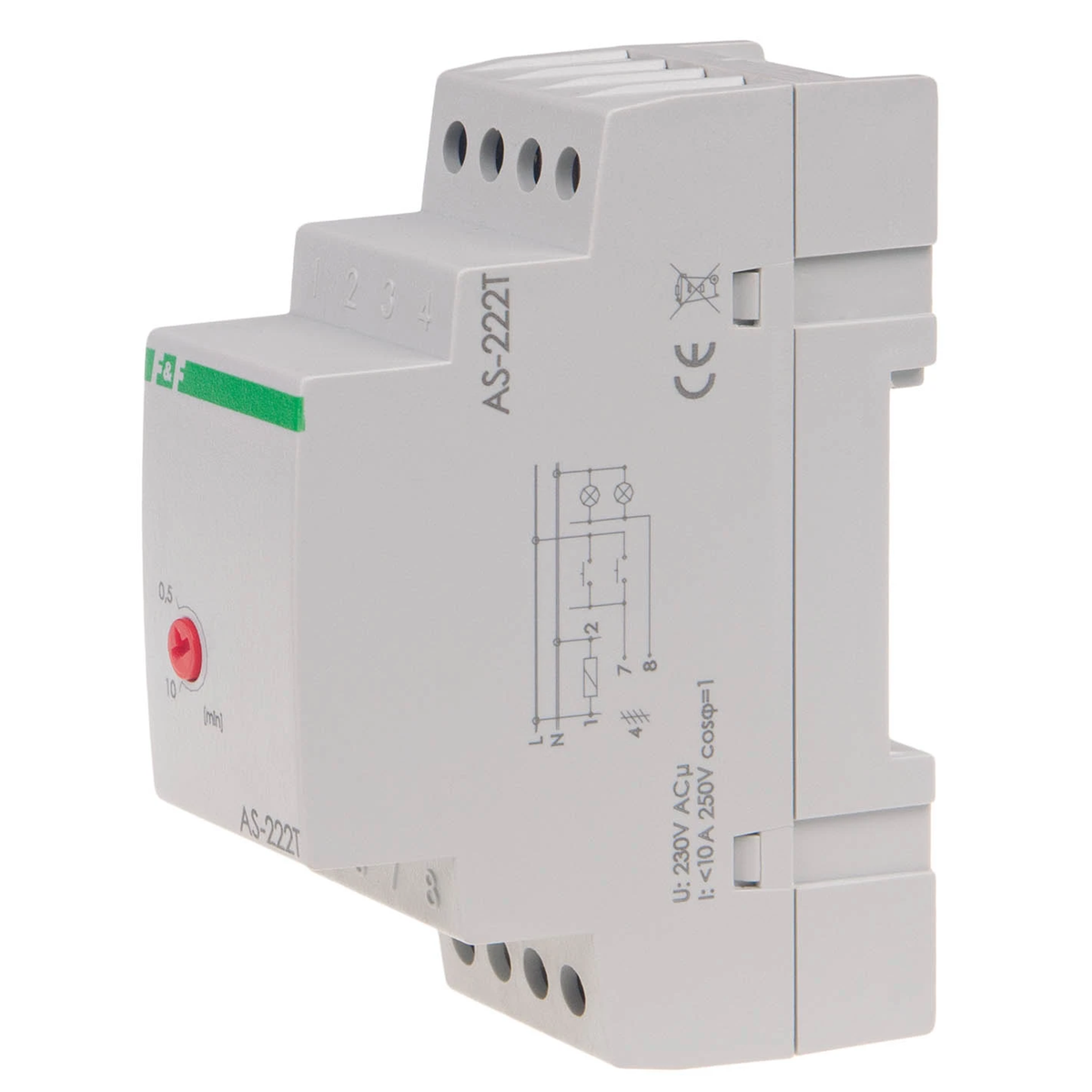

AS-222T staircase automatic switch AS-222T

local index:
APC107FIFQ
Catalog No:
AS-222T
EAN code:
5908312592129
Manufacturer: F&F
Power [W]: 0.8
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
23,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Staircase timer is used to keep the lighting of corridors, staircases, or other objects on for a specified time, after which the lighting will be turned off automatically. Operation:
On by momentary (bell) switch  the staircase timer maintains the lighting for the time set with the potentiometer (from 0.5 min. to 10 min.),   after which the lighting brightness is reduced by half for about 30 seconds. Only after this time the lighting will be turned off completely (sudden darkness is avoided, there is still time to reach the switch safely).  During reduced brightness, another signal from the switch will turn on the lighting to full brightness. The anti-blocking function does not allow for continuous lighting of the lighting after the staircase switch is blocked, i.e. after blocking the switch (e.g. with a match), the automatic device will measure the set time and turn off the lighting. The lighting can be switched on again after removing the lock.

 NOTE!
AS-222T cannot work with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters. AS-222T cannot work with backlit switches.

Technical data

  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • Tripping delay [s]
    <1
  • connection
    2.5mm screw terminals
  • Dimensions
    2 modules (35mm)
  • Package width [mm]
    40
  • Lighting time with reduced brightness
    30sec
  • Installation
    On the TH-35 rail
  • Shutdown delay - adjustable
    0.5-10
  • load current [A]
    <10
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • PKWIU
    27.12.23.0

Other technical data

  • Function
    Electronic with switching-off pre-warning
  • Width in number of modular spacings
    2
  • Type of control voltage 1
    AC
  • Rated switch current
    10 A
  • Wiring system
    4 wire configuration
  • Repetitive
    Repetitive + continuous light
  • Max. incandescent lamp load
    1500 W
  • Max. load fluorescent lamp (Duo circuit)
    650 VA
  • Mounting method
    DIN rail
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Release-delay
    0.5 ... 10 min
  • Pre-warning of switching-off
    Dimming up to 50 %
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    350 VA
  • Max. load fluorescent lamp (parallel compensated)
    500 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,105
Width (m) 0,041
Length (m) 0,095
Depth (m) 0,070
