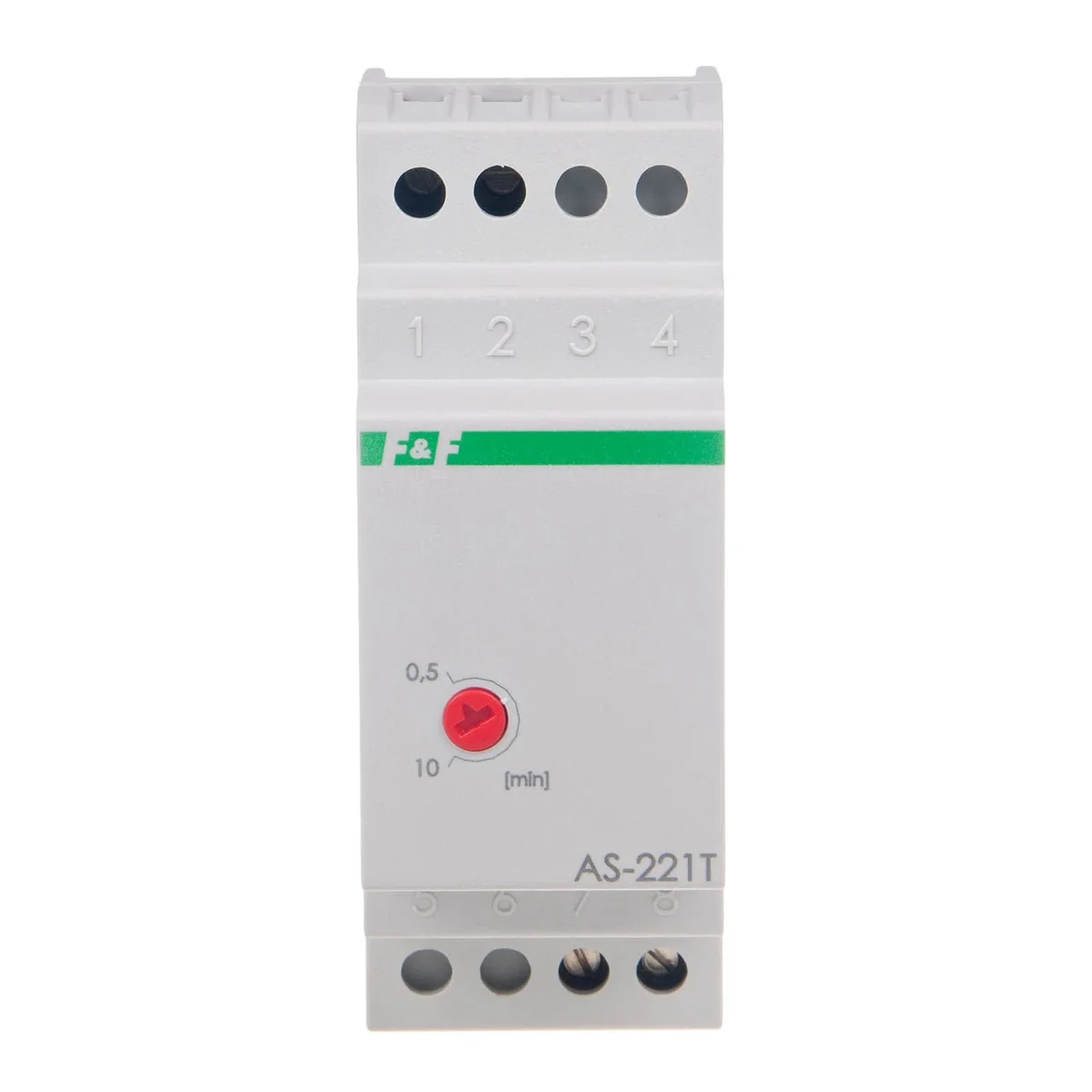

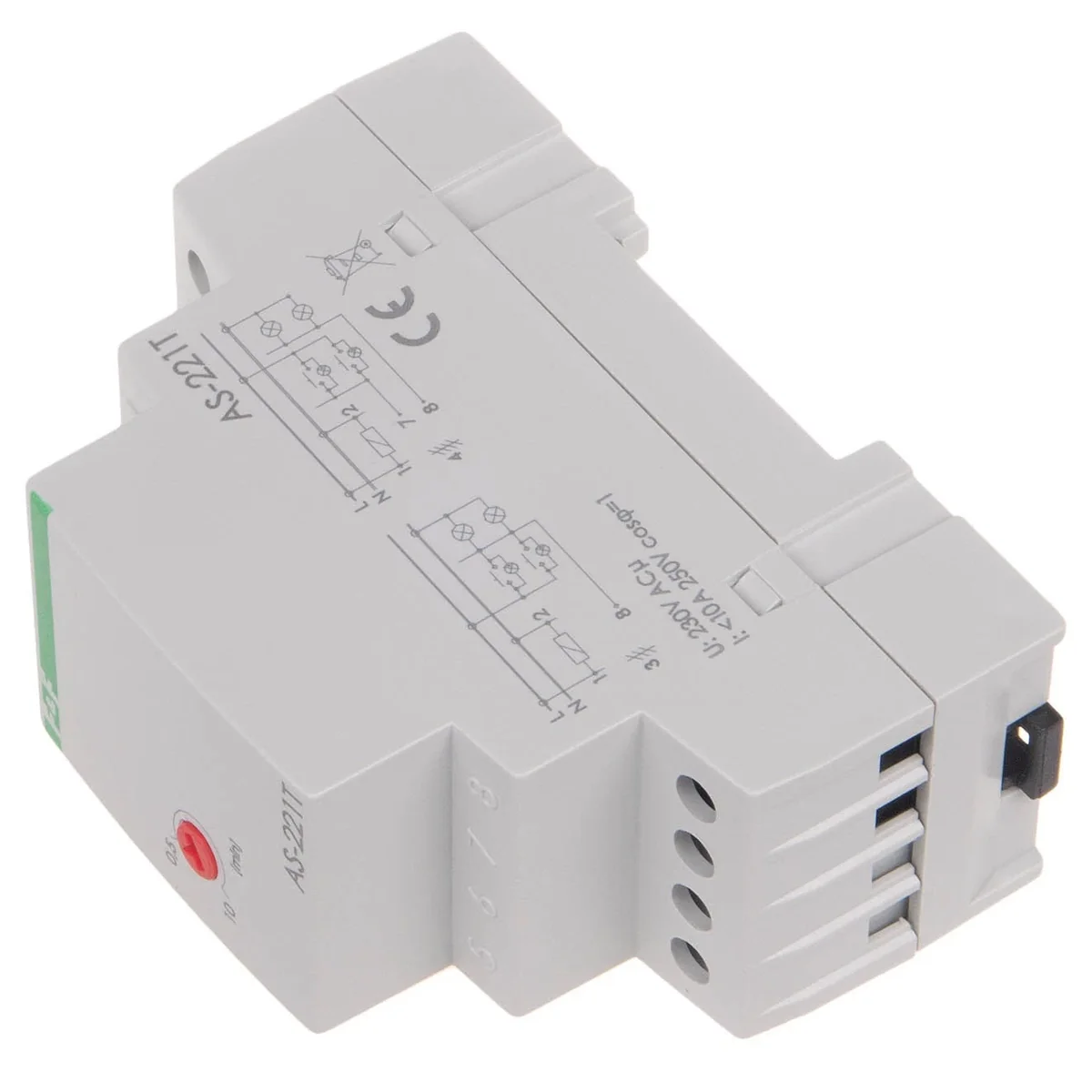

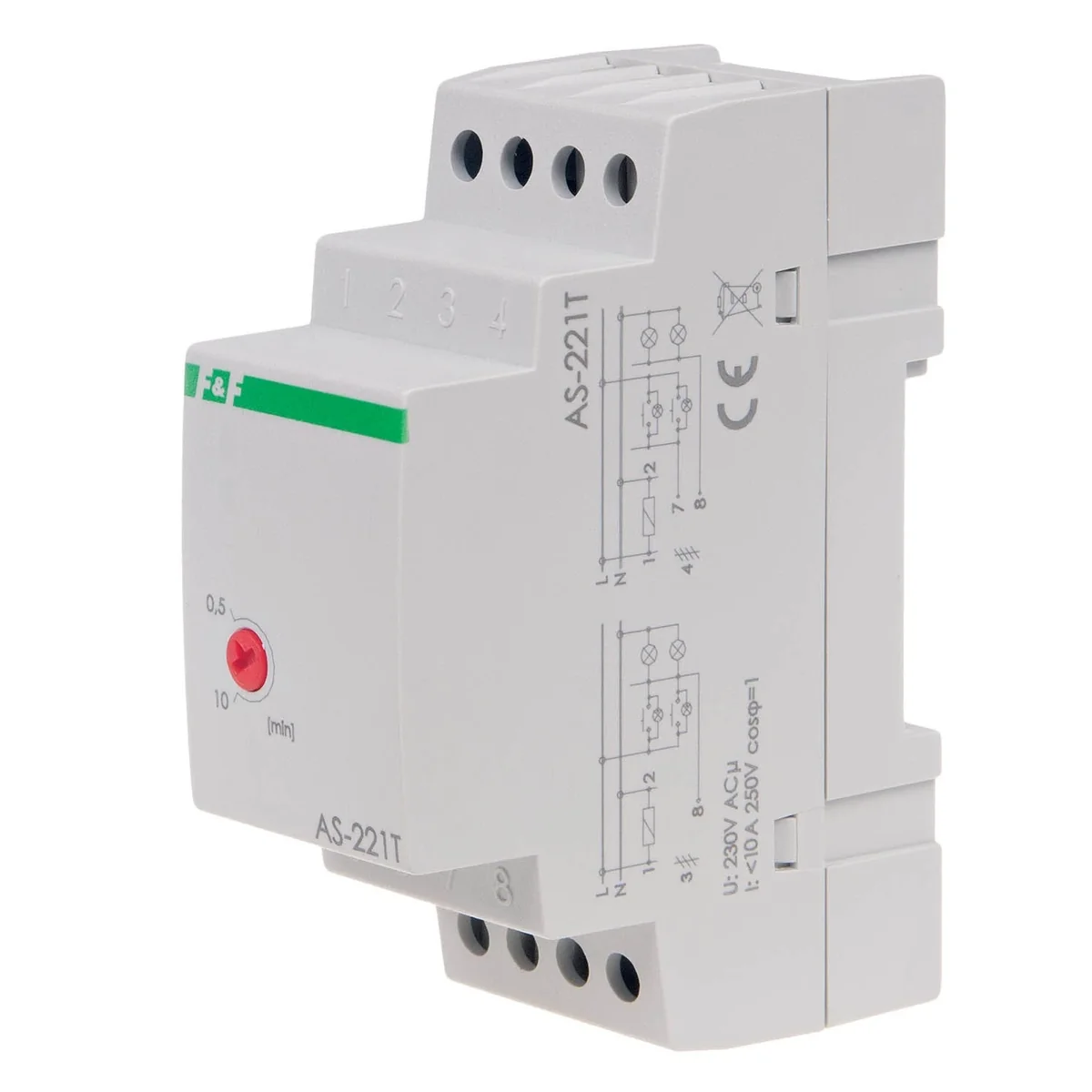

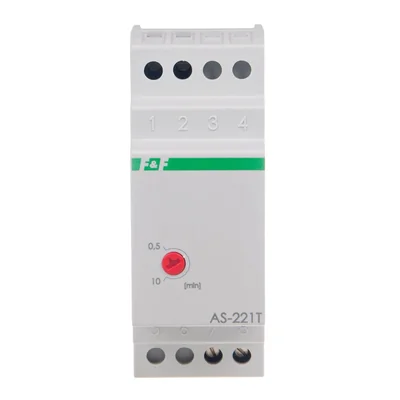

AS-221T staircase automatic switch AS-221T

local index:
APC106FIFQ
Catalog No:
AS-221T
EAN code:
5908312592136
Manufacturer: F&F
Power [W]: 1.2
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
23,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Purpose:
Staircase timer is used to keep the lighting of corridors, staircases or other objects on for a specified time, after which the lighting will be turned off automatically.

Operation
The staircase timer activated with a momentary (bell) switch maintains the lighting for the time set by the potentiometer (from 0.5 min. to 10 min.), after which the brightness of the lighting is reduced by half for about 30 s. Only after this time the lighting will be switched off completely (sudden darkness is avoided, there is still time to reach the switch safely). During the reduced brightness, another switch signal will turn the lighting back on to full brightness.

AS-221T cannot work with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.

Technical data

  • Power [W]
    1.2
  • Rated voltage [V]
    230
  • Tripping delay [s]
    <1
  • connection
    2.5mm screw terminals
  • Dimensions
    2 modules (35mm)
  • Package width [mm]
    40
  • Lighting time with reduced brightness
    30sec
  • Installation
    On the TH-35 rail
  • Shutdown delay - adjustable
    0.5-10
  • load current [A]
    <10
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.25
  • PKWIU
    27.12.23.0

Other technical data

  • Function
    Electronic with switching-off pre-warning
  • Width in number of modular spacings
    2
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Type of control voltage 1
    AC
  • Rated switch current
    10 A
  • Wiring system
    3 and 4 wire configuration
  • Current surge function selectable
    No
  • Supply voltage
    230 ... 230 V
  • Max. incandescent lamp load
    1500 W
  • Max. load fluorescent lamp (Duo circuit)
    650 VA
  • Mounting method
    DIN rail
  • Built-in depth
    60 mm
  • Number of contacts as normally closed contact
    0
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Release-delay
    0.5 ... 10 min
  • Pre-warning of switching-off
    Dimming up to 0 %
  • Repetitive
    Repetitive + continuous light
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    350 VA
  • Max. load fluorescent lamp (parallel compensated)
    500 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,104
Width (m) 0,041
Length (m) 0,095
Depth (m) 0,070
