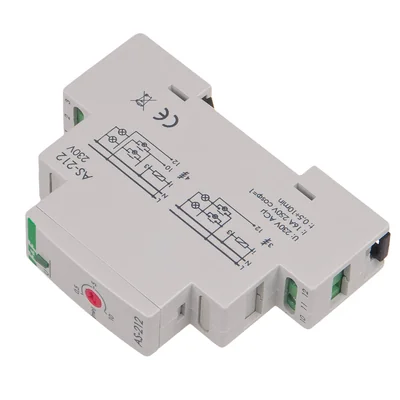

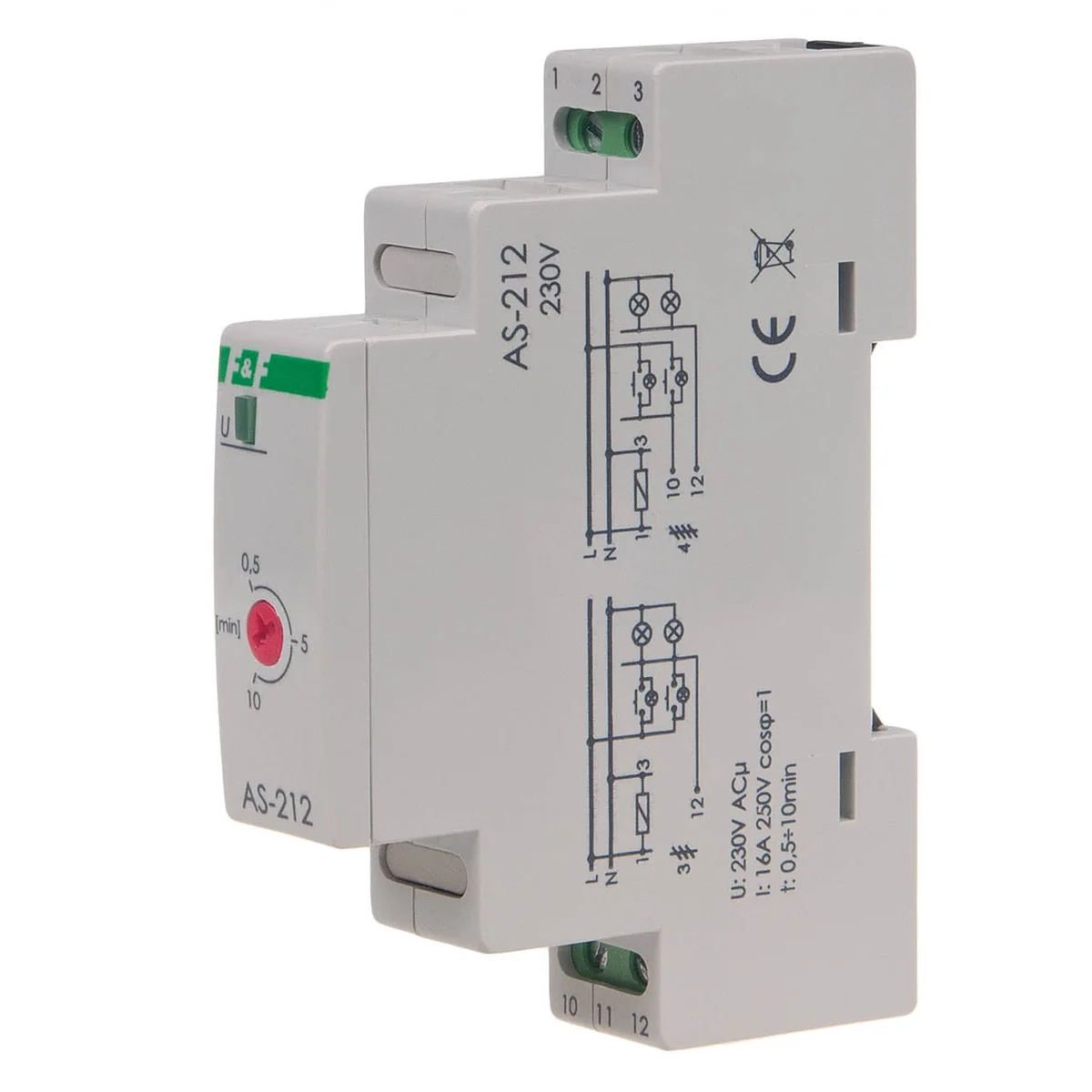

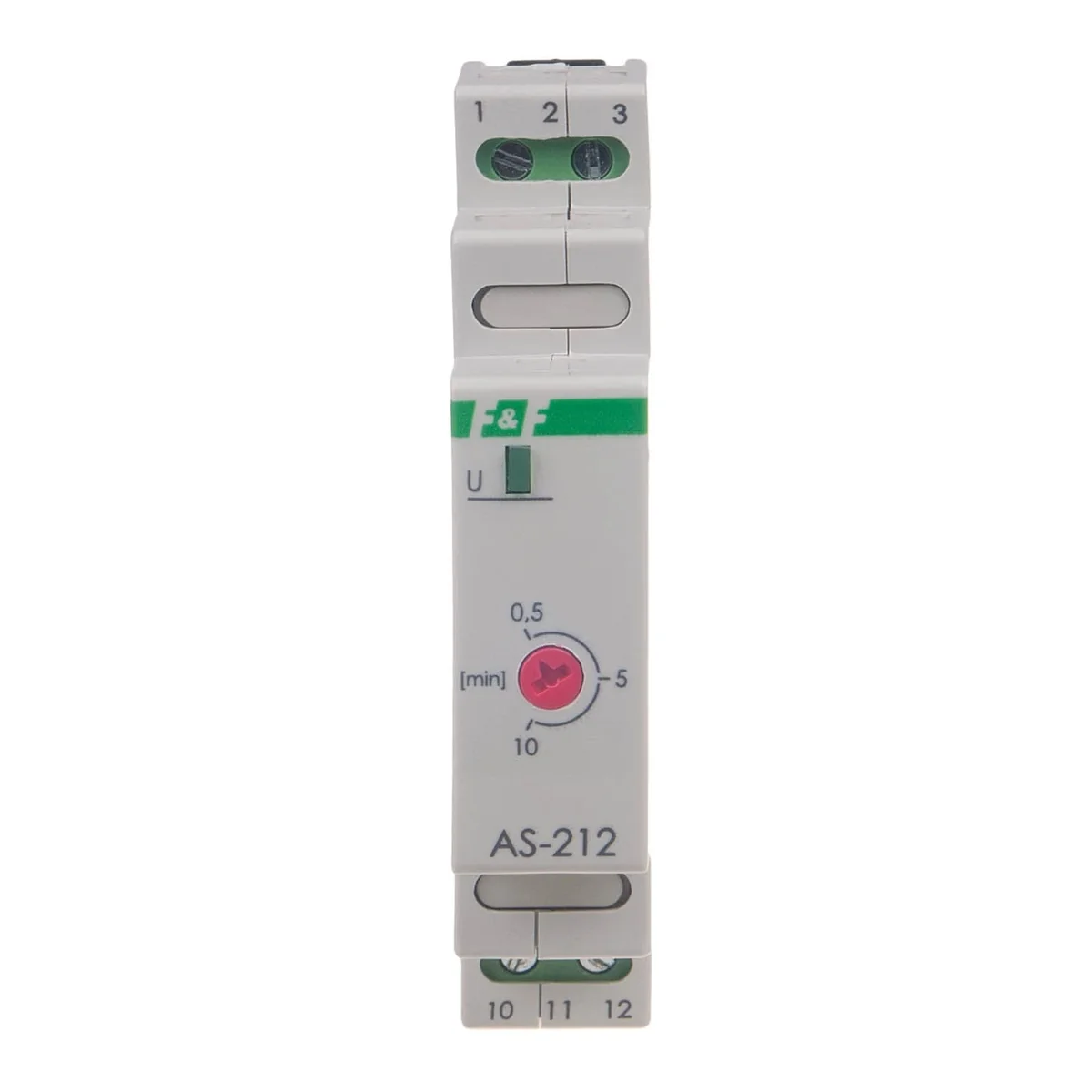

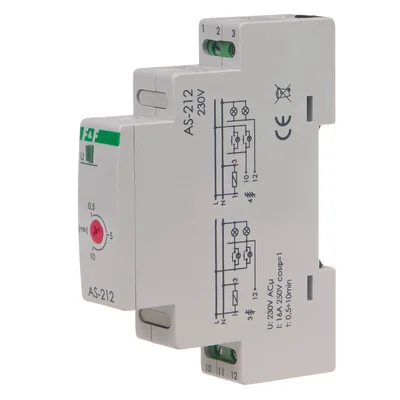

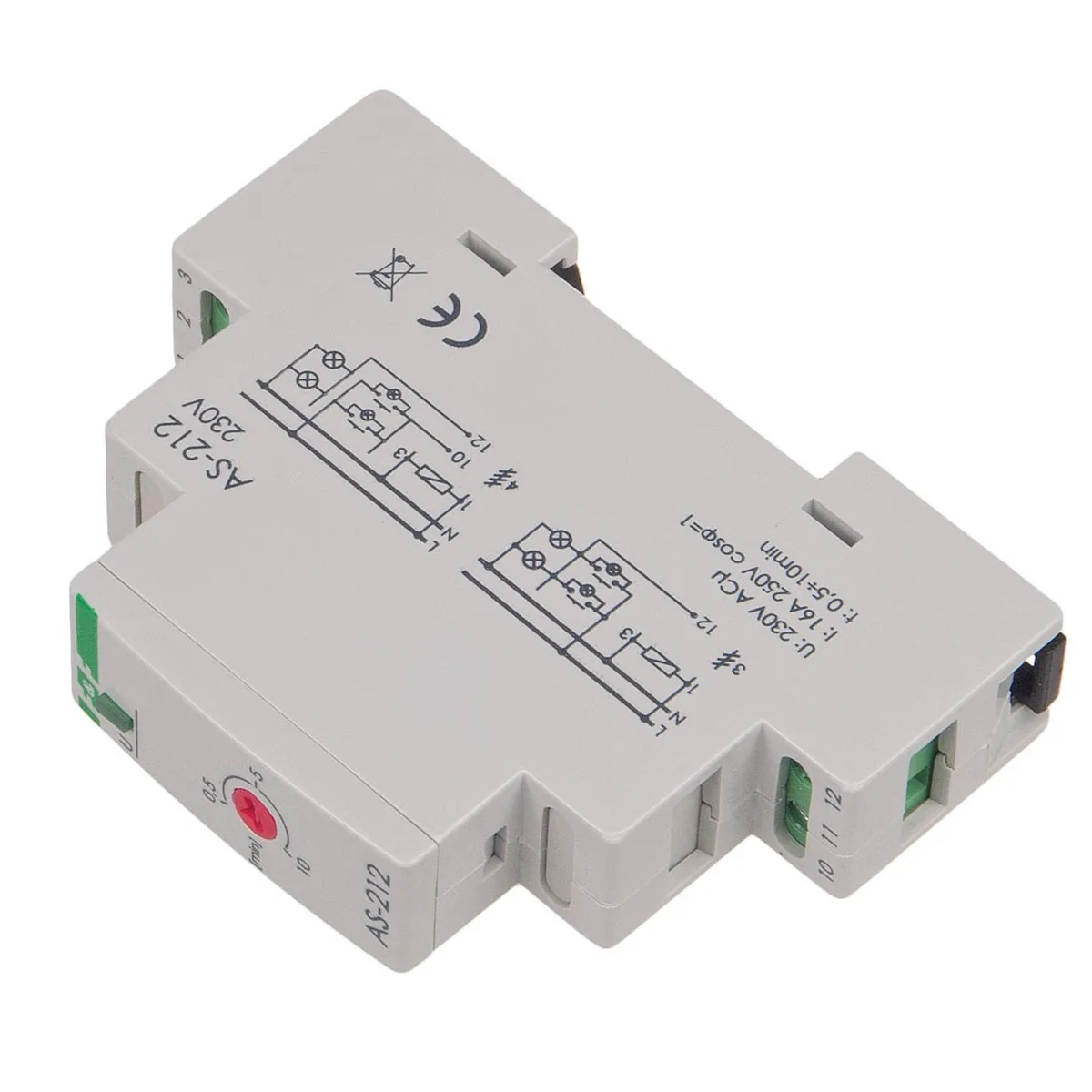

AS-212 staircase automatic switch AS-212
Lokaler Index:
APC108FIFQ
Katalognummer:
AS-212
EAN-Code:
5908312592068
Preis:
74,83 zł
gross / stk.
(inklusive MwSt 23%)
Abholung in 1 Stunde
Lieferung in 3h
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Purpose
Staircase timer is used to keep the lighting of corridors, staircases or other objects on for a specified time, after which the lighting will be turned off automatically. Operation
On by momentary (bell) switch the staircase timer maintains the lighting for the time set with the knob. After the set time has elapsed, the automatic device will turn off the lighting automatically. After turning off the lighting, we can turn it on again. NOTE!
Possibility of special execution of staircase automatics for voltages other than those given in the table technical data, e.g. 12V, 48V, 110V AC/DC or other.
Technische Daten
-
Power [W]0.56
-
Rated voltage [V]230
-
Tripping delay [s]<1
-
connection2.5mm screw terminals
-
Dimensions1 module (18mm)
-
Package width [mm]20
-
PKWIU27.12.23.0
-
InstallationOn the TH-35 rail
-
Shutdown delay - adjustable0.5-10min
-
load current [A]<16
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.1
Weitere technische Daten
-
FunctionElectronic
-
Width in number of modular spacings1
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Rated switch current16 A
-
Release-delay0.5 ... 10 min
-
Wiring system3 and 4 wire configuration
-
RepetitiveRepetitive + continuous light
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp750 VA
-
Max. load fluorescent lamp (parallel compensated)750 VA
-
Power consumption0.7 W
-
Mounting methodDIN rail
-
Built-in depth60 mm
-
Number of contacts as normally closed contact0
-
Control voltage 1195 ... 253 V
-
Frequency control voltage 150 ... 50 Hz
-
Max. switching current (cos phi = 0.6)12 A
-
Push button glow-lamp current3 mA
-
Pre-warning of switching-offNone
-
Supply voltage195 ... 253 V
-
Max. incandescent lamp load2000 W
-
Max. load fluorescent lamp (Duo circuit)750 VA
-
Max. switching power LED250 W
Hersteller-Details
-
HerstellerF&F Filipowski S.K.
-
Adresse95-200 Pabianice Konstantynowska 79/81 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Sztuka |
| Menge | 1 stk. |
| Gewicht (kg) | 0,065 |
| Breite (m) | 0,019 |
| Länge (m) | 0,095 |
| Tiefe (m) | 0,070 |
