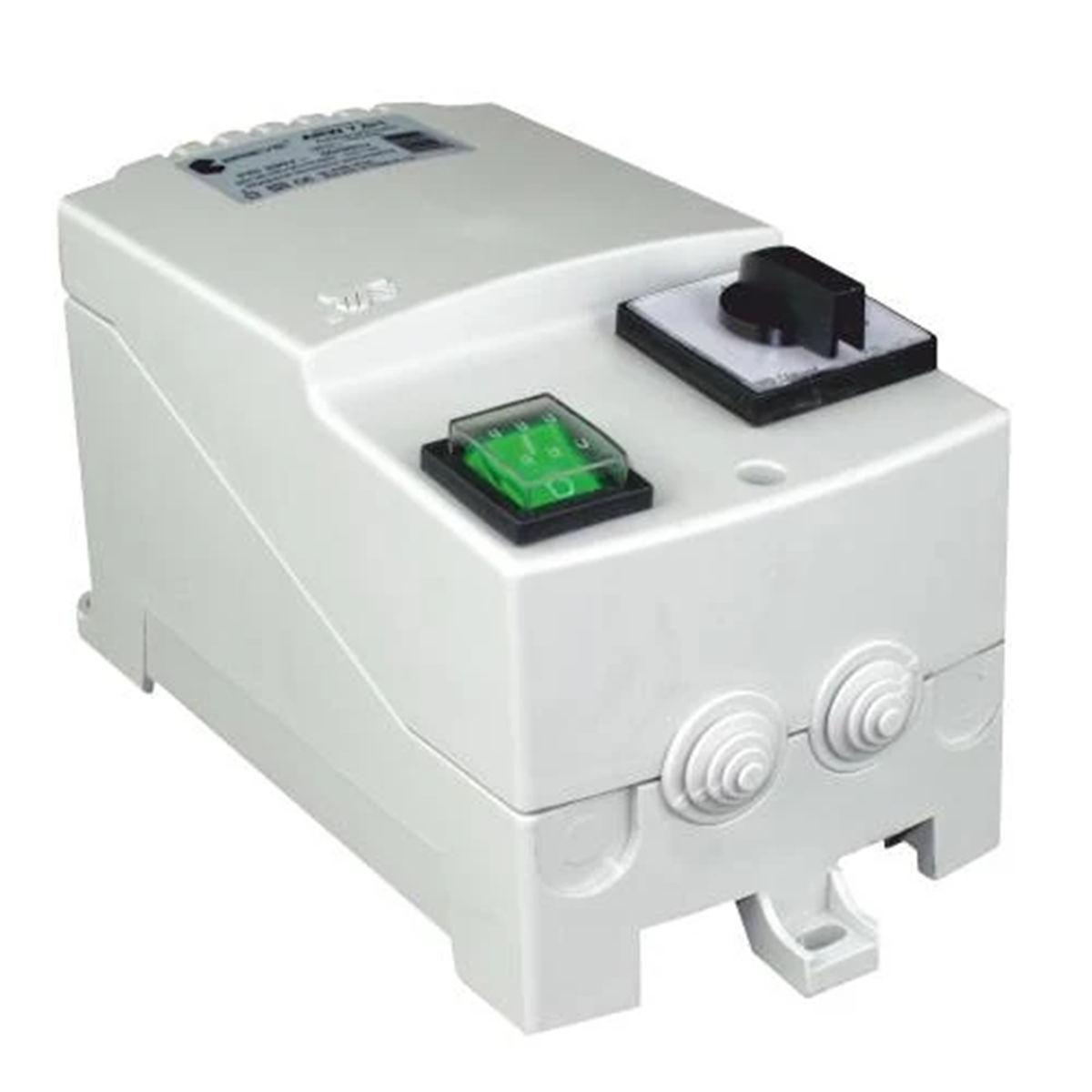

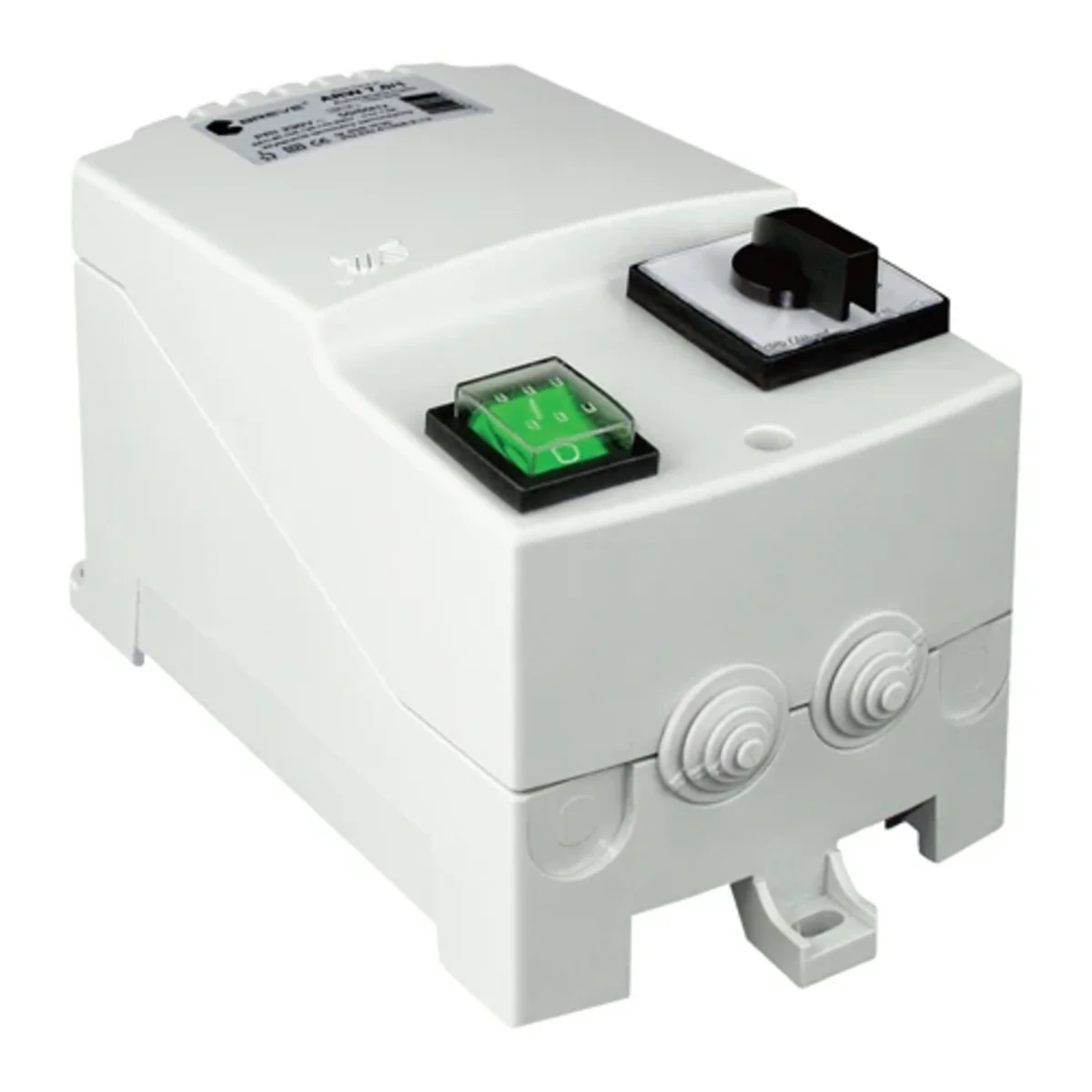

ARW 7.0 transformer fan speed controller 17886-9996
local index:
APT018BREV
Catalog No:
17886-9996
EAN code:
5907812713904
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Transformer ARW controllers for speed control of single-phase fan motors, voltage-controlled. Installed in industrial ventilation or heating systems. The knob placed on the housing panel is used to adjust the rotational speed in five steps. Equipped with an independent switch indicating activation with a backlight.
Execution in class II insulation. Degree of protection IP30 or IP54.
Maximum ambient temperature 40°C. Insulation thermal class
B (130°C). Manufactured in accordance with EN 61558-2-13.
Execution in class II insulation. Degree of protection IP30 or IP54.
Maximum ambient temperature 40°C. Insulation thermal class
B (130°C). Manufactured in accordance with EN 61558-2-13.
Technical data
-
number of phases1
-
Power [W]1150
-
InstallationSurface-mounted
-
Rated current [A]7
-
ControlManual
-
Weight [kg]5.5
-
Type of regulation5-step
-
PKWIU27.11.42.0
-
MaterialPC ABS
-
FixingM6
-
Rated voltage [V]230
-
FamilyARW
-
Level of securityIP54
-
Dimensions [mm]145x210x145
-
Insulation classb
Other technical data
-
Nominal current7 A
-
Power control steplessNo
-
Method of operationTurn/push button
-
Switching contactNo
-
Width145 mm
-
Degree of protection (IP)IP54
-
Number of phases1
-
Number of steps5
-
IlluminationIlluminated (on)
-
Height210 mm
-
Depth145 mm
Manufacturer details
-
ManufacturerBREVE-TUFVASSONS Sp. z o.o.
-
Address93-347 Łódź Postępowa 25/27 Polska
-
