ARED 3.0 electronic speed controller 17886-9956

Name: ARED 3.0 electronic speed controller
Brand: BREVE
SKU: APT016BREV
Price: 63.89 PLN
Availability: InStock

local index:

APT016BREV

Catalog No:

17886-9956

EAN code:

5907812717018

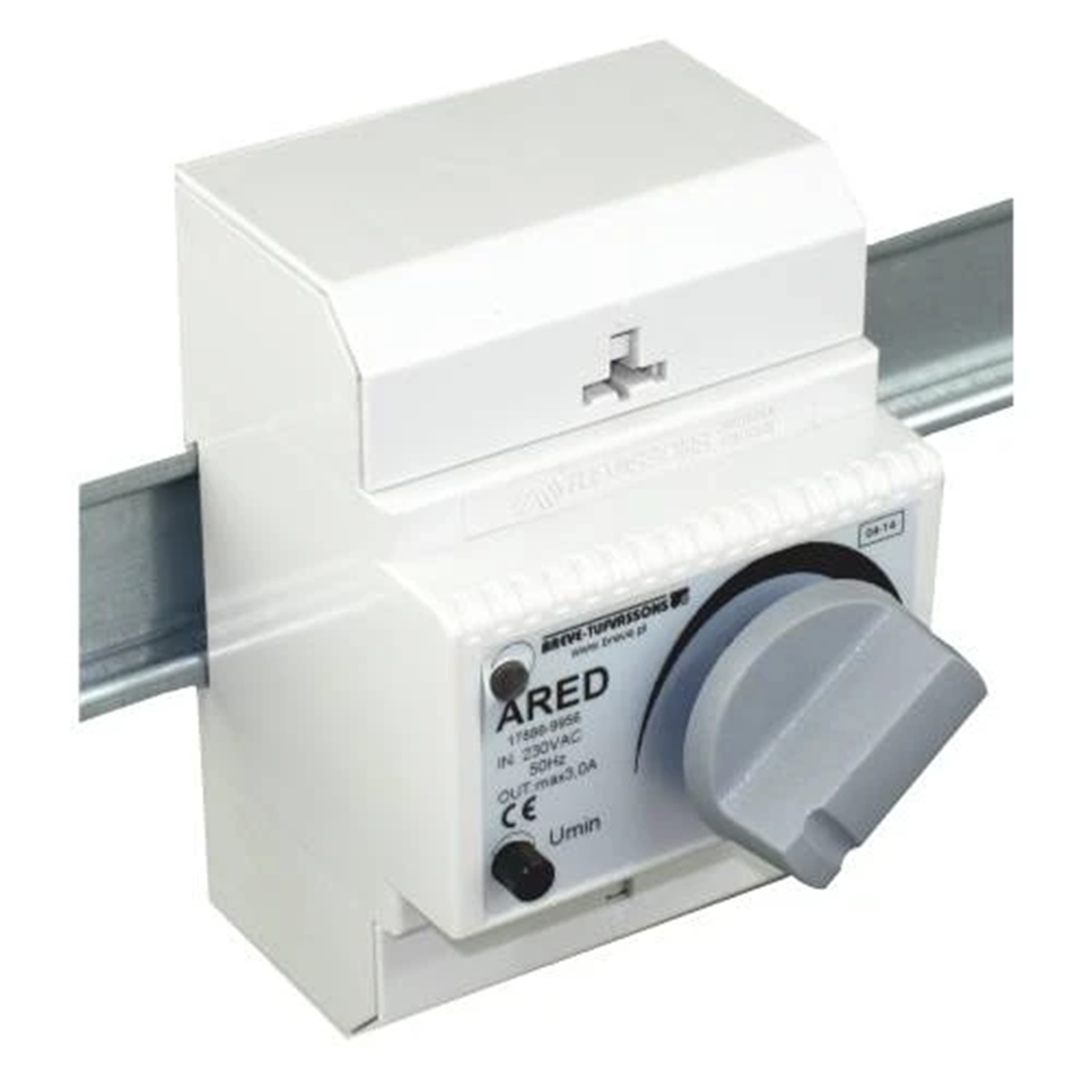

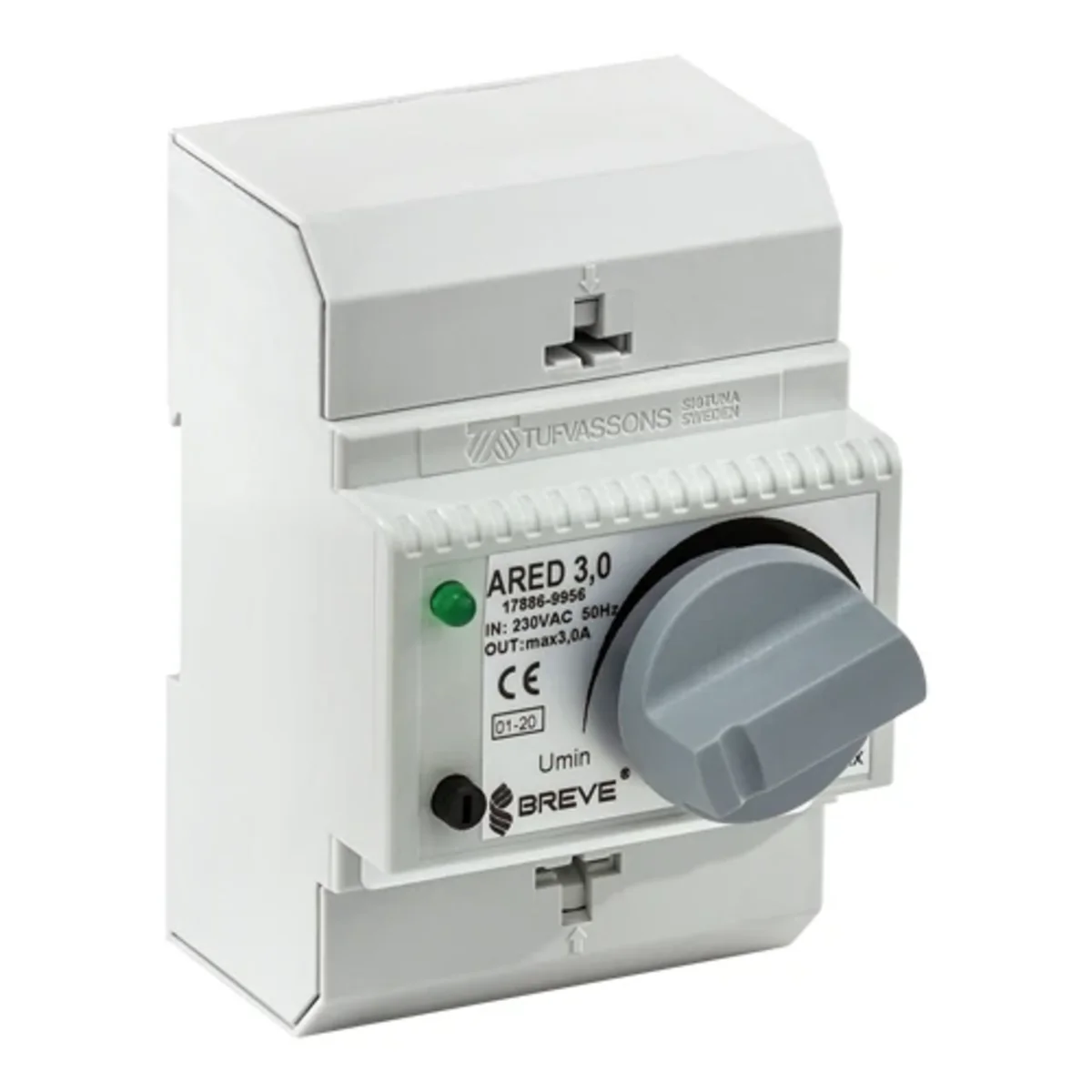

Click on the photo to enlarge

Manufacturer: BREVE

number of phases: 1

Material: PC | ABS

Power [W]: 690

See full description

Price:

63,89 €

gross / pcs.

(including VAT 23%)

Accessible 2 pcs.

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

ARED electronic controllers designed for stepless change of rotational speed of single-phase fan motors. Adapted for installation in installations using a DIN rail. Equipped with LED voltage presence indicator and minimum speed setting. Access to the terminals and the fuse after removing the housing cover. Made in the degree of protection IP33.

Technical data

number of phases

1
Power [W]

690
Rated voltage [V]

230
Family

ARED
Level of security

IP33
Dimensions [mm]

70x108x85
Insulation class

b

Material

PC ABS
Installation

On the TH-35 rail
Rated current [A]

3
Control

Manual
Weight [kg]

0.22
Type of regulation

Fluid
PKWIU

27.11.42.0

Other technical data

Nominal current

3 A
Power control stepless

Yes
Illumination

Illuminated (on)
Height

108 mm
Depth

85 mm

Number of phases

1
Method of operation

Turn/push button
Switching contact

No
Width

70 mm
Degree of protection (IP)

IP30

Manufacturer details

Manufacturer

BREVE-TUFVASSONS Sp. z o.o.
Address

93-347 Łódź Postępowa 25/27 Polska
E-mail

handel@breve.pl

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	6 pcs.
Weight (kg)	0,220	-	1,400
Width (m)	0,070	0,125	0,370
Length (m)	0,085	0,075	0,100
Depth (m)	0,108	0,080	0,290
