AREB 2.5 speed controller 17886-9957
local index:
APT008BREV
Catalog No:
17886-9957
EAN code:
5907812716615
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

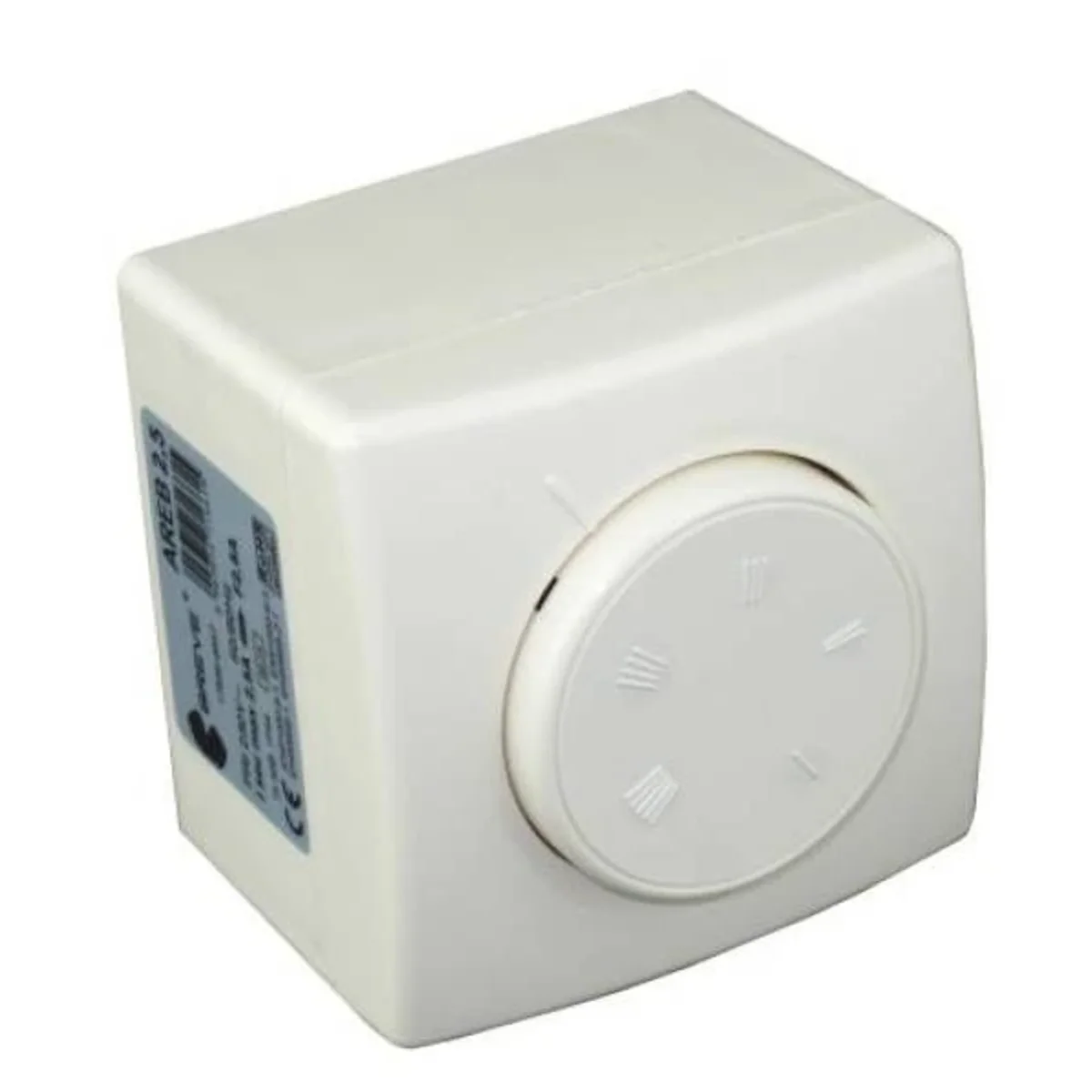

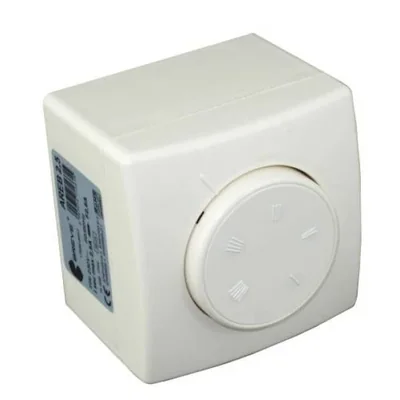

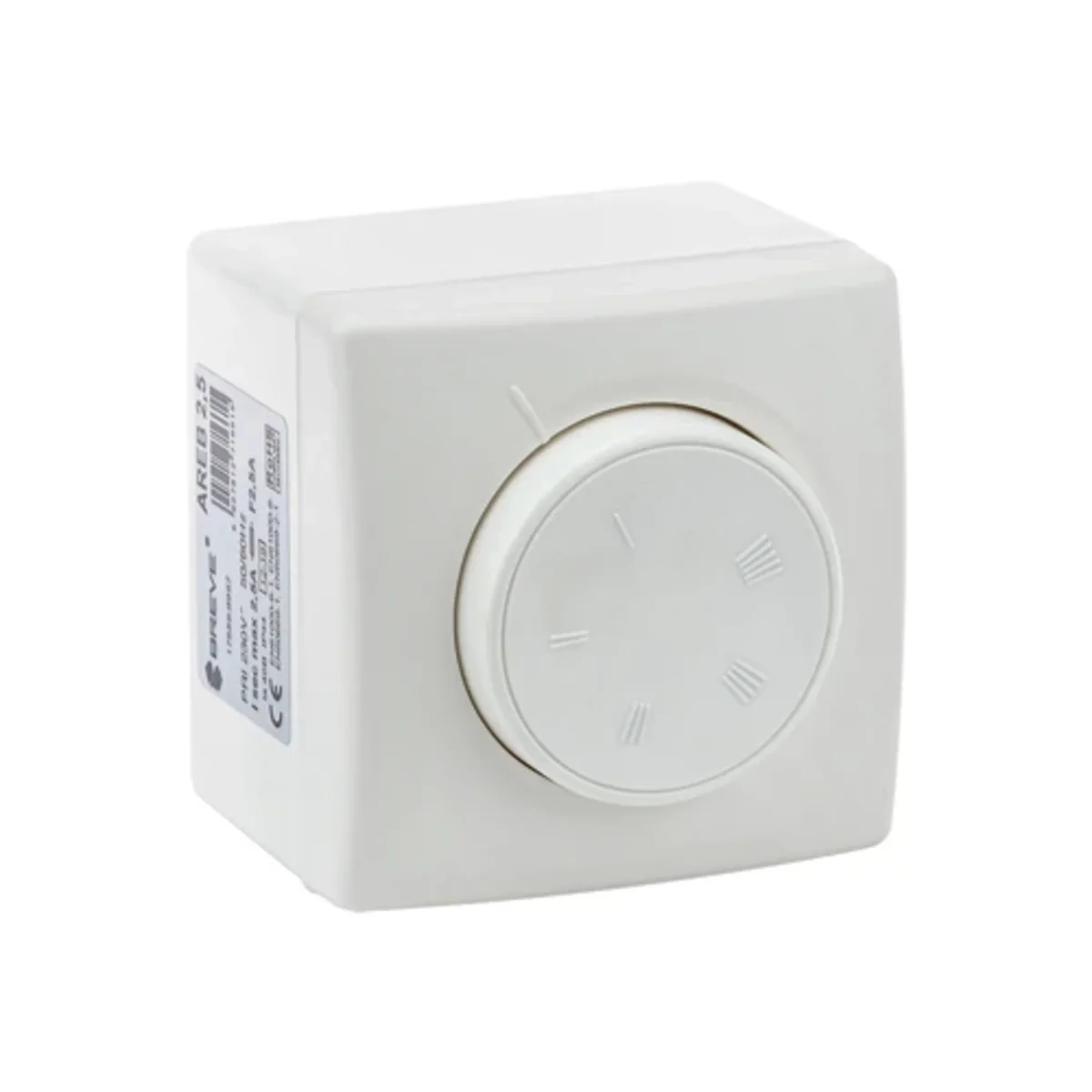

Compact, electronic AREB controllers for industrial applications as stepless speed controllers of single-phase fan motors in ventilation or heating systems. Designed for both surface and flush mounting. Equipped with an illuminated switch with the memory of the last setting and the minimum speed setting. Made in accordance with EN61000-6-1, EN61000-6-3, EN60669-1 and EN60669-2-1.
Technical data
-
number of phases1
-
Power [W]460
-
Rated voltage [V]230
-
FamilyARB
-
Level of securityIP44
-
Dimensions [mm]82x82x65
-
Insulation classb
-
MaterialPA
-
InstallationSurface-mounted
-
Rated current [A]2.5
-
ControlManual
-
Weight [kg]0.22
-
Type of regulationFluid
-
PKWIU27.11.42.0
Other technical data
-
Number of phases1
-
Method of operationTurn/push button
-
Switching contactNo
-
Width82 mm
-
Degree of protection (IP)IP20
-
Power control steplessYes
-
IlluminationIlluminated (on)
-
Height82 mm
-
Depth65 mm
Manufacturer details
-
ManufacturerBREVE-TUFVASSONS Sp. z o.o.
-
Address93-347 Łódź Postępowa 25/27 Polska
-
