Arc E25-42 Cam switch L-0-R direction change 952541

local index:
ALK312ELDZ
Catalog No:
952541
EAN code:
5906197480227
Price:
23,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

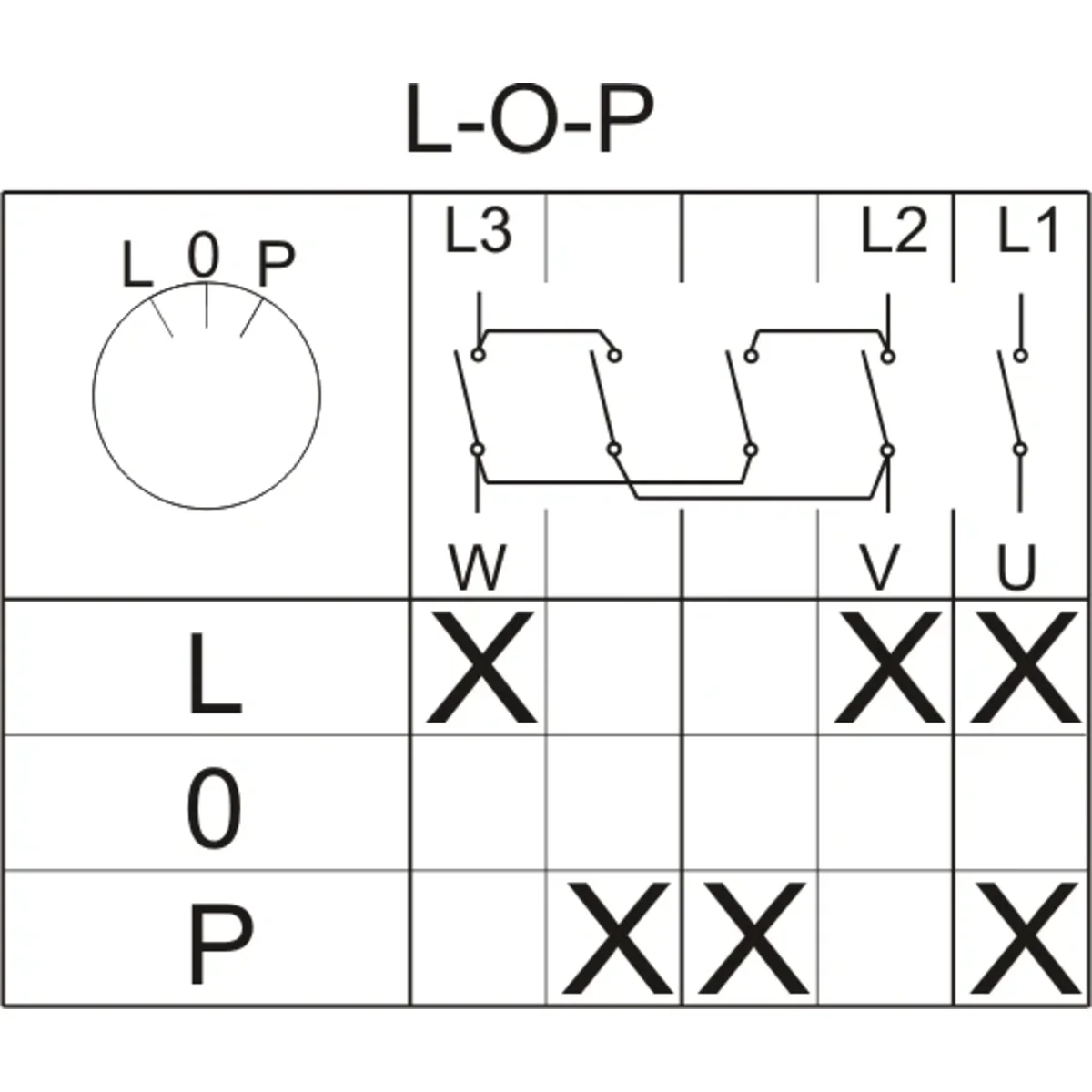

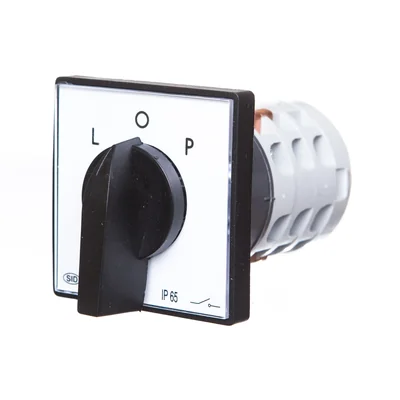

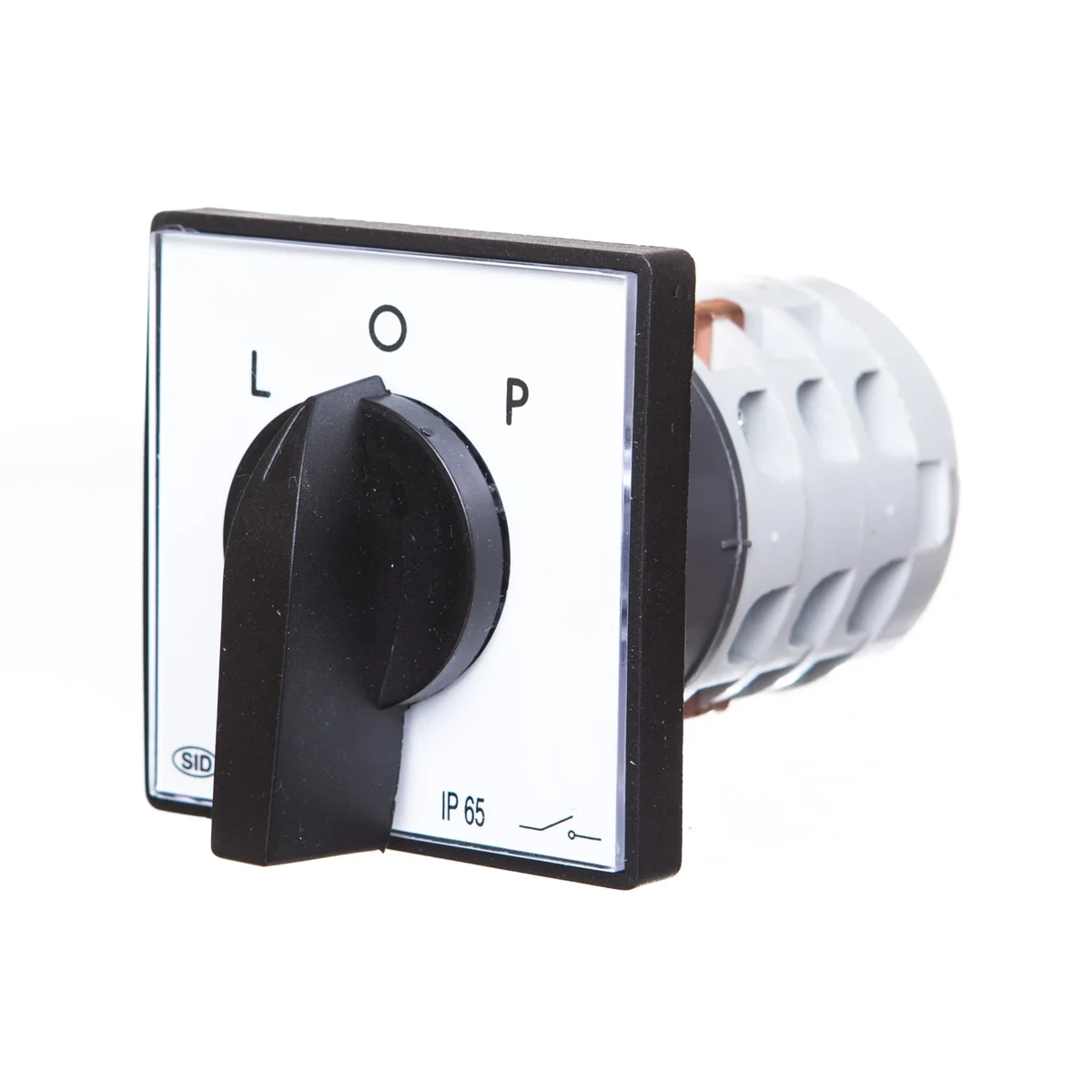

Arc E25-42 Cam switch L-0-R direction change

Technical data

  • PKWIU
    27.33.11.0

Other technical data

  • Model
    Level switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    25 A
  • Degree of protection (IP), front side
    IP65
  • Complete device in housing
    No
  • Type of electrical connection of main circuit
    Screw connection
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation power at AC-3, 400 V
    8.5 kW
  • Suitable for front mounting
    Yes
  • Type of control element
    Turn button
