Automation
Relays and drivers
Other automation elements

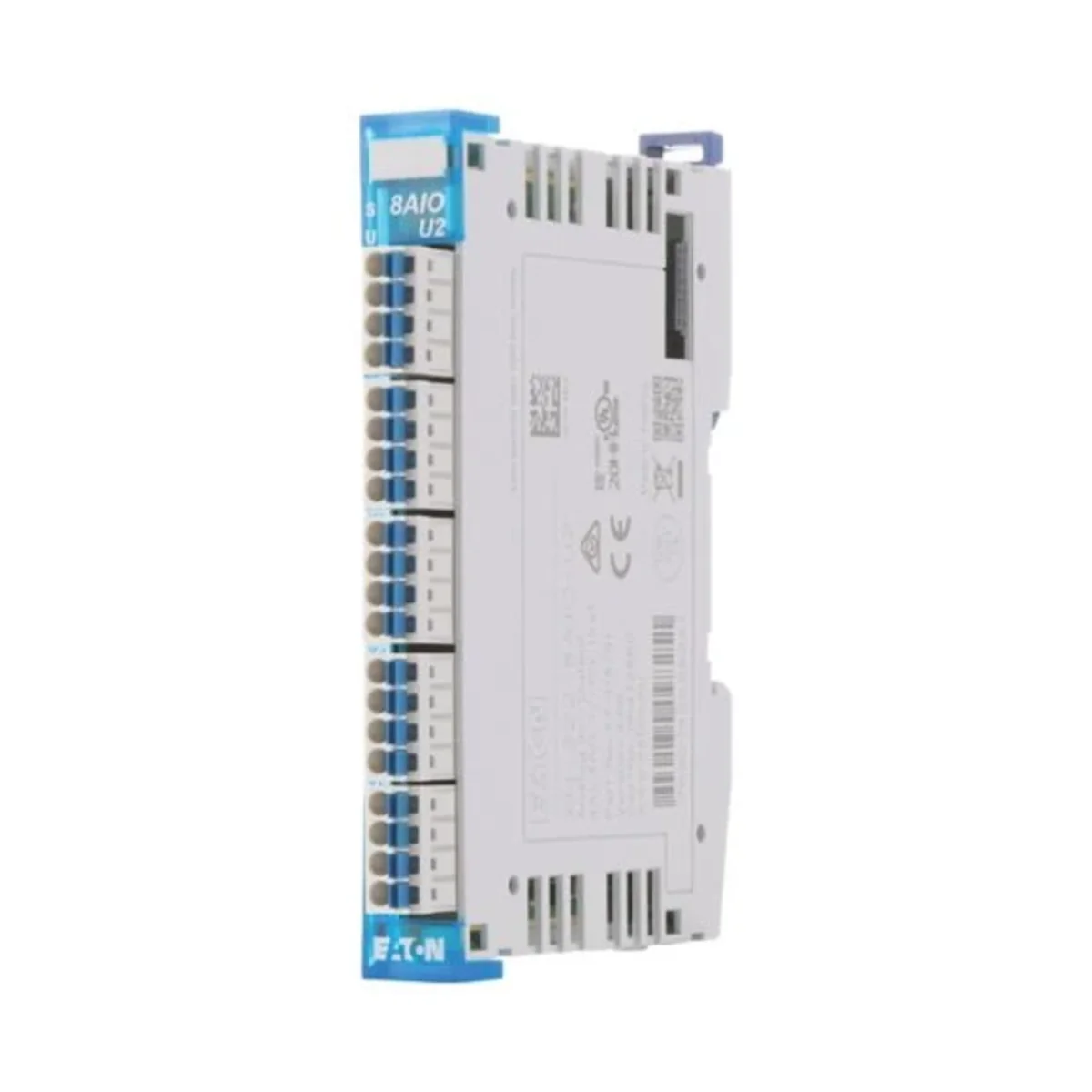

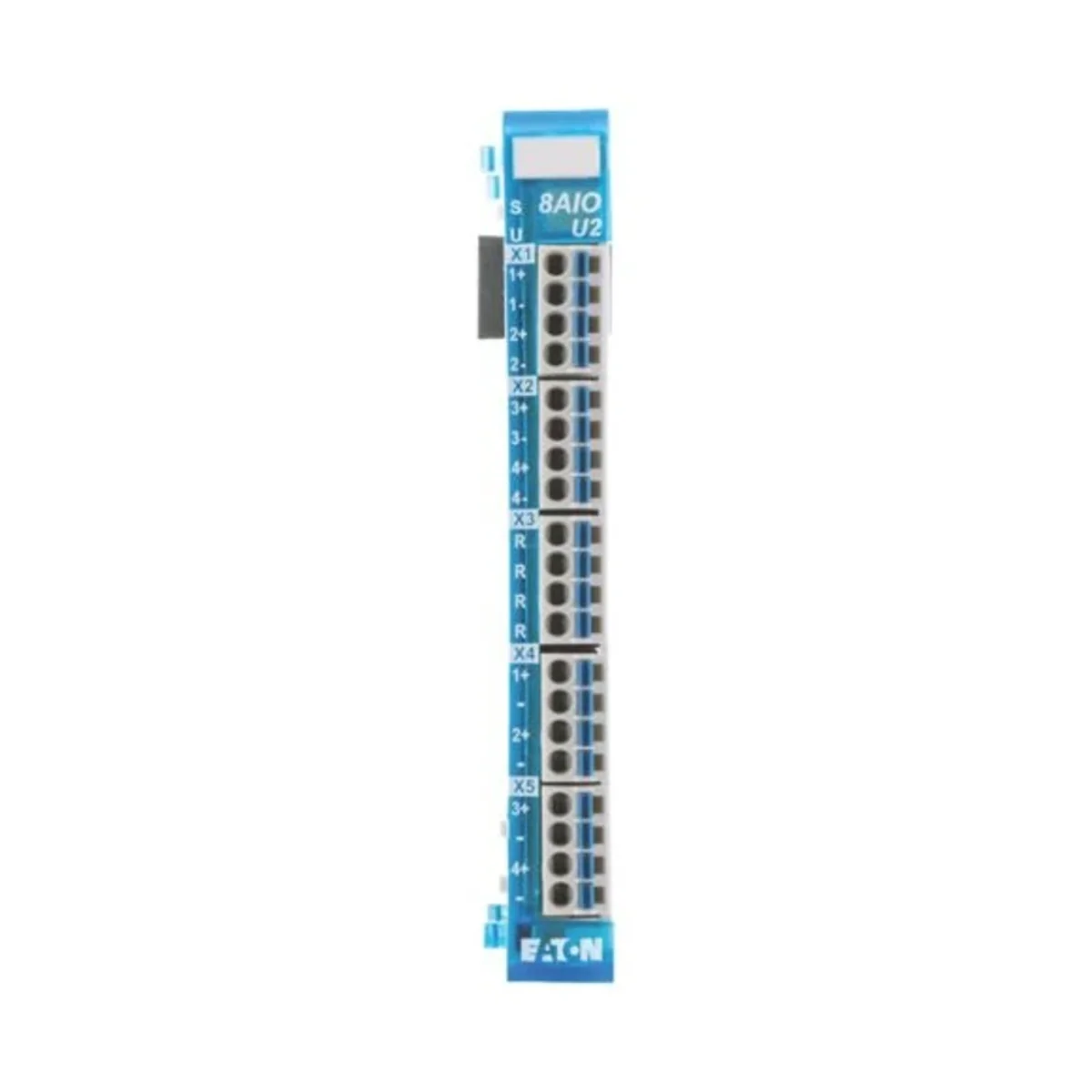

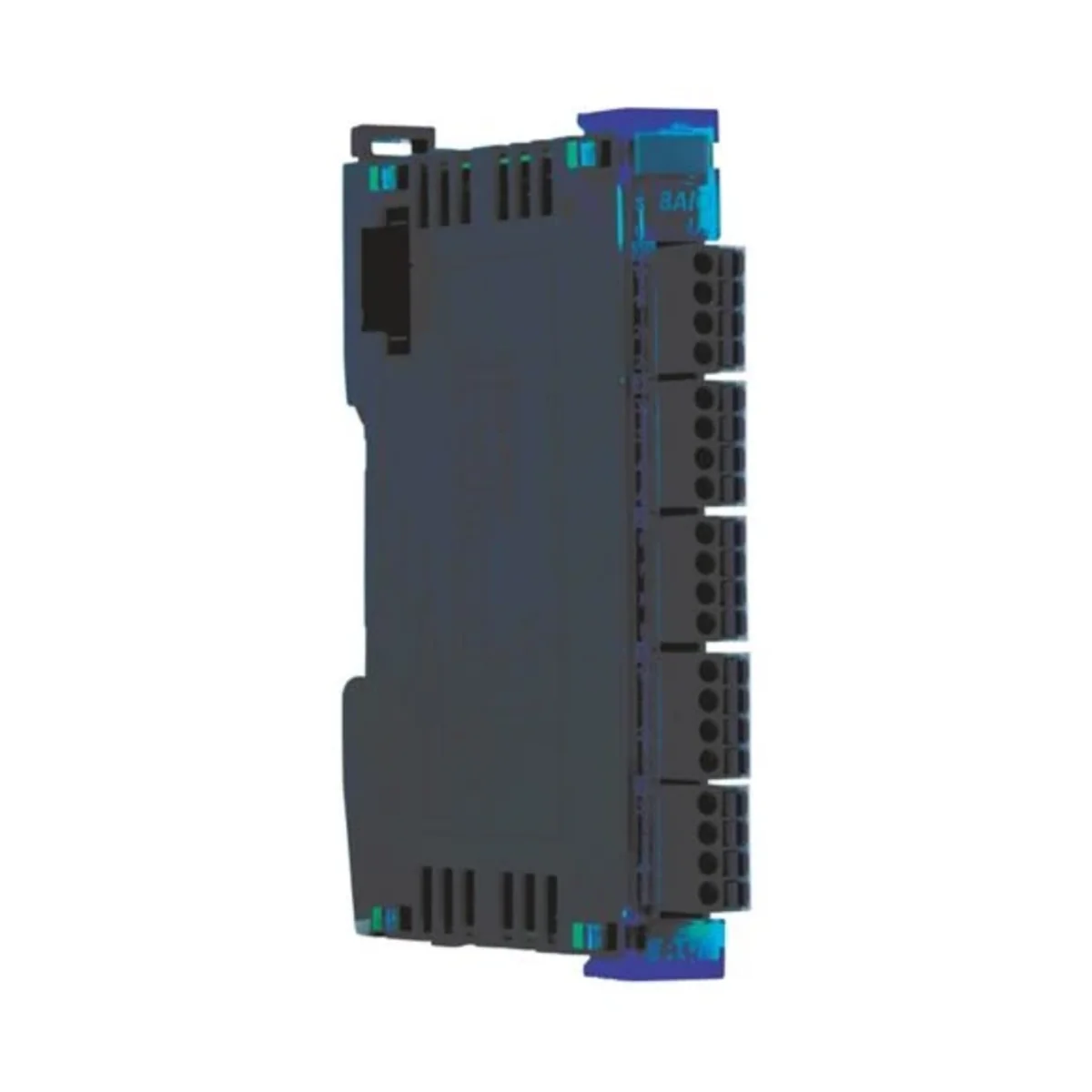

Analog input/output module XN-322-8AIO-U2 178791
local index:
API103MOEL
Catalog No:
178791
EAN code:
7640130098251
Click on the photo to enlarge
Manufacturer:
EATON
See full description
Price:
533,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 6 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
XN-322-8AIO-U2 analog input/output module
Technical data
Other technical data
Supply voltage AC 50 Hz
0 ... 0 V
Supply voltage DC
18 ... 30 V
Input, current
No
Input, resistor
No
Input, thermocouple
No
Resolution of the analogue inputs
16 b
Output, voltage
Yes
Resolution of the analogue outputs
12 b
Number of analogue outputs
4
Analogue outputs configurable
Yes
Number of interfaces PROFINET
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces wireless
0
Number of HW-interfaces other
1
Supporting protocol for PROFIBUS
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Data-Highway
No
Supporting protocol for SUCONET
No
Supporting protocol for PROFINET IO
No
Supporting protocol for SERCOS
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for other bus systems
Yes
Radio standard WLAN 802.11
No
Radio standard GSM
No
IO link master
No
Degree of protection (IP)
IP20
Type of electric connection
Plug-in connection
Rail mounting possible
Yes
Front built-in possible
No
Suitable for safety functions
No
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ib)
No
Explosion safety category for dust
None
Height
16.8 mm
Supply voltage AC 60 Hz
0 ... 0 V
Voltage type (supply voltage)
DC
Input, voltage
Yes
Input, resistance thermometer
No
Input signal, configurable
Yes
Output, current
No
Output signal configurable
No
Number of analogue inputs
4
Analogue inputs configurable
Yes
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces parallel
0
Number of HW-interfaces USB
0
Supporting protocol for TCP/IP
No
Supporting protocol for CAN
No
Supporting protocol for ASI
No
Supporting protocol for Modbus
No
Supporting protocol for DeviceNet
No
Supporting protocol for LON
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for SafetyBUS p
No
Radio standard Bluetooth
No
Radio standard GPRS
No
Radio standard UMTS
No
System accessory
Yes
Degree of protection (NEMA)
1
Fieldbus connection over separate bus coupler possible
No
Wall mounting/direct mounting
No
Rack-assembly possible
No
SIL according to IEC 61508
None
Appendant operation agent (Ex ia)
No
Explosion safety category for gas
None
Width
80.3 mm
Depth
104.2 mm
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,077
Volume (m3)
0,000
Width (m)
0,085
Length (m)
0,108
Depth (m)
0,020
