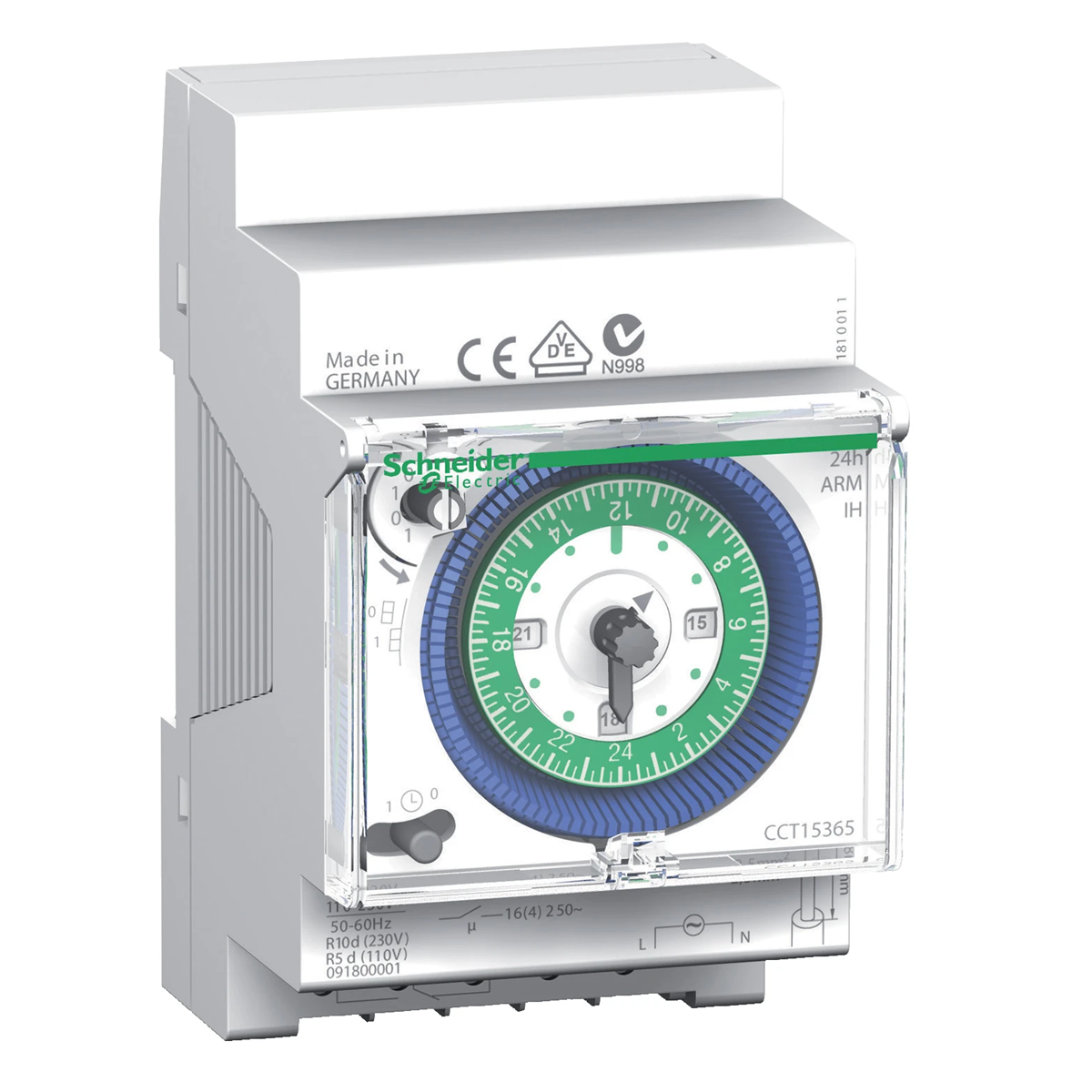

Acti9 mechanical time switch IH 24h 1c ARM CCT15365

local index:
APC013SCHN
Catalog No:
CCT15365
EAN code:
3606480179587
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 90
Price:
89,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Acti9 mechanical time switch IH 24h 1c ARM

Technical data

  • Height [mm]
    90
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    DIN rail
  • Supply voltage
    110 ... 230 V
  • Frequency supply voltage
    50 ... 60 Hz
  • Accuracy per day
    1 s
  • 24 h program
    Yes
  • Annual program
    No
  • Quartz controlled
    No
  • Shortest switching time channel 1
    15 min
  • Automatic switching summer-/winter time
    No
  • Switching preselection
    Yes
  • Potential free switch contact
    Yes
  • Width in number of modular spacings
    3
  • Height
    90 mm
  • Number of channels
    1
  • Voltage type (supply voltage)
    AC
  • Autonomy in hours
    150
  • 60 min program
    No
  • Weekly program
    No
  • Mains synchronous
    No
  • Contact type
    Change-over contact
  • Program shift divide 1
    15 min
  • Suitable for manual operation
    Yes
  • Nominal switching current at 250 V AC
    16 A
  • Degree of protection (IP)
    IP20
  • Width
    54 mm
  • Depth
    66 mm
