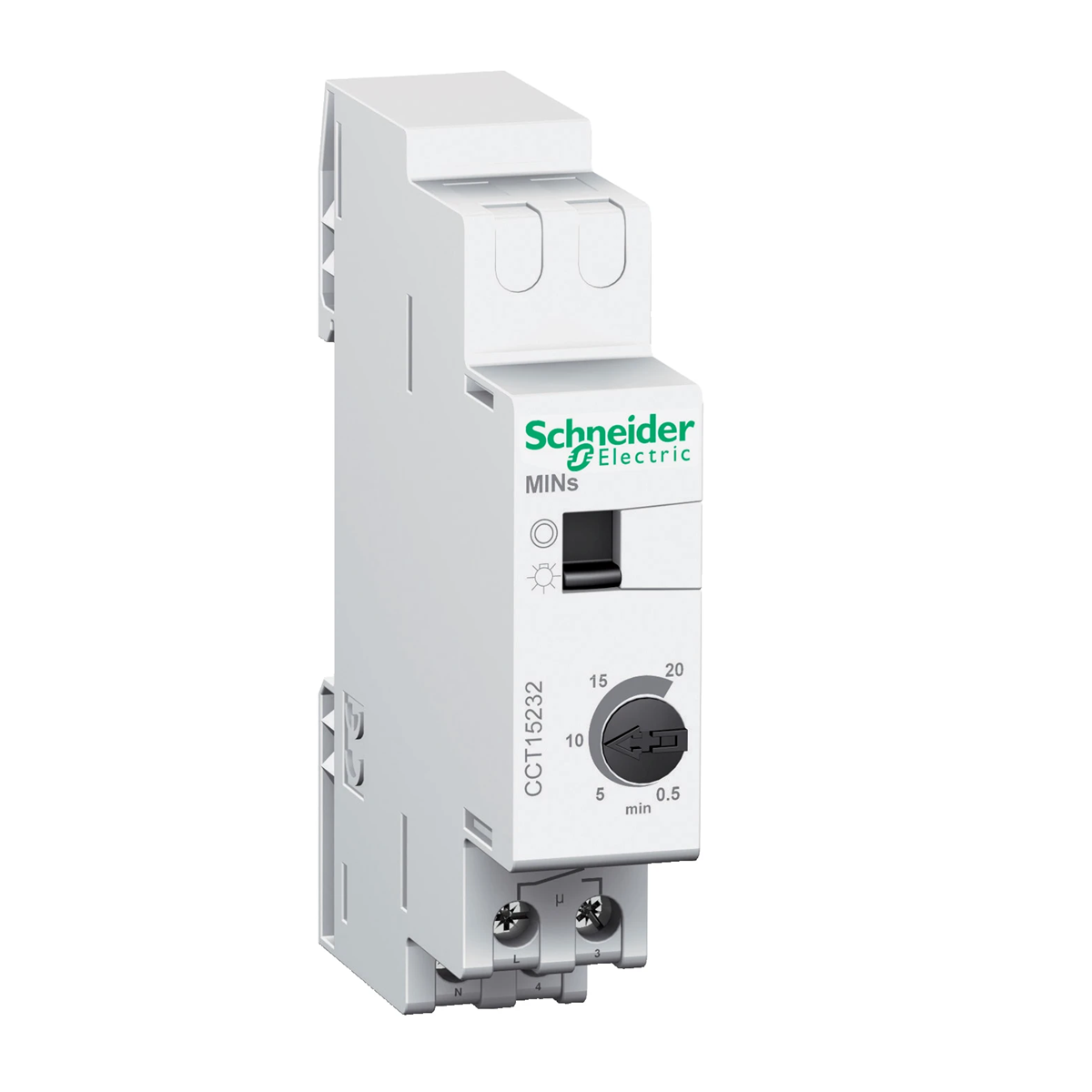

Acti9 electronic time switch CCT15232
local index:
APC008SCHN
Catalog No:
CCT15232
EAN code:
3303431062621
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]: 89
Price:
91,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Acti9 electronic time switch
Technical data
-
Height [mm]89
-
PKWIU27.12.40.0
Other technical data
-
FunctionElectronic
-
Width in number of modular spacings1
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Frequency control voltage 250 ... 50 Hz
-
Max. switching current (cos phi = 0.6)10 A
-
Wiring system3 and 4 wire configuration
-
Current surge function selectableNo
-
Supply voltage230 ... 230 V
-
Max. incandescent lamp load2300 W
-
Max. load fluorescent lamp (Duo circuit)2300 VA
-
Mounting methodDIN rail
-
Built-in depth66 mm
-
Number of contacts as normally closed contact0
-
Control voltage 1230 ... 230 V
-
Frequency control voltage 150 ... 60 Hz
-
Rated switch current16 A
-
Release-delay0.5 ... 20 min
-
Pre-warning of switching-offNone
-
RepetitiveNone
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp2300 VA
-
Max. load fluorescent lamp (parallel compensated)400 VA
