74662
0

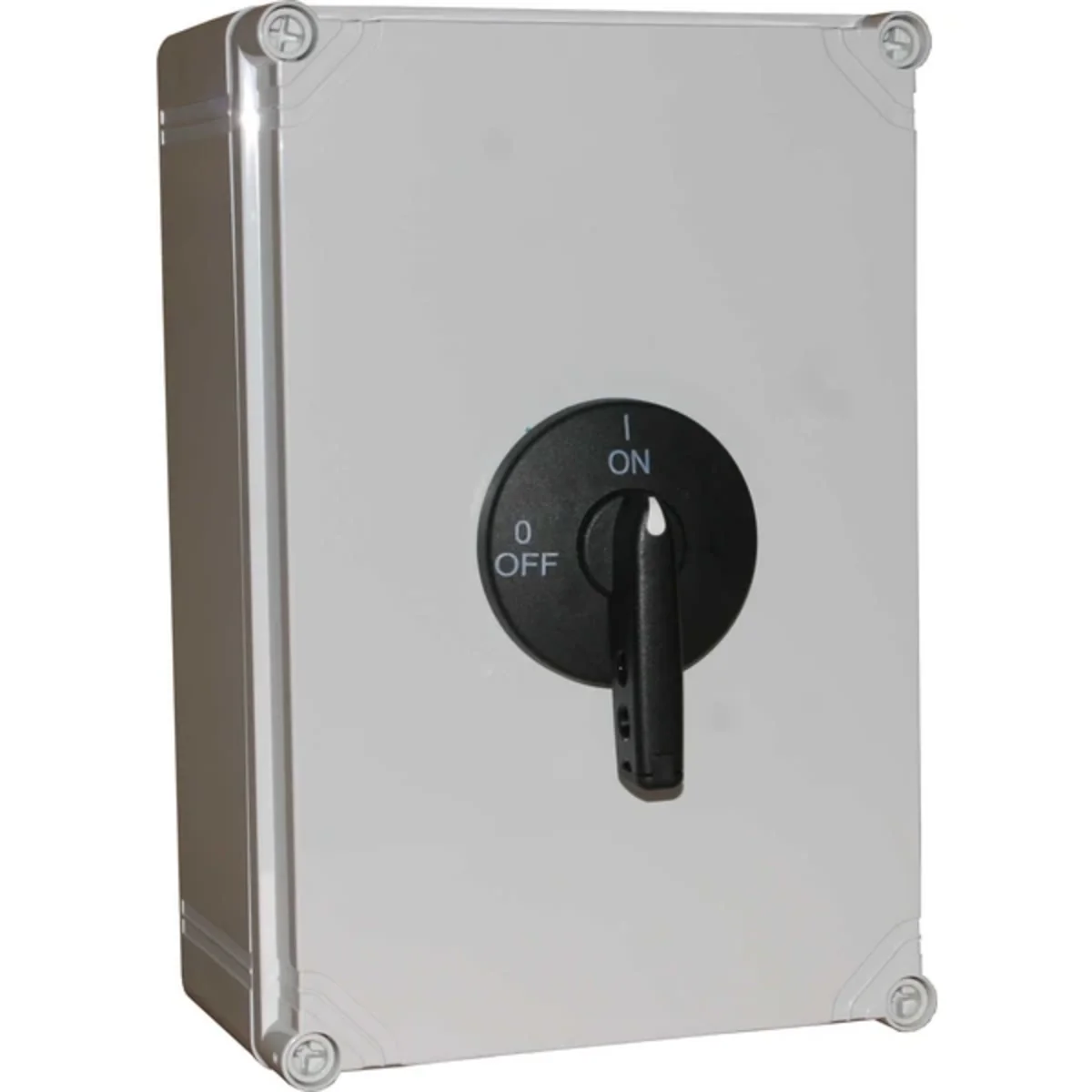

80A four-pole switch disconnector in a housing RSI-4080OBA\/
local index:
ALI017SPAM
Catalog No:
RSI-4080OBA\/
EAN code:
5907723052680
Manufacturer:
SPAMEL
Rated insulation voltage [V]: 690
Continuous current [A]: 80
Level of security: IP20
Price:
178,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RSI compact switch disconnectors are designed for operation in circuits with a rated voltage of up to 690 V, in the AC-21A...AC-23A utilization categories and in DC circuits with a voltage of up to 220 V. The disconnectors can be installed in closed rooms (3 degree of pollution - industrial purpose), at the temperature from -40°C to +70°C.
Technical data
-
Rated insulation voltage [V]690
-
Level of securityIP20
-
Continuous current [A]80
Other technical data
-
Jako rozłącznik kompaktowyYes
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Rated permanent current Iu80 A
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
InterlockableNo
-
Degree of protection (IP), front sideIP20
-
Version as main switchYes
-
Version as safety switchYes
-
Max. rated operation voltage Ue AC690 V
-
Rated operation power at AC-23, 400 V35 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionComplete device in housing
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Type of control elementTurn button
-
Type of electrical connection of main circuitClamp bracket
