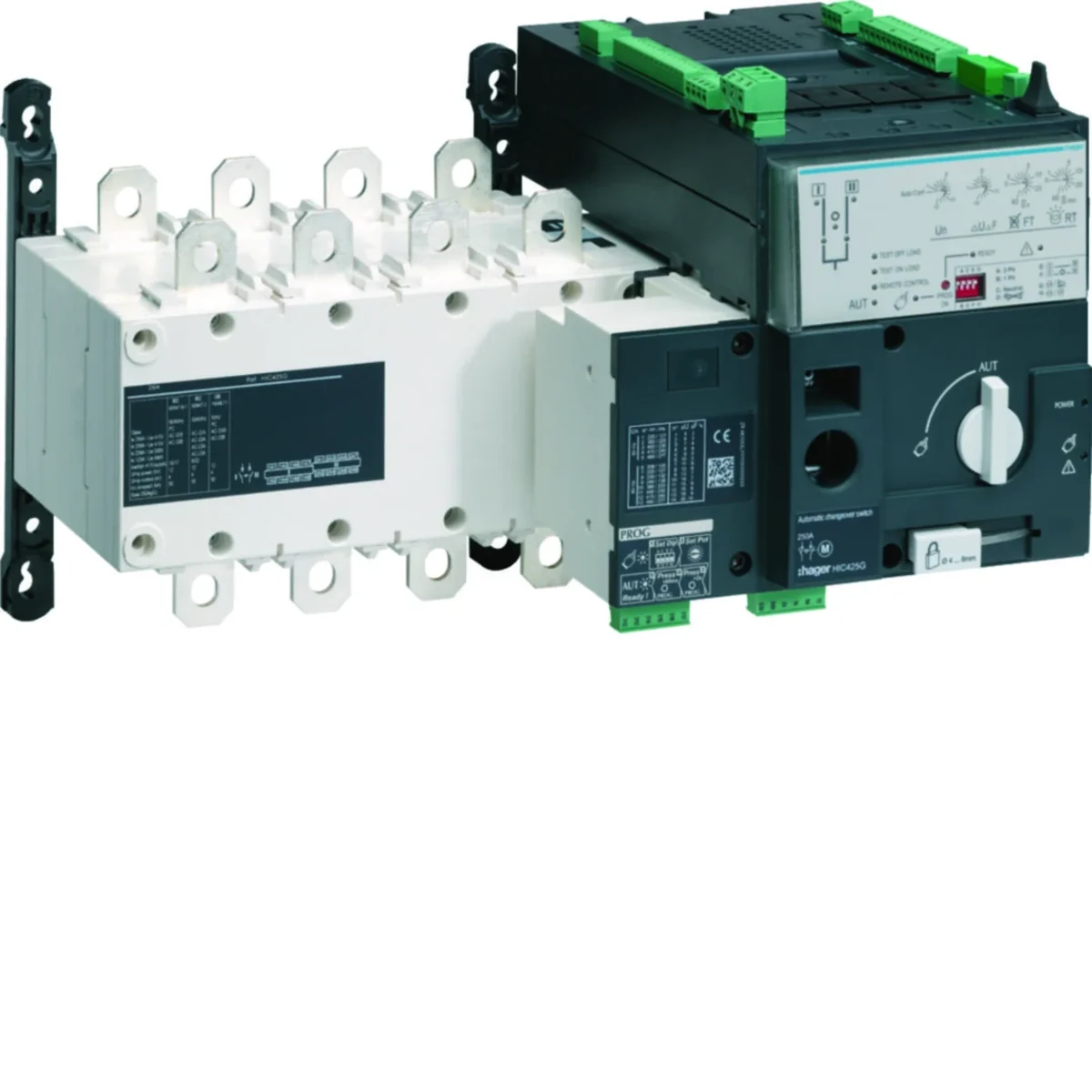

800A automatic power switch HIC480G

Name: 800A automatic power switch
Brand: HAGER
SKU: ALM110HAGE
Price: 33804.46 PLN
Availability: BackOrder

Lokaler Index:

ALM110HAGE

Katalognummer:

HIC480G

EAN-Code:

3250613131852

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: HAGER

Rated frequency [Hz]: 60

Number of poles: 4

Rated current [A]: 800

Siehe vollständige Beschreibung

Preis:

33 804,46 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 10 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Automatic power switch with 800A electromagnetic drive is perfectly adapted to meet the current requirements resulting from everyday electrical installation practice. Various connection options and a wide range of equipment allow for the implementation without much effort, even unusual solutions on the implemented facilities.

Technische Daten

Rated frequency [Hz]

60
Rated current [A]

800
Connection type

Vice
PKWIU

27.33.11.0

Number of poles

4
Level of security

IP00
Rated switching voltage [V]

380/415

Weitere technische Daten

Version as main switch

Yes
Version as safety switch

Yes
Version as reversing switch

Yes
Max. rated operation voltage Ue AC

415 V
Rated permanent current Iu

800 A
Rated permanent current at AC-21, 400 V

800 A
Rated operation power at AC-23, 400 V

360 kW
Conditioned rated short-circuit current Iq

50 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

Yes
Device construction

Built-in device fixed built-in technique
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

Yes
Colour control element

Other
Interlockable

Yes
With pre-assembled cabling

No
Degree of protection (NEMA)

Other

Version as maintenance-/service switch

Yes
Version as emergency stop installation

No
Number of switches

1
Rated operating voltage

380 ... 415 V
Rated permanent current at AC-23, 400 V

800 A
Rated short-time withstand current lcw

64 kA
Switching power at 400 V

526 kW
Number of poles

4
Number of auxiliary contacts as normally open contact

1
Motor drive optional

No
Voltage release optional

No
Suitable for floor mounting

Yes
Suitable for front mounting centre

No
Suitable for intermediate mounting

No
Type of control element

Other
Type of electrical connection of main circuit

Cable clamp
Degree of protection (IP), front side

IP00

Hersteller-Details

Hersteller

Hager Electro S.A.S.
Adresse

FR 67215 Obernai 123 boulevard d’Europe Francja
E-Mail

wsparcie.klienta@hager.com

Großpackungen

Eine Art Paket	Karton	Paleta
Menge	1 stk.	1 stk.
Gewicht (kg)	48,200	48,200
Breite (m)	0,800	0,800
Länge (m)	0,600	0,750
Tiefe (m)	0,730	1,200
