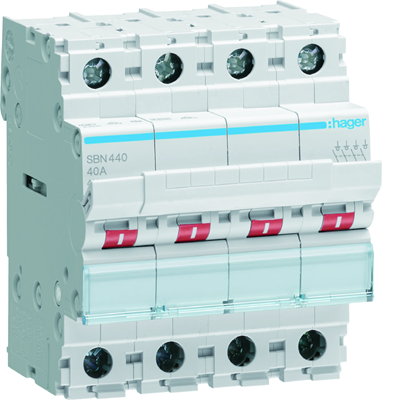

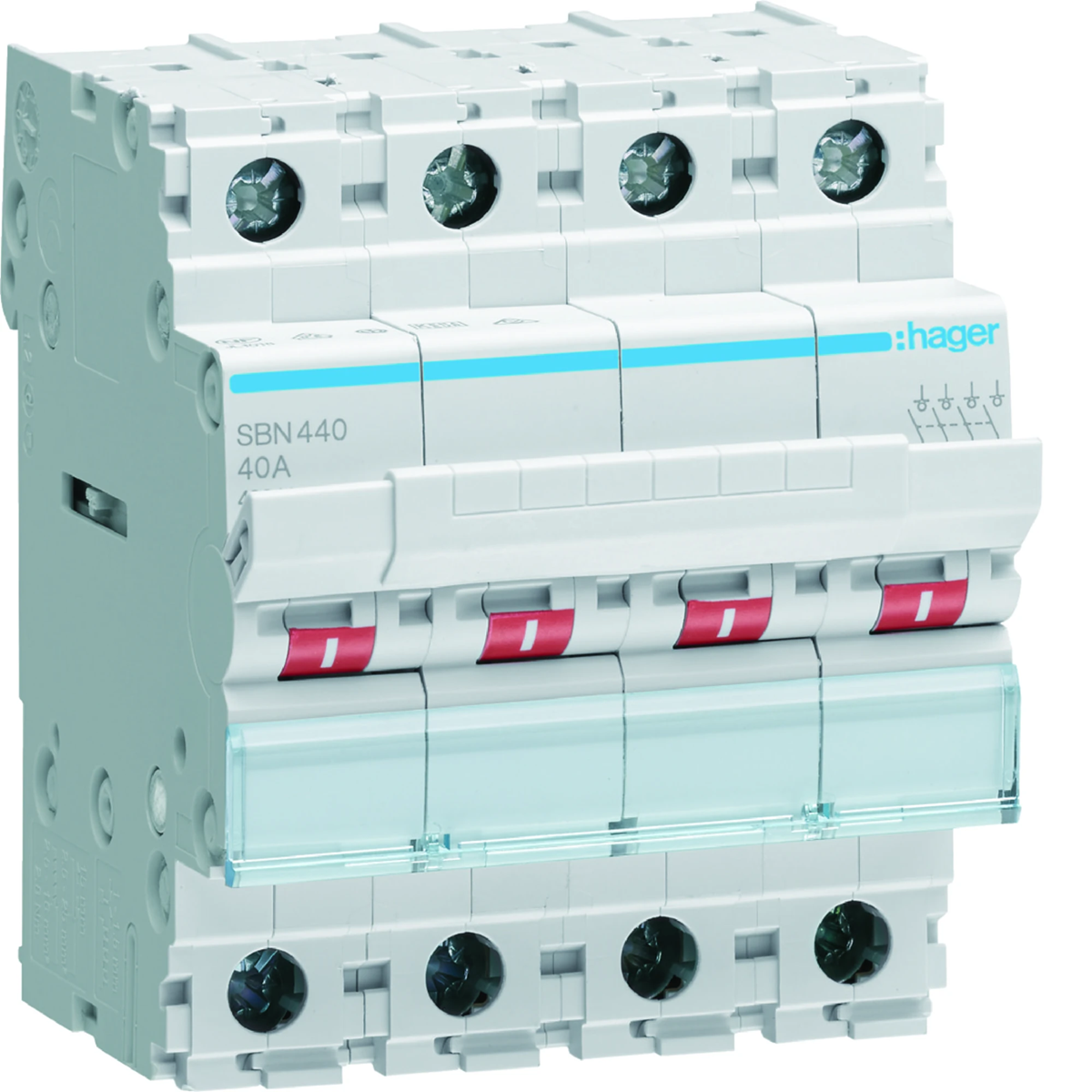

4P 40A modular switch disconnector SBN440

local index:
ALI157HAGE
Catalog No:
SBN440
EAN code:
3250615510198
Manufacturer: HAGER
Depth [mm]: 69
Number of modules: 4
Number of poles: 4
Price:
30,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular switch disconnectors For disconnecting all types of circuits.

Compliance with PN-EN 60943-3 for the entire range and PN-EN 60669-1 for the range from 16 A to 63 A.

Characteristics:

All disconnectors have green/red fields on the drive lever for clear visualization of the disconnector position.

Technical data:


  • Utilization category AC22A 230V/400V


  • Ie: 16A to 32A size 1.
  • < br/>

  • Connection terminals:


  • 16 mm² - wire


  • 10 mm² - stranded


  • Ie: 32 A to 63 A size 2.


  • Connection terminals:


  • 25 mm² - solid


  • 16 mm² - stranded


  • Ie: 63 A to 125 A size 3.


  • Connection terminals:


  • 50 mm² - solid


  • 35 mm² - stranded
It is not possible to use shunt, undervoltage and overvoltage releases of the MZ2xx series.




Technical data

  • Depth [mm]
    69
  • Number of poles
    4
  • Rated voltage [V]
    230
  • Rated current [A]
    40
  • Width [mm]
    70
  • Number of modules
    4
  • Number of modules
    4
  • Surge voltage [kV]
    6000
  • Rated insulation voltage [V]
    440
  • Power dissipation [W]
    4
  • Height [mm]
    83
  • PKWIU
    27.33.11.0

Other technical data

  • Switching function
    Off switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    4
  • Rated voltage
    400 V
  • Rated switching capacity
    0.846 kA
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Built-in depth
    69 mm
  • Number of contacts as normally open contact
    4
  • Number of contacts as change-over contact
    0
  • Rated current
    40 A
  • Min. rated voltage
    400 V
  • Short-circuit breaking capacity (Icw)
    0.6 kA
  • With signal lamp
    No
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,278 0,890 11,060 288,440
Width (m) 0,070 0,095 0,315 0,800
Length (m) 0,083 0,080 0,215 1,050
Depth (m) 0,074 0,225 0,360 1,200
