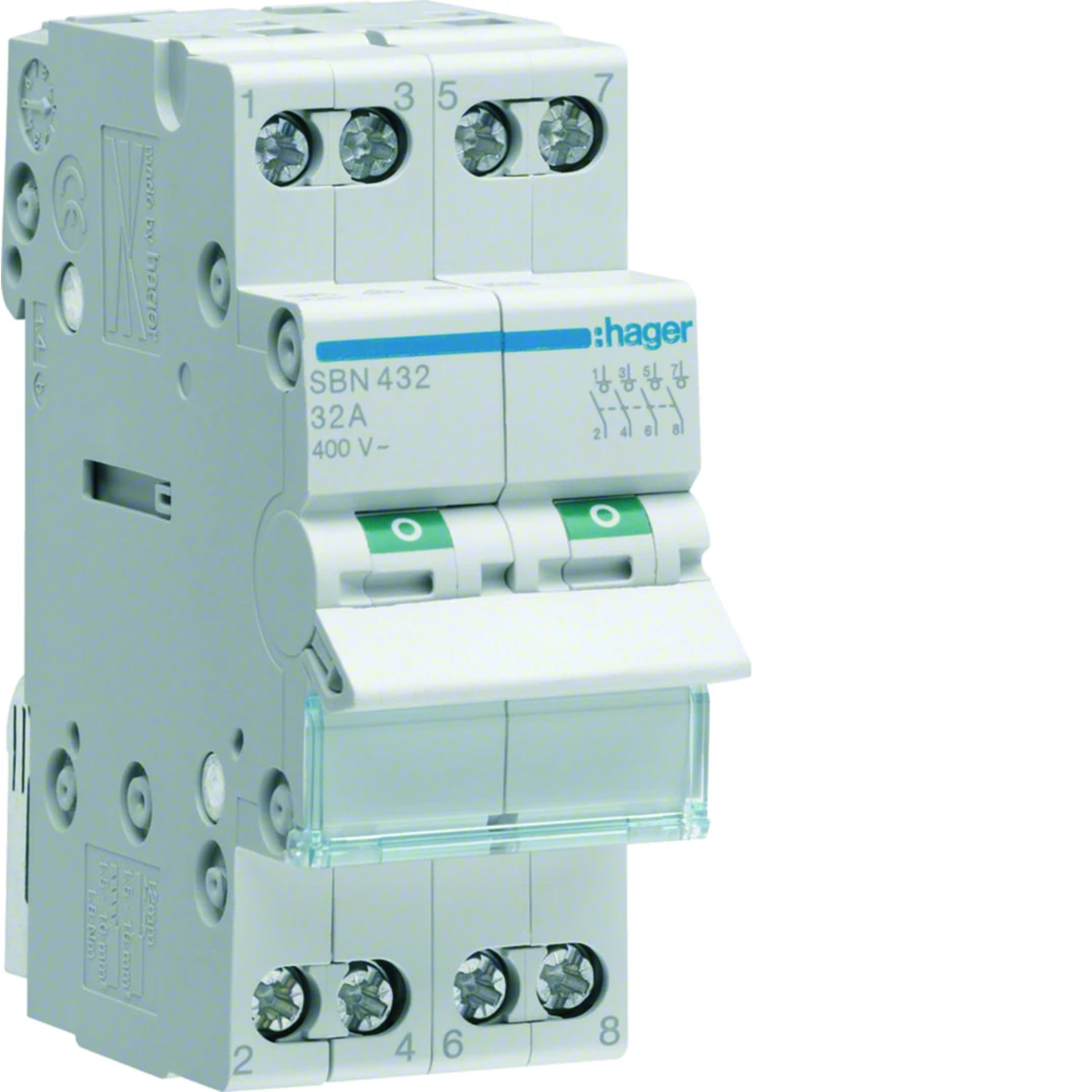

4P 32A modular switch disconnector SBN432

local index:
ALI045HAGE
Catalog No:
SBN432
EAN code:
3250615510150
Manufacturer: HAGER
Depth [mm]: 68
Number of modules: 2
Number of poles: 4
Price:
28,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

4P 32A modular switch disconnector

Technical data

  • Depth [mm]
    68
  • Number of poles
    4
  • Rated voltage [V]
    230
  • Rated current [A]
    32
  • Height [mm]
    83
  • PKWIU
    27.33.11.0
  • Number of modules
    2
  • Surge voltage [kV]
    4000
  • Rated insulation voltage [V]
    440
  • Width [mm]
    35
  • Number of modules
    2

Other technical data

  • Switching function
    Off switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    4
  • Rated voltage
    400 V
  • Rated switching capacity
    0.677 kA
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Built-in depth
    68 mm
  • Number of contacts as normally open contact
    4
  • Number of contacts as change-over contact
    0
  • Rated current
    32 A
  • Min. rated voltage
    400 V
  • Short-circuit breaking capacity (Icw)
    0.48 kA
  • With signal lamp
    No
  • Width in number of modular spacings
    2
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 6 pcs. 72 pcs. 1728 pcs.
Weight (kg) 0,139 0,906 10,872 285,900
Width (m) 0,035 0,097 0,321 0,800
Length (m) 0,083 0,082 0,239 1,110
Depth (m) 0,073 0,230 0,369 1,200
